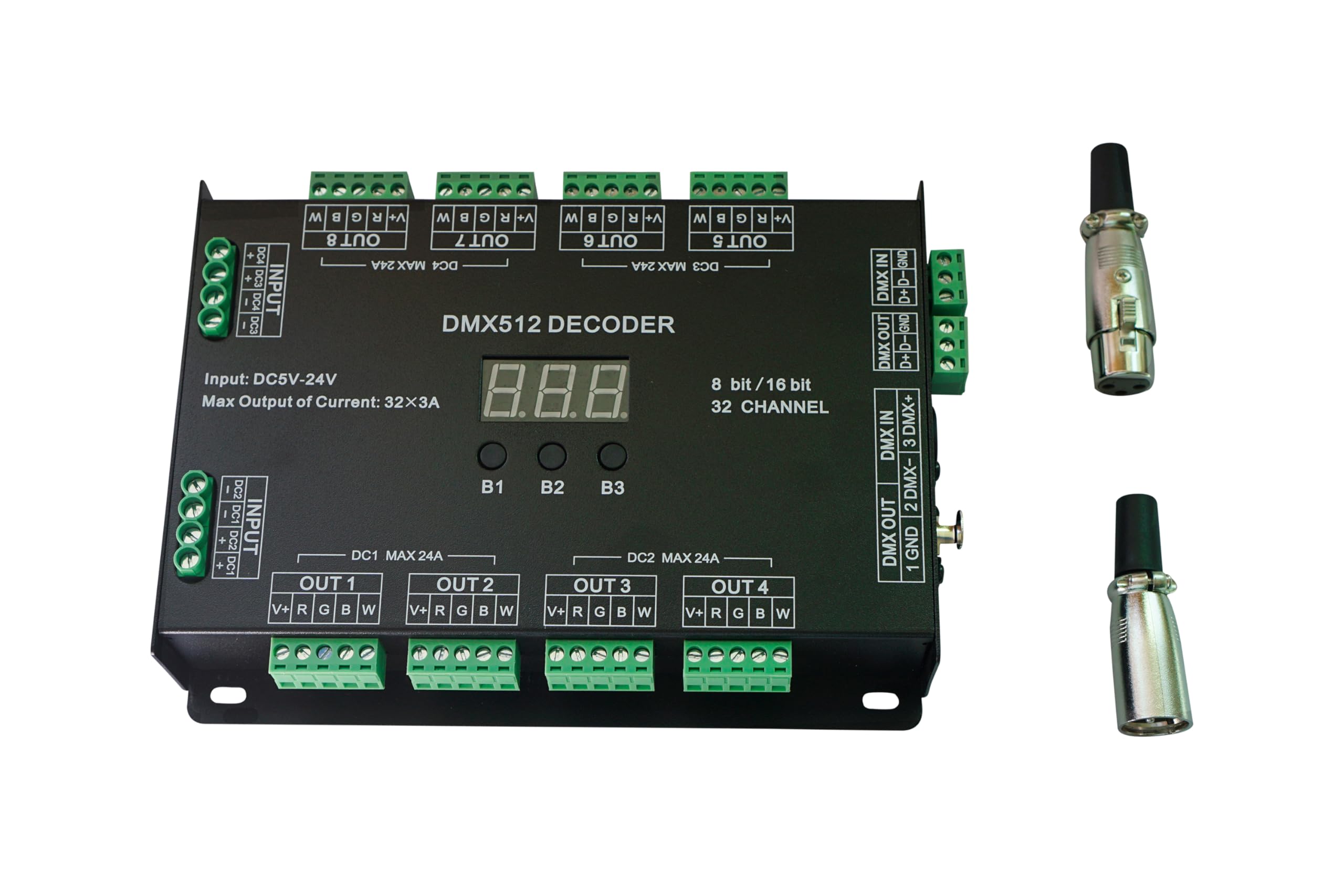

32CH RGBW DMX512 Decoder 8 Bit/16 Bit RGBW LED Controller 32 Channels Driver RGBW LED Strip Light DIM/CT/RGB/RGBW Controllder DC5V-24V

• Automatically adapts to input voltages between DC5 - 24V.
• Input standard DMX512 signal; 3-digit display shows DMX address.
• 32 channel outputs; linear dimming; flicker-free outputs.
• RGBW 4CH each group,8 Group intotal. Max 3A/CH.
• The decoder can operate in DIM / CT / RGB / RGBW control modes.

Description The 32CH RGBW DMX512 decoder converts a DMX512/1990 digital signal into PWM(Pulse Width Modulated) signals, controlled by a DMX512 console, DMX512 signal 8 bit, 16 bit optional. Featuring unique firmware, the decoder produces smooth and perfect fades. Specifications Model: 32CH DMX512 Decoder Input voltage: DC 5-24V Max load current: 3A×32CH Max 96A Max Output Power: 480W (5V) / 1152W (12V) / 2304W (24V) Grey Scale: 8 bit or 16 bit levels Input Signal: DMX512/1990 Output Signal. al: Constant Voltage PWM×32 Decode Channel: 32CH RGBW DMX512 socket: 3-pin XLR / terminal block Dimension: 187×145×35mm Weight (G.W): 757g Features 1. Automatically adapts to input voltages between DC5 - 24V. 2. Input standard DMX512 signal; 3-digit display shows DMX address. 3. 32 channel outputs; linear dimming; flicker-free outputs. 4. 14 color changing modes and 10 speeds in test mode. 5. DMX512 signal presence indicator. 6. Power loss memory. 7. Incorrect wiring protection at DMX port. 8. The decoder can operate in DIM / CT / RGB / RGBW control modes. Package: 1x 32CH Decoder 1x XLR Male Plug 1x XLR Female Plus
