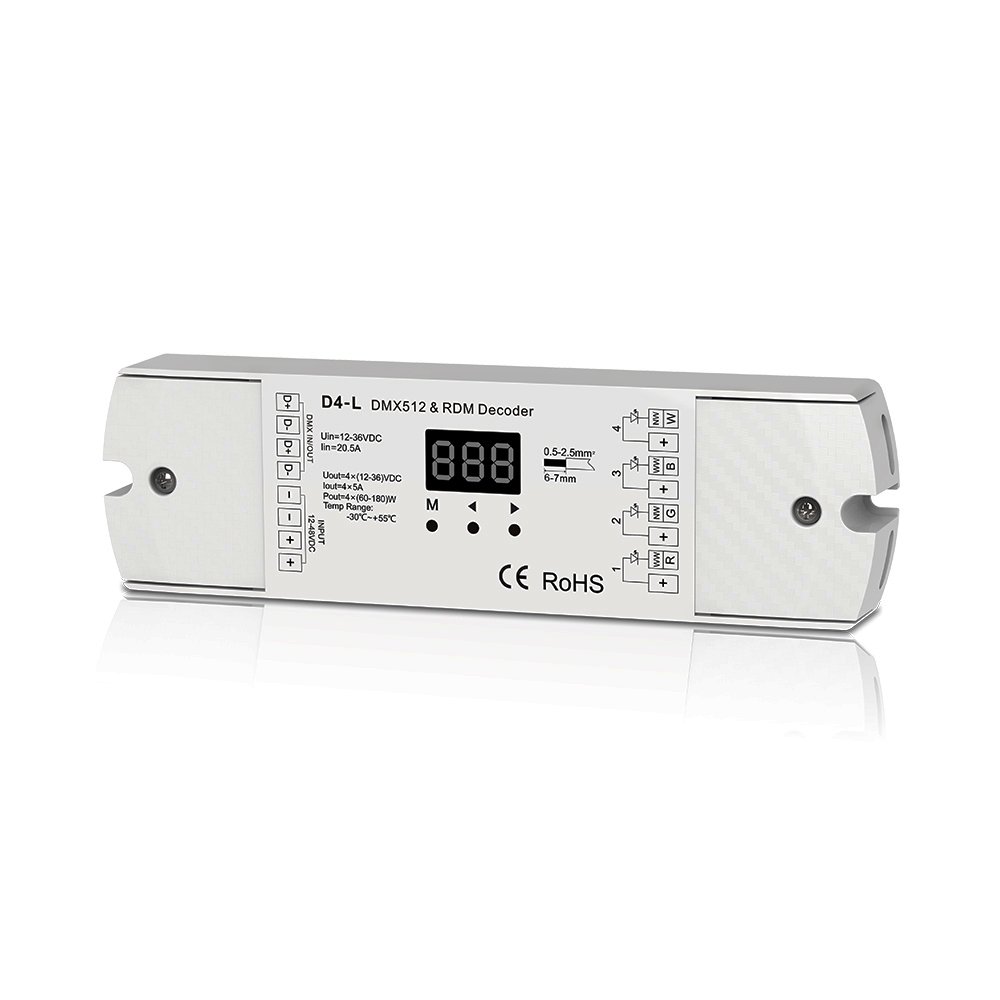

4CH 5A/CH Constant Voltage DMX512 & RDM Decoder RGBW Controller 4 Channel Dimming Controller 12-24V Output PWM

• DMX512 & RDM decoder, four channel constant voltage output, 5A per channel.
• Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.
• RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.
• DMX address can be set easily and shown on the digital numeric display

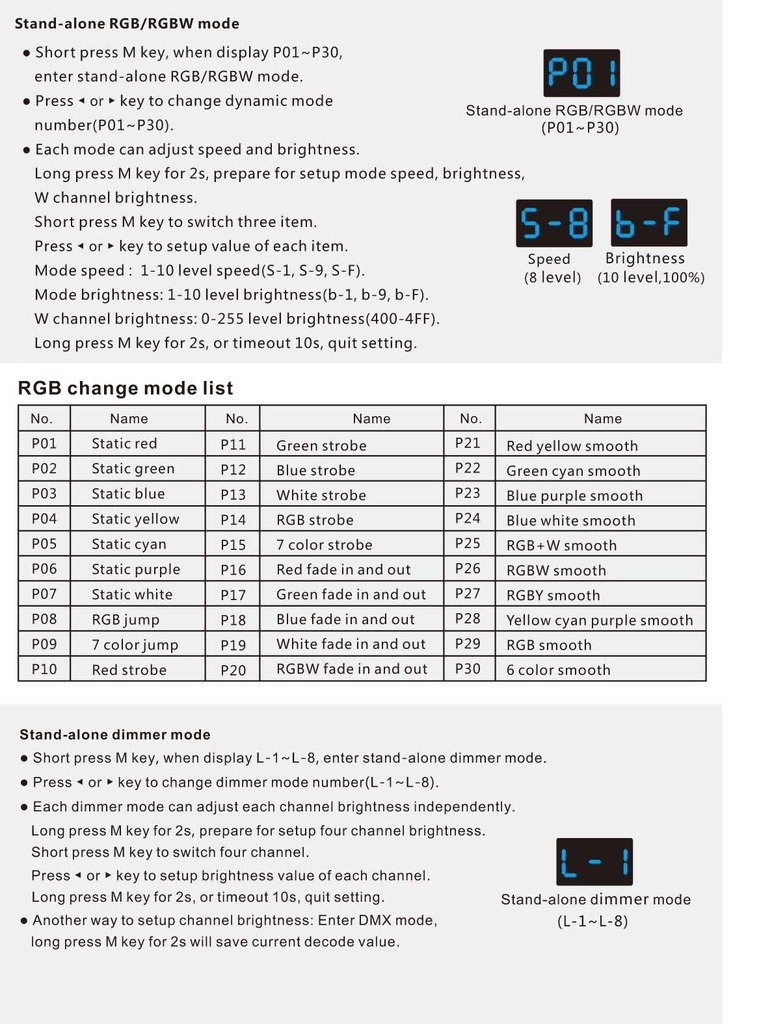

• It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.It can also work as stand-alone 4 channel dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.

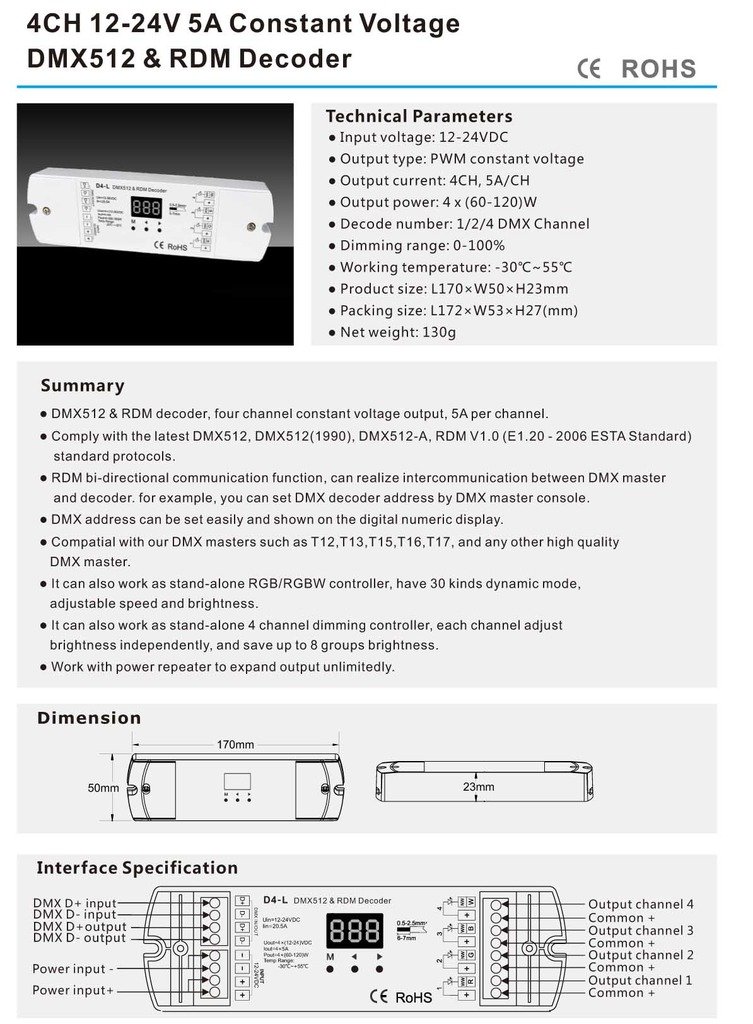

Technical Parameters Input Voltage: 12-24VDC Output Type: PWM Constant Voltage Output Current: 4CH,5A/CH Output Power: 240-480W Decoding Number: 1/2/4 DMX Channel. Dimming Range: 0-100% Working Temperature: -30℃~55℃ Dimensions: L170×W50×H23mm Weight: 125g Summary DMX512 & RDM Decoder, Four Channel Constant Voltage Output, 5A per Channel. Complies with the latest standard protocols DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA standard). Bi-directional RDM communication function, can realize the communication between DMX master and decoder For example, you can set the DMX decoder address via the DMX master console. The DMX address can be easily set and displayed on the digital numeric display. Compatible with our DMX masters such as T12, T13, T15, T16, T17 and any other high quality DMX master. It can also work as a standalone RGB/RGBW controller, has 30 different dynamic modes, adjustable speed and brightness. It can also work as a standalone 4-channel dimming controller, each channel adjusts the brightness independently and stores up to 8 group brightness. Work with Power Repeater to extend power indefinitely.
