24 CH Constant Voltage DMX512 Decoder Din Rail Mounted 24 Channel 24CH RGB Controller 24ch Dimming Controller DC 5-24V

• Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel.

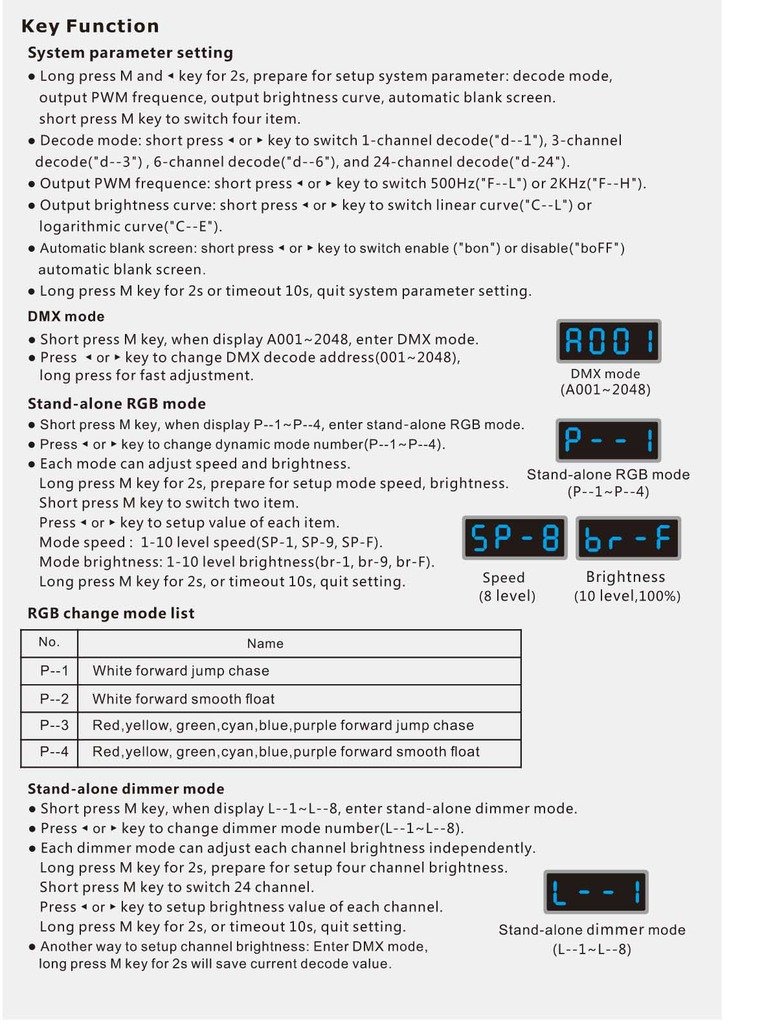

• With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
• It also can work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode.
• It also can work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.
• Decode number: 1/3/6/24 DMX Channel , 3A/CH

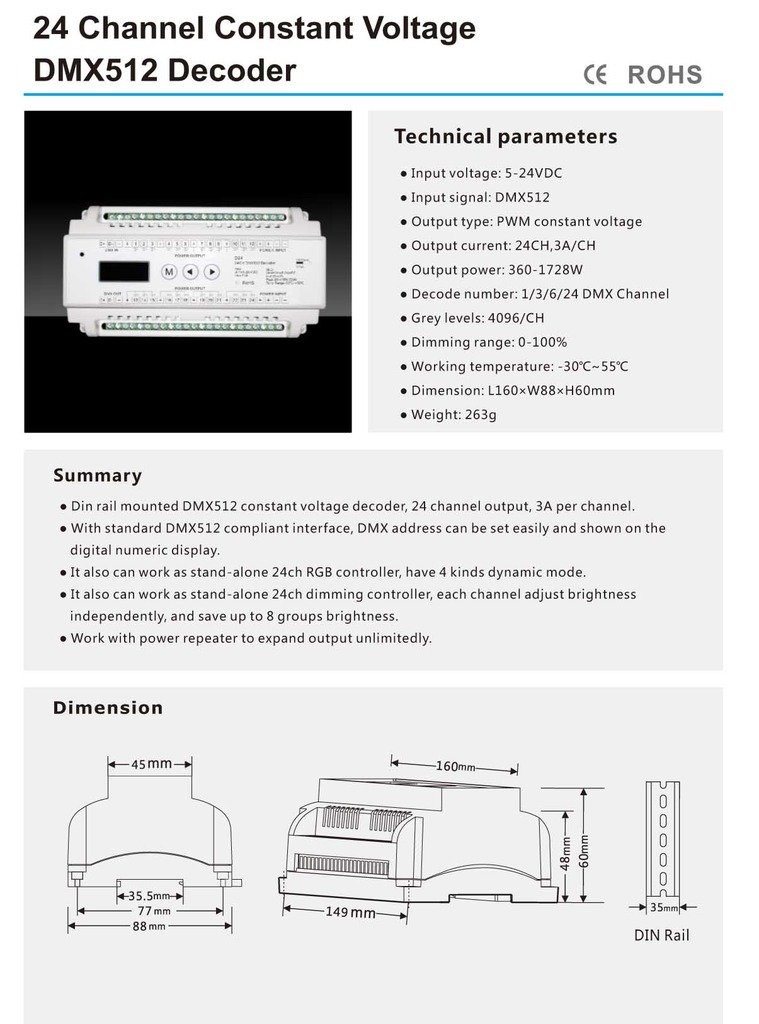

Technical parameters Input voltage: 5-24VDC. Input signal: DMX512. Output type: PWM constant voltage. Output current: 24CH,3A/CH Output power: 360-1728W. Decode number: 1/3/6/24 DMX Channel Grey levels: 4096/CH Dimming range: 0-100%. Working temperature: -30¡æ~55¡æ Dimensions: L160¡ÁW88¡ÁH60mm. Weight: 306 g. Summary Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel. With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display. It can also work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode. It can also work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness. Work with power repeater to expand output unlimitedly.
