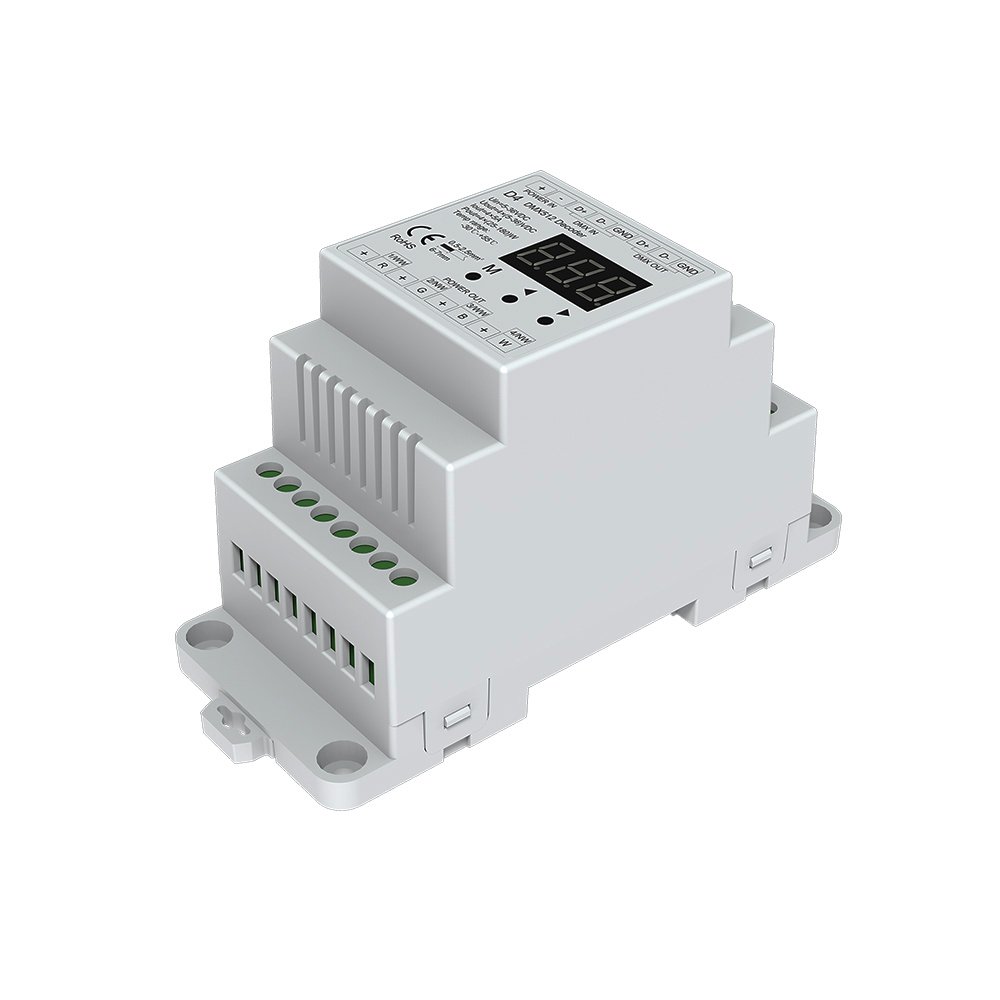

4 CH Constant Voltage DMX512 Decoder RGB/RGBW Controller Din Rail Mounted 4 Channel Dimming Controller 5-24VDC

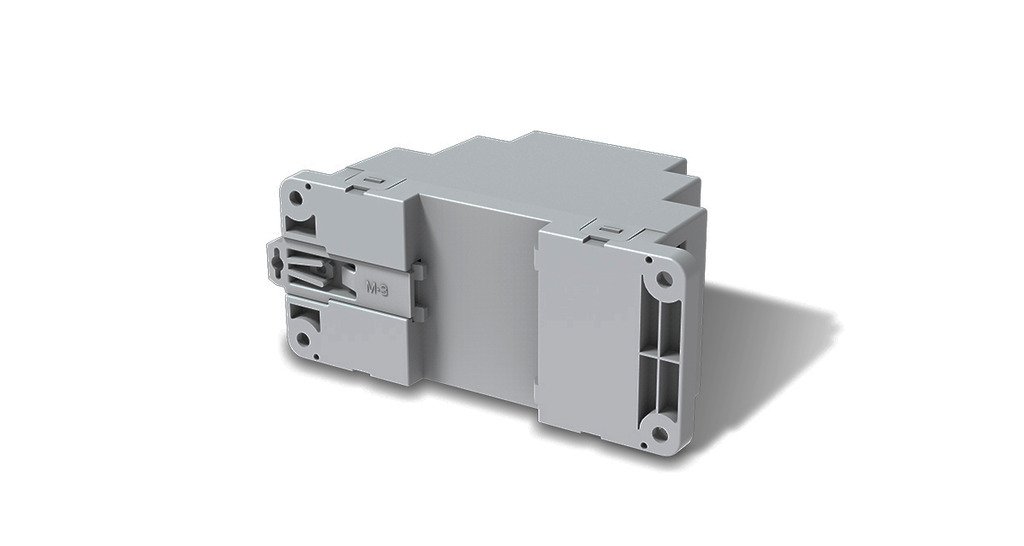

• Din rail mounted DMX512 constant voltage decoder, four channel output, 4A per channel.
• With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.

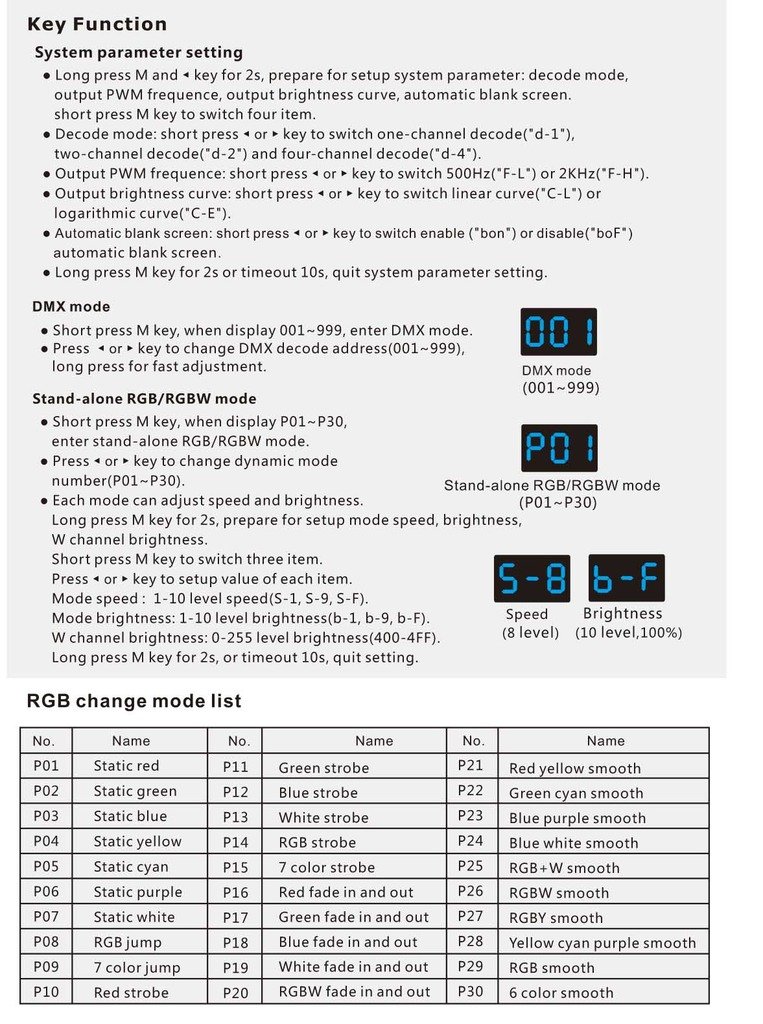

• It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.

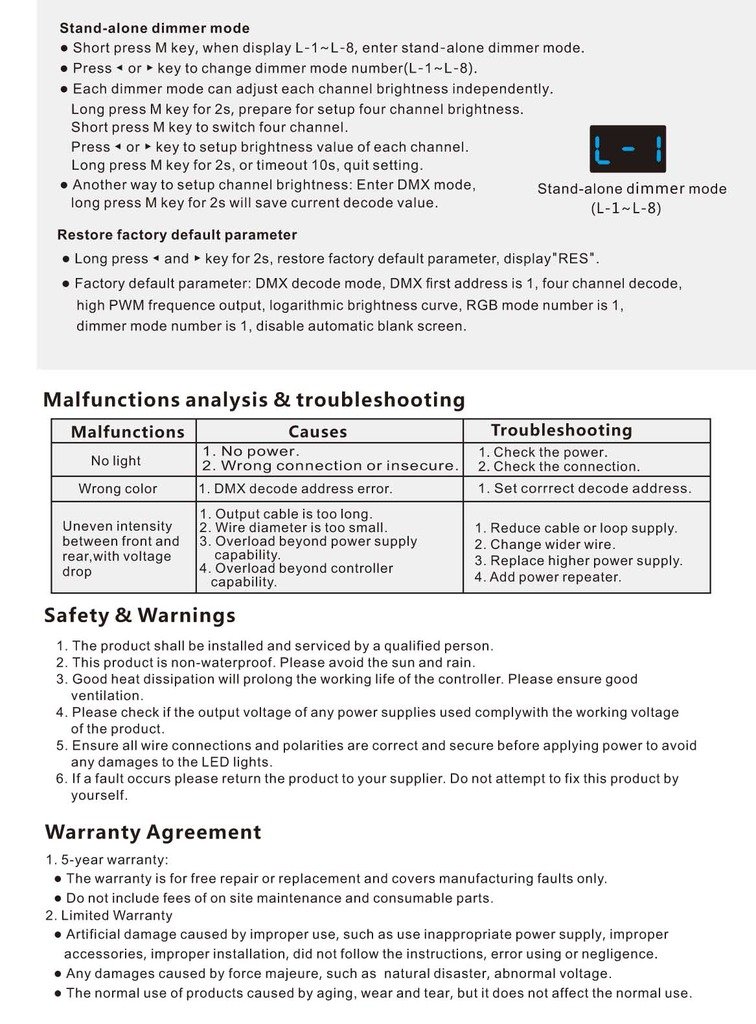

• It can also work as stand-alone 4 channel dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.

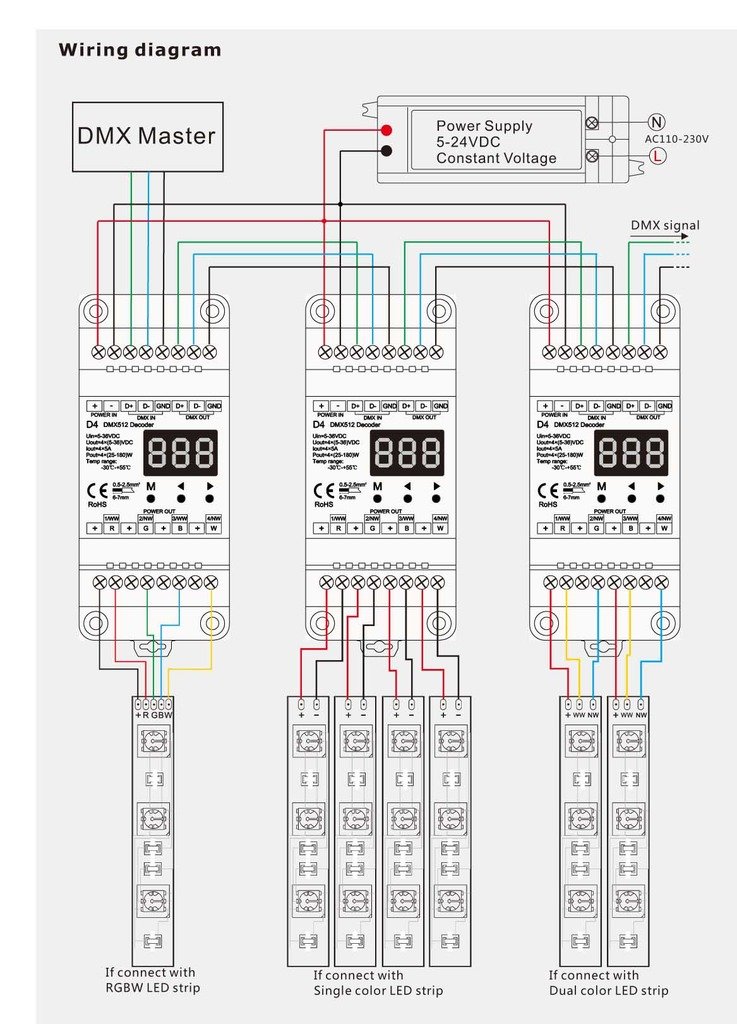

• Work with power repeater to expand output unlimitedly.

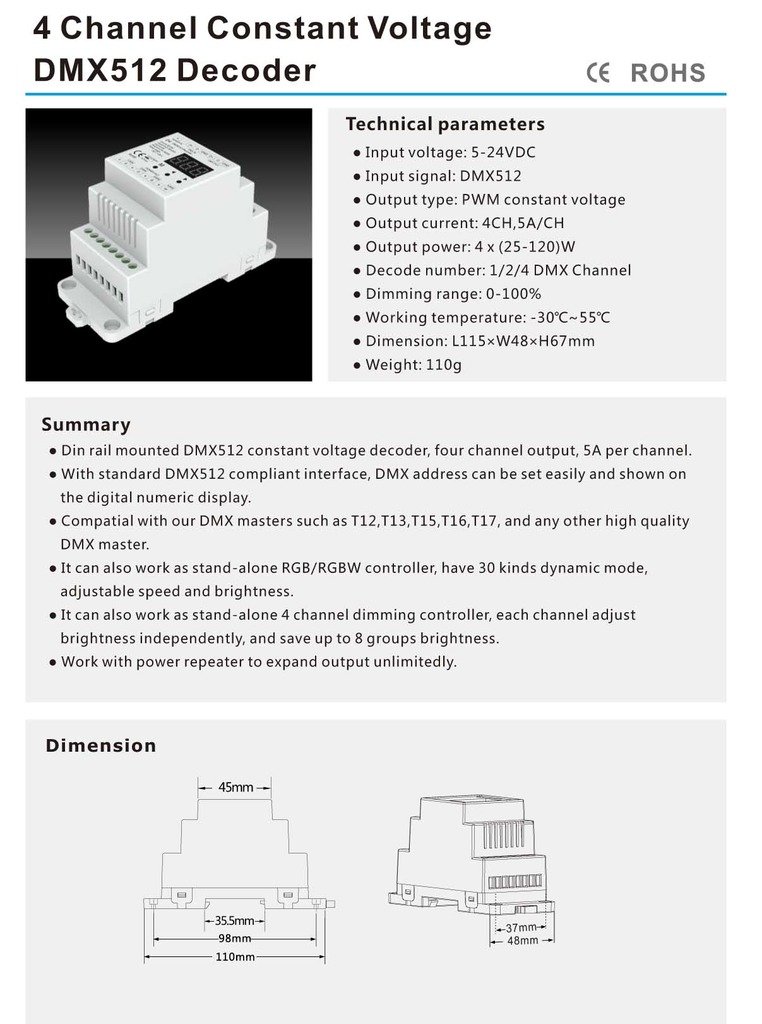

Technical Parameters Input Voltage: 5-36VDC Input Signal: DMX512 Output Type: PWM Constant Voltage Output Current: 4CH, 5A/CH Output Power: 100-720W Decoding Number: 1/2/4 DMX Channel Dimming range: 0-100% Operating temperature: -30℃~55℃ Dimensions: L115×W48×H67mm Weight: 110g Summary 1. DMX512 Constant Voltage Decoder Rail Mount 4A Per Channel 2. With the standard DMX512 compatible interface, the DMX address can be easily set and displayed on the digital numeric display. 3. Compatible with our DMX masters such as T12, T13, T15, T16, T17 and any other high quality DMX Master speed and brightness. 5. It can also work as a standalone 4-channel dimming controller, each channel adjusts the brightness independently and stores up to 8 group brightness. 6. Work with Power Repeater to extend performance indefinitely.
