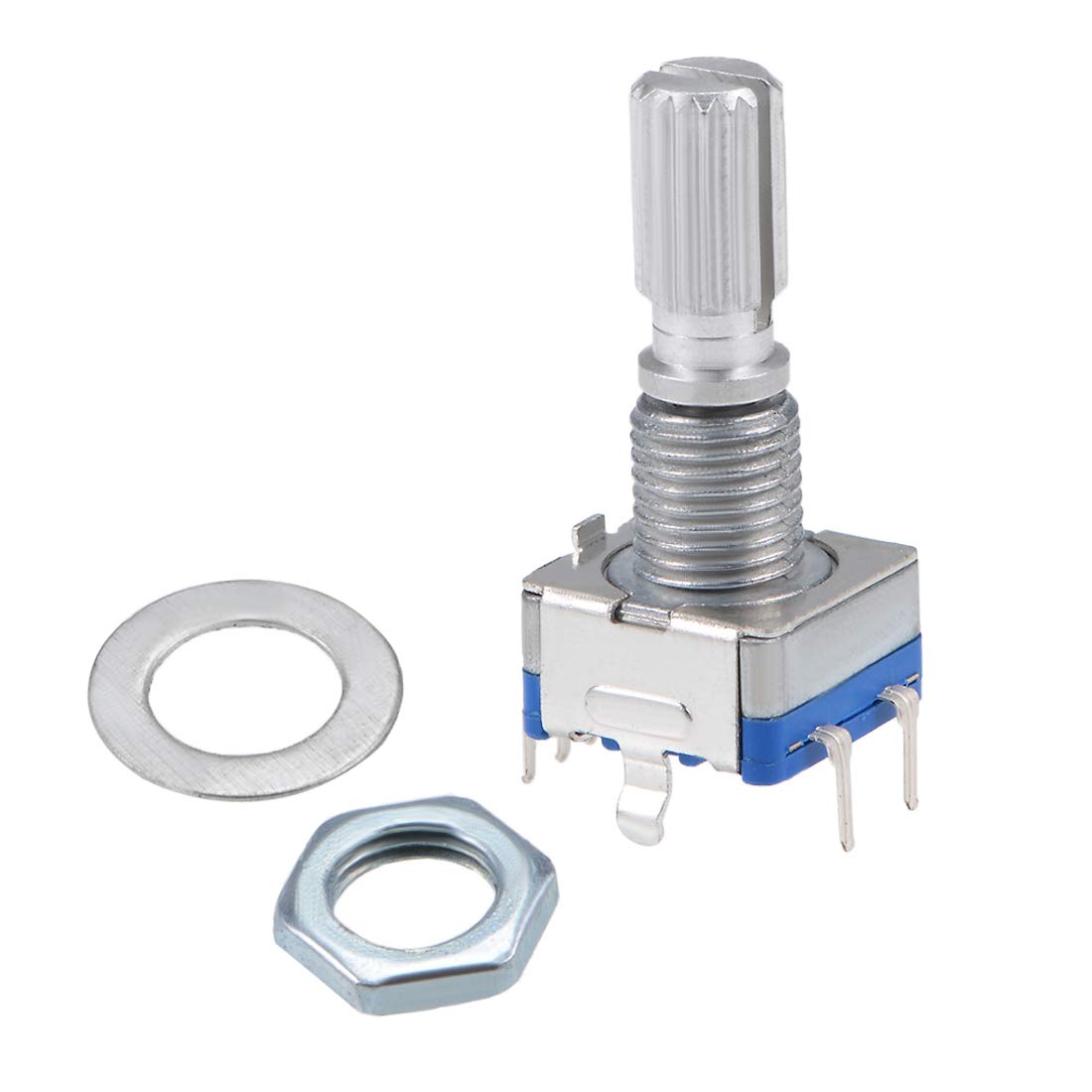

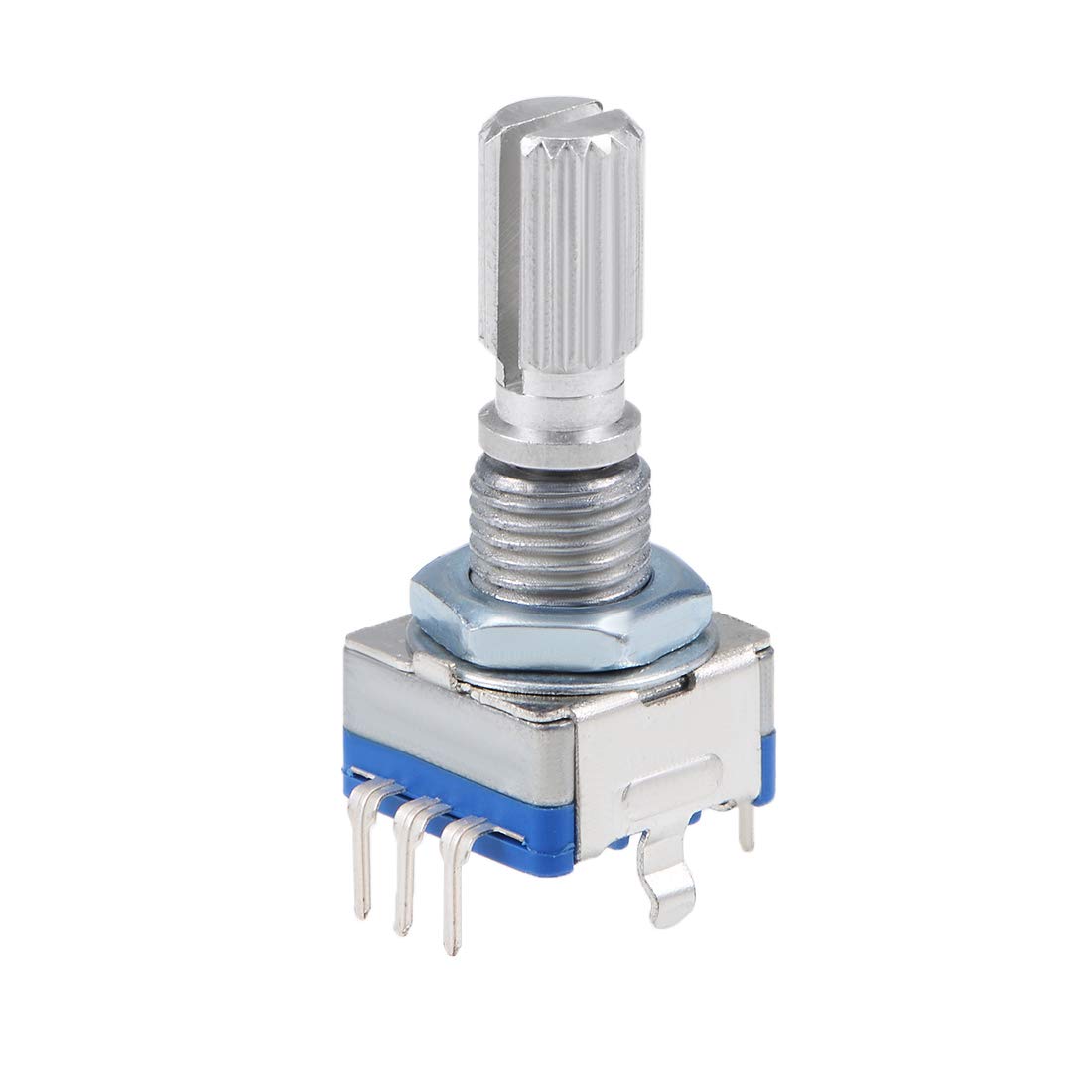

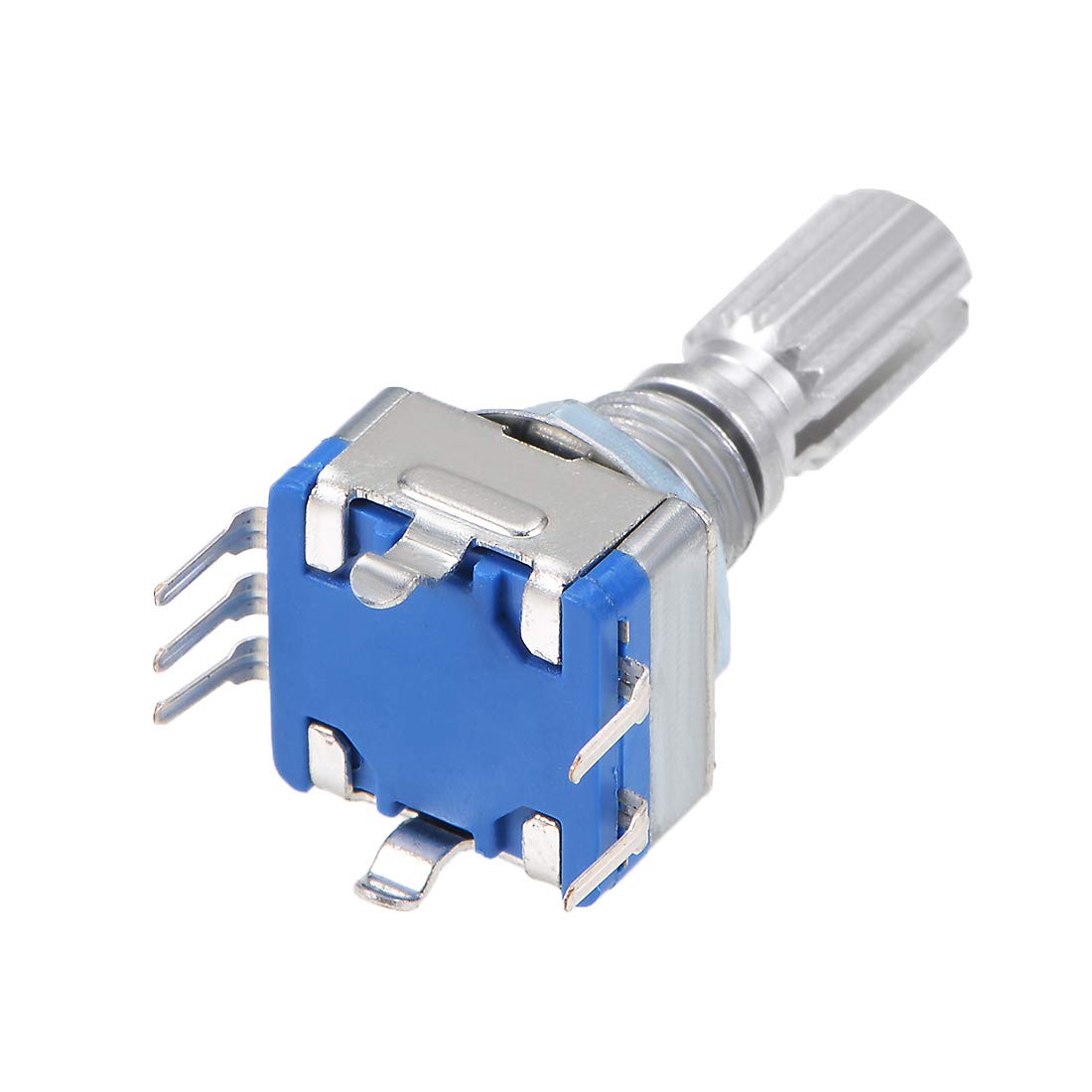

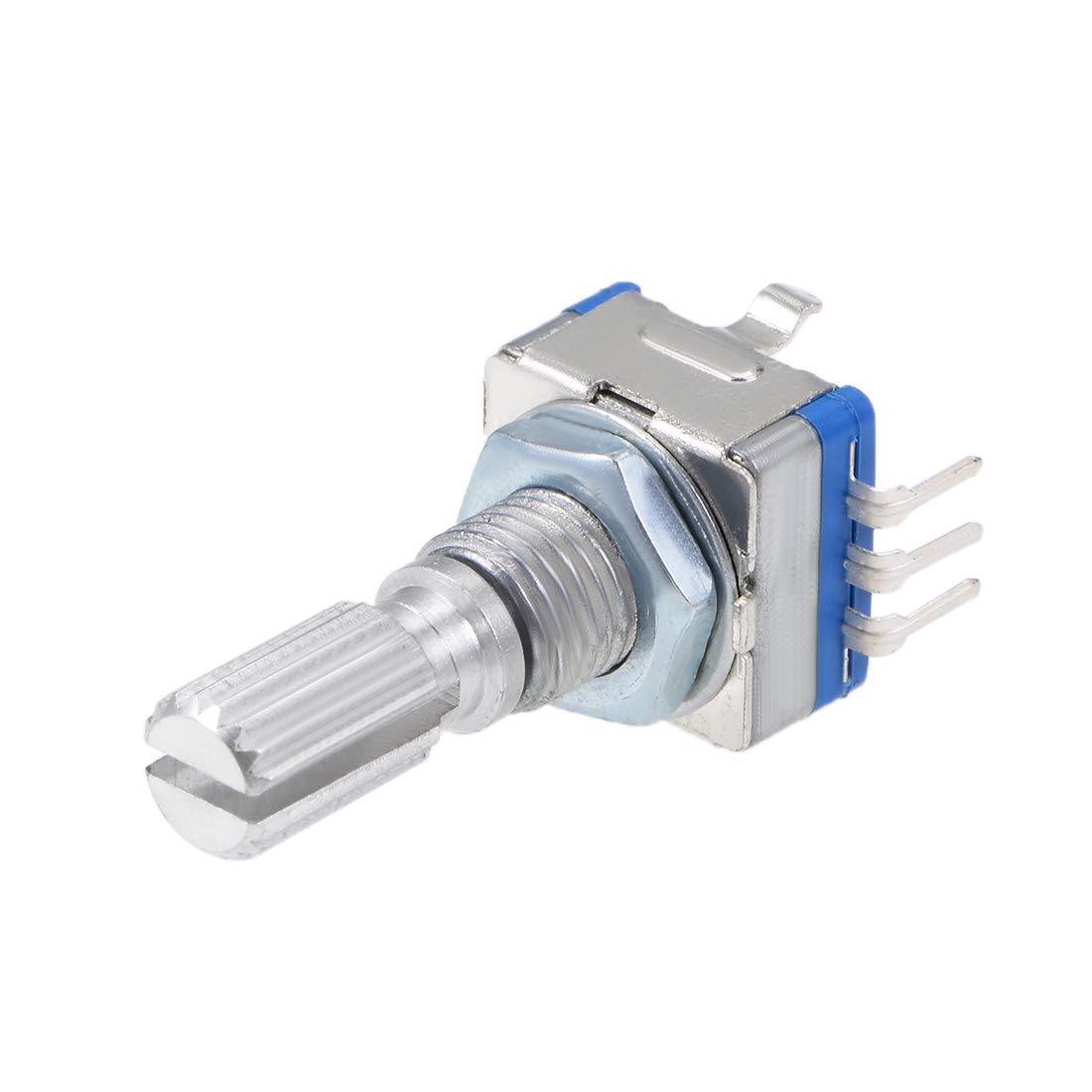

sourcing map 360 Degree Rotary Encoder Code Switch Digital Potentiometer EC11 5 Pins 20mm 5pcs

• Type: Encoder code with Switch; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 7(5 working signal pins & 2 mounting pins); Rated Voltage: 5 Volt.

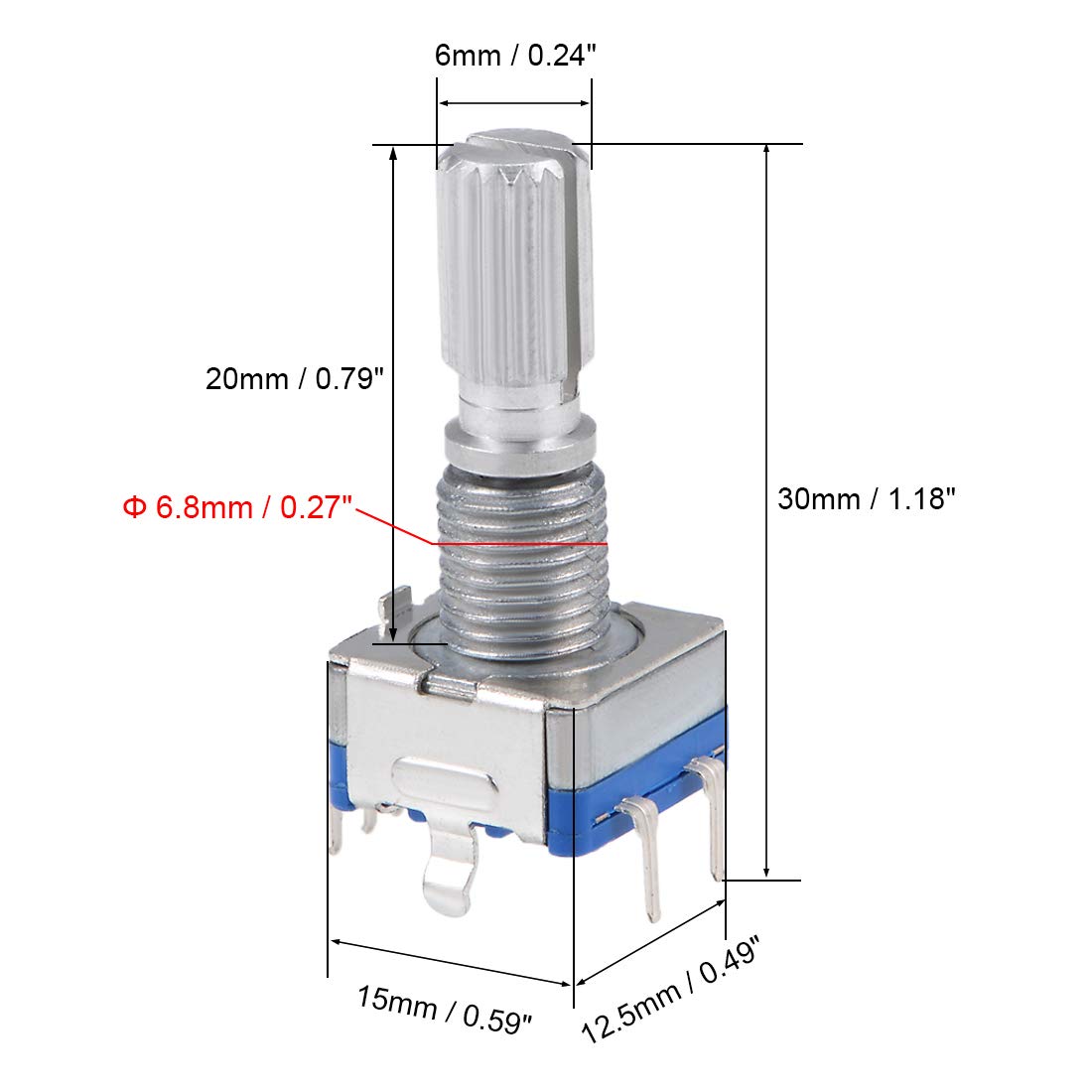

• Shaft Diameter: 6mm/0.24"; Shaft Height: 20mm/0.79"; Thread Diameter: 6.8mm/0.27"; Total Dimension: 15mm x 12.5mm x 30mm / 0.59" x 0.49" x 1.18"(L*W*H).
• In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
• By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0.
• Applications: Industrial control, robots, photographic lenses, computer input devices. circuit board design dimming and sound 3D printer LCD display, etc. ( CD players, for volume & on/off control or data selection by LED or LCD display; ..)

Description: A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals. Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices. Specifications: Adjustment method: 360 Degree Pin Numbers: 7 Number of digits: 20 digits Rated Voltage: 5 Volt Shaft Diameter: 6mm/0.24" Shaft Height: 20mm/0.79" Thread Diameter: 6.8mm/0.27" Total Dimension: 15mm x 12.5mm x 30mm / 0.59" x 0.49" x 1.18"(L*W*H) Note: Avoid storing the products in a place at high temperature and high humidity.
