RUNCCI-YUN 10Pcs EC11 rotary encoder,360 Degree Rotary Encoder Code Switch Push Button EC11 Digital Potentiometer with Switch 5 Pin and Knob Cap for Arduino Electronics Projects
About this item
- 【Encoder Material】 Plastic, Metal; Main Color: Blue, Silver Tone. Shaft type: Plum blossom handle
- 【Model】 EC11 Rotary Encoder with Knob
- 【Encoders】These are continuous encoder switches; Type: encoder code with switch; Adjustment method: 360 degree rotation; Number of digits: 20 digits; Pins: 5 pins.
- 【Wide Application】 for industrial controls, robotics, photographic lenses, computer input devices
- 10 x EC11 Rotary Encoder with Switch and Knob Caps
Product description

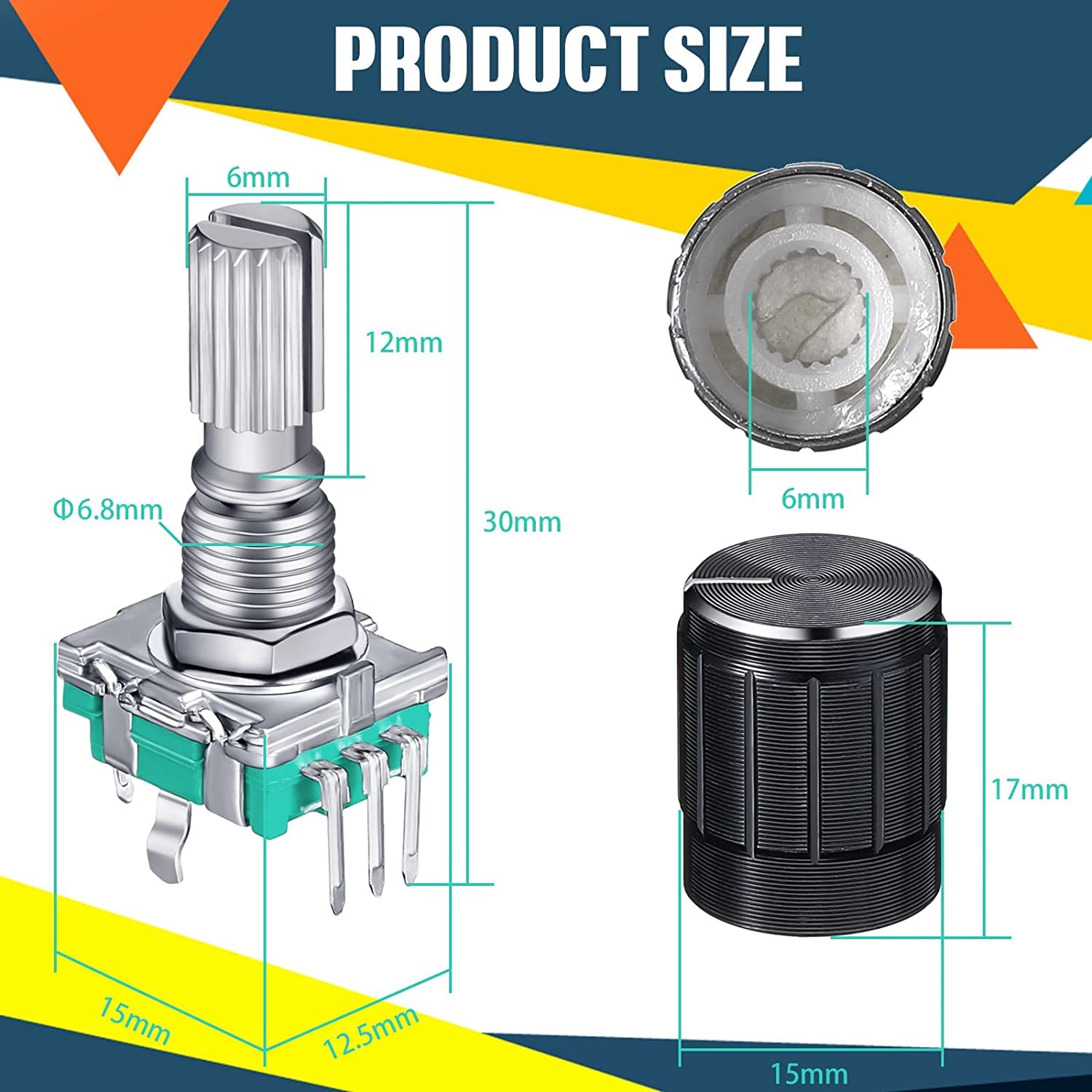

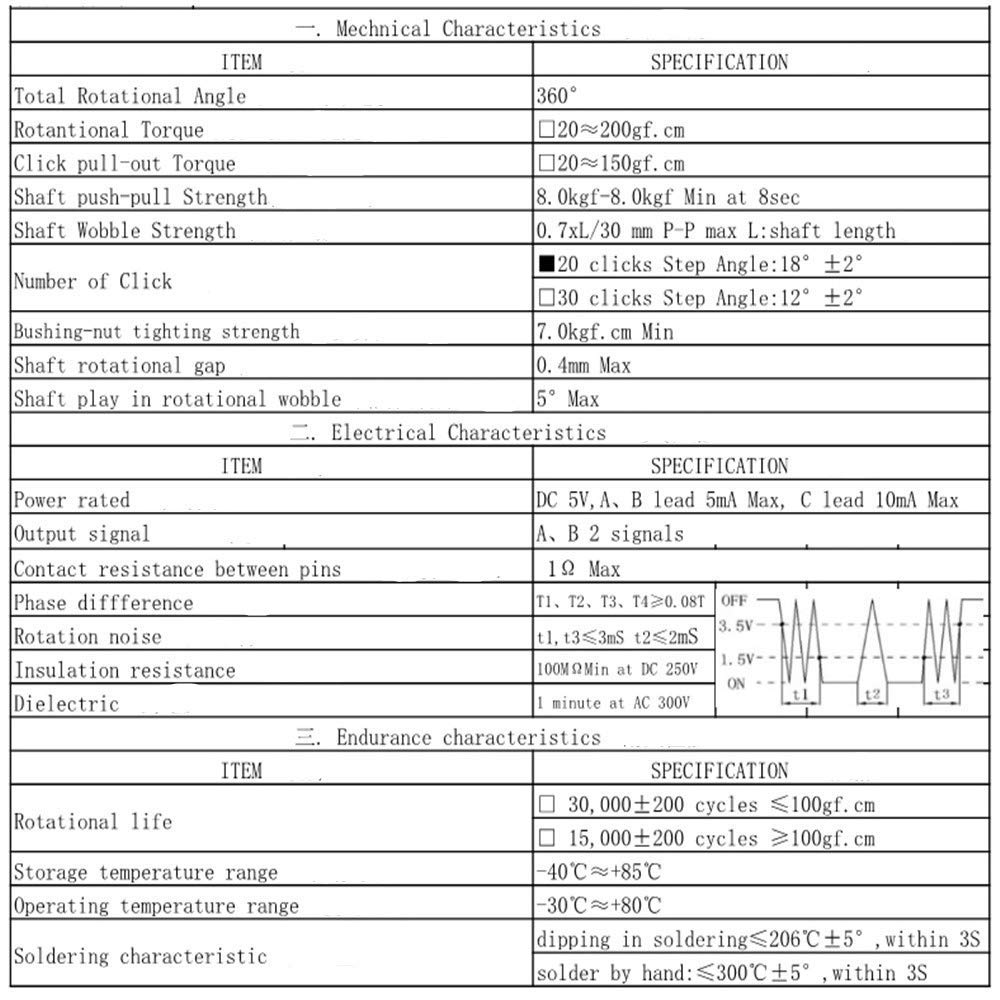

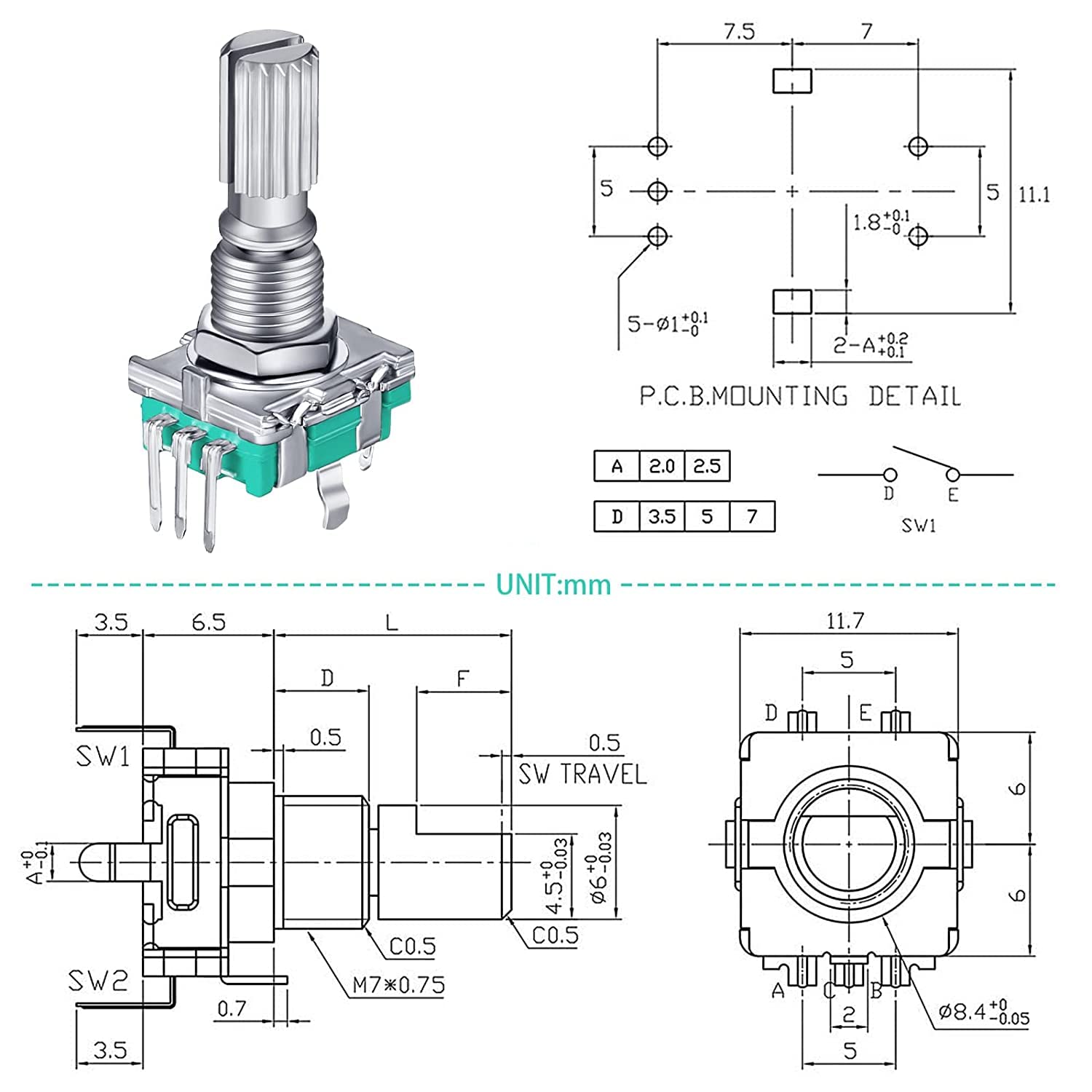

Specifications: Rotation Wavelength: Approx. 12mm Total Shaft Length: Approx. 20mm Shaft Diameter: Approx. 6mm Dimension (LxW): Approx. 15x12mm Rated voltage: DC 5V Max. current rating (impedance load): Each phase conductor: 0.5 mA, min. 0.5 mA General Manager: 1mA (MAX. 10mA, MIN. 0.5mA) Position: 20 Pulse: 20 360 degree rotation Rotational life: min. 50000 cycles Switching life: min. 20000 cycles Scope of delivery: 10 x 360 degree rotary encoder module with switch 10 x Knob
