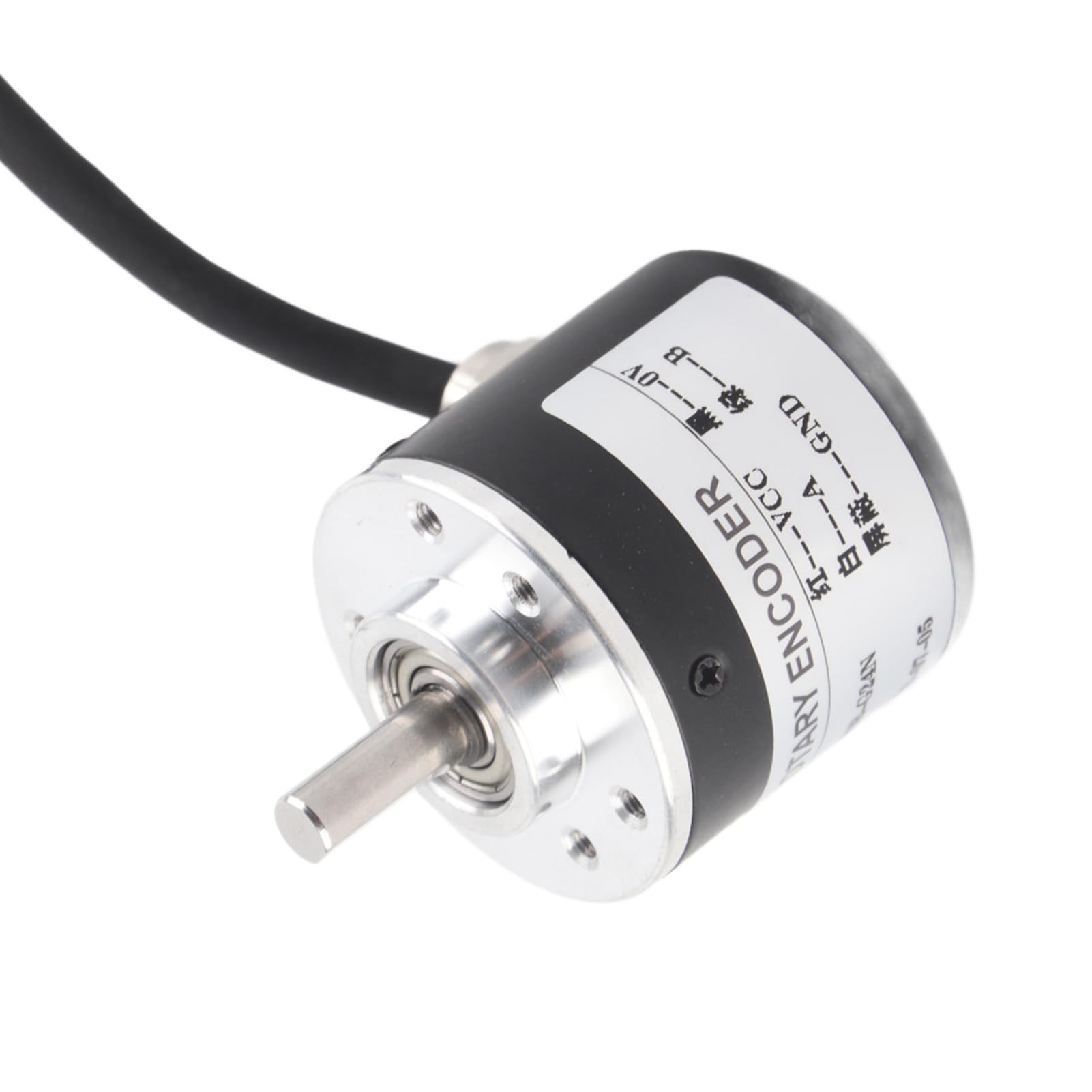

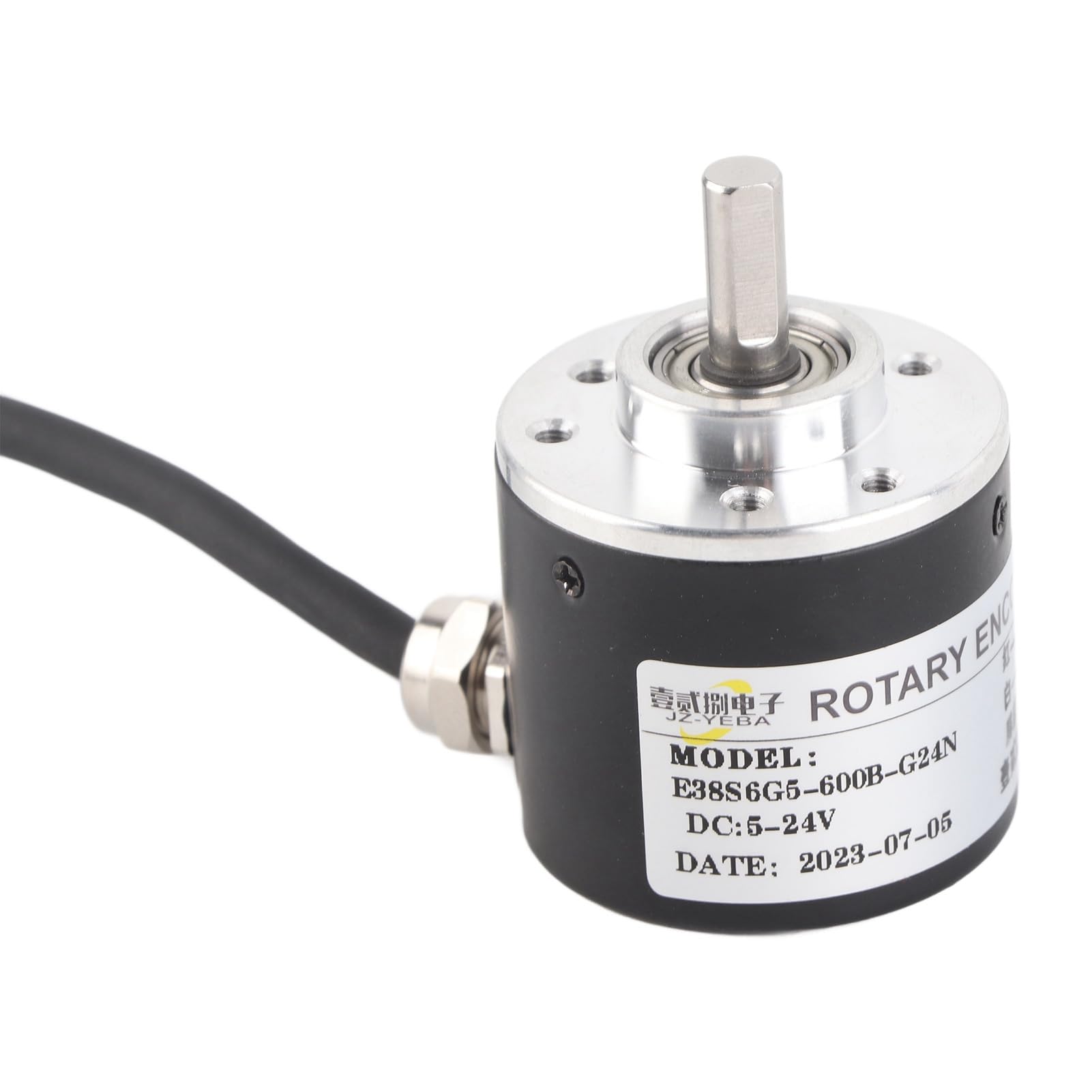

600P/R Rotary Encoder, Incremental Rotary Encoder Module, DC 5-24v 2 Phase, for Intelligent Control of Various Displacement Measurement

• ✈ Special rotary coder operation parameters ✈ This product has 600 p/r (single phase 600 pulse/R, two-phase 4 times the frequency at 2400 pulse).
• ✈Coder has good performance. The power supply is DC5-24V, with stable working performance and good working conditions.
• ✈Coder working principle: rectangular quadrature pulse circuit, the output is NPN open manifold type.
• ✈The product has a wide range of functions ✈ Can be used to measure the rotation speed, angle and acceleration of an object, as well as measuring the length.
• ✈Intelligent rotary encoder ✈ It is suitable for intelligent control of various movement measurements, automatic fixed length leather guillotine, steel cutting length control, height and weight scale, student racing robot

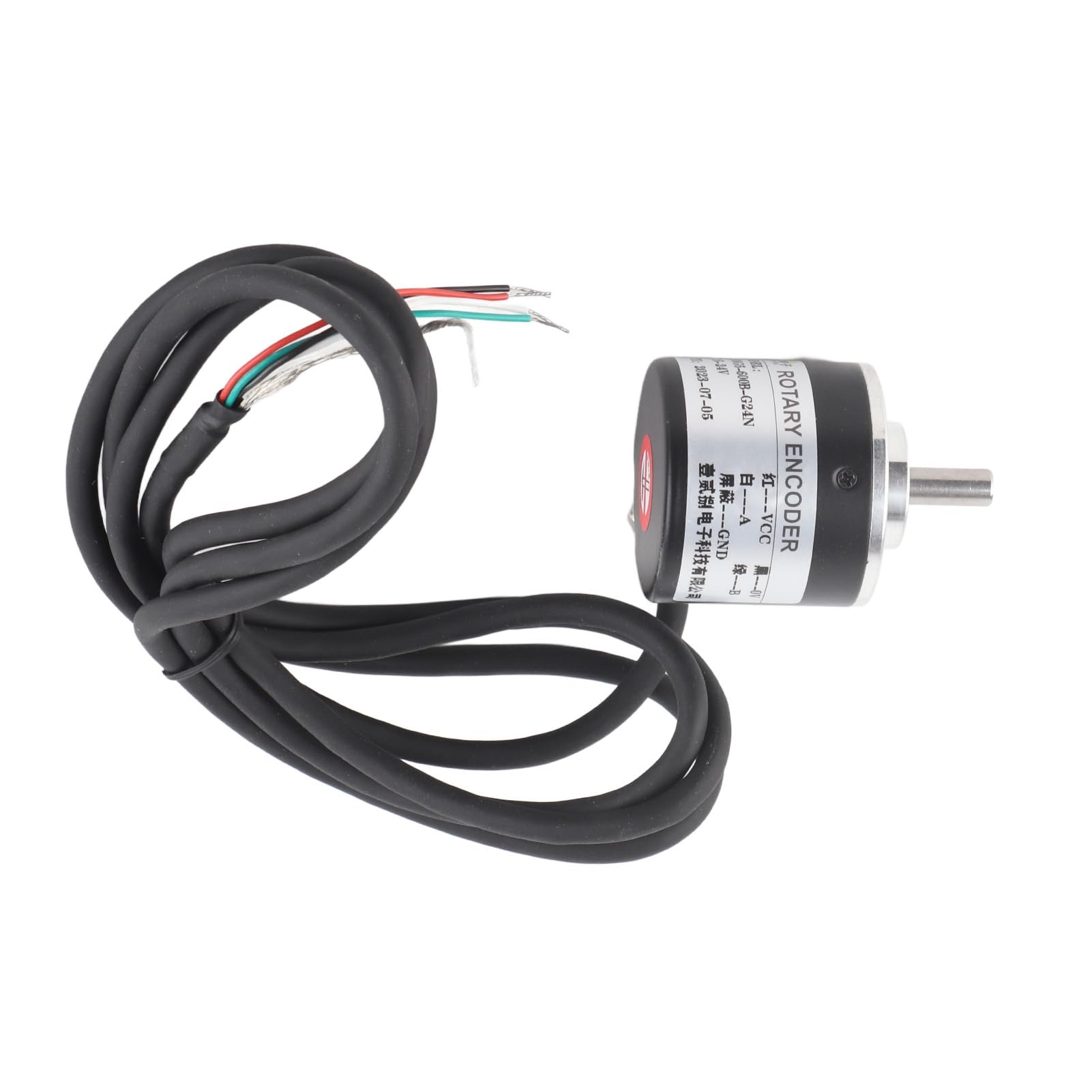

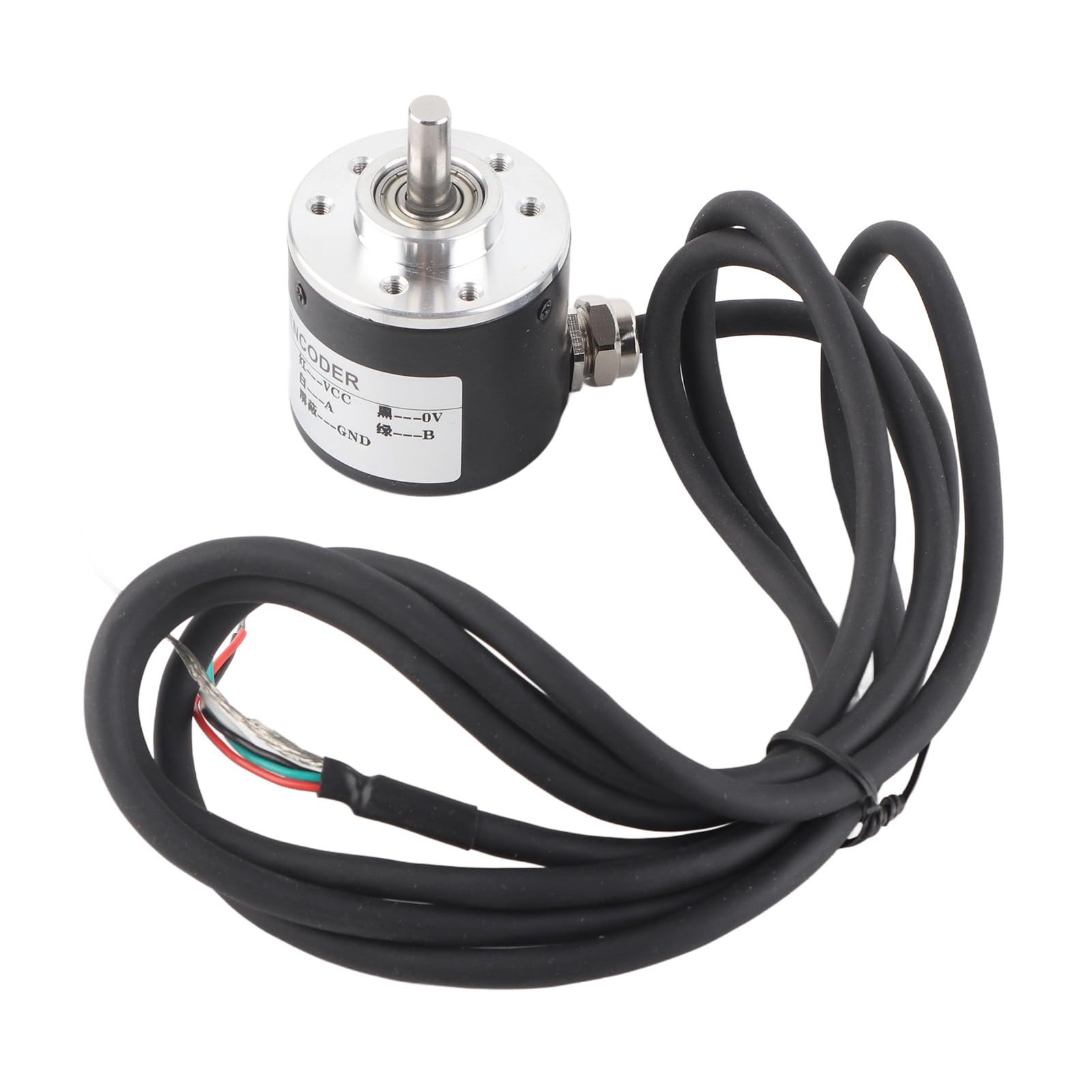

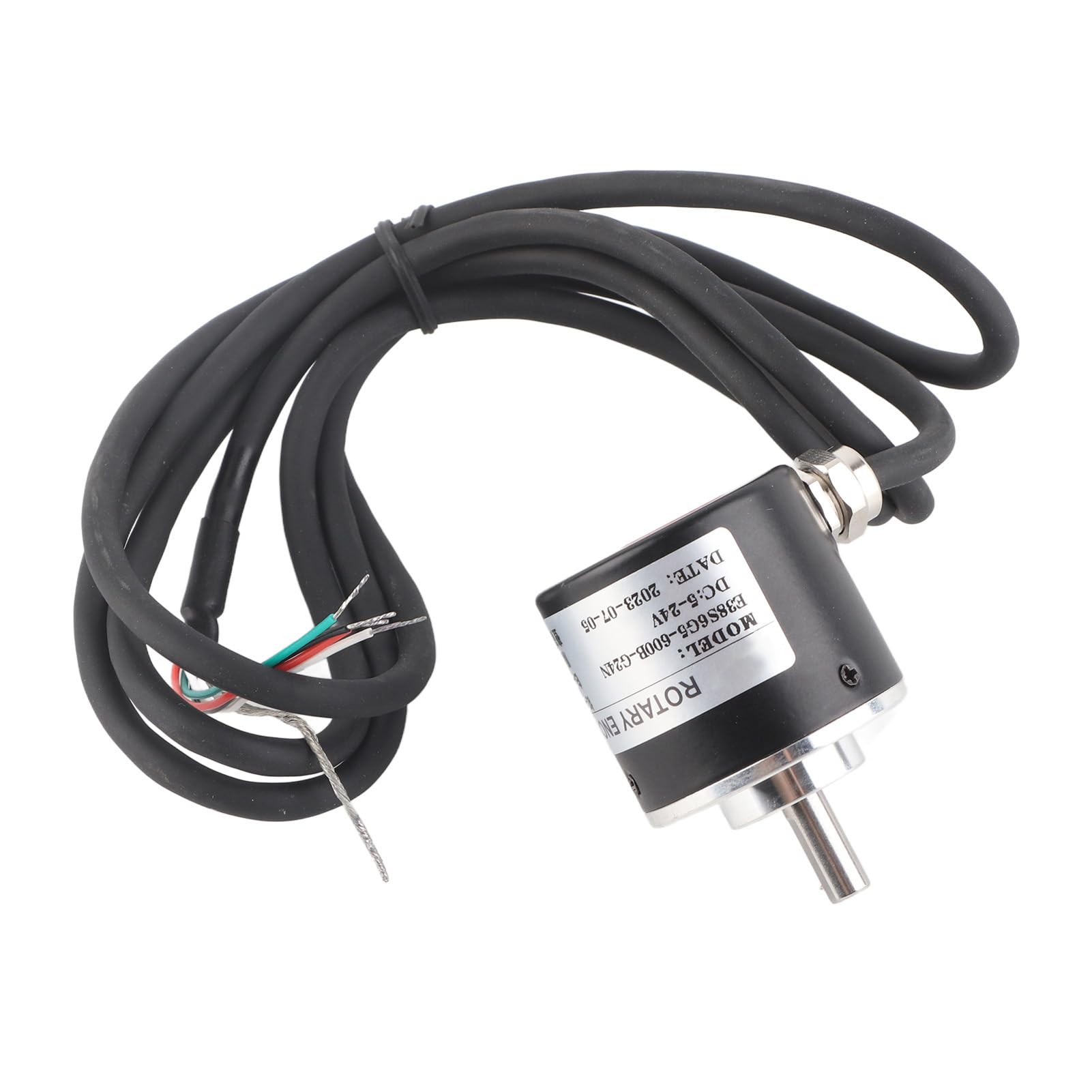

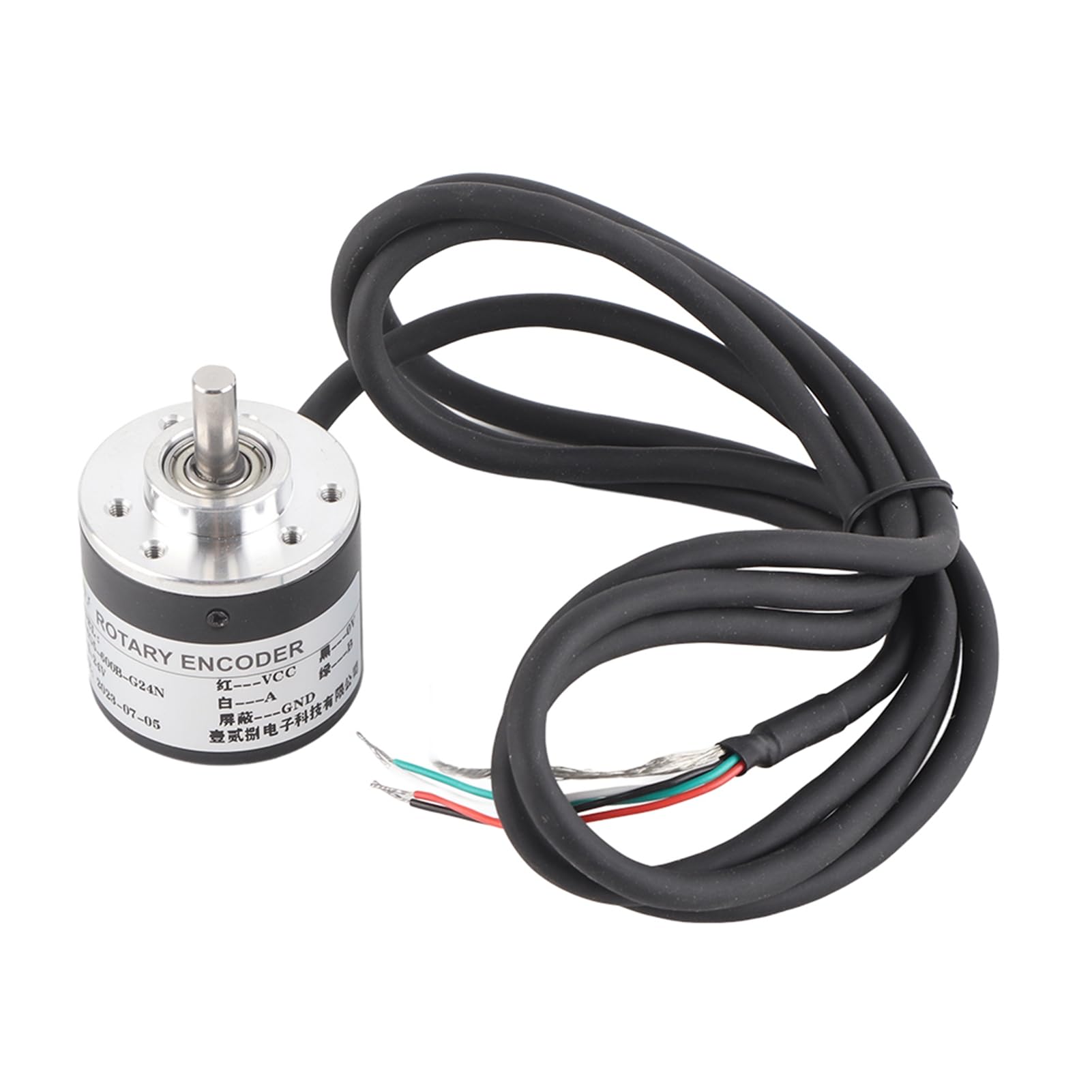

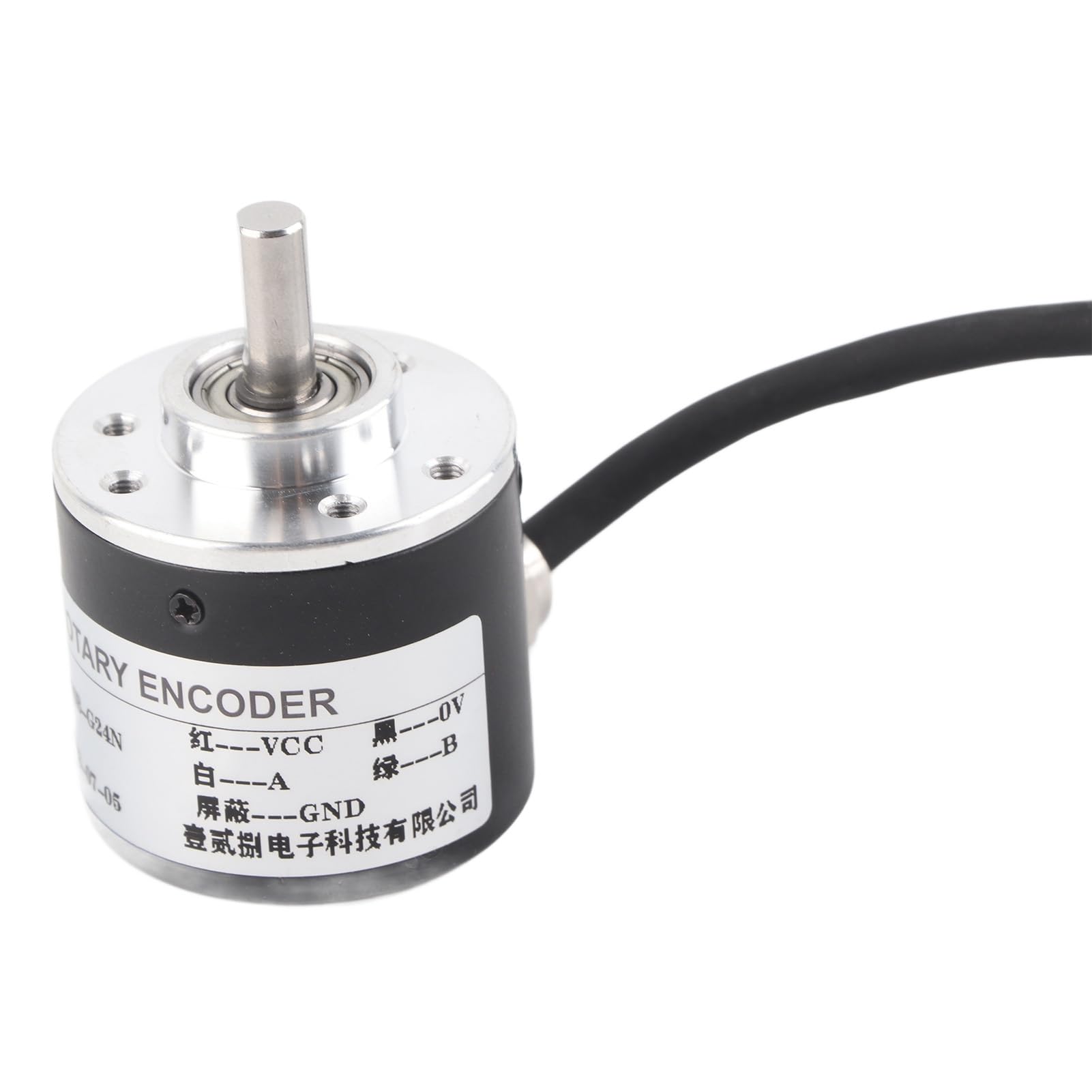

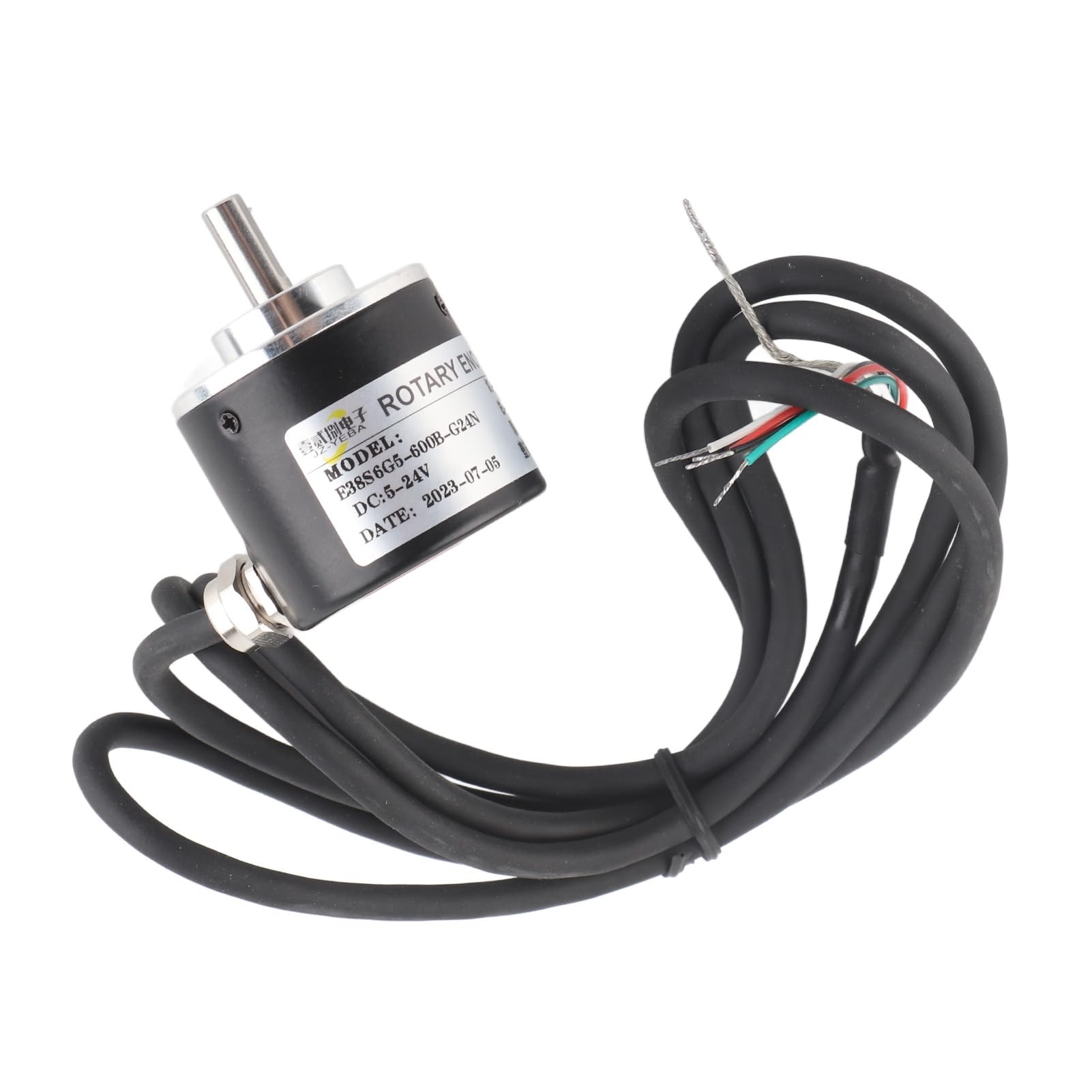

Budget: 100% new pulse: 600 p/r (single phase 600 sweaters/R, double phase 4 with 2400 pulses). Power source: DC 5-24V Axle: 6 x 13mm Dimensions: 38 x 35.5 mm. Output: AB orthogonal pulse circuit in 2 phases, output for NPN open manifold output type maximum mechanical speed: 5000 rpm. Frequency response: 0-20KHz Cable length: 1.5 m. Note: The 2phase AB output should not be connected directly with VCC, otherwise burn the output triode, as different batches may not have the terminal (green = phase A, white = phase B, red = power VDC +, black = V0). Package Includes:1 x 600P/R Encoder Incremental Rotary Encoder
