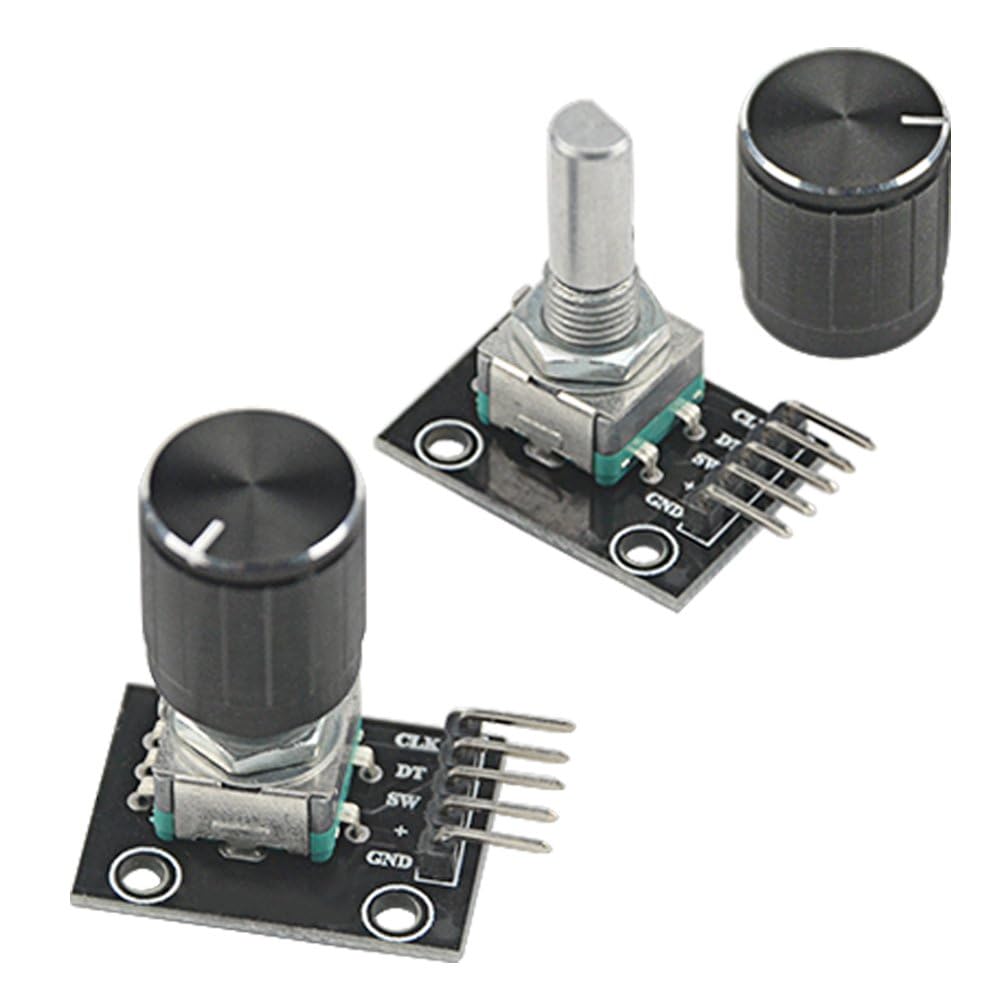

WMYCONGCONG 5 PCS KY-040 Rotary Encoder Module Brick Sensor Board with Knob Cap + 120 PCS Multicolored Breadboard Jumper Wires Ribbon Cables Kit

• The rotation counts are not limited, designed with continuous 360 degree rotation sensors.
• Working voltage: 5V; Reset to its initial state with the buttons on the rotary encoder, starts counting from 0.

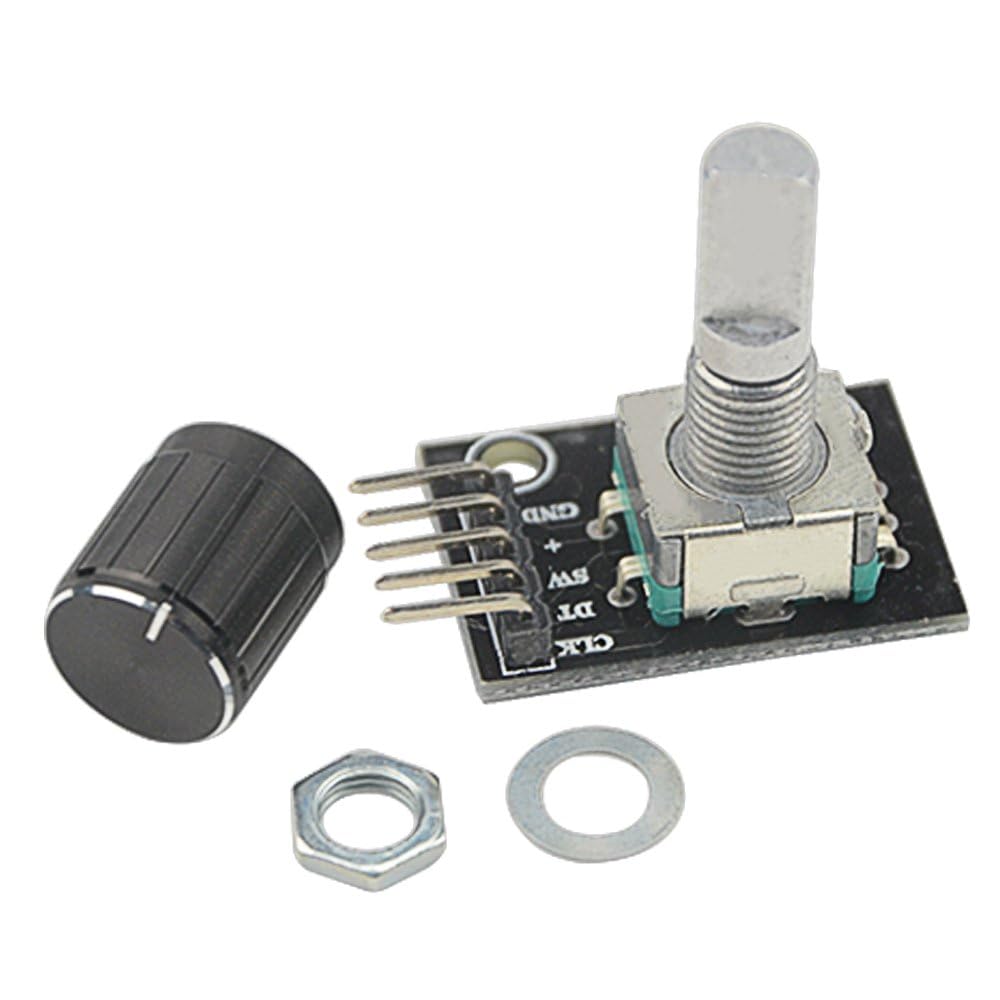

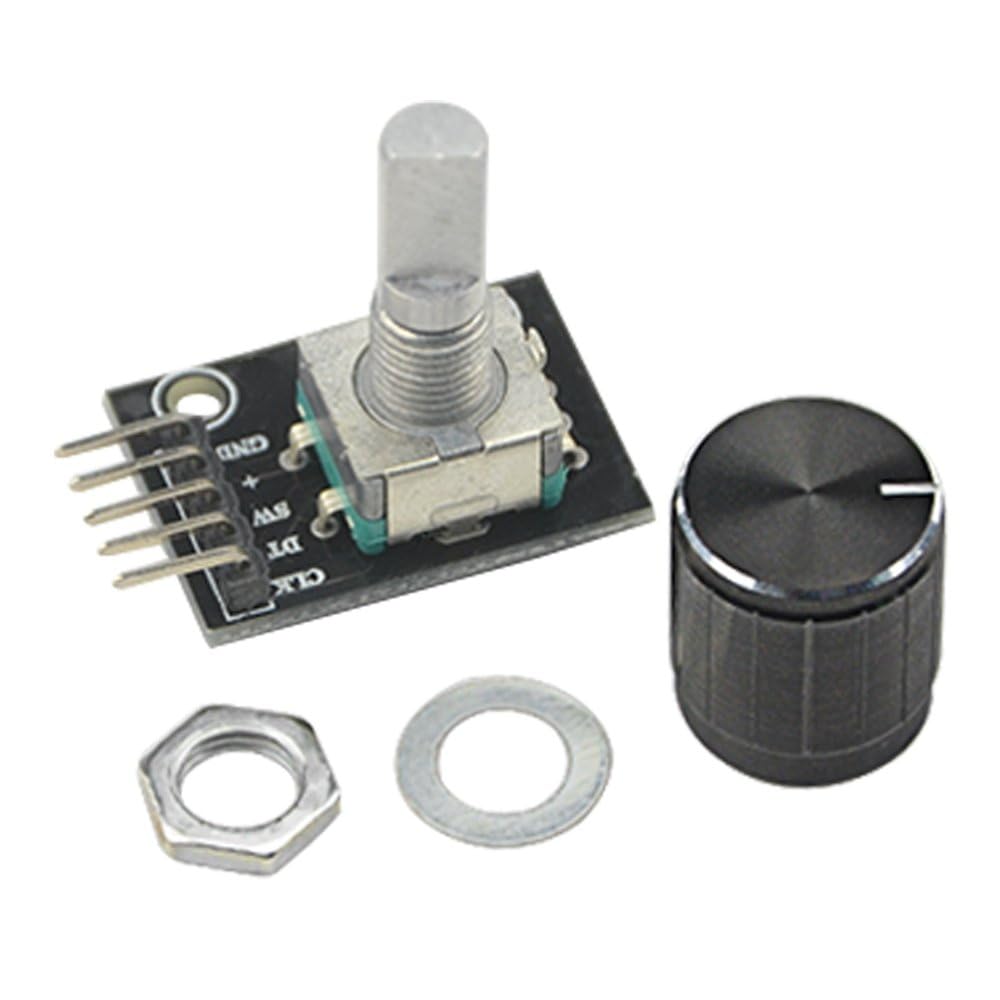

• Designed with detent and push button switch feature, comes with nuts and washers, suitable for Arduino micro controller use.

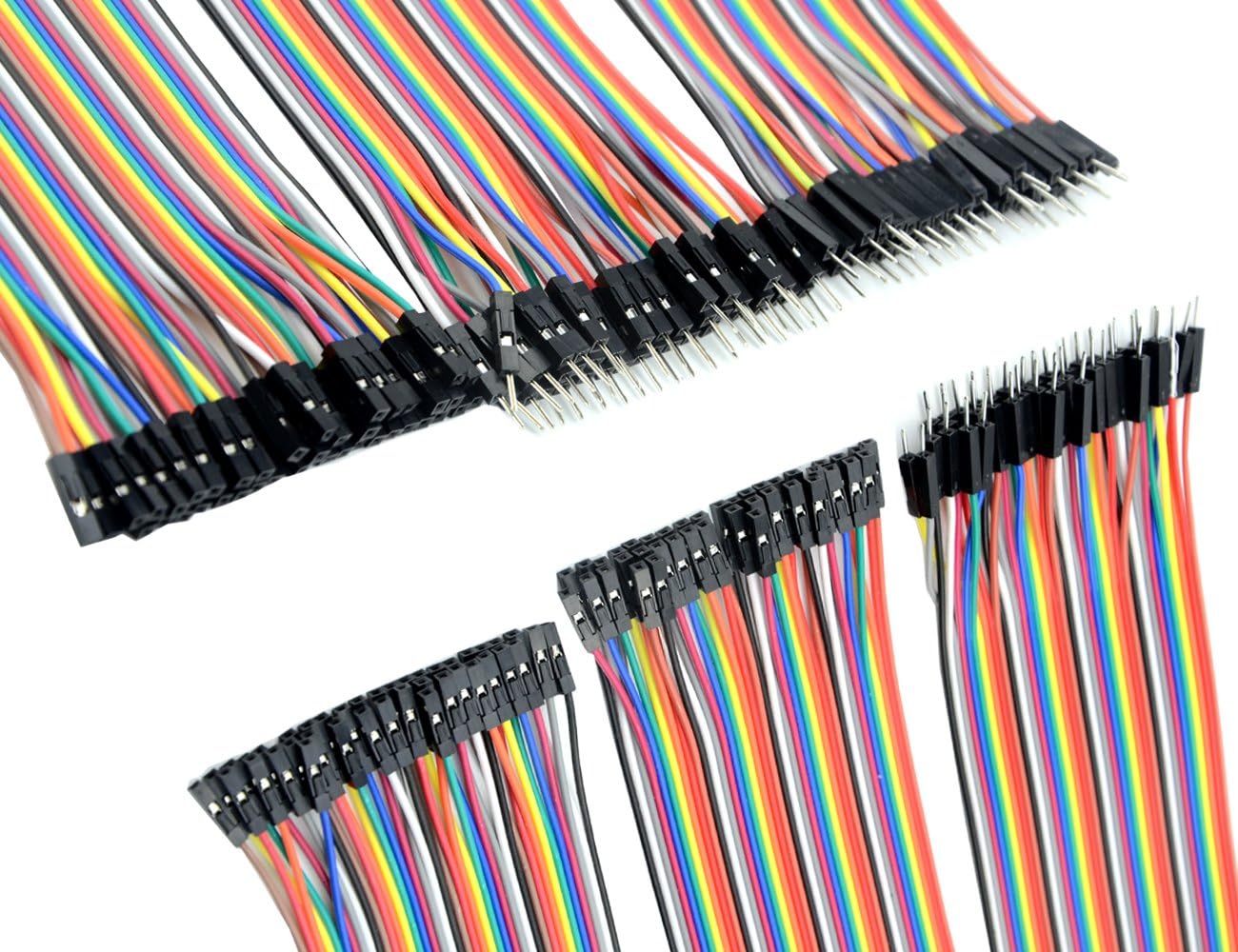

• Jumper wires kit, compaitible with 2.54mm spacing pin headers, great for Arduino PCB project, pc motherboard.

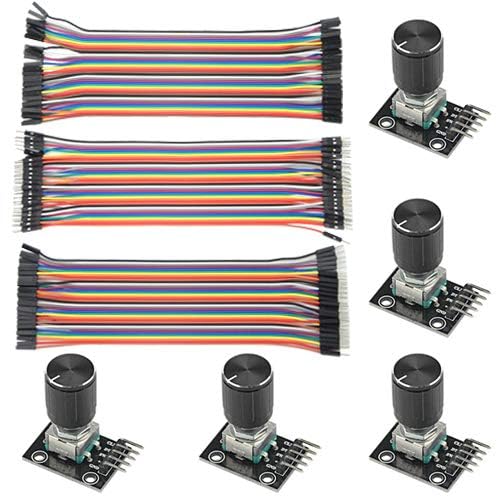

• Package Content: 5 * KY-040 Rotary Encoder Module + 120 PCS Ribbon Cables Kit(including male to male, male to female, female to female).

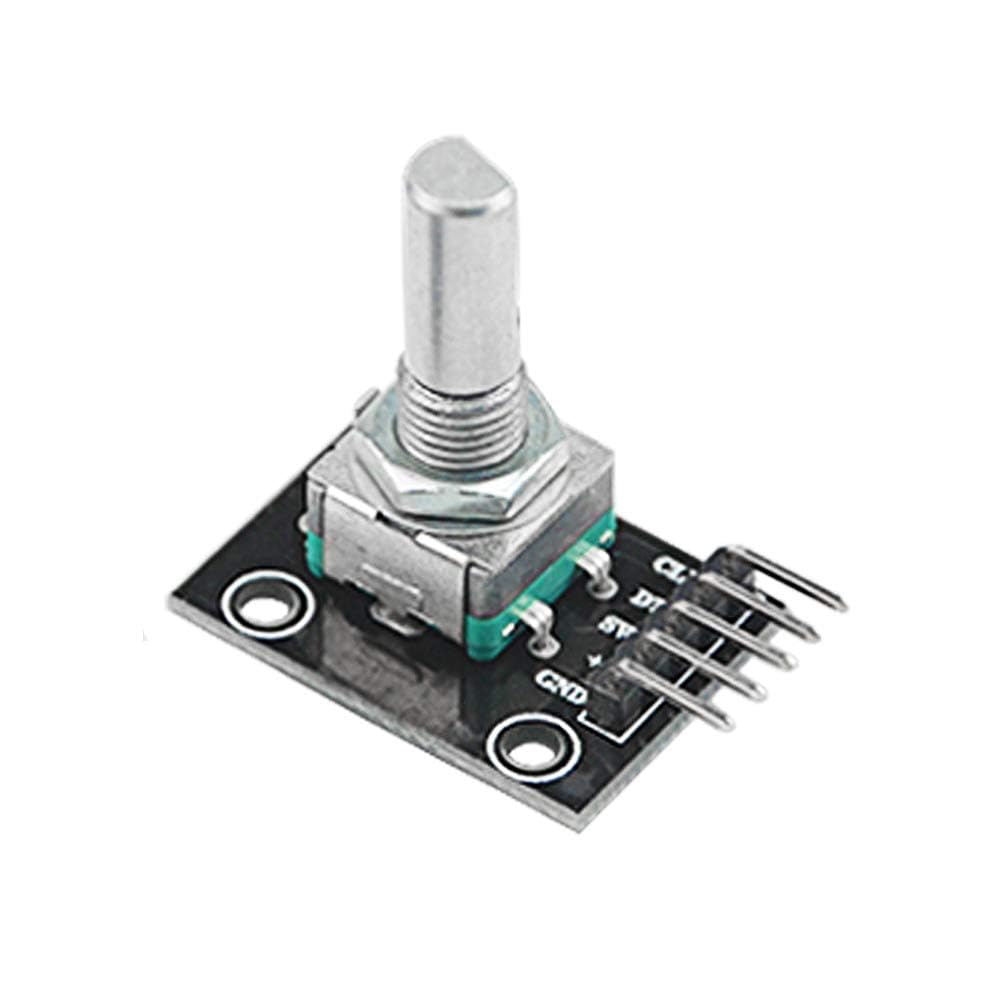

Specification: KY-040 Module: Working voltage: 5V Pulse circle: 20 Material: electronic components + PCB Size: 26 x 19 x 29mm/1.02 x 0.75 x 1.14inch Diameter of the thread: 7mm/0.27inch Height of the thread: 7mm/0.27inch Knob Cap Diameter: 15mm/0.59inch Knob Cap Height: 16.5mm/0.65inch Connection: "GND”: ground terminal "+”: 5V power supply "SW”: 'Select' switch (activated when shaft pressed on top) "DT”: Encoder Pin B "CLK”: Encoder Pin A Designed with detent and push button switch feature, comes with nuts and washers, suitable for Arduino micro controller use. By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer counter, which species rotation counts are not limited. How it works: incremental encoder is a displacement of the rotary pulse signal is converted to a series of digital rotary sensors. Breadboard Wires Jumper Wires: 40-pin male to female jumper wires 40-pin male to male jumper wires 40-pin female to female jumper wires Each Cable Length: Approx. 200mm/7.87inch. Great accessories for Arduino breadboard kit project, PCB project, pc motherboard. Package Content: 5 * KY-040 rotary encoder module(knob, nut, washer included) 40 * 2.54mm Breadboard Wires Jumper Wires Male to Male 40 * 2.54mm Breadboard Wires Jumper Wires Male to Female 40 * 2.54mm Breadboard Wires Jumper Wires Female to Female
