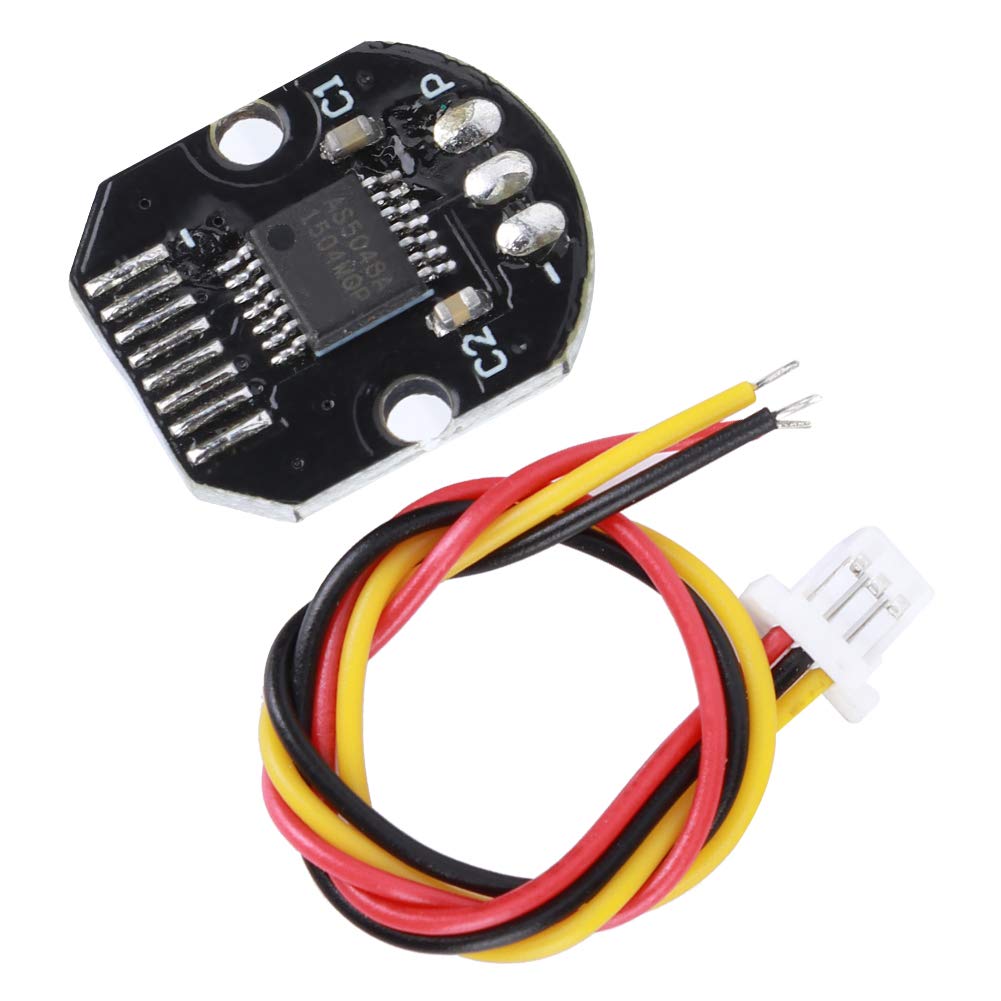

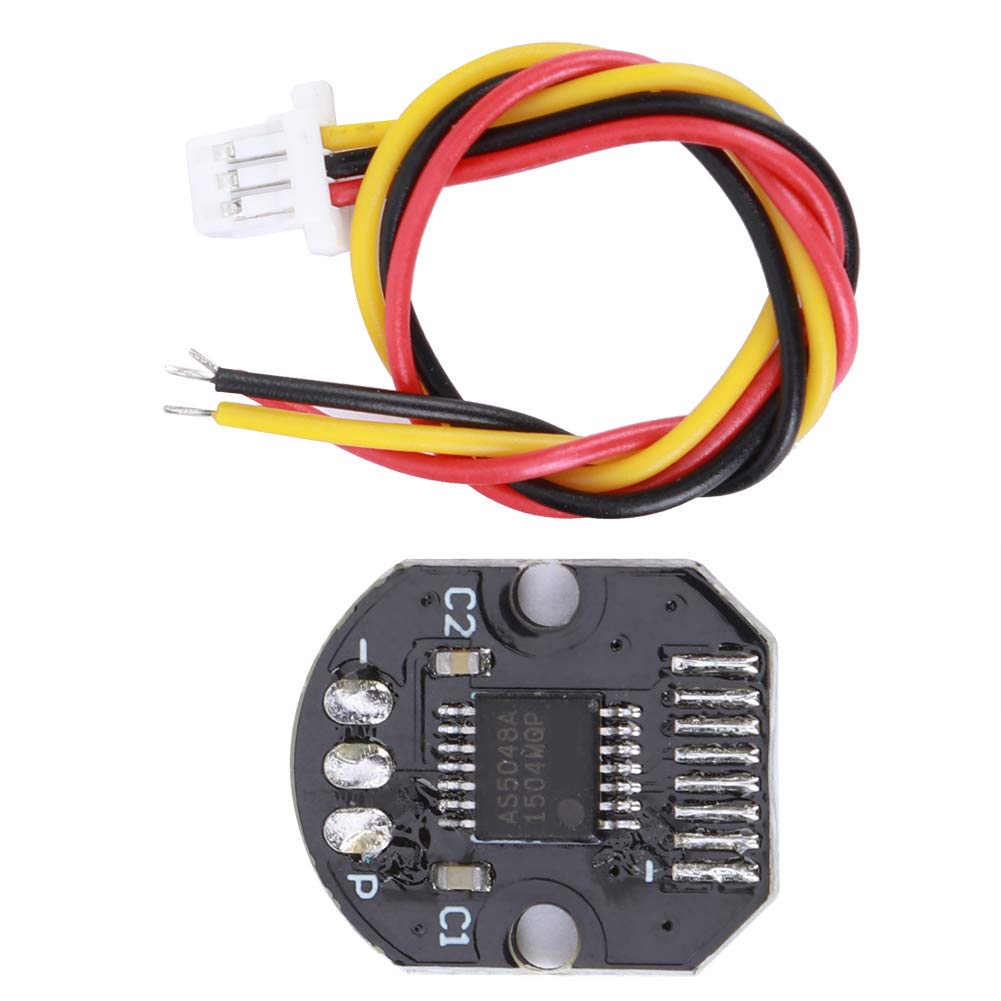

Oumefar AS5048A Magnetic Encoder I2C Interface 14‑Bit Encoder for Brushless Motor

• 【PREMIUM MAGNETIC ENCODER】: AS5048A Magnetic Encoder is made of high‑quality plastic material, which is durable, and corrosion resitant, provide good work performance, has long service life.

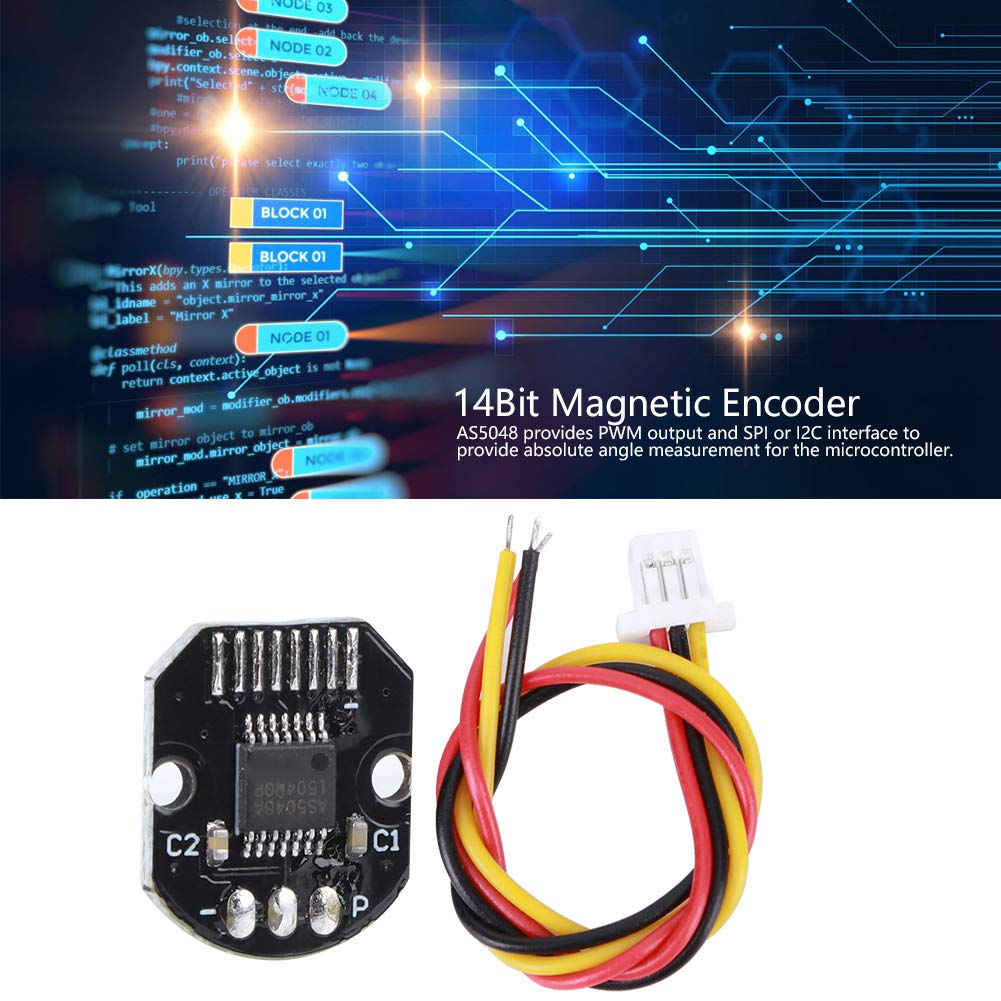

• 【ANGLE MEASUREMENT】: AS5048 provides PWM output and or I2C interface to provide absolute angle measurement for the microcontroller.
• 【14 BIT ROTARY SENSOR】: 14‑bit rotary position sensor digital angle (interface) and pulse width modulation output, full rotation output based on non‑contact magnetic sensor technology at 360°.
• 【GREAT PERFORMANCE】: AS5048A Magnetic Encoder has a very high working tolerance, including the deviation of the center position between the chip and the paired magnet, the deviation of the air gap between the chip and the paired magnet, and the temperature change between ‑40℃ and +150℃.
• 【HIGH PRECISION ACCURACY】: Magnetic Encoder 14‑bit measurement analog front end provides measurement resolution as low as 0.0219 degrees. Linearization and averaging processing are performed by the microcontroller, which can achieve angle measurement with an accuracy of 0.05 degrees.

Description Feature: 1. 14‑bit rotary position sensor digital angle (interface) and pulse width modulation output, full rotation output based on non‑contact magnetic sensor technology at 360°. 2. AS5048 provides PWM output and or I2C interface to provide absolute angle measurement for the microcontroller. 3. Has a very high working tolerance, including the deviation of the center position between the chip and the paired magnet, the deviation of the air gap between the chip and the paired magnet, and the temperature change between ‑40℃ and +150℃. 4. Its 14‑bit measurement analog front end provides measurement resolution as low as 0.0219 degrees. Linearization and averaging processing are performed by the microcontroller, which can achieve angle measurement with an accuracy of 0.05 degrees. 5. AS5048A Magnetic Encoderis made of high‑quality plastic material, which is durable, and corrosion resitant, provide good work performance, has long service life. Specification: Condition: Brand Naew Item Type: AS5048A Magnetic Encoder Material: Plastic Color: As the Picture Shown Product Details: Command 1. No programming required 2.14 full range resolution is 0.0219°/LSB 3. After system linearization, 0.05°precision angle° Features 1. Daisy chain function 2. Air vacuum resistance Field Input Range: 30MT- 70mT In the temperature range of 40°C to +150°C 3. 3V/5V compatibility
