Jopto 10PCS Rotary Encoder Code Switch Audio Digital Potentiometer EC11 360 Degree Rotary Encoding Switch Encoder code with Switch 5 Pin 20mm D-Shaft
About this item
- Type: Encoder code with Switch; Adjustment method: 360 Degree
- Pin Numbers: 5; Shaft Type: D Type.

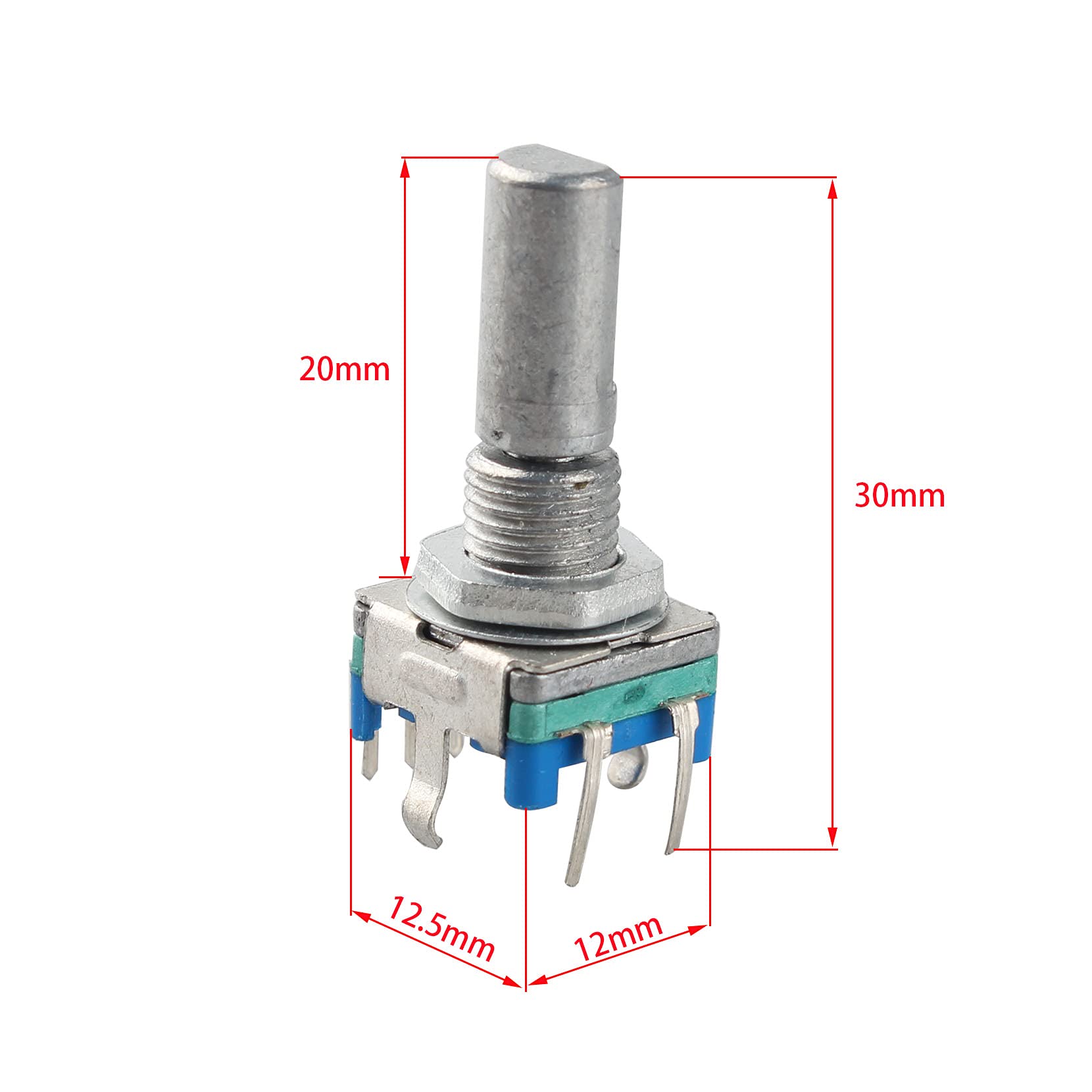

- Size: 30 ร 15 ร 12 mm; Shaft Height: 20mm
- Rated Voltage: 5 V; Number of pulses: 20
- EC11 encoders are mainly used in automotive electronics, multimedia audio, instrumentation, household appliances, smart homes, computer peripherals, medical equipment and other fields.
Product description
Product Parameter: Operating temperature range: -30โ to+80โ Storage temperature range: -40โ to+85โ Rated voltage: DC 5V Rotation angle: 360 degrees Rotation life: 30000+200 Cycles Contact resistance: โค100mฮฉ Insulation resistance: above 100Mฮฉ Oscillation: โค10mS press Life: 20,000ยฑ200 times. (0.5 stroke) 15,000ยฑ200 times. (1.5 stroke) Pin Numbers: 5 Number of digits: 20 digits Rated Voltage: 5 Volt Shaft Type: D Type Shaft Diameter: 6mm Shaft Height: 20mm Size: 30 ร 15 ร 12 mm Weight: 5.4 g Application: A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals. EC11I encoders are mainly used in automotive electronics, multimedia audio, instrumentation, household appliances, smart homes, computer peripherals, medical equipment and other fields. Package Content: 10 x Rotary Encoder Code Switch
Product details
