Gebildet 2pcs Car Relay Harness 12V 40A 4 Pin SPST Harness Sockets with Color-labeled Wires for Automotive Truck Motorcycle Boat

• Brand new heavy duty SPST(Single Pole Single Throw)relays with color-labeled wires.
• Rated operational voltage:12V/Switching Capability:40A.
• Minimum operating voltage 8V,corresponding minimum operating current is 100mA;Standard operating voltage 12V,corresponding standard operating current is 150mA.
• Small size/Low power consumption/High contact voltage/High sensitivity.
• Contact Material:Ag Alloy/Contact Resistance:≤100MΩ.Life Expectancy Electrical:100,000 Operation,Life Expectancy Mechanical:10,000,000 Operation.

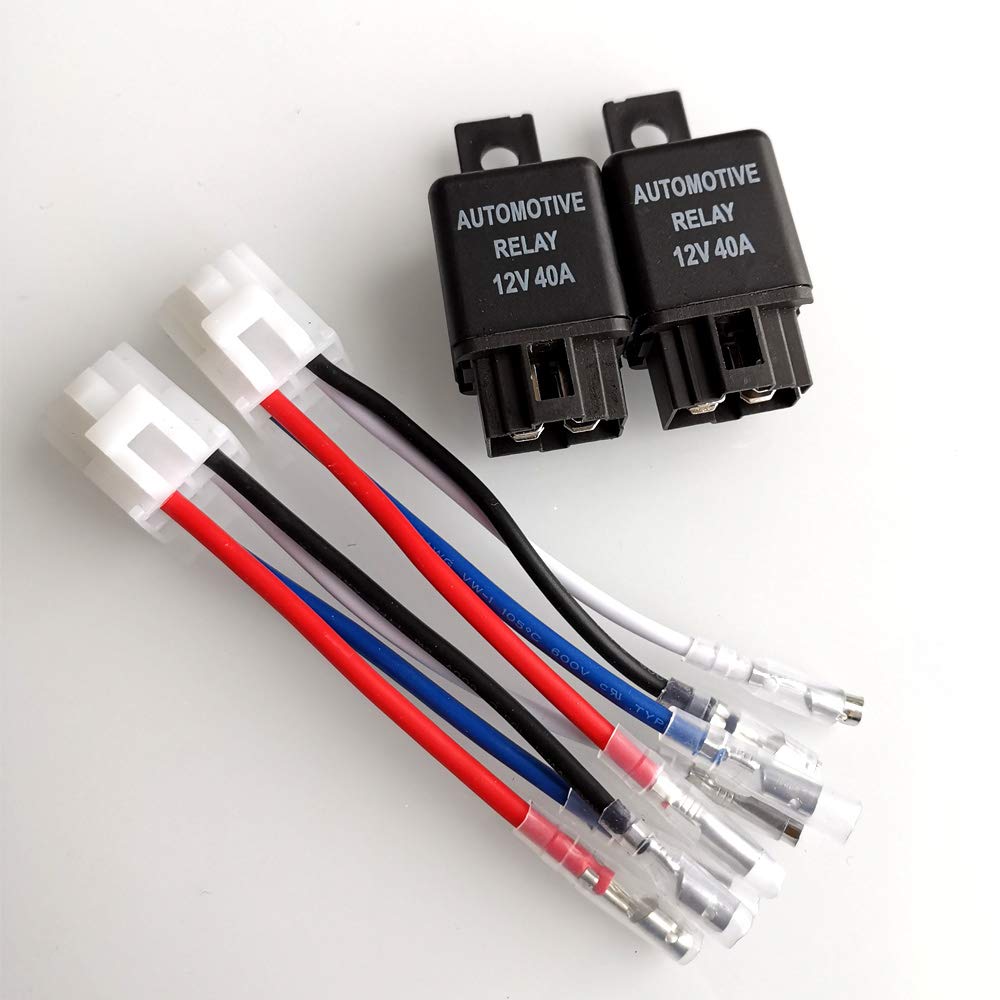

Package Included: 2×Car Relay Harness 8×Connect terminals 8×Rubber sleeve Relay technical specification: Relay load: 40A/12VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operation Life Expectancy Mechanical: 10,000,000 Operationss (at 300 Operations/min) Coil power:1.8W Operate Time: ≤15ms Release Time: ≤10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range:35%-80% Atmospheric Pressure:86-106KPa After Sale Service: Customer satisfaction is our greatest pursuit, If you found our products don’t work or not so good quality as you think, Please contact us without hesitation. We can resend you a new item or 100% refund money as you like.
