Gebildet 4pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST with Built-in Diode for Automotive Truck Van Motorcycle Boat

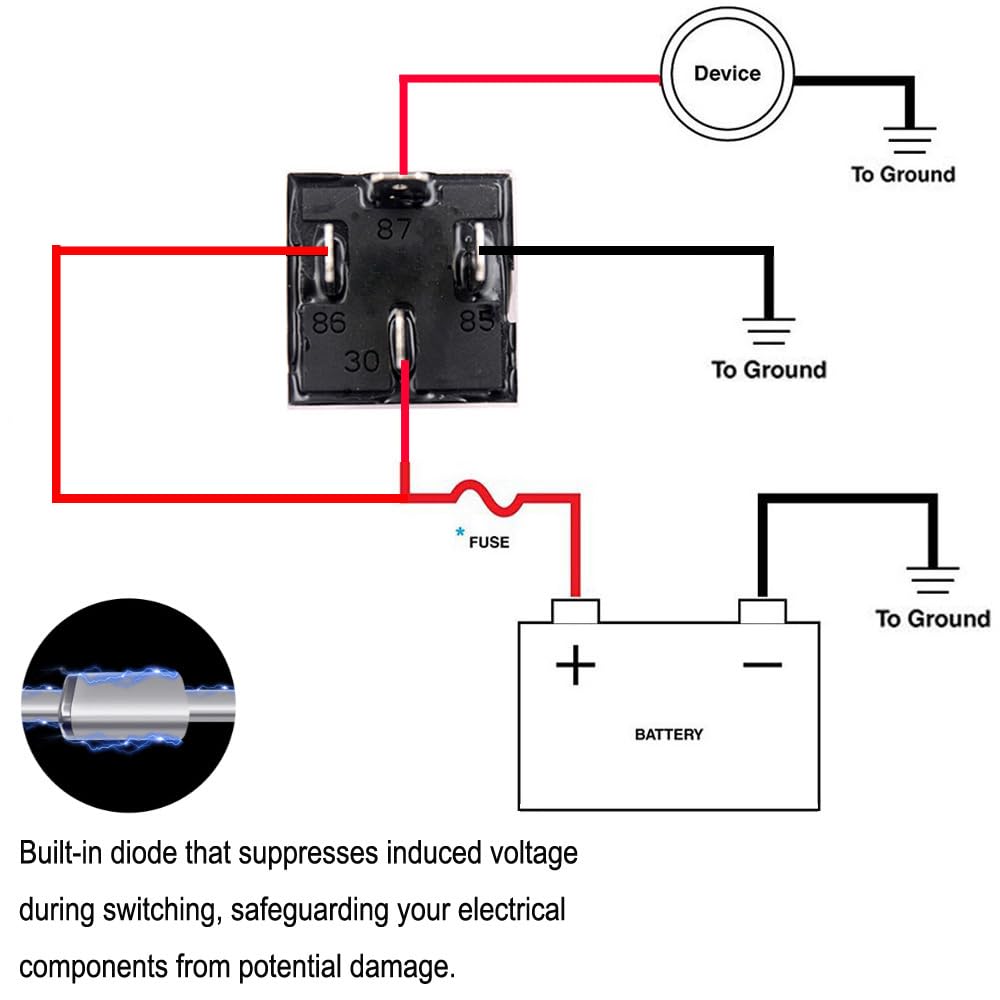

• Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.
• Rated operational voltage: 12V/ Switching Capability:40A
• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
• Small size/Low power consumption/High contact voltage/ High sensitivity
• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operations, Life Expectancy Mechanical: 10,000,000 Operations

Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Relay technical specification Relay load: 40A/12VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations Life Expectancy Mechanical: 10,000,000 Operations (at 300 Operations/min) Coil power:1.8W Operate Time: ≤ 15ms Release Time: ≤ 10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range:35%~80% Atmospheric Pressure:86-106KPa
