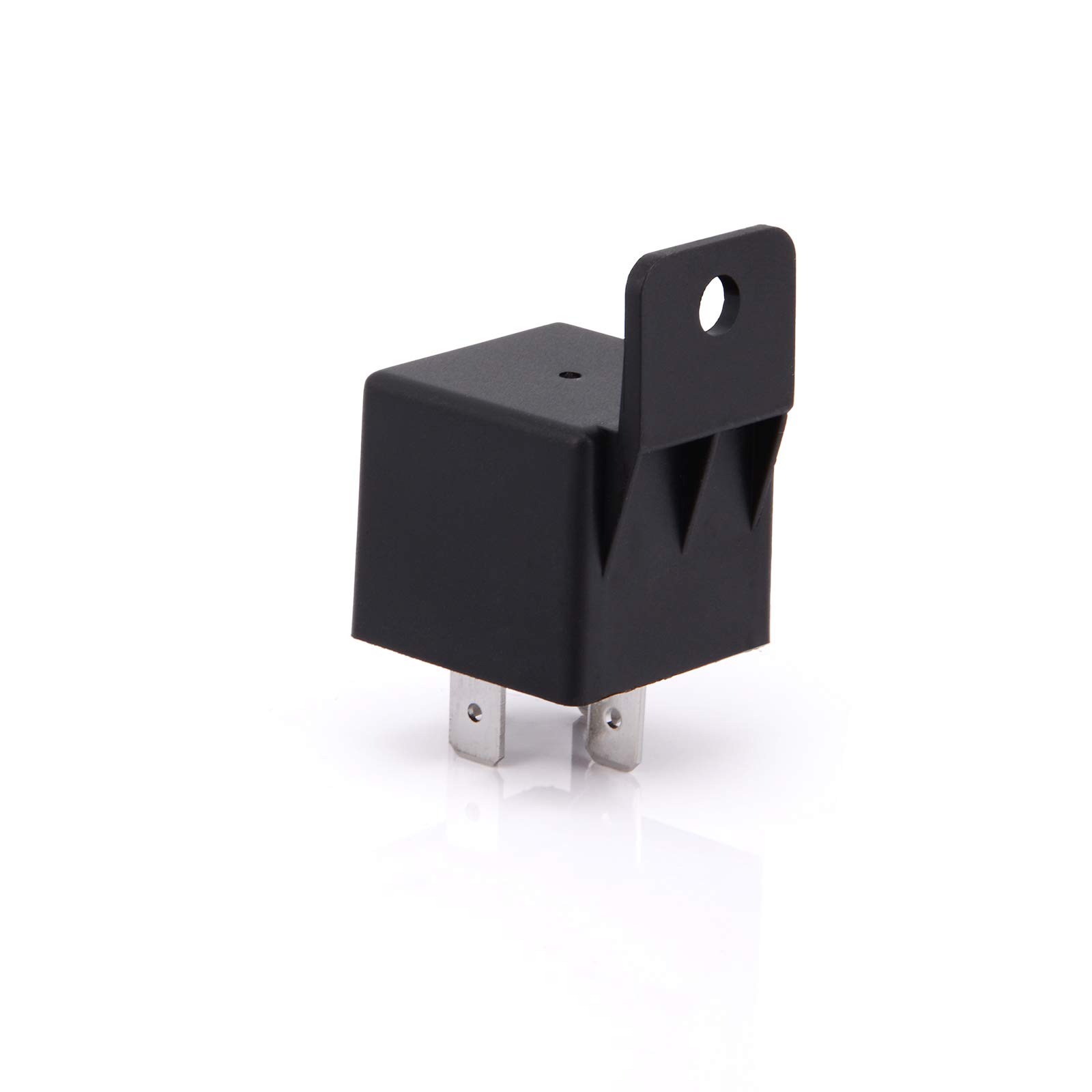

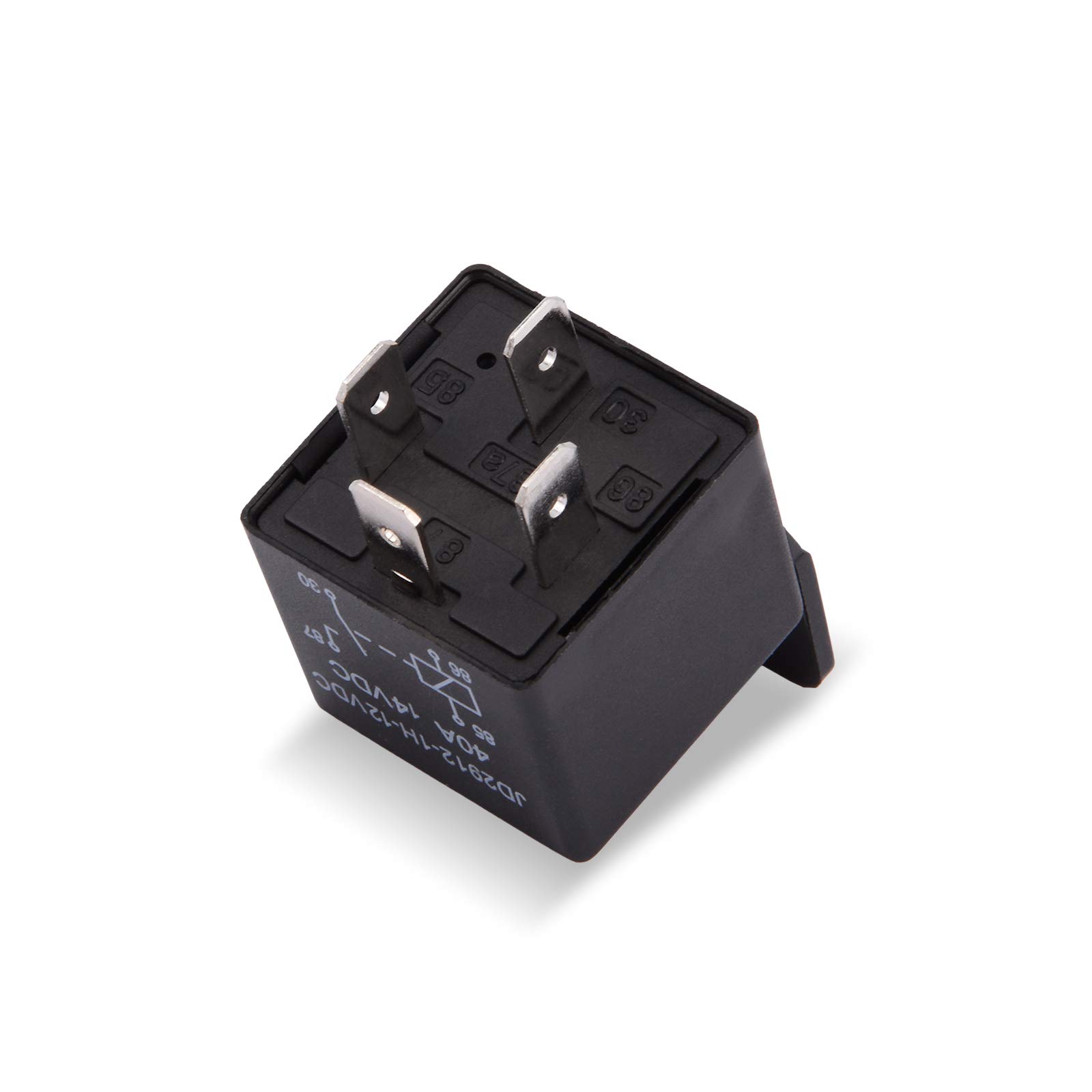

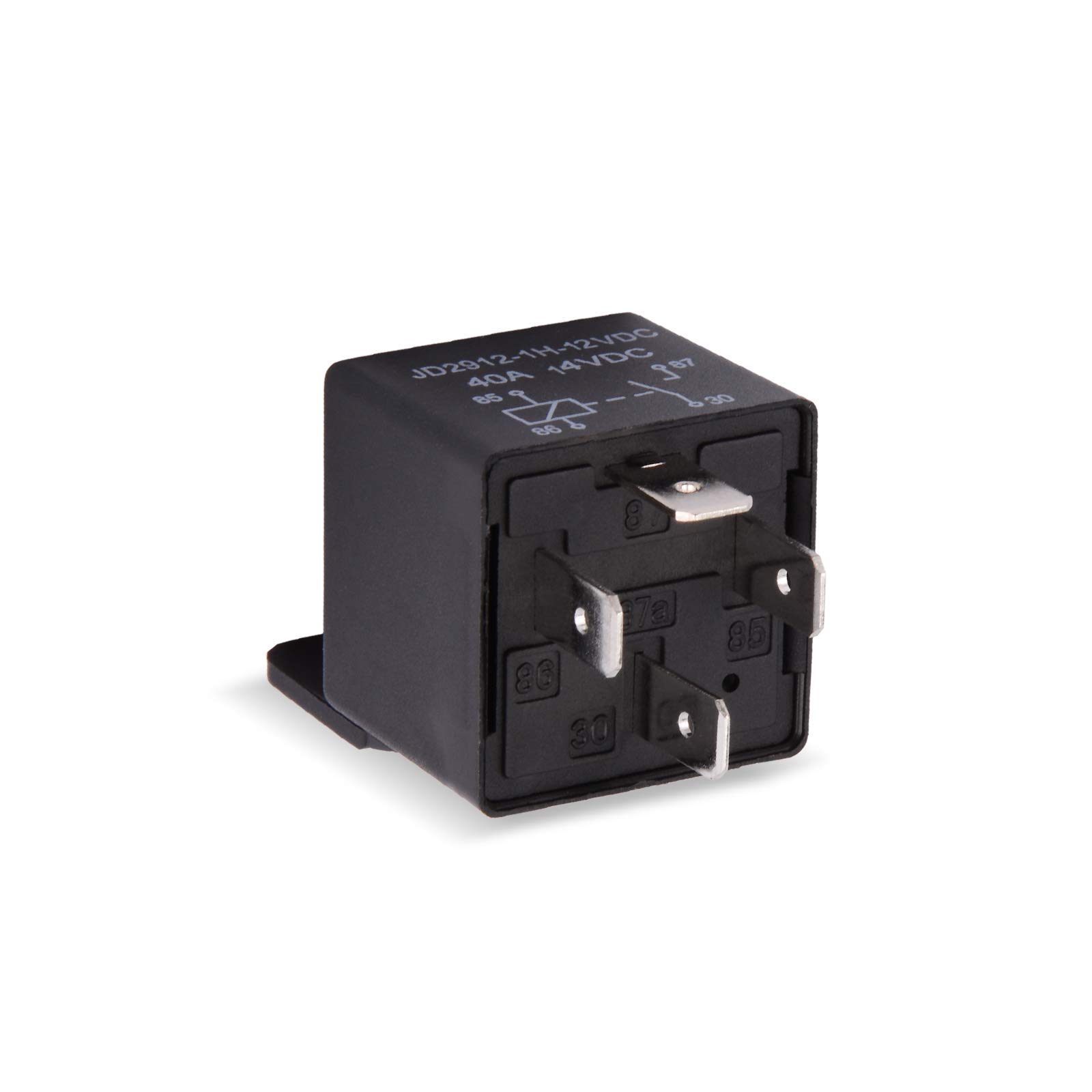

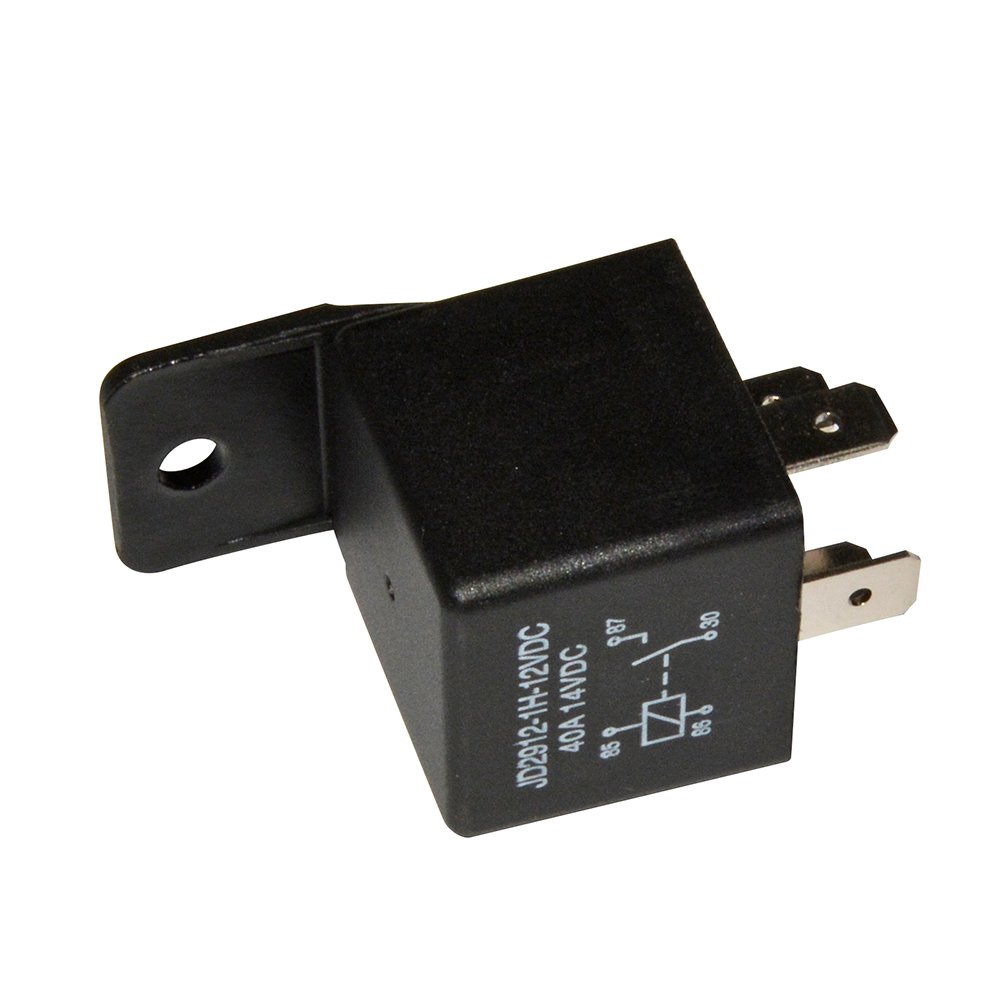

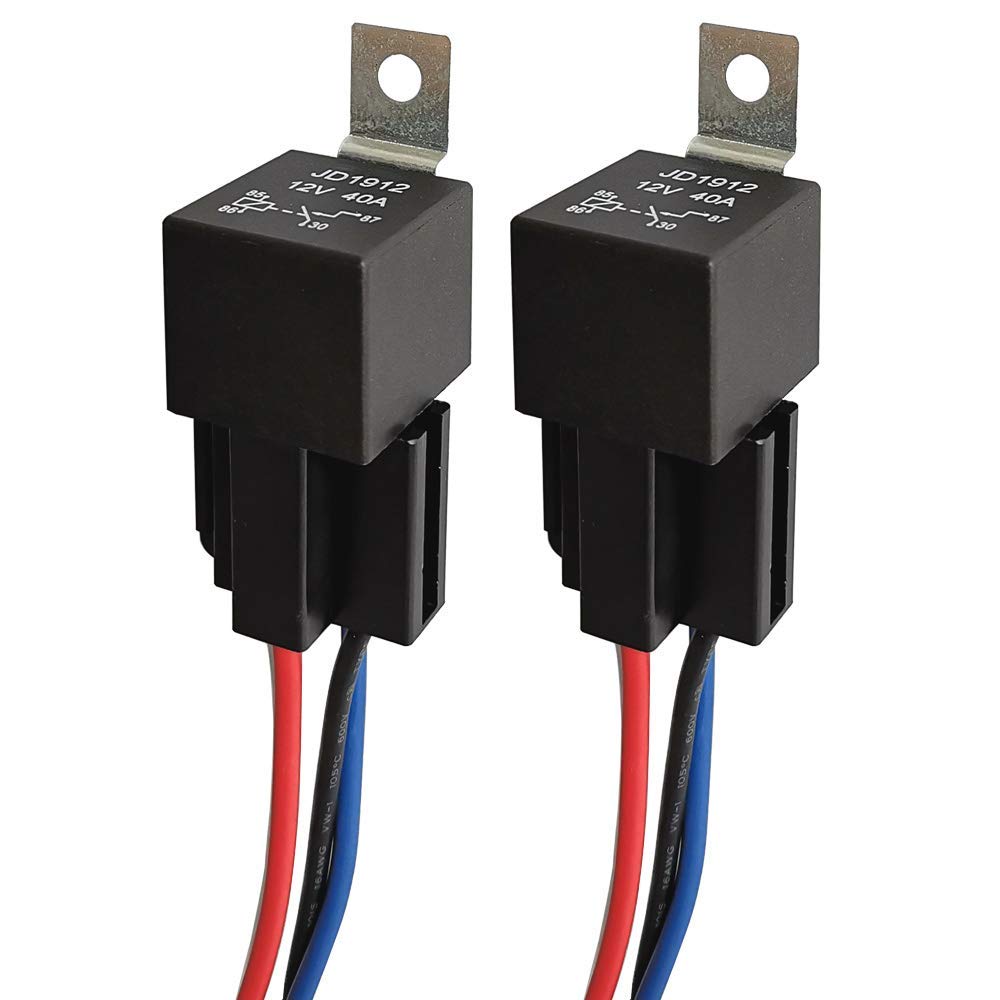

Ehdis 2 pcs Car Relay 12v 40 APM 4 Pin Relay Kit Spst Model No.: JD2912-1H-12VDC 40A 14VDC, Auto Switches & Starters
About this item
- Brand new heavy duty 4-prongs SPST relays

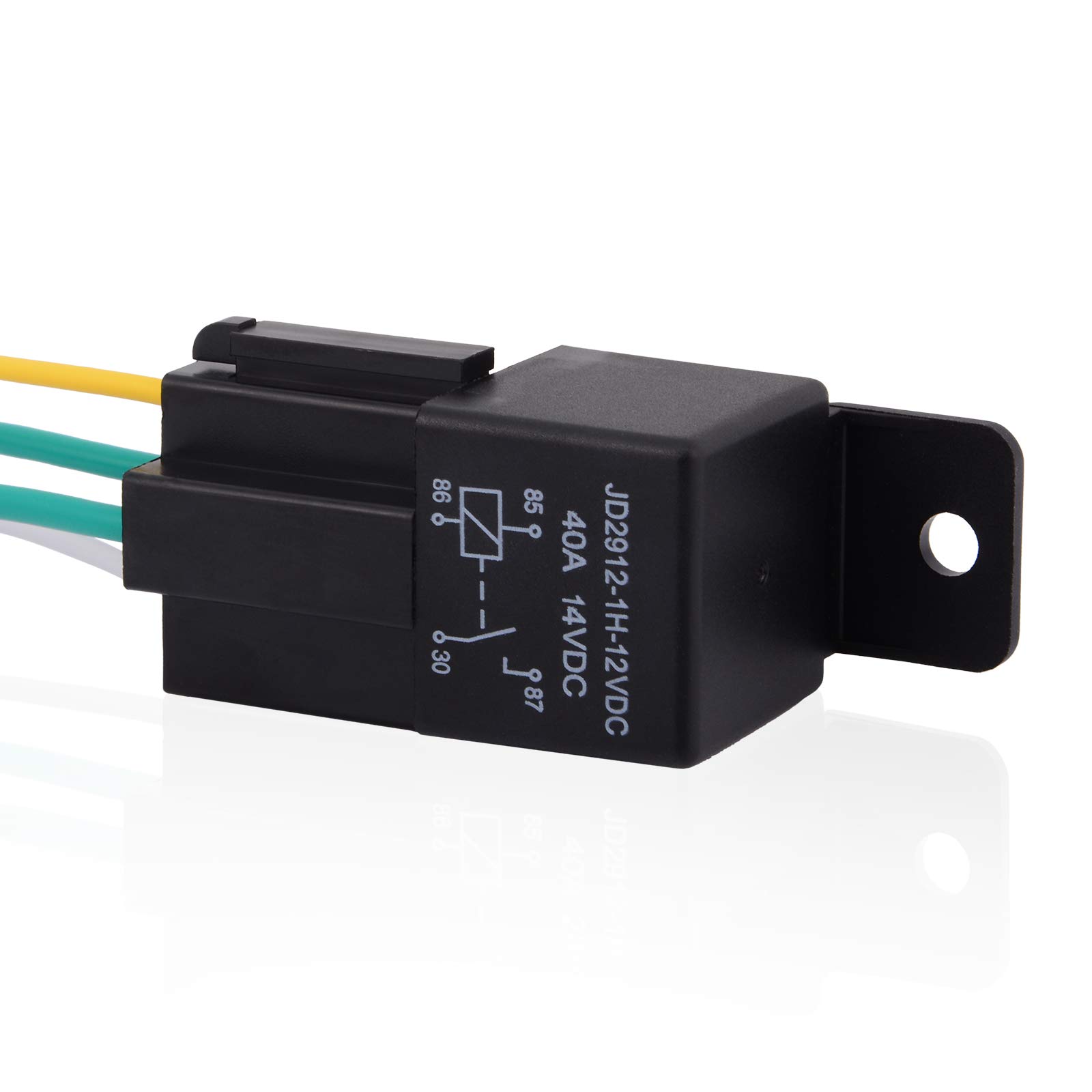

- Use optional Relay Harness, or female Crimp Connectors
- High 40A coil capacity- able to handle those high current applications with ease
- Package Include: 2 x 40A 4-Pin 12V Vehicle Relays
- Mechanical life of 10,000+ cycles
Product description

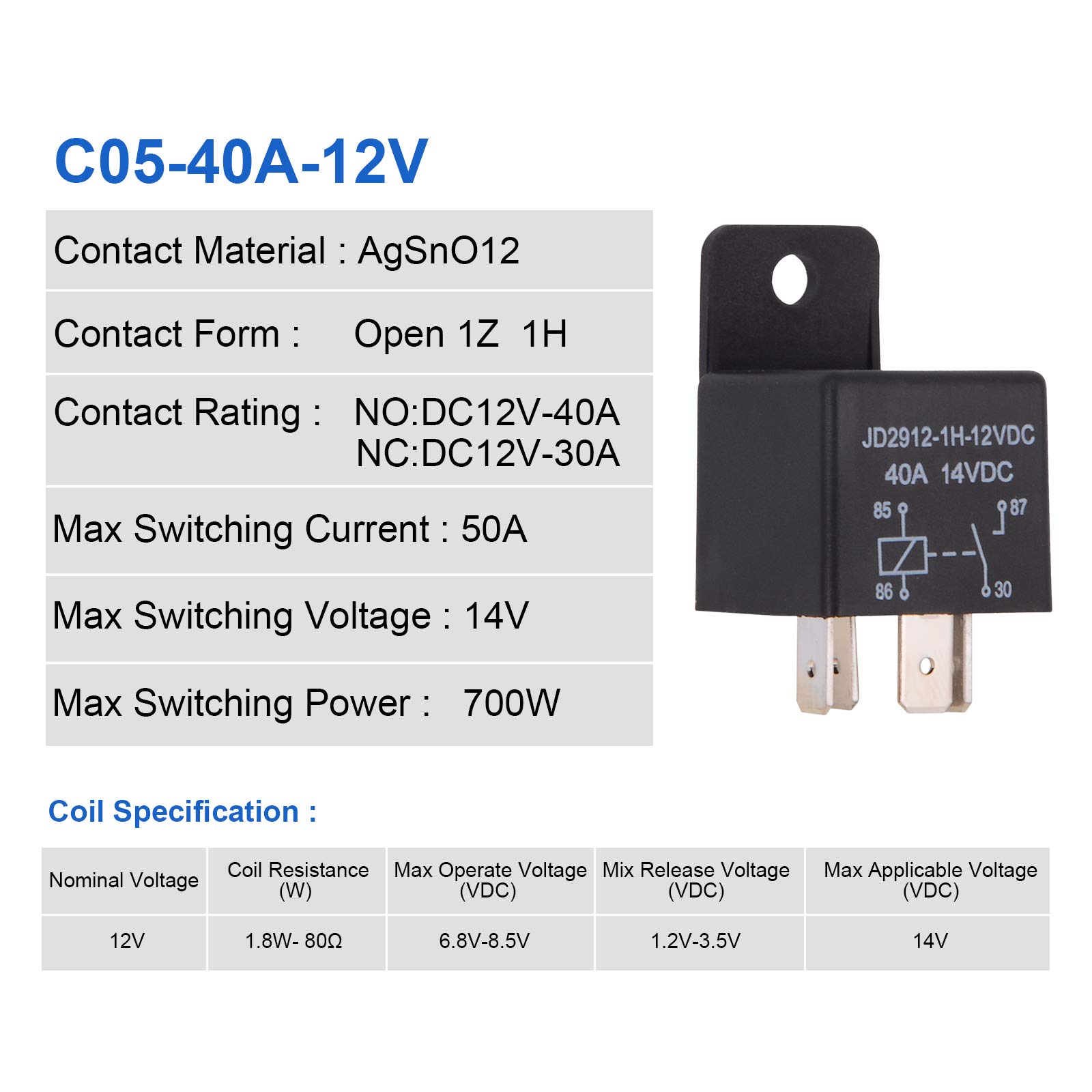

Contact Data: Contact Material: AgSnO12 Contact Form: 1Z(C) / 1H(A) Contact Ratings: No: 40A 72VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 40A Max Switching Power: 560W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 12V Coil Resistance (1.8W): 80 Max Operate Voltage (VDC): 6.5~8.0 Mix Release (VDC): 1.2~3.6 Max Applicable Voltage (VDC): 14 Characteristics: Temperature Range: -30ยฐC ~+80ยฐC Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Weigh: Approx. 35g
Product details
