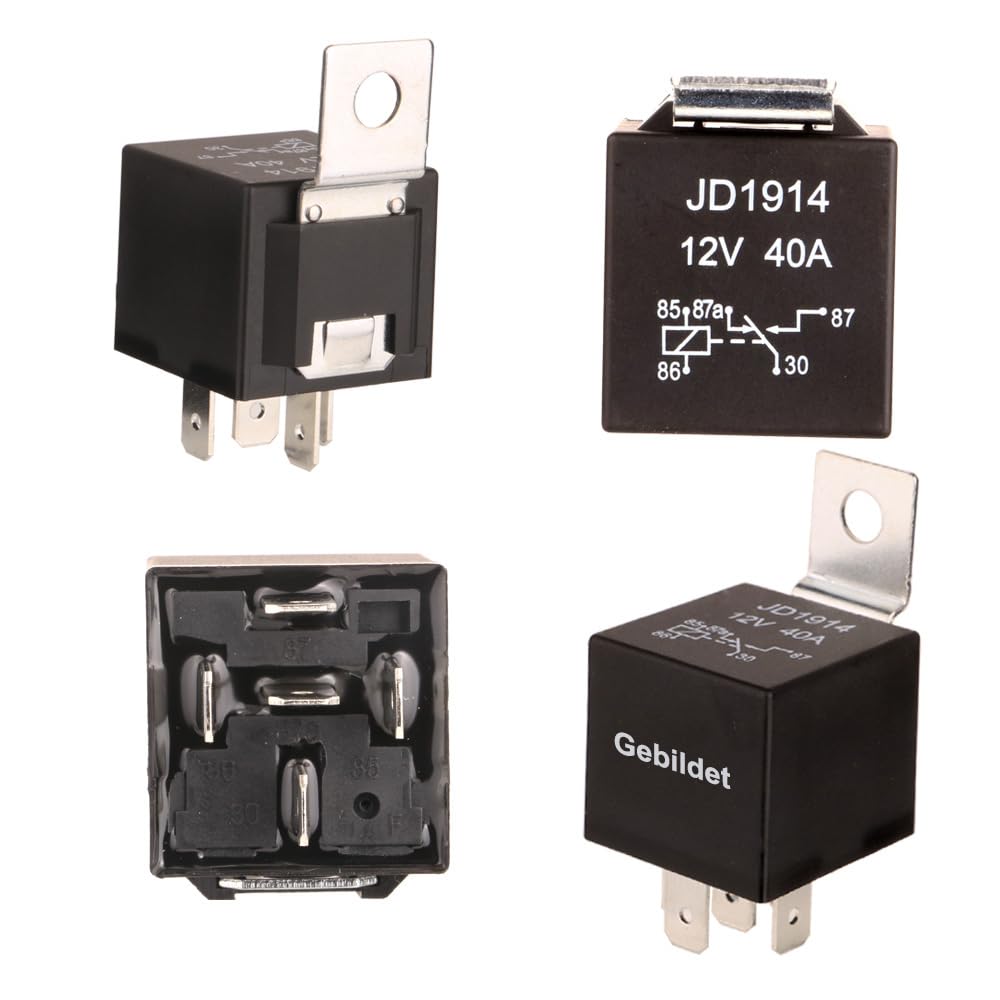

Gebildet 4pcs JD1914 Car Relay Harness 12V 40A 5 Pin SPDT with Built-in Diode for Automotive Truck Van Motorcycle Boat

• Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage.
• Rated operational voltage: 12V/ Switching Capability:40A
• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
• Small size/Low power consumption/High contact voltage/ High sensitivity
• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operations, Life Expectancy Mechanical: 10,000,000 Operations

Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Relay technical specification Relay load: 40A/12VDC Contact Resistance:≤ 100MΩ Contact Material: Ag Alloy Operate Time: ≤ 10ms Release Time: ≤10ms Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -40°C ~+85°C Humidity Range:35%-70% Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations (at 300 Operations/min)
