Gear Motor, 12V GM25-310 DC Encoder Gear Motor Speed Reduction Motor With Encoder and Cable for Window Opener, Door Opener, Mini Windlass(DC12 30RPM)

• SUITABLE FOR :The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force.

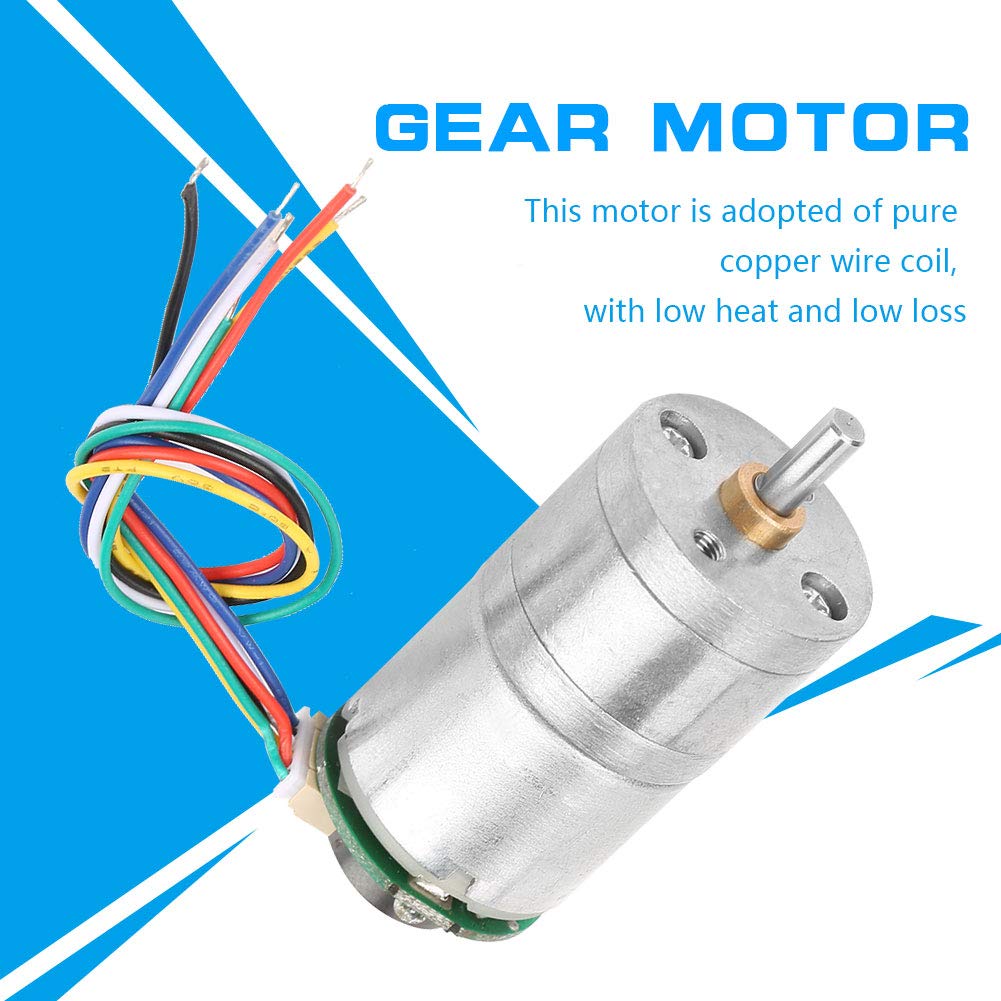

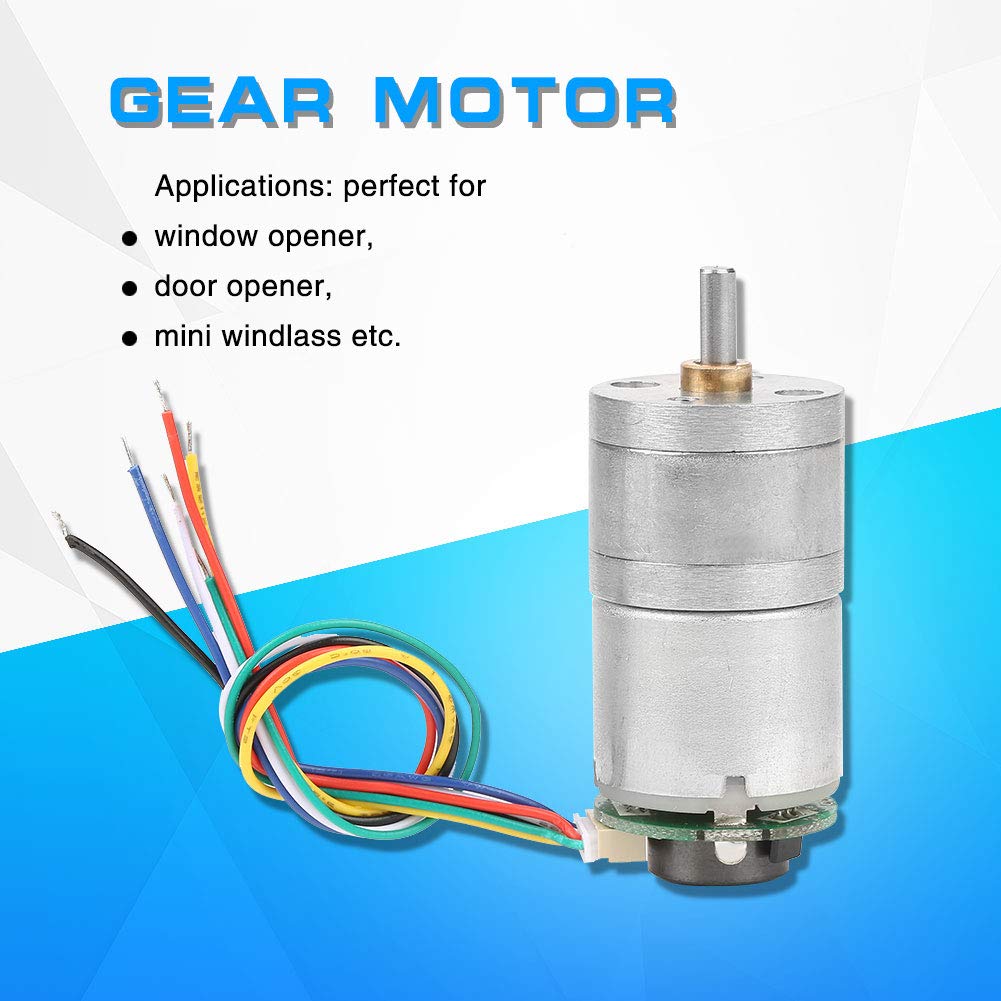

• METAL MATERIAL: This motor is adopted of pure copper wire coil, with low heat and low loss. perfect for window opener, door opener, mini windlass etc.
• ADVANTAGES :This DC motor features large moment of force, low speed, and low noise.The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

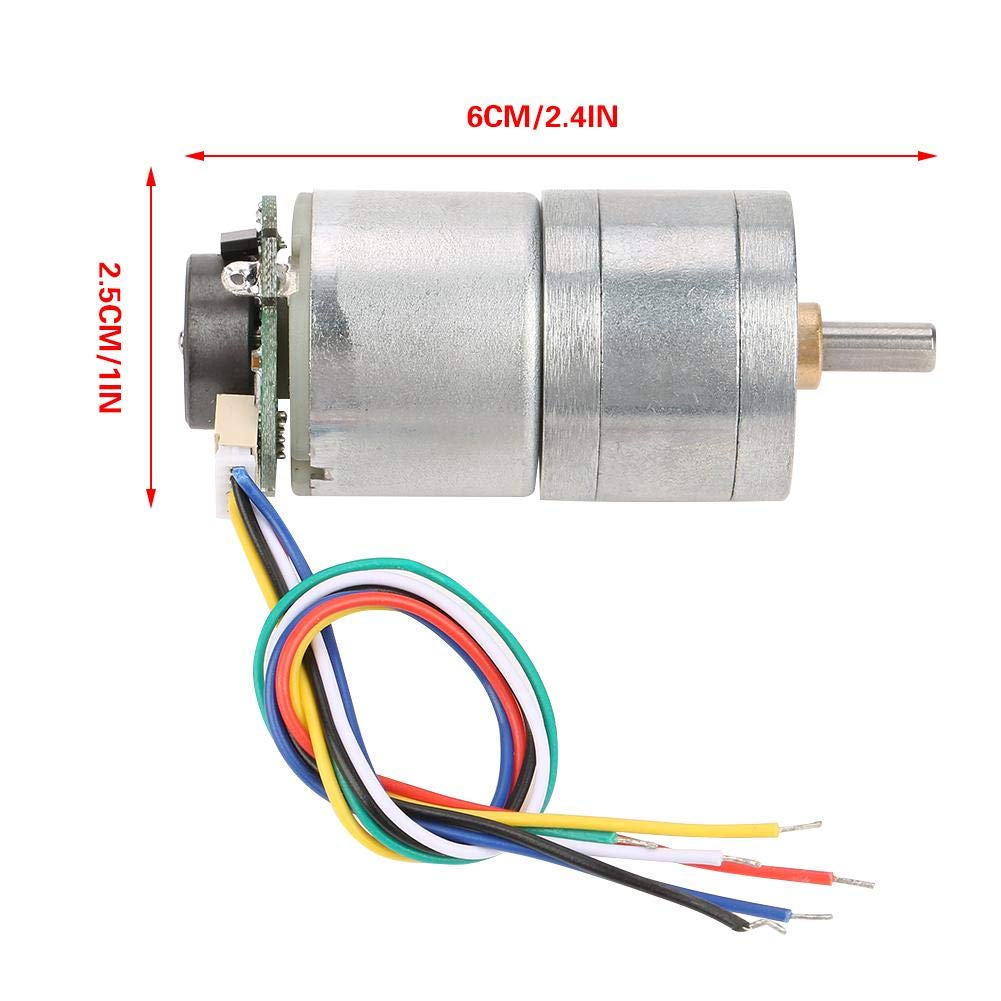

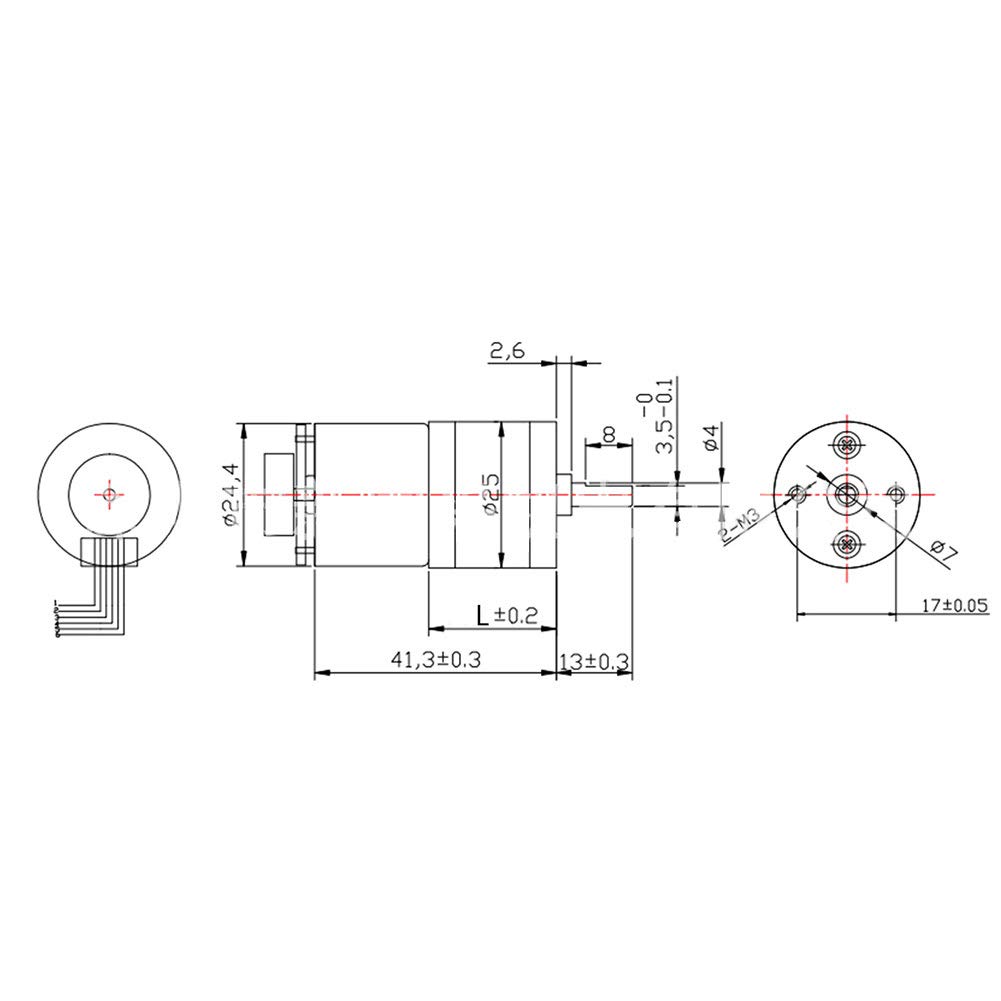

• SPECIFICATION :Model: GM25-310;Rated voltage:12 (V);Rated power: 2 (W);Speed:30/70/100/500RMP (Optional);Size: 6*2.5cm/2.4*1in
• AFTER SALES : We supply fast and convenient return or replace service to insure purchasing without worries.

Specification: Material: metal Model: GM25-310 Product type: brush dc motor Rated voltage:12 (V) Rated power: 2 (W) Speed:30/70/100/500RMP (Optional) Size: 6*2.5cm/2.4*1in Weight: Approx.73g/2.6oz Green:motor wire- Red:Encoder power supply Yellow: encoder output A phase White: encoder output B phase Black:encoder ground wire Blue: motor wire + Package list: 1 x DC Encoder Gear Motor with cable
