Futheda 2Pcs Standard Car Relay 4 Pin 12V 40A JD1912 SPST Car Heavy Duty Auto Switches & Starters Compatible with Automotive Truck Van Motorcycle Boat

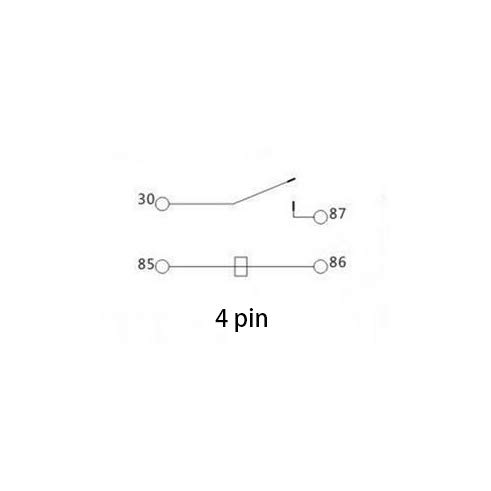

• Brand new heavy duty 4-prongs SPST(Single Pole Single Throw) relays.
• High 40A coil capacity- able to handle those high current applications with ease.
• Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
• Small size, Low power consumption, High contact voltage, High sensitivity.
• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operations, Life Expectancy Mechanical: 10,000,000 Operations.

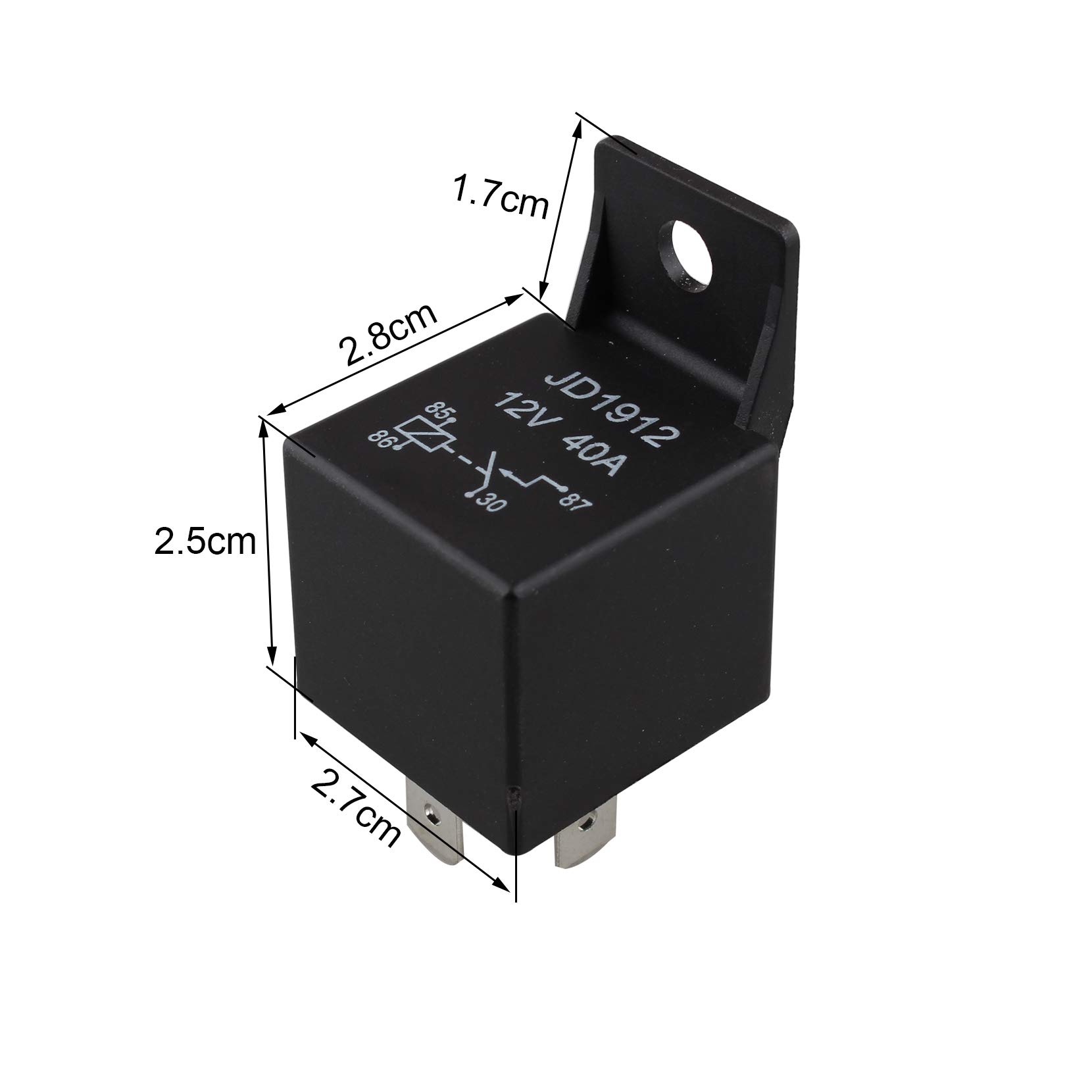

Features Brand new heavy duty 4-prongs SPST(Single Pole Single Throw) relays. Use optional Relay Harness, or female Crimp Connectors. High 40A coil capacity- able to handle those high current applications with ease. Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA. Small size, Low power consumption, High contact voltage, High sensitivity. Relay Technical Specification Relay load: 40A/12VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations Life Expectancy Mechanical: 10,000,000 Operations (at 300 Operations/min) Coil power: 1.8W Operate Time: ≤ 15ms Release Time: ≤ 10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range: 35%~80% Atmospheric Pressure: 86-106KPa Size: 5.2 x 2.7 x 3.1cm Weight: 31.7g Package Including 2 x Car Relay
