Futheda 2Pcs Car Relay 4 Pin 24V 40A SPST JD2912 Auto Switches & Starters Compatible with Automotive Truck Van Vehicle Motorcycle Boat

• Brand new heavy duty SPST (Single Pole Single Throw) relays. Small size, Low power consumption, High contact voltage, High sensitivity.
• Use optional Relay Harness, or female Crimp Connectors. High 40A coil capacity - able to handle those high current applications with ease.
• Compatible with all automobiles and devices equipped with a 24 Volt DC power source.
• Minimum operating voltage 16V, corresponding minimum operating current is 50mA; Standard operating voltage 24V, corresponding standard operating current is 70mA.
• Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.

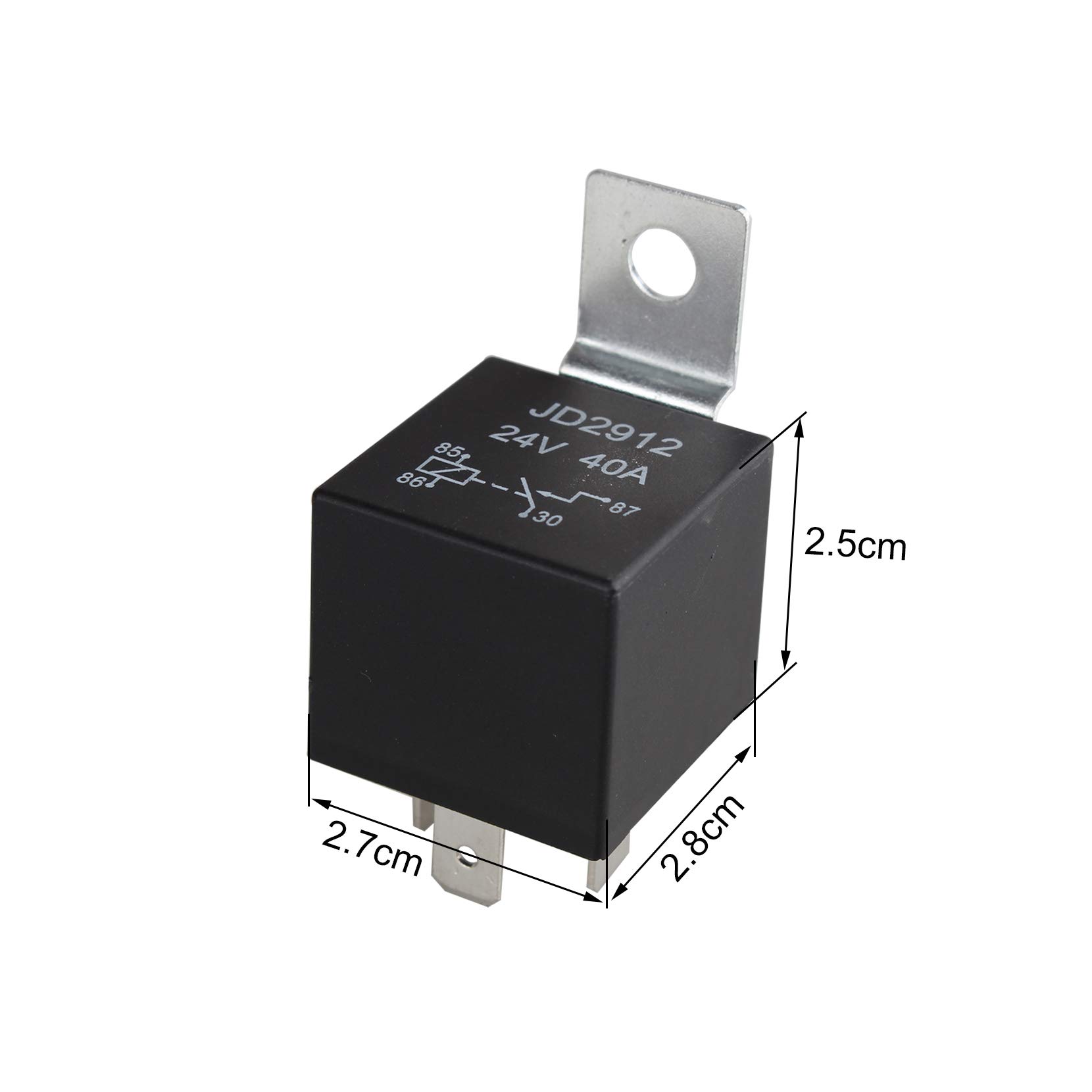

Features Brand new heavy duty 4-prongs SPST relays. Use optional Relay Harness, or female Crimp Connectors. High 40A coil capacity- able to handle those high current applications with ease. Small size, Low power consumption, High contact voltage, High sensitivity. Compatible with all automobiles and devices equipped with a 24 Volt DC power source. Relay technical specification: Relay load: 40A/24VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil power: 1.8W Operate Time: 15ms Release Time: 10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range: 35%-80% Atmospheric Pressure: 86-106KPa Size: 5.2 x 3.3 x 2.7cm Weight: 36.6g Package Including 2 x 4 Pin 24V 40A Car Relay
