Futheda 2Pcs Car Motor Relay 5 Pin 12V Coil 40amp SPDT 40A Contactor Relay Switch Power Auto Switches & Starters Compatible with Automotive Truck Boat Marine

• 5 Pin Single Pole, Double Throw SPDT so contact can be wired for normally closed or normally open operation.
• High 40A coil capacity- able to handle those high current applications with ease.

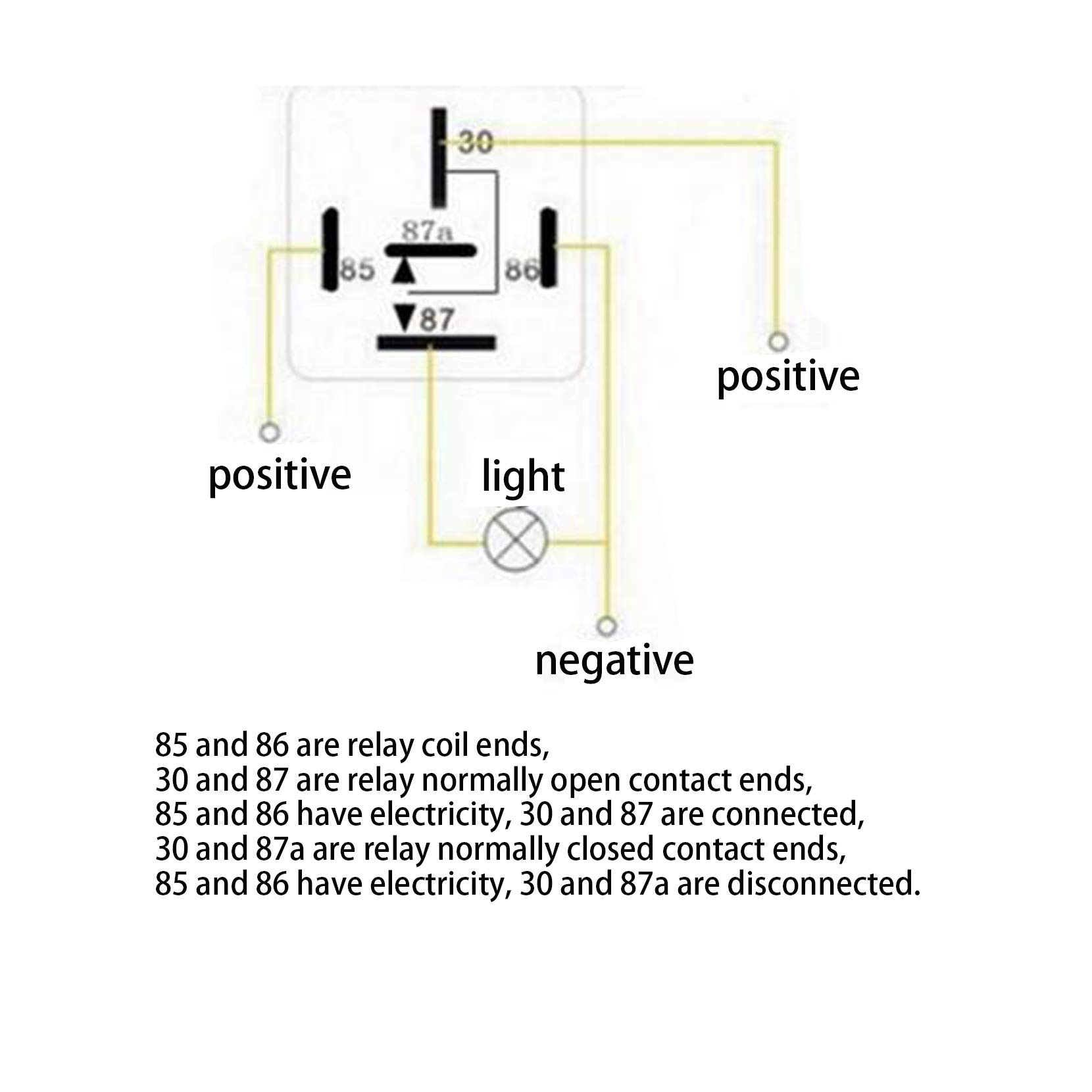

• Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87).
• These relays have a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications.
• These Relays are interchangeable/compatible with: All automobiles and devices equipped with a 12 Volt DC power source.

Features 5 Pin Single Pole, Double Throw SPDT so contact can be wired for normally closed or normally open operation. High 40A coil capacity- able to handle those high current applications with ease. Automotive changeover relay with 5-pins suitable for general purpose automotive uses and with a 40A switching capability. Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87). These Relays are Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Applied in Trunk Pop Up, Remote Start Up, Lighting. Application: These relays have a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications. Characteristics Max switching Current: 40A Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Nominal Voltage(VDC): 12V Coil Resistance (1.8W): 80 Max Operate Voltage (VDC): 6.0~8.0 Mix Release (VDC): 0.6~3.6 Max Applicable Voltage (VDC): 15.6 Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Size: 5.2 x 2.7 x 3.1cm Weight: 32.7g Package Including 2 x Car Relay
