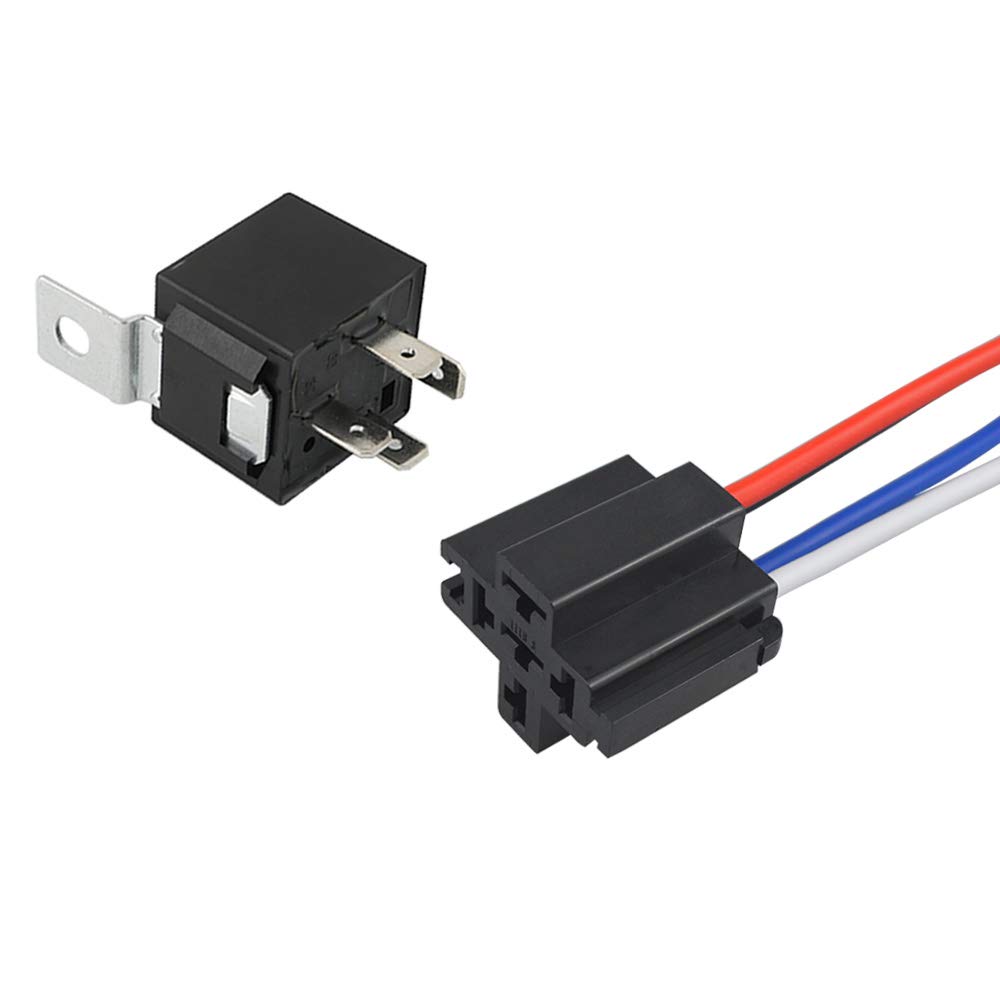

QitinDasen 2 Pieces 4 Pin Car Relay, 12V 40A SPST Automotive Relay with Harness Socket and 14/16 AWG Pre-Wired, for Car Truck Boat (Black)

• Professional 4 pin automotive relay with SPST design (Single Pole Single Throw), suitable for normally closed or normally open circuits.

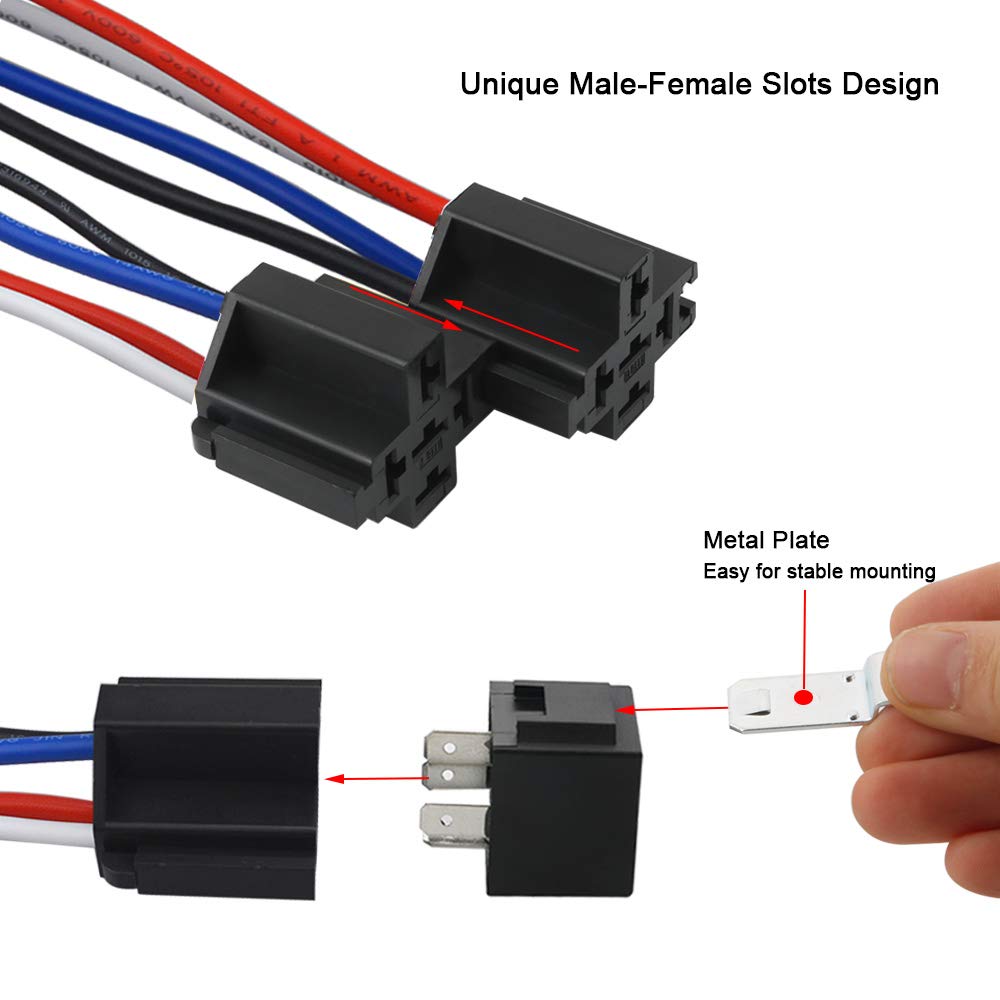

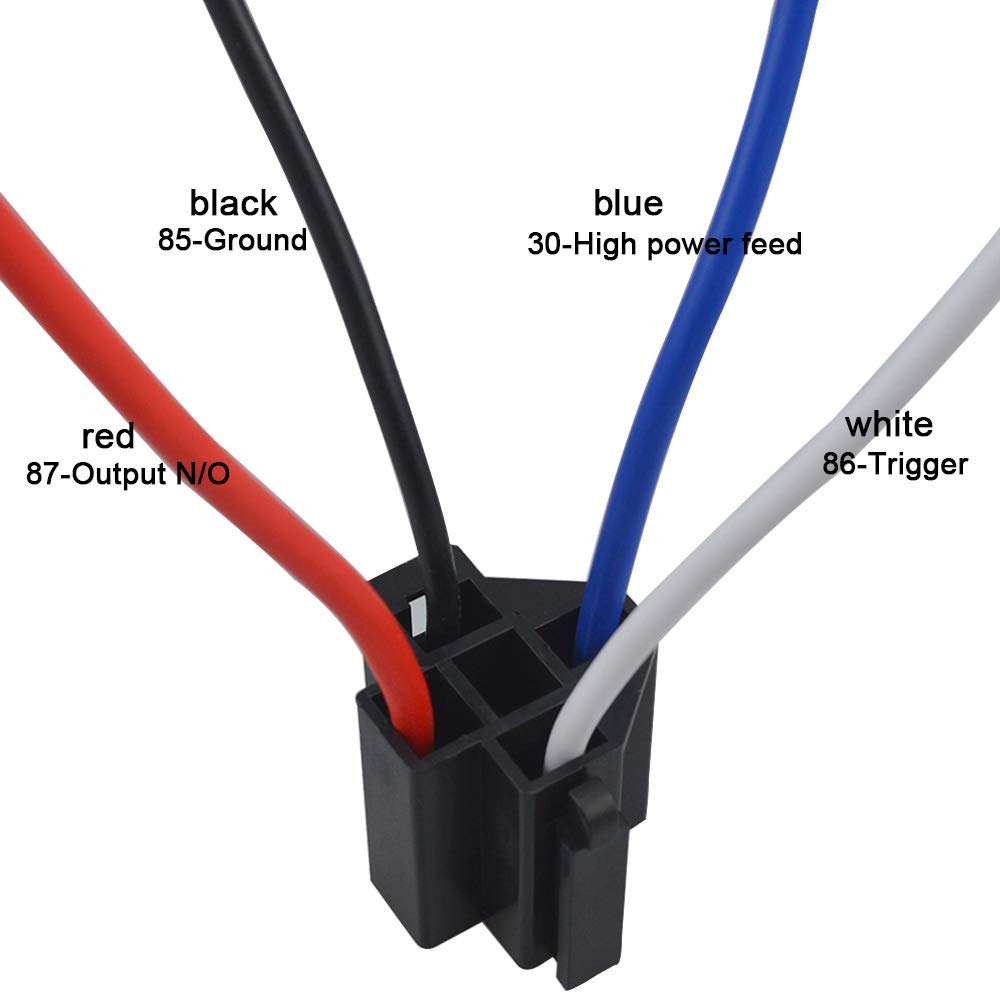

• The relay comes with harness socket and 14/16 AWG pre-wired. The harness socket has a unique male and female groove structure design on the edge, which can connect all relays together. Pre-wired with 4 different color-coded wires for easy connection of loads and accessories.
• Comes with free metal mounting bracket for easy installation and fixing.
• Suitable for all automobiles and devices equipped with 12V DC power supply. Widely used for car lights, Indicator light, fog lamps, wiper, central locking, alarm, electric windows, etc.
• If you have any questions about the products you ordered, please contact us in time, we will try our best to provide you with satisfactory service. We always care about customer experience and strive to improve product functions and details.

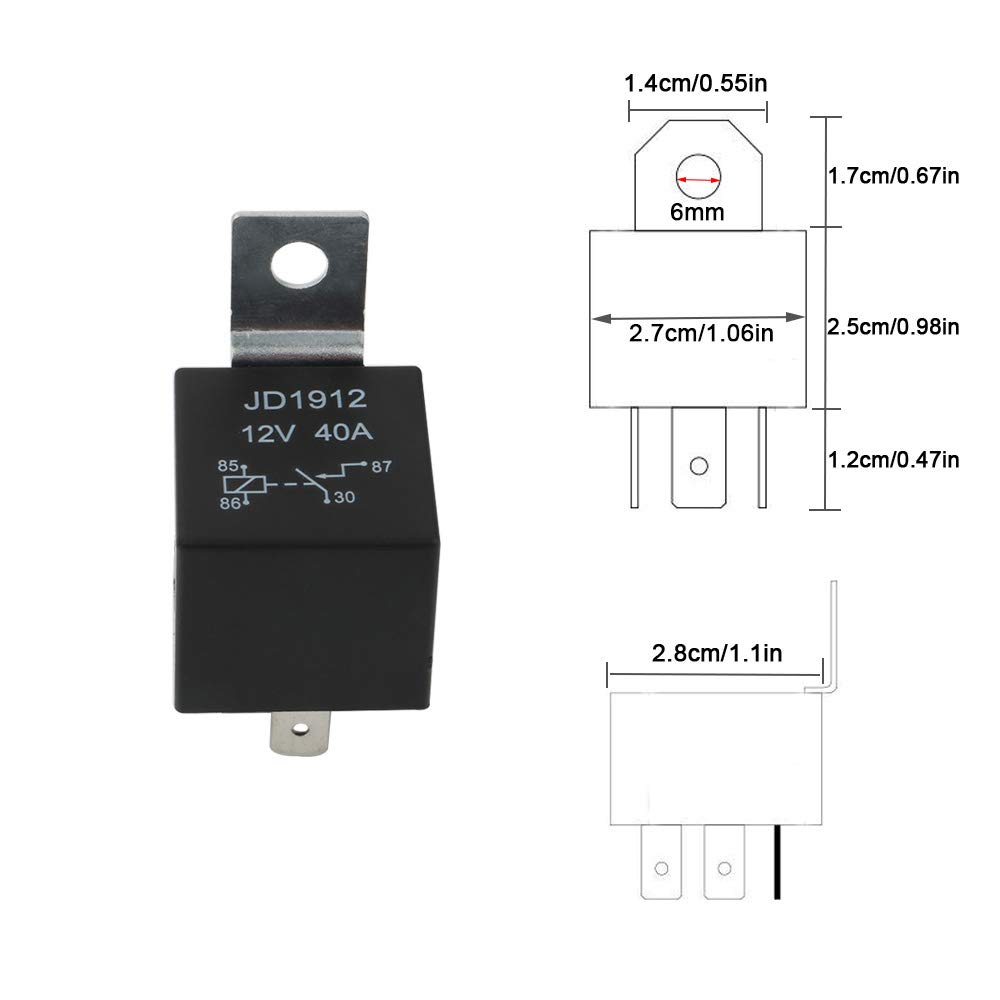

Specifications: ◆Material: Plastic + Metal + Copper ◆Size: (L*W*H) Relay Size: 3.1 X 2.7 X 3.7 cm Socket Size: 3.2 X 2.7 X 2.8 cm Pre-Wired Length: 13 cm Pre-Wired Gauge: 14/16 AWG Fixing Hole Diameter: 0.6 cm ◆Weight: 55 g ◆Color: Black ◆Package Includes: 4 Pin Car Relay X 2 Pieces Harness Socket with Pre-Wired X 2 Pieces Metal Mounting Bracket X 2 Pieces 4 pin car relay with harness socket and pre-wired. The automotive relay is an electronic control device, usually used in an automatic control circuit. It is in fact an "automatic switch" that controls a large current through a small current. It has the function of automatic adjustment, safety protection, and conversion circuit. Product Parameters: ◆Contact Material: Ag Alloy ◆Contact Ratings: 12VDC / 40A ◆Contact Resistance: ≤ 50mΩ ◆Electrical Life: More than 100,000 Operations ◆Mechanical Life: More than 10,000,000 Operations ◆Minimum operating voltage 8V, corresponding minimum operating current is 100mA. ◆Standard operating voltage 12V, corresponding standard operating current is 150mA. ◆Coil Power: 1.8W ◆Operate Time: ≤15ms ◆Release Time: ≤10ms ◆Initial withstand voltage of Contact and Contact: 1000VAC / 1Min ◆Initial withstand voltage of Contact and Coil: 1500VAC / 1Min ◆Insulation Resistance: ≥ 100mΩ / 500VDC ◆Temperature Range: 0°C～85°C ◆Humidity Range: 35%～80%
