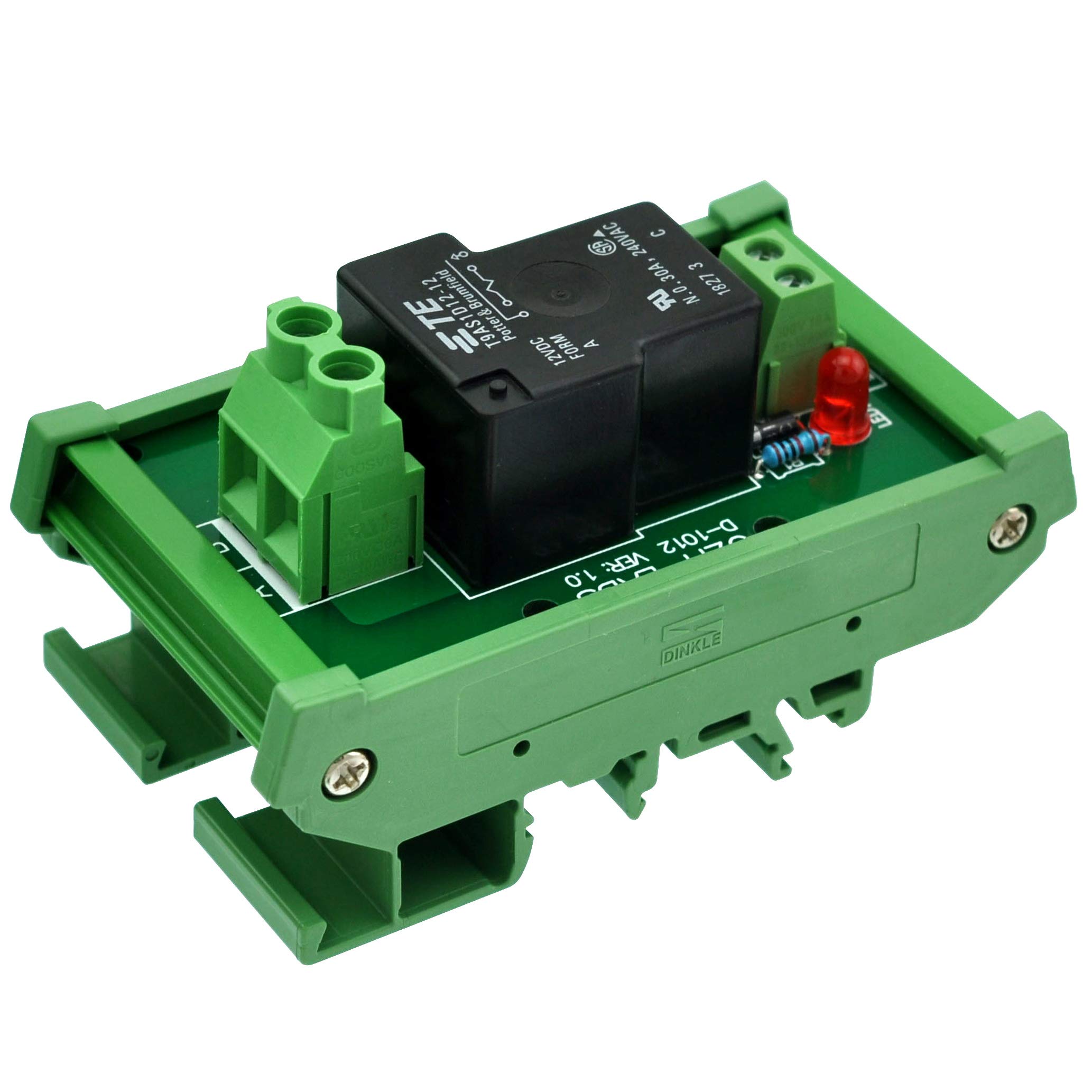

Electronics-Salon DIN Rail Mount Coil 12V Passive 1 Channel SPST-NO 30A 30Amp Power Relay Module.

• DIN Rail Mount Passive 1 Channel SPST-NO 30 Amp Power Relay Module.
• Part Number: MD-D1012T/12V

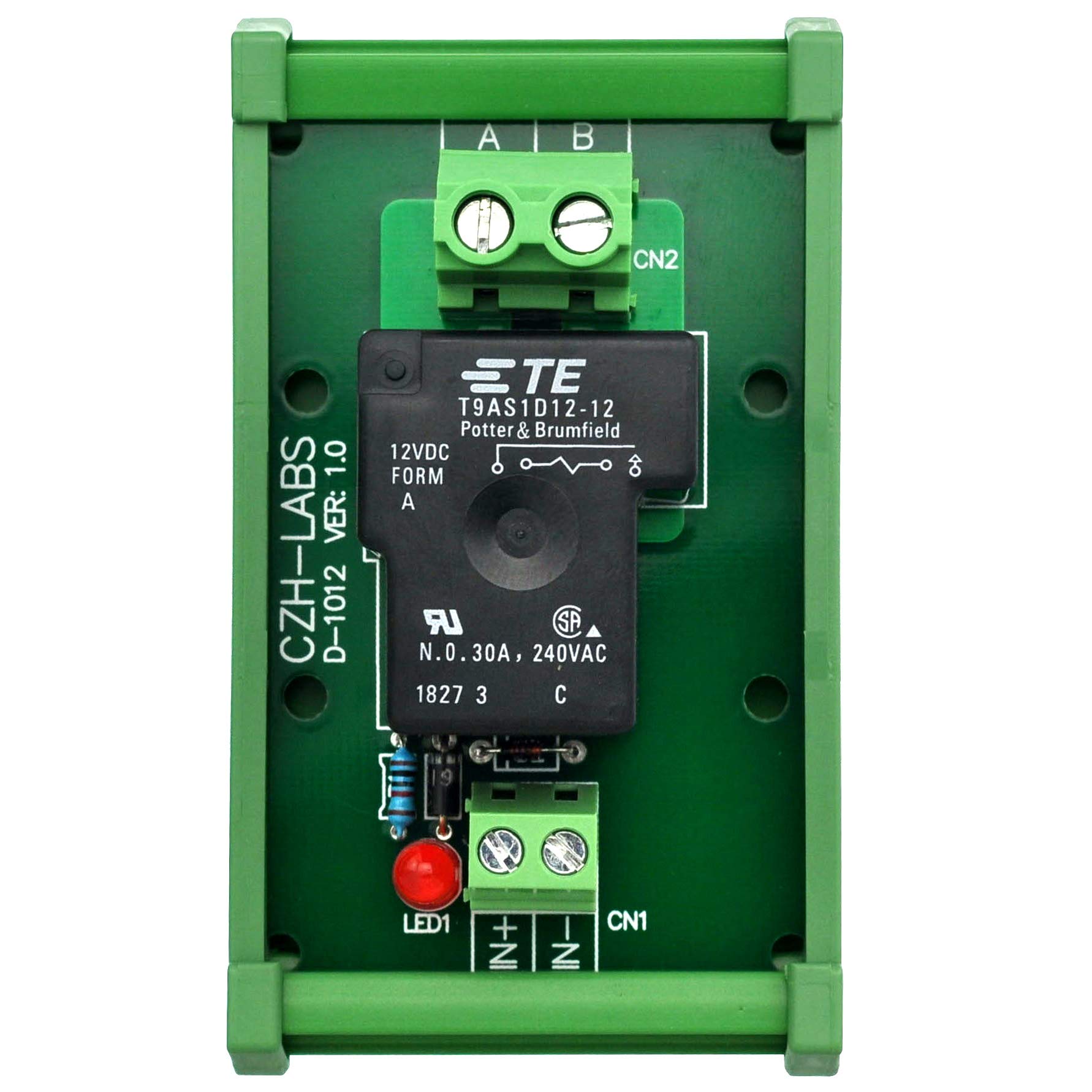

• Original G8P-1A4P 30Amp power relay.
• FR-4 Fiber glass PCB (Double Layer).

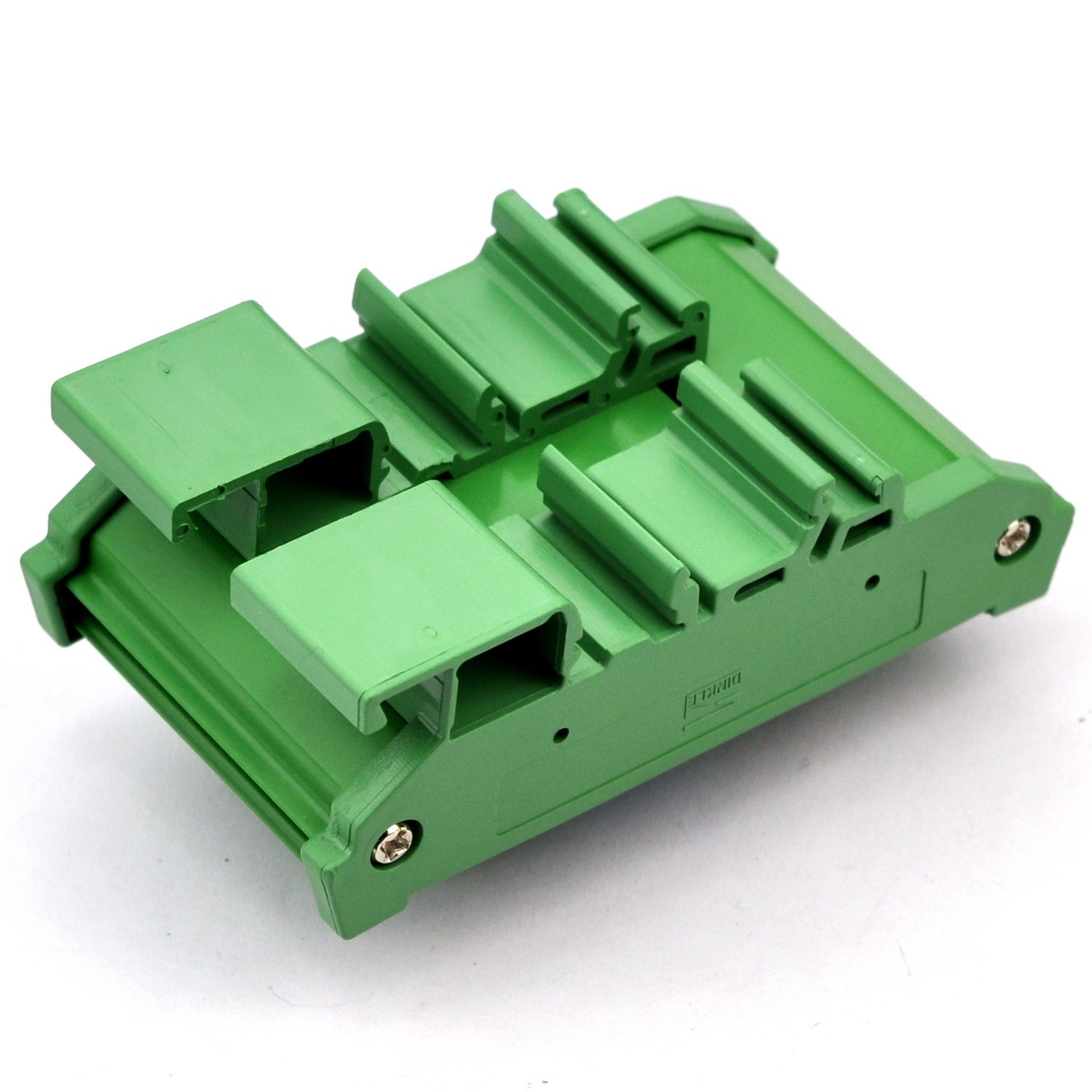

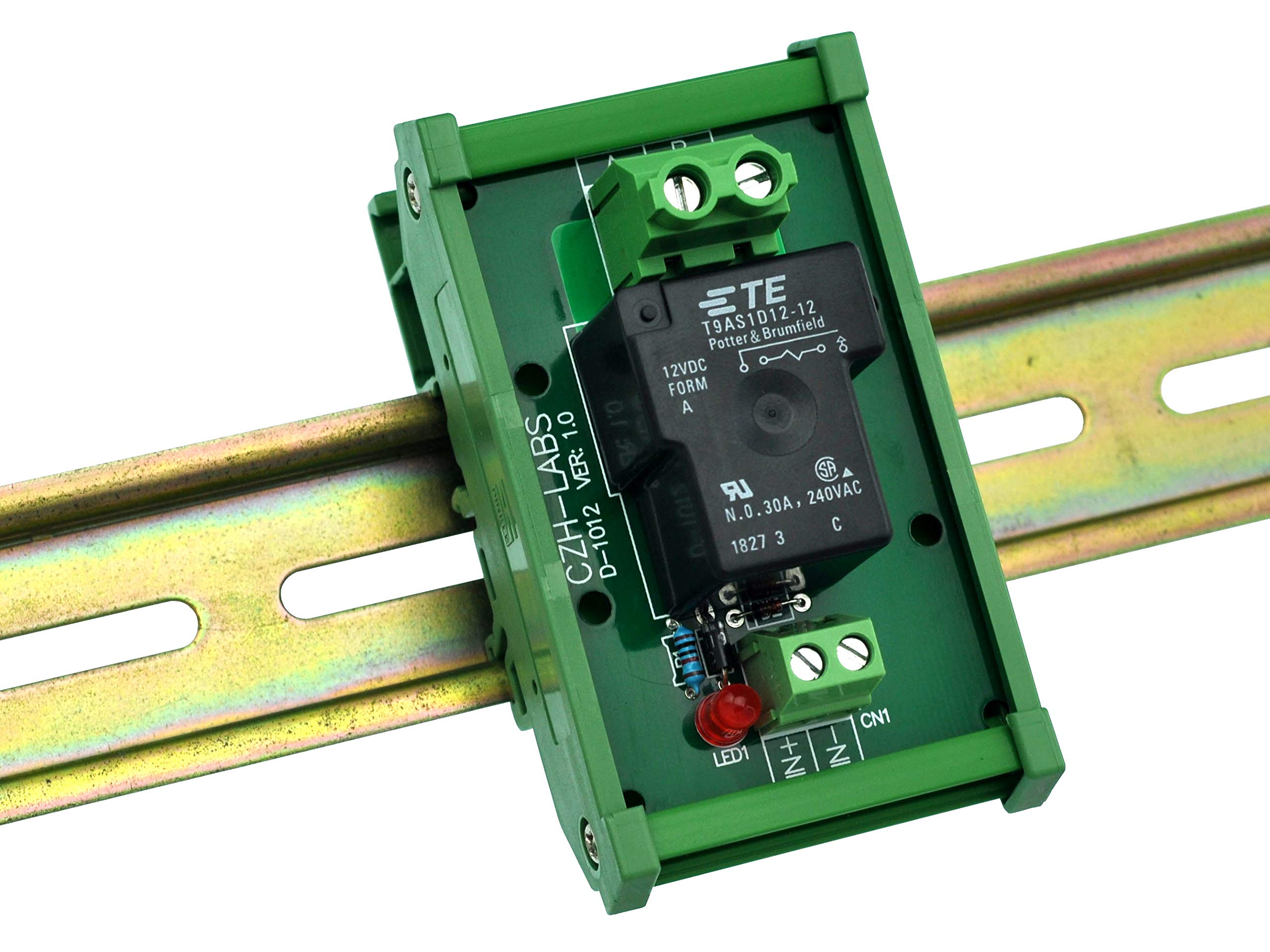

• High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail.

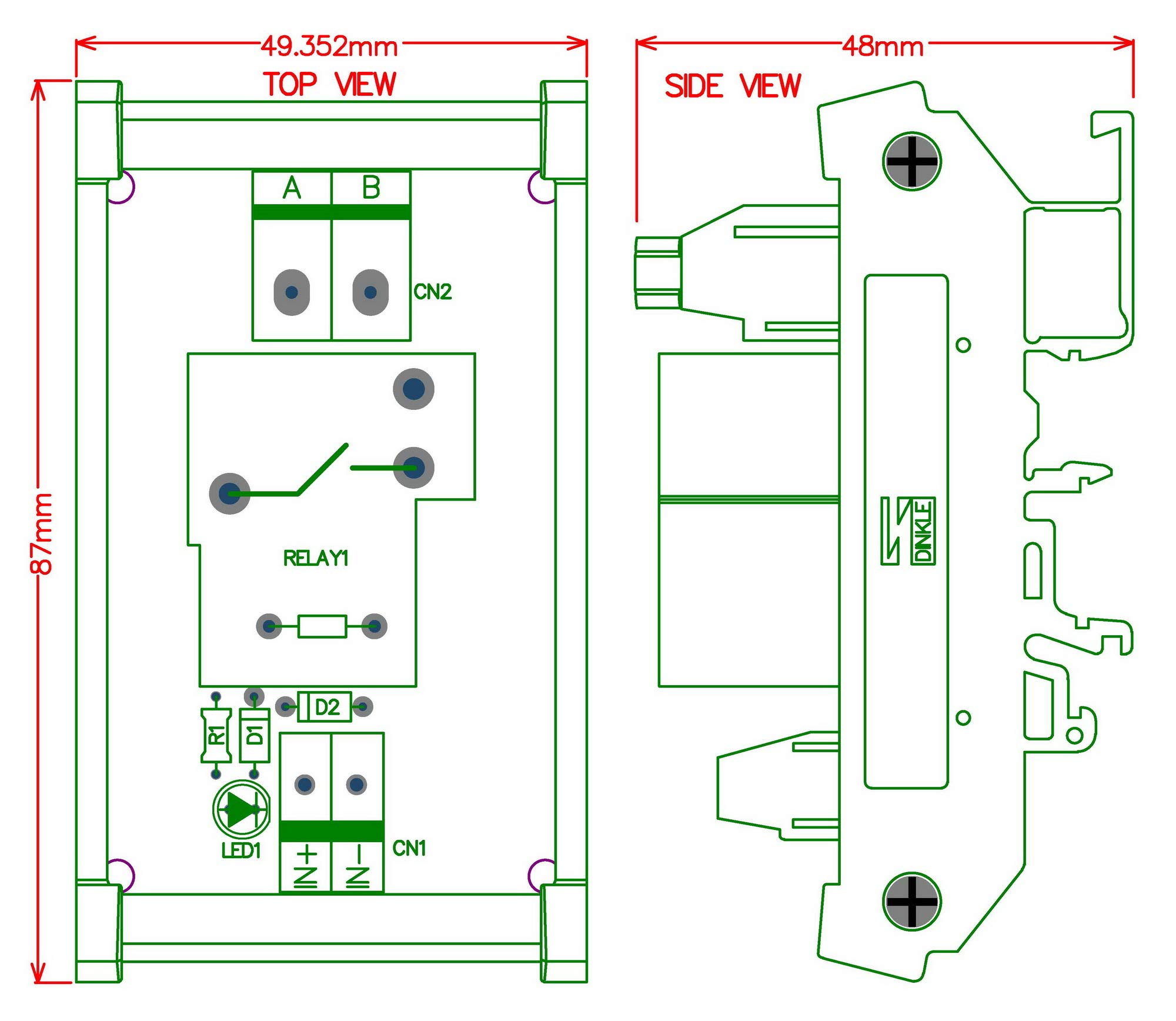

DIN Rail Mount Passive 1 Channel SPST-NO 30 Amp Power Relay Module. Part Number: MD-D1012T/12V The item no paper instructions, please download the PDF file, and before buying please read the file: http://www.audiowind.com/pdf/D-1012to1015.pdf This item has been assembled, and electrical test passed. Original G8P-1A4P 30Amp power relay. High quality terminal block connectors (output is real 30Amp high power terminal block). LED indicator for each relay channel. FR-4 Fiber glass PCB (Double Layer). High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail. Size: 48mm x 87mm x 50mm. Relay characteristic: Rated Load (Resistive load): 30A at 250VAC, 20A at 28VDC. Coil action voltage: DC 10~15V, recommended DC 12V. Coil action current: 80mA, at DC12V. Terminal block characteristic: Input terminal: Wire range 26-12AWG Mechanical Torque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions Pitch 5.0mm(.197") Screws M2.5 Rated current 16 Amp Output terminal: Wire range 26-10AWG Mechanical Torque 0.5Nm(4.4Lb-In.) Strip length 8mm Dimensions Pitch 7.62mm(.3") Screws M3 Rated current: 30 Amp
