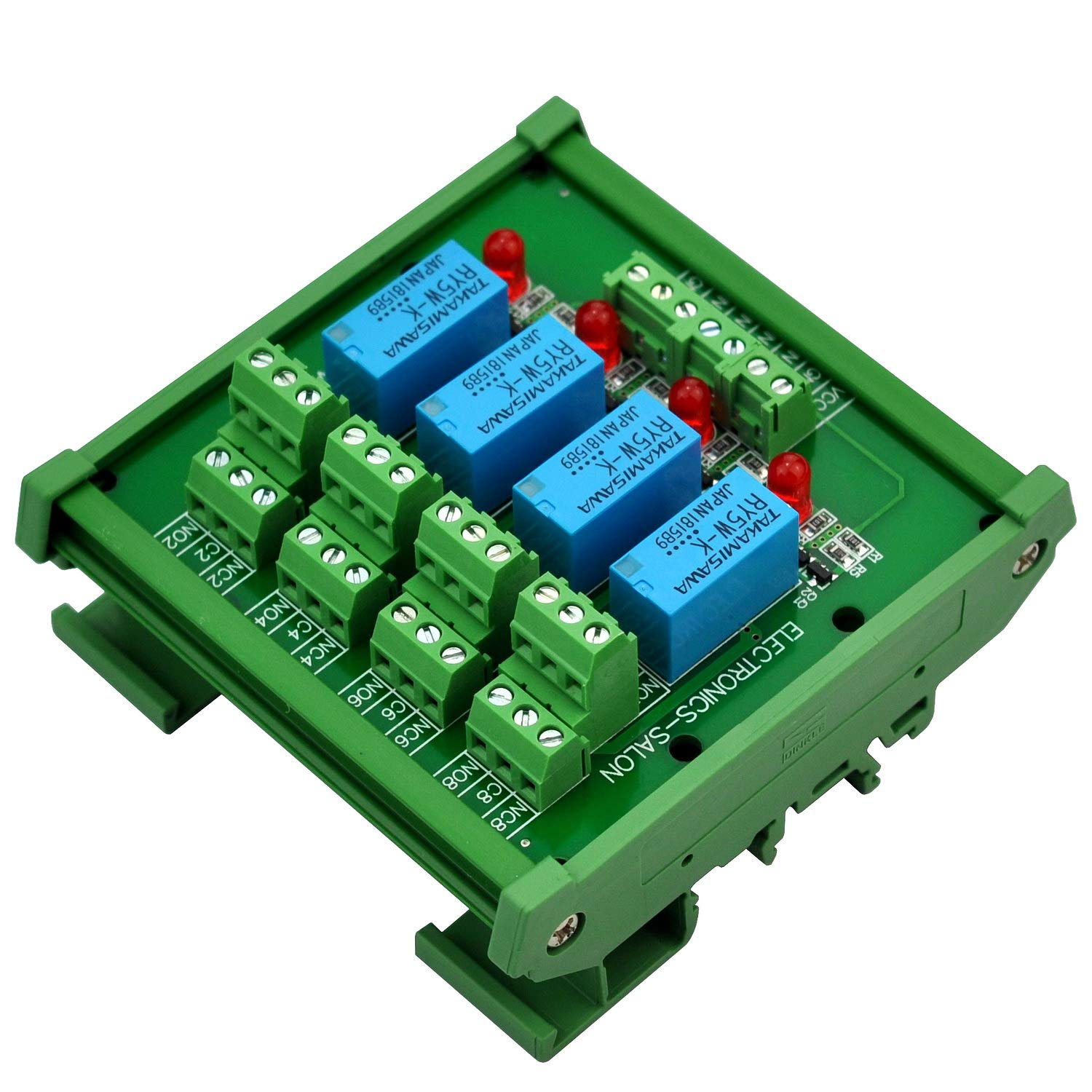

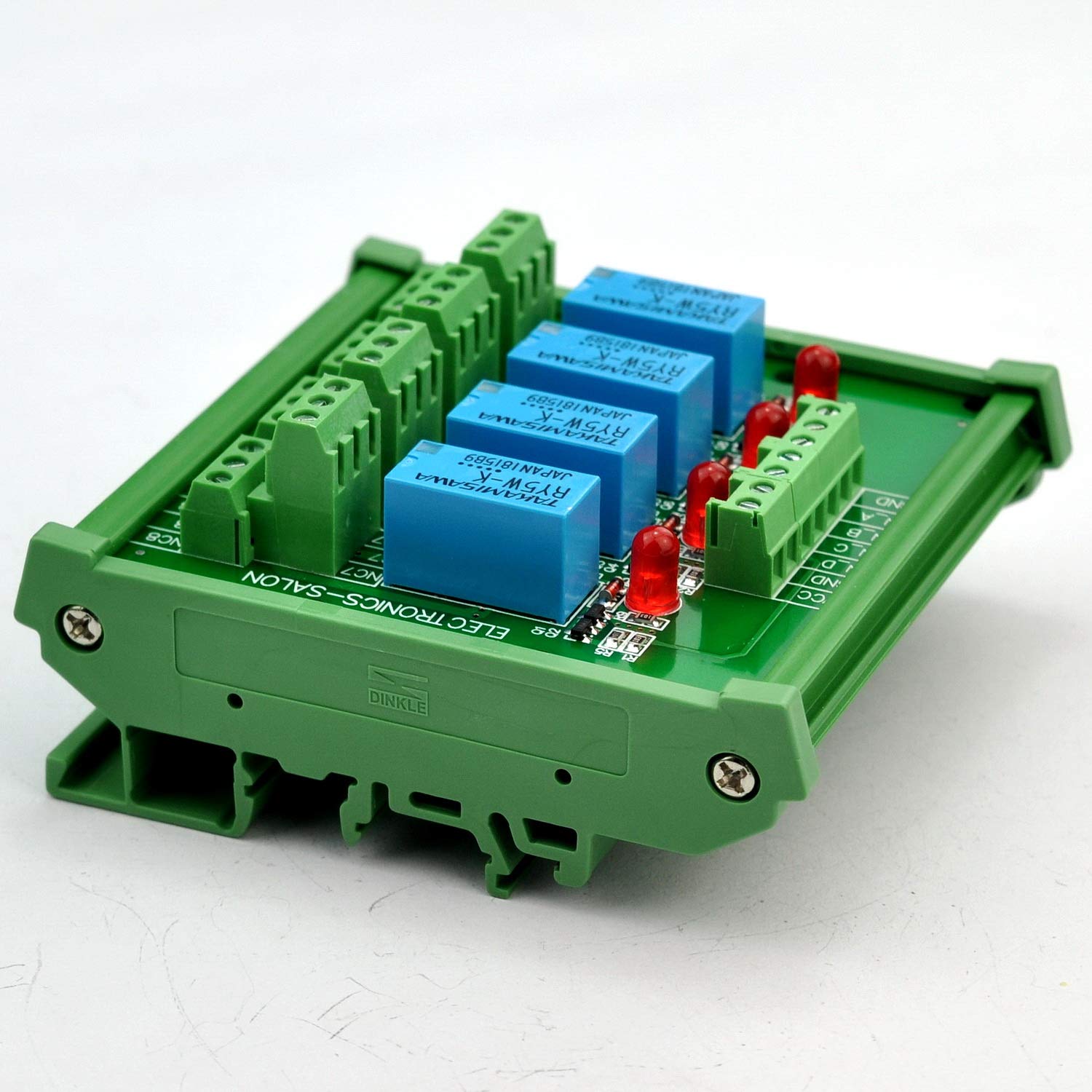

Electronics-Salon DIN Rail Mount 4 DPDT Signal Relay Interface Module, DC 5V Version.

• 4 DPDT signal relay module. TAKAMISAWA RY5W-K high quality relays, switch contact material - gold overlay silver-palladium.
• Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
• High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers.

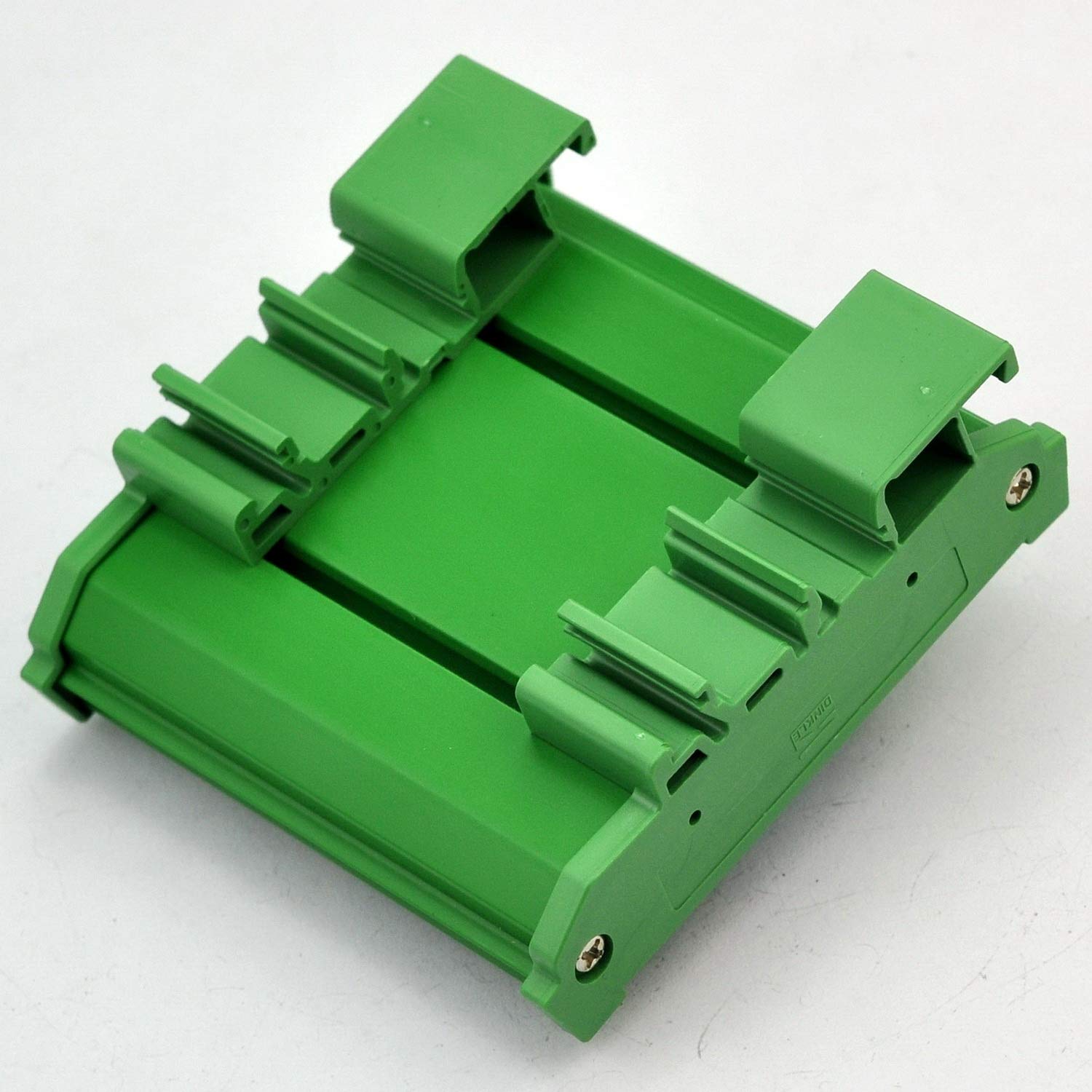

• Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
• Datasheet: https://images-na.ssl-images-amazon.com/images/I/91Ml0Tph-rL.pdf

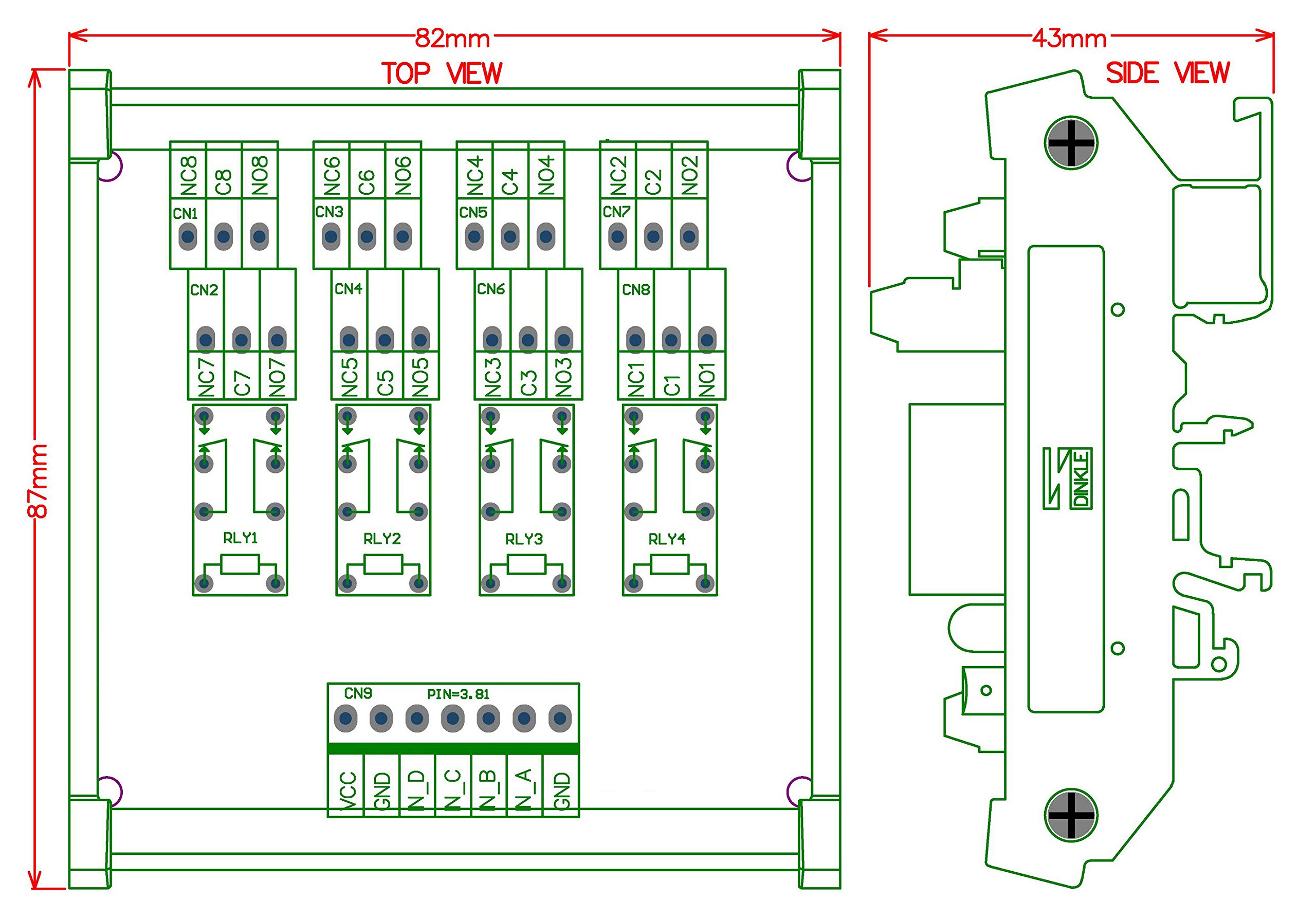

August-24, 2018, upgrade to version 2.0 4 DPDT signal relay module. TAKAMISAWA RY5W-K high quality relays, switch contact material - gold overlay silver-palladium. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Operating Voltage / Current (VCC): 3.6 to 6.5VDC / 200mA(at 5VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action. Output (relay switch) contact rating for each switch: For AC, 120VAC / 0.5Amp For DC, 24 VDC / 1.0Amp External dimensions: L82mm x W87mm x H43mm. PCB dimensions: L80mm x W72.5mm x H18.1mm The item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/91Ml0Tph-rL.pdf
