Eltako
✓Price
$86.99

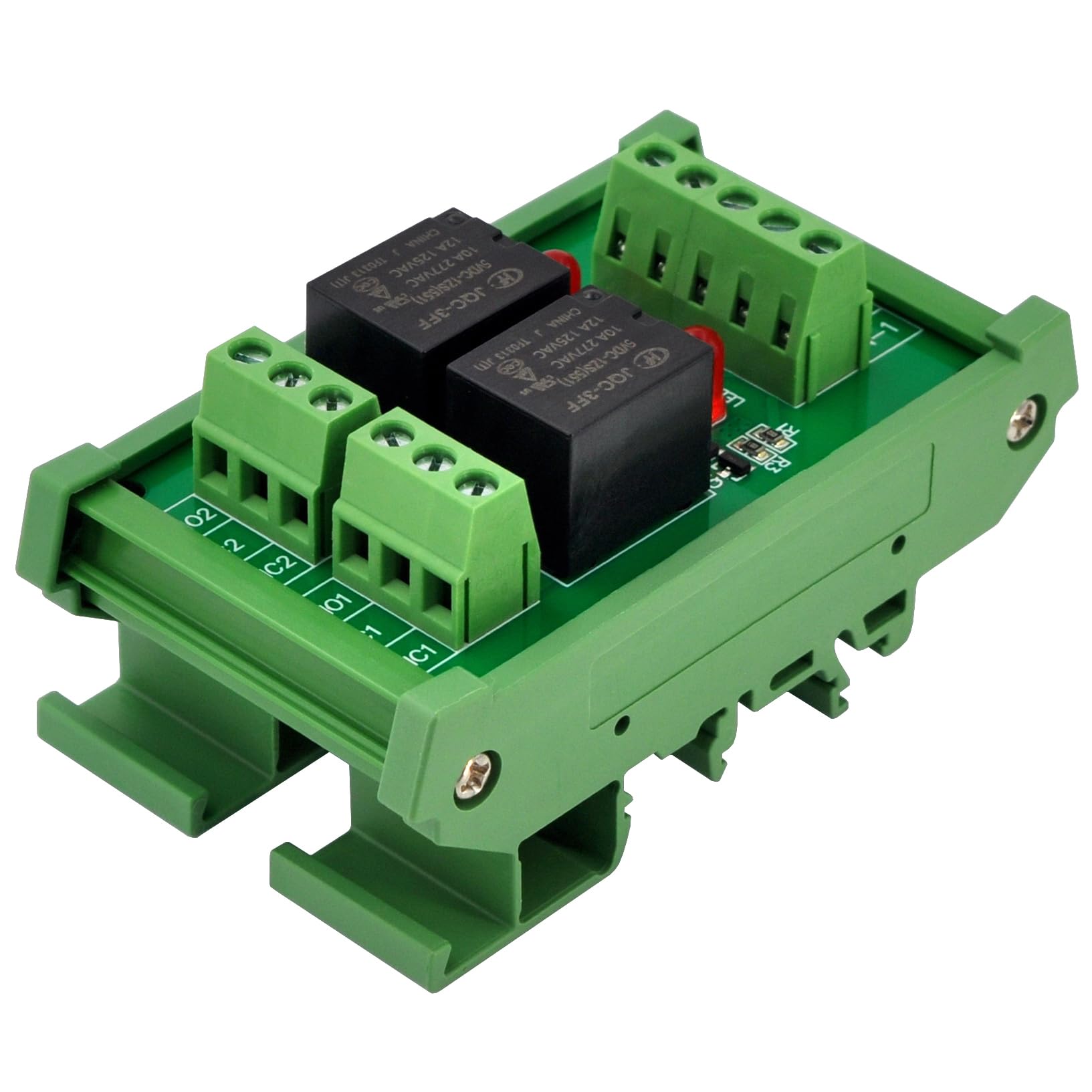

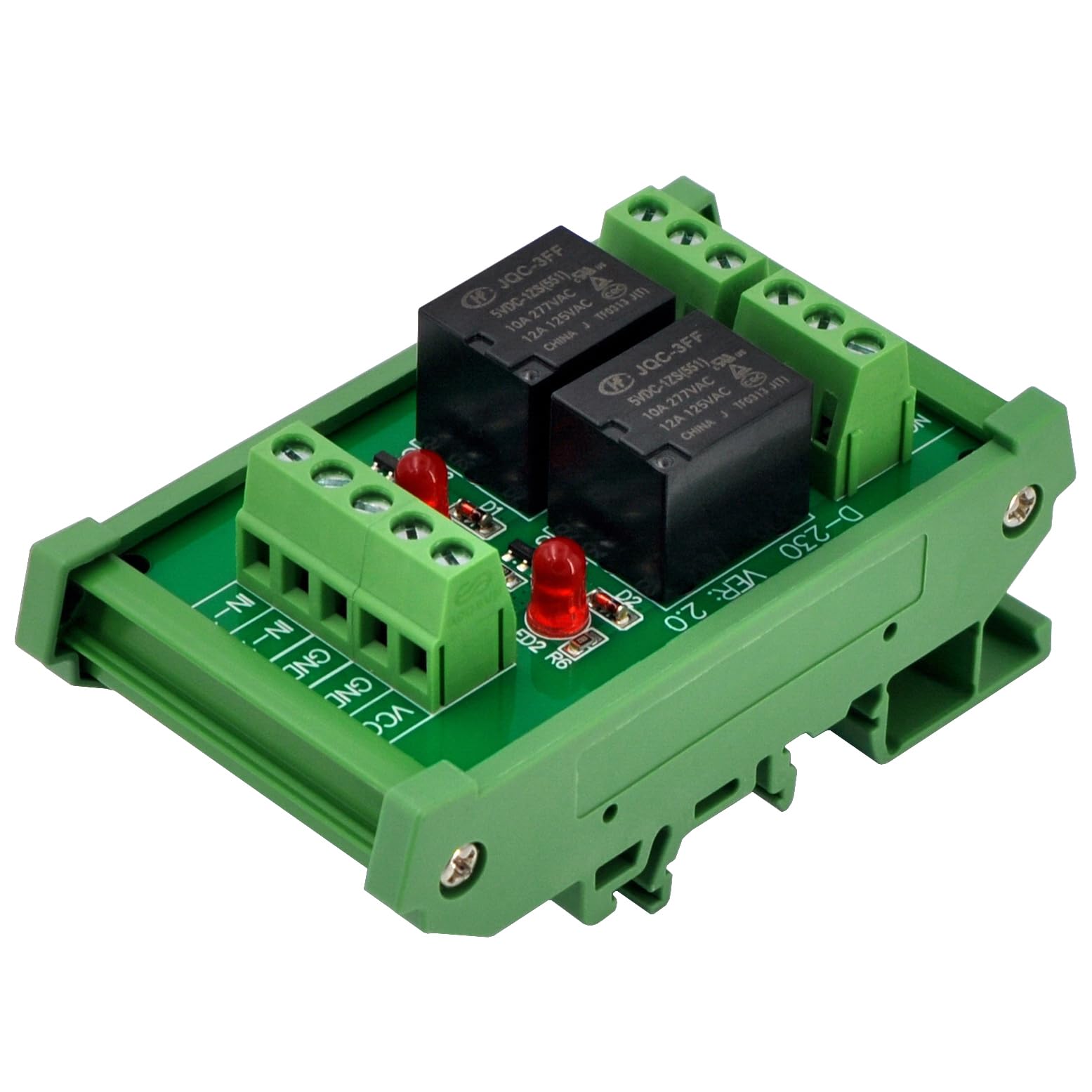

Electronics-Salon DIN Rail Mount 2 SPDT 10Amp Power Relay Interface Module, DC 5V Version.
★★★★★
$86.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- 2 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp relays.

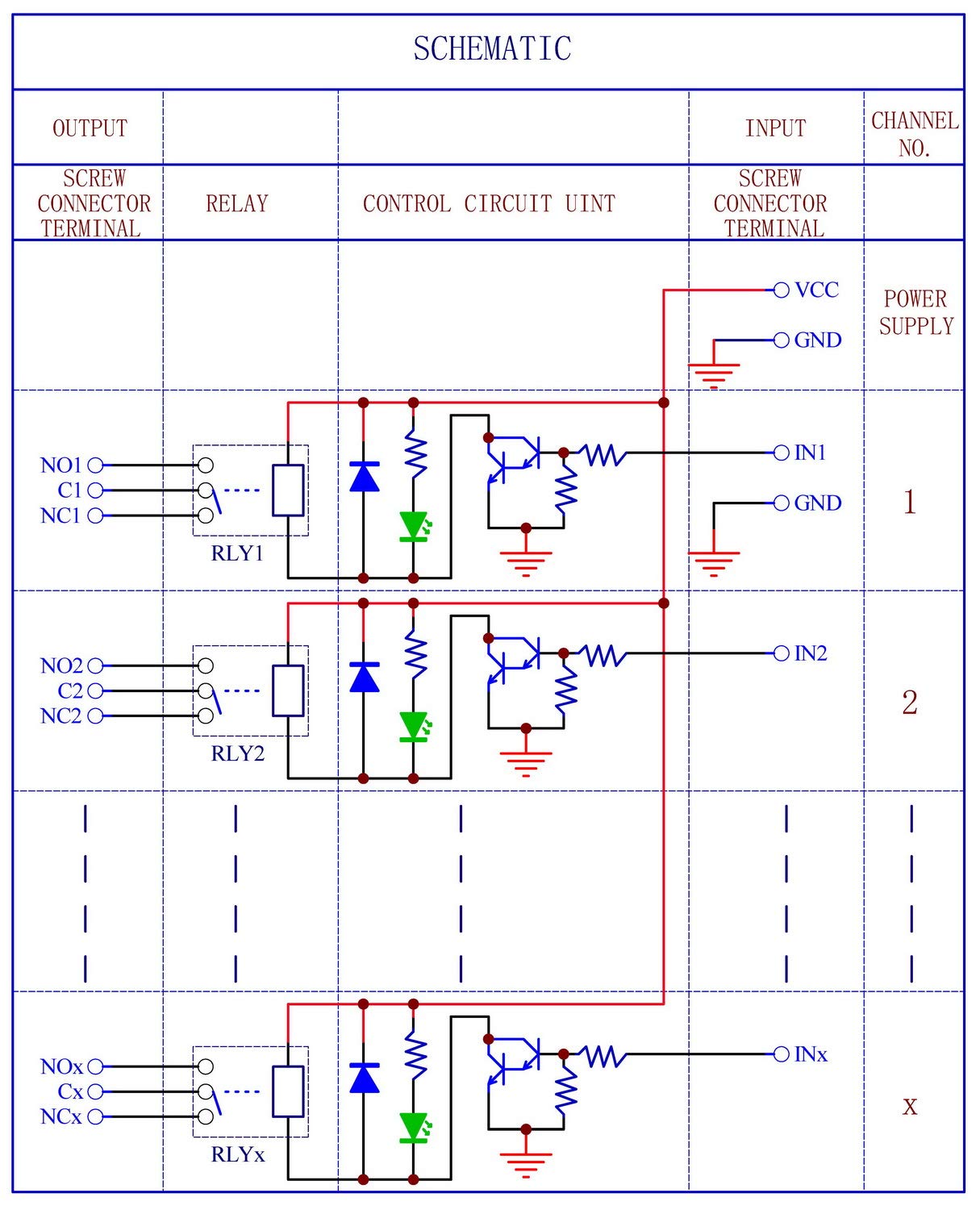

- Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
- High quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.

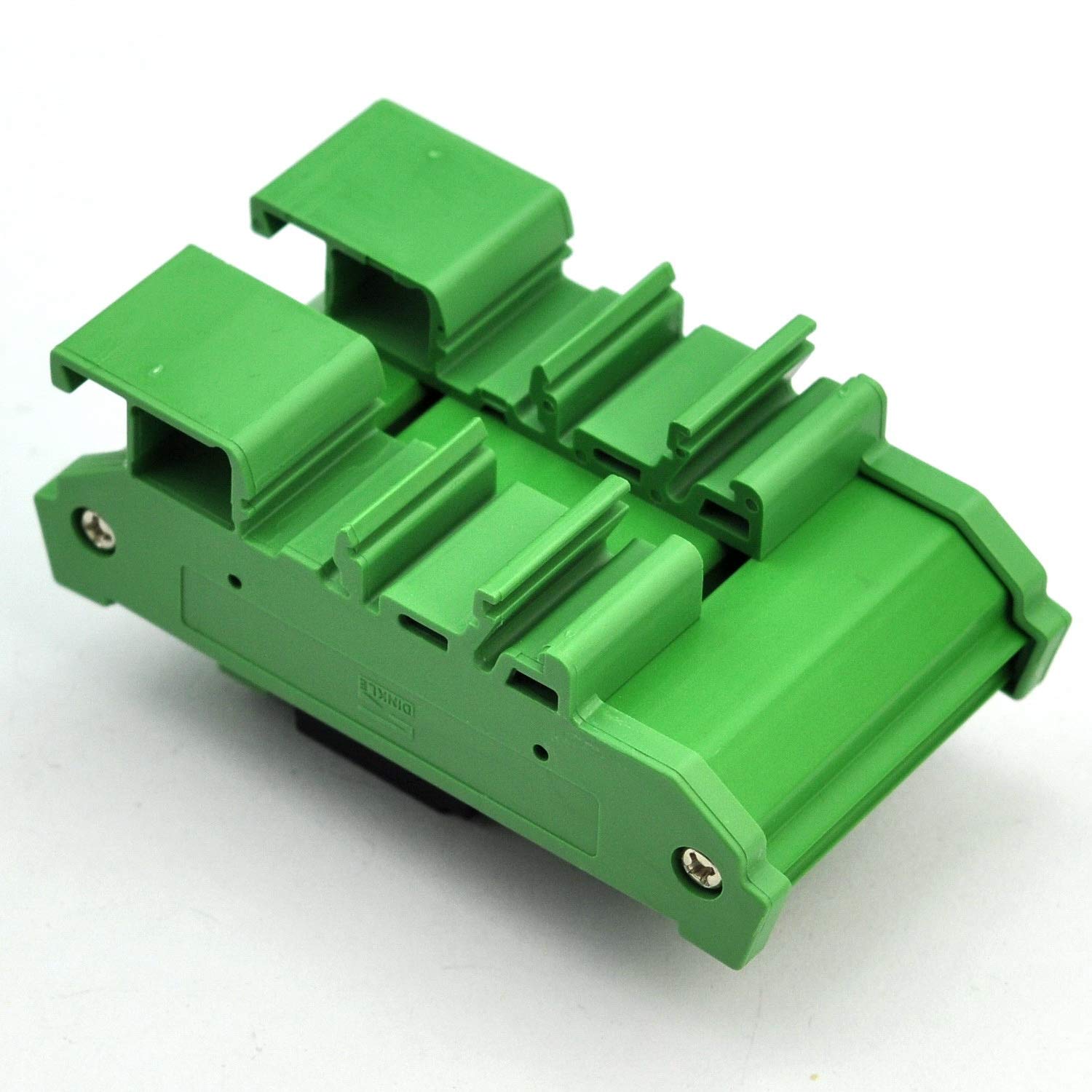

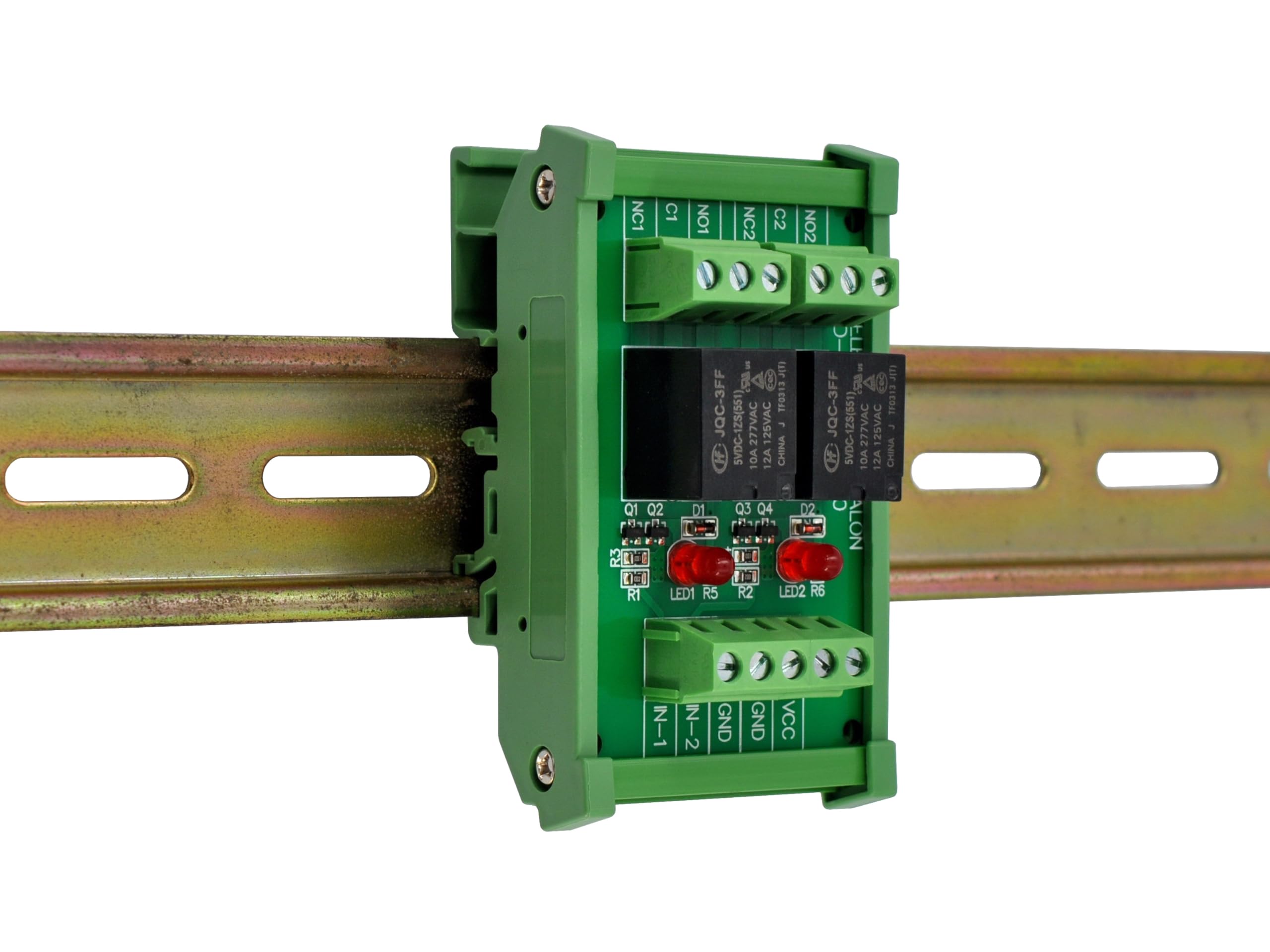

- Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- Datasheet: https://images-na.ssl-images-amazon.com/images/I/91PlLWnPvlL.pdf
Product description

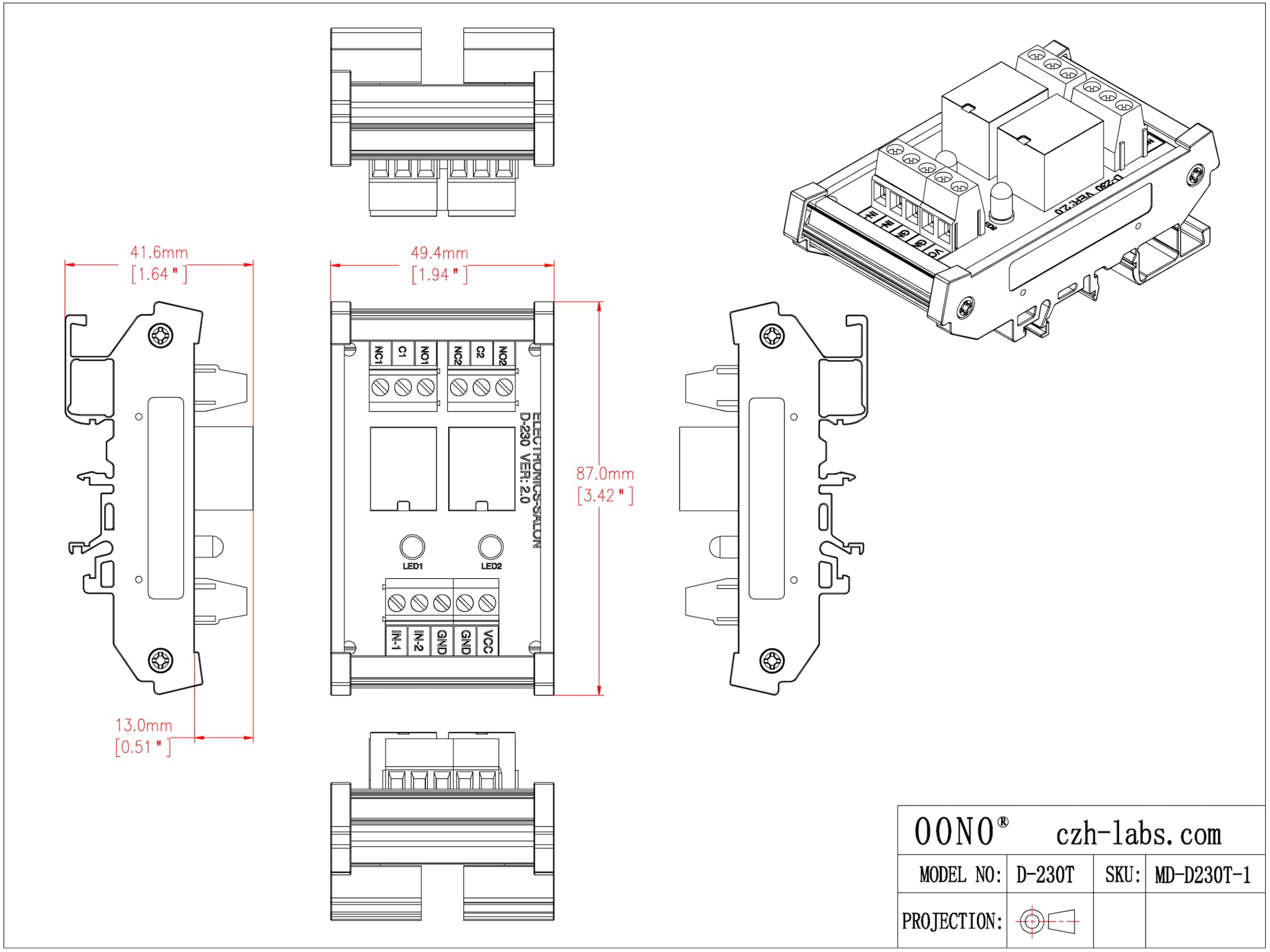

August-17, 2018, upgrade to version 2.0 2 Channel SPDT power relay interface module, high quality JS1-5V-F 10Amp relays. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Operating Voltage / Current (VCC): 3.8 to 7.5VDC / 180mA(at 5VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action. Output (relay switch) contact rating for each channel: For AC, 125 / 250 VAC, 10Amp For DC, 30 VDC, 5Amp External dimensions: L49.5mm x W87mm x H43mm. PCB dimensions: L47.35mm x W72mm x H15.5mm The item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/91PlLWnPvlL.pdf
