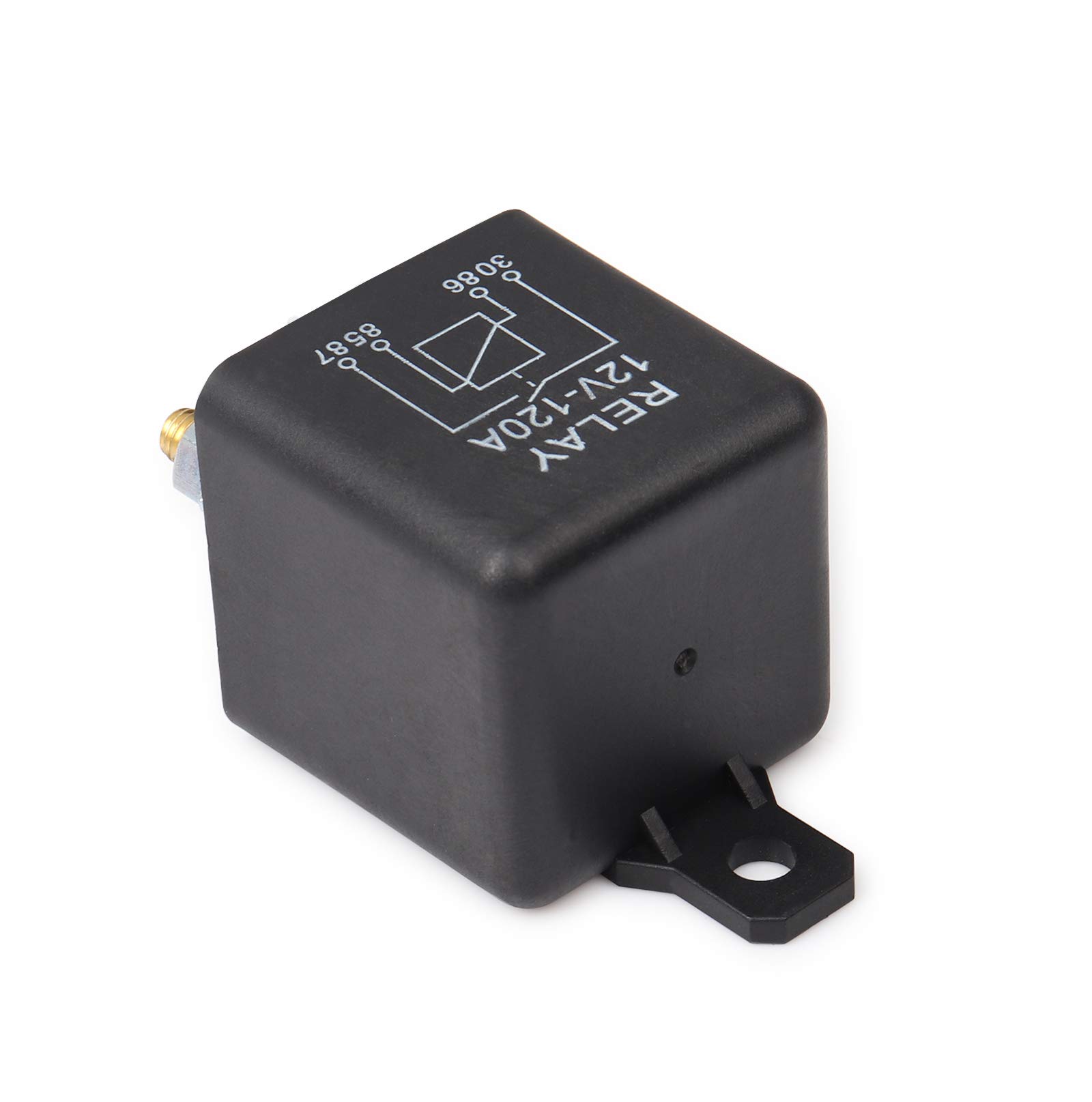

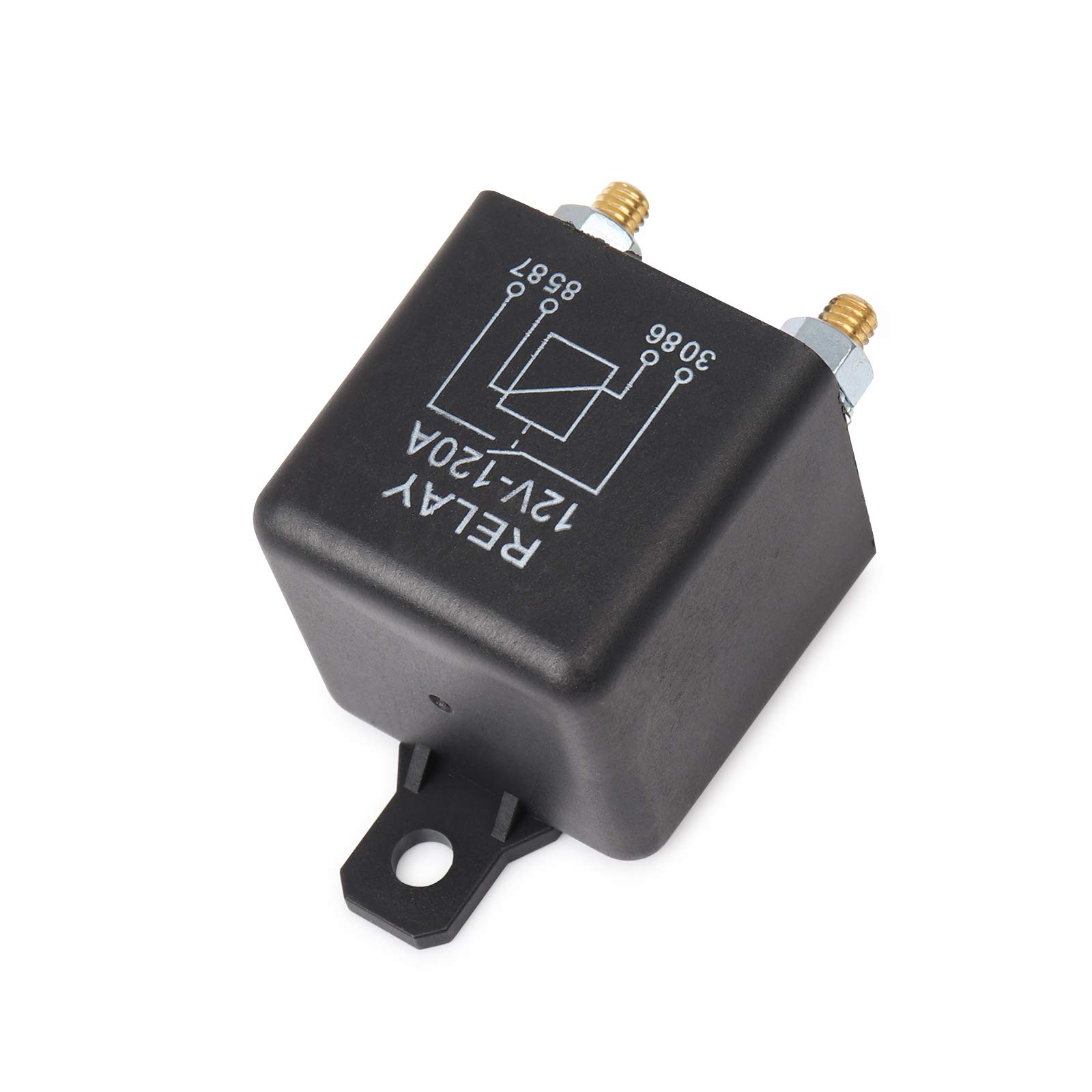

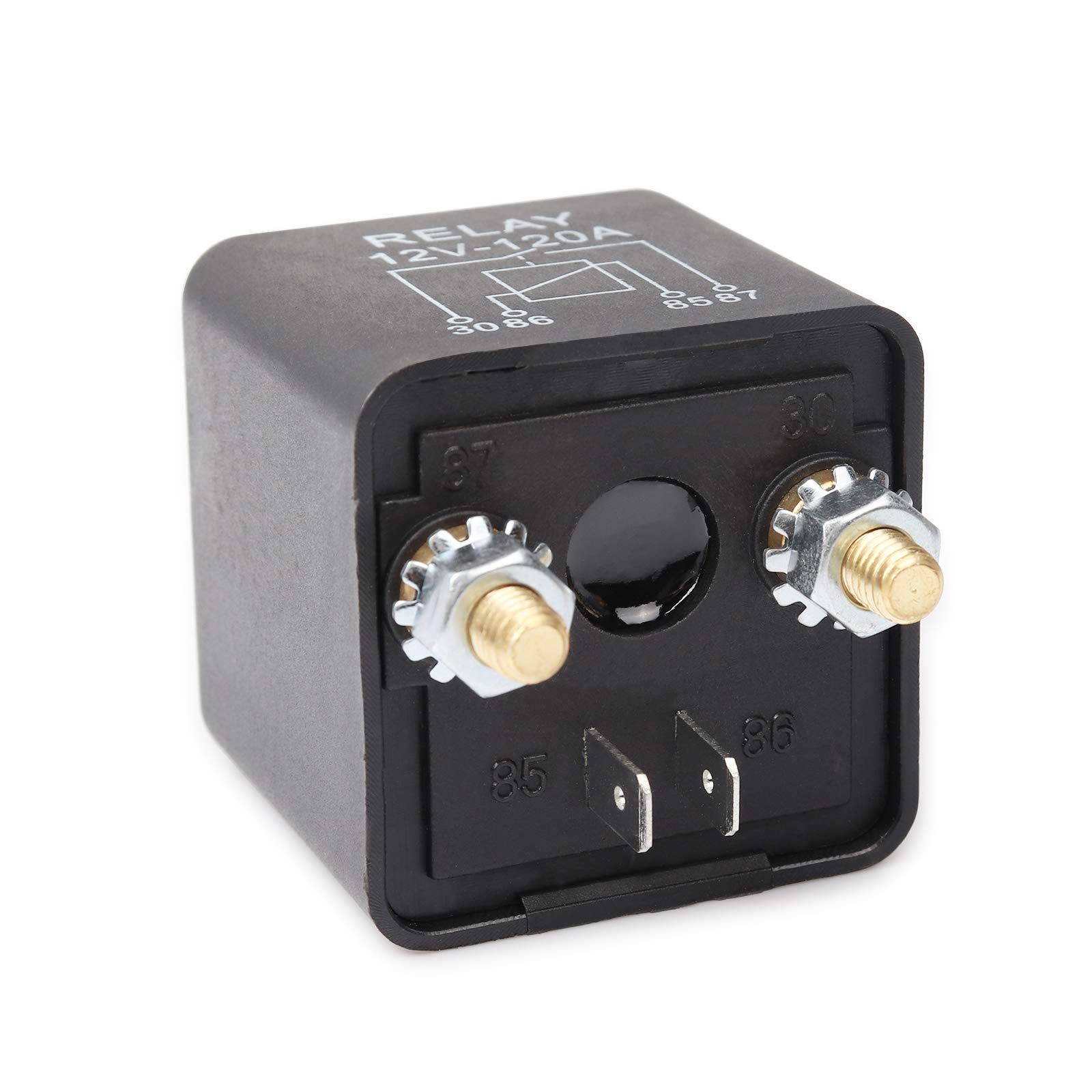

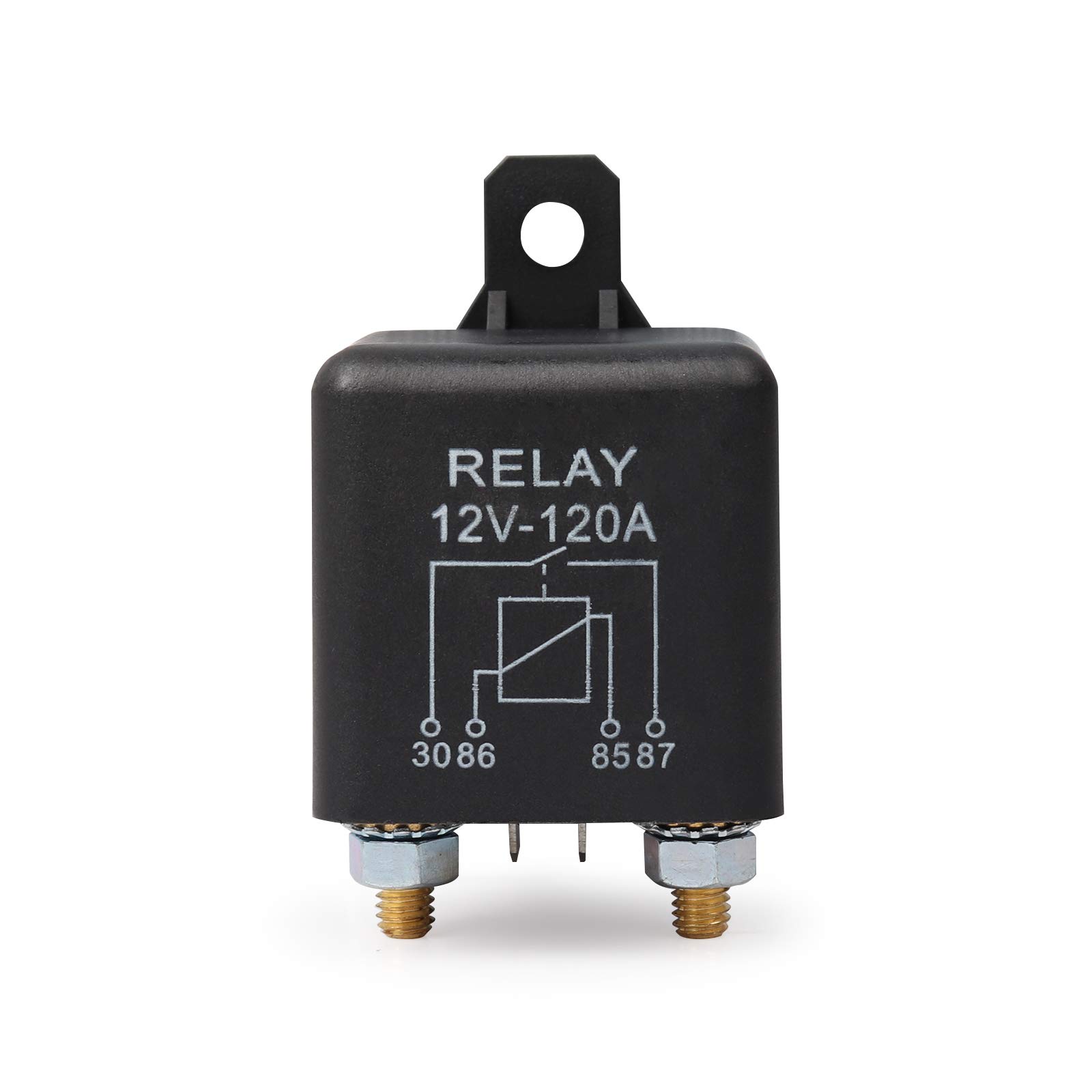

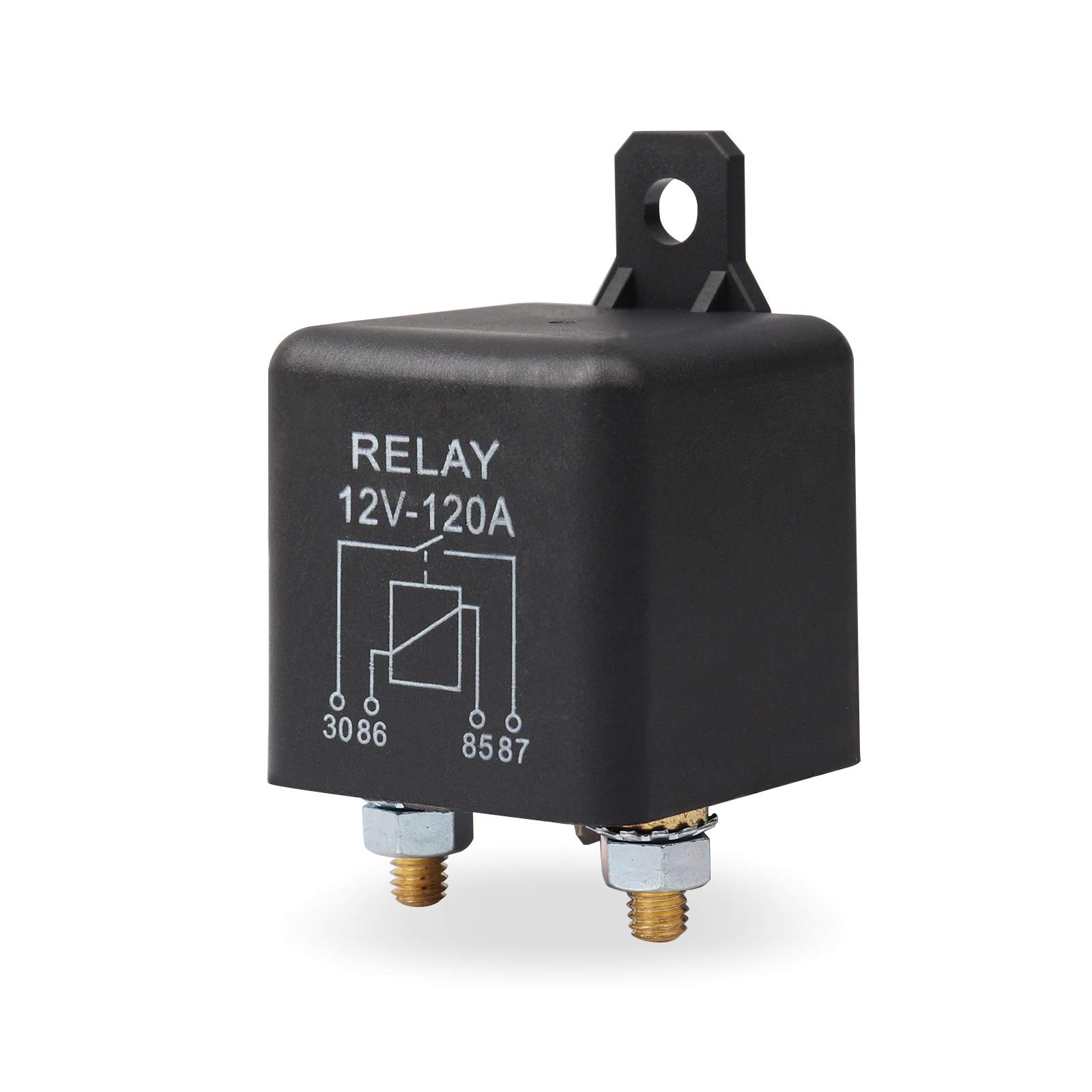

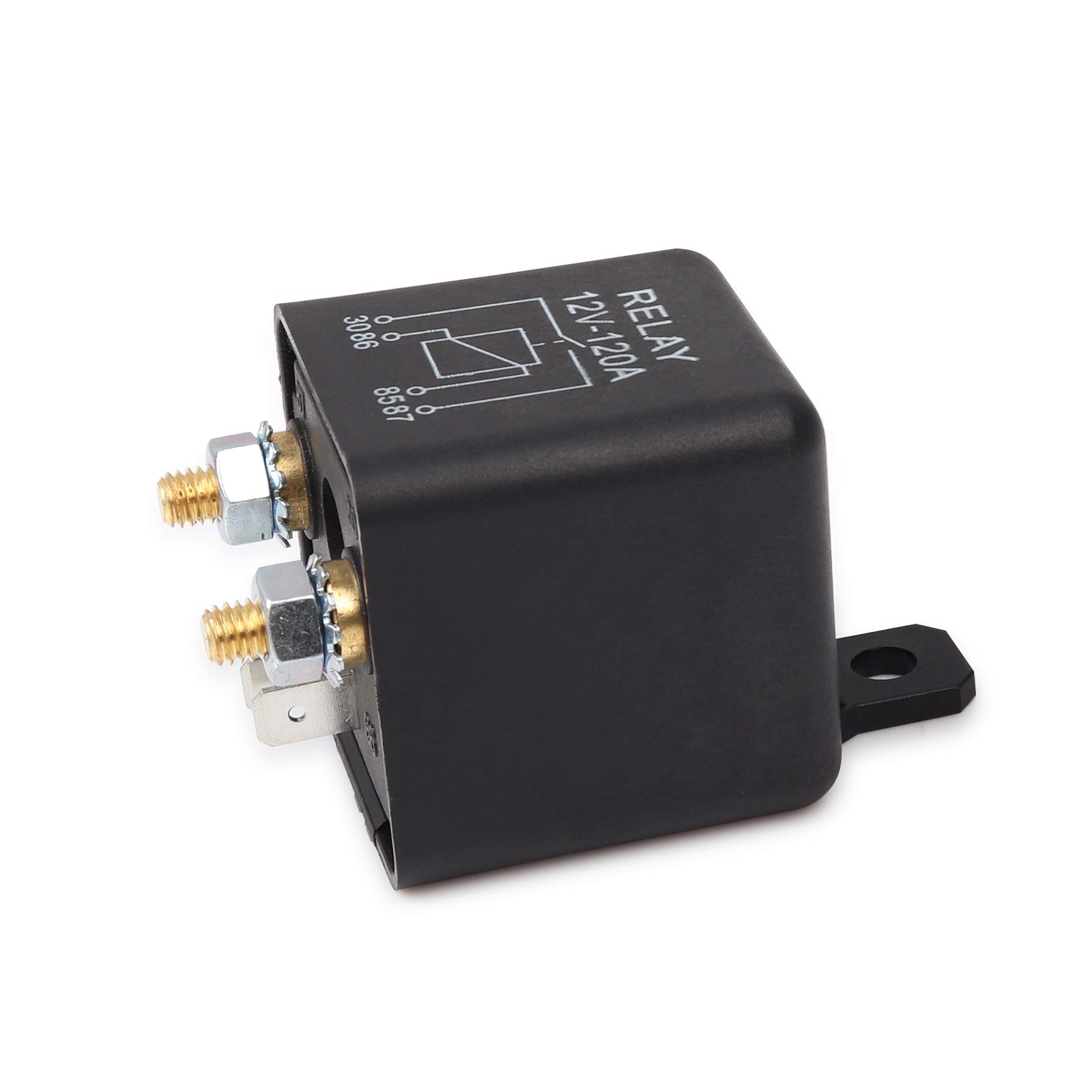

Ehdis Split Charge Relay 12V 120A 4 Pin, Relays for Car, Truck, Motor, Boat, Car Starter Heavy Duty Split Charge ZL180 with 2 Pin Footprint and 4 Terminal - 1 Set

• Heavy duty make or break (on/off) relay Ideal for universal 12V applications
• Type: Extra Heavy Duty 120A Split Charge Relay
• Terminals: 4 high quality durable & firm terminals
• Voltage: 12V DC Rated Current:120A Terminal quantity: 4
• Package Included: 1 x Heavy Duty Split Charge 120A ON/OFF Relay; 2 x Terminal; 2 x Footprint

Contact Data: Contact Material: AgSnO12 Contact Form: Normal Open Contact Ratings: No: 120A 14/28VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 300A (5ms) Max Switching Voltage: 75VDC Max Switching Power: 2000W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 12V Coil Resistance (4.8W/2.4W): 30/60 Max Operate Voltage (VDC): 6.0~8.0 Mix Release (VDC): 1.2~3.6 Max Applicable Voltage (VDC): 15.6 Characteristics: Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100mOhm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 15ms Release Time: 10ms
