DollaTek 2Pcs 12V 5-PIN 40/30 Amp wasserdichter Relais-Kabelbaum SPDT-Relais Automotive-Relais mit vorverdrahtetem Hochleistungs-Kabelbaum 16AWG 14AWG

• 5 Pin Waterproof Relay - 12 Volt DC (Max 14V), 5-Pin SPDT (Single Pole Double Throw) Waterproof Automotive Relay. NOTE: 12V and 14V is the coil voltage, they are not the battery/power voltage for open the relay
• The 5-Pin relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof, works well in any weather conditions
• 40/30A High Switching Capability - Max. 40A Contact Switching Capability, Normally Open 40A/14V DC and Normally Close 30A/14V DC. Greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc

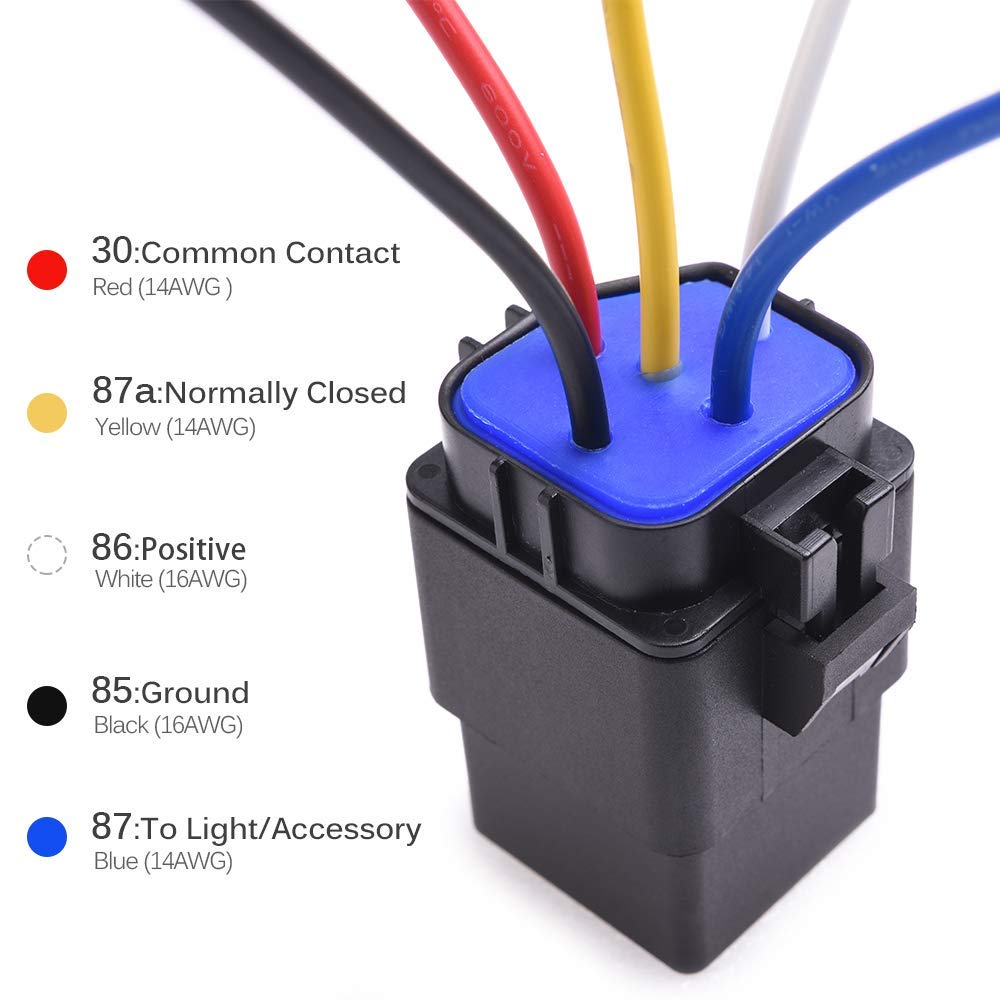

• Heavy duty 16/14 AWG wiring harness. Black - 16AWG Pin85, Red - 14AWG Pin30, White - 16AWG Pin86, Yellow - 14AWG Pin87a, and Blue - 14AWG Pin87
• The relay sockets come with color-labeled wires for loads/accessories convenient wiring. Metal mounting tab on the relay for easy installation

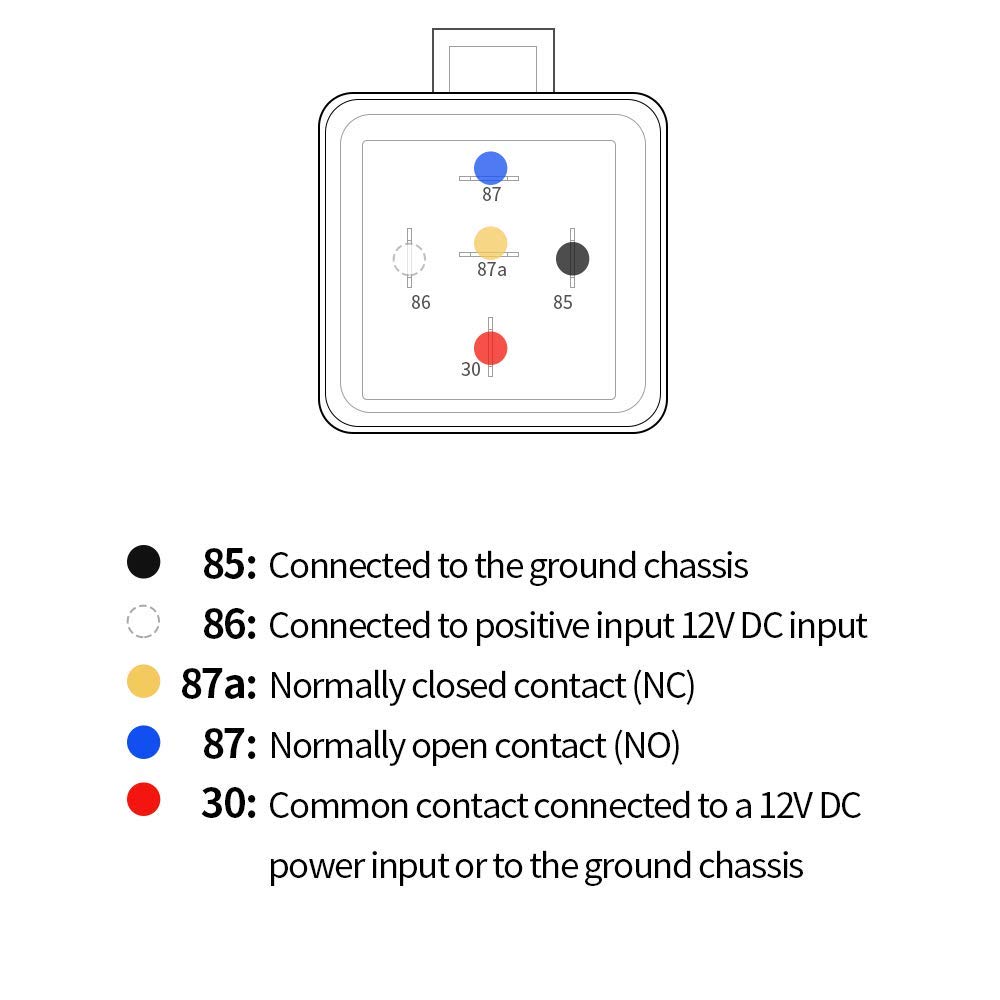

Description The automotive relay is an electronic control device, usually used in an automatic control circuit. It is in fact an "automatic switch" that controls a large current through a small current. Relays allow the use of a lower amp switch to turn on or control a component with a higher amp draw, such as amplifiers, cooling fans, water pumps, lighting, and many other devices. Wide Application: Waterproof Relay Harness Set suits for all automobiles and devices equipped with a 12 Volt DC power source. Used in led work light, fog lamps, starter, wiper, fans, speakers, central locking, alarm, electric windows, etc. Instruction of Waterproof Relays Harness: 85: Connected to the ground chassis 86: Connected to a positive input 12V DC input 87a: Normally closed contact, also known as NC 87: Normally open contact, also known as NO 30: Common contact which can be connected to a 12V DC power input or to the ground chassis depending on the desired application Product Content: 2 x SPDT Waterproof Relay and harness
