BQLZR 6mm Shaft 100P/R Incremental Rotary Encoder for NPN Open Collector Output Type

• 100P/R Rotary Encoder
• Speed: more than 5000 r / min

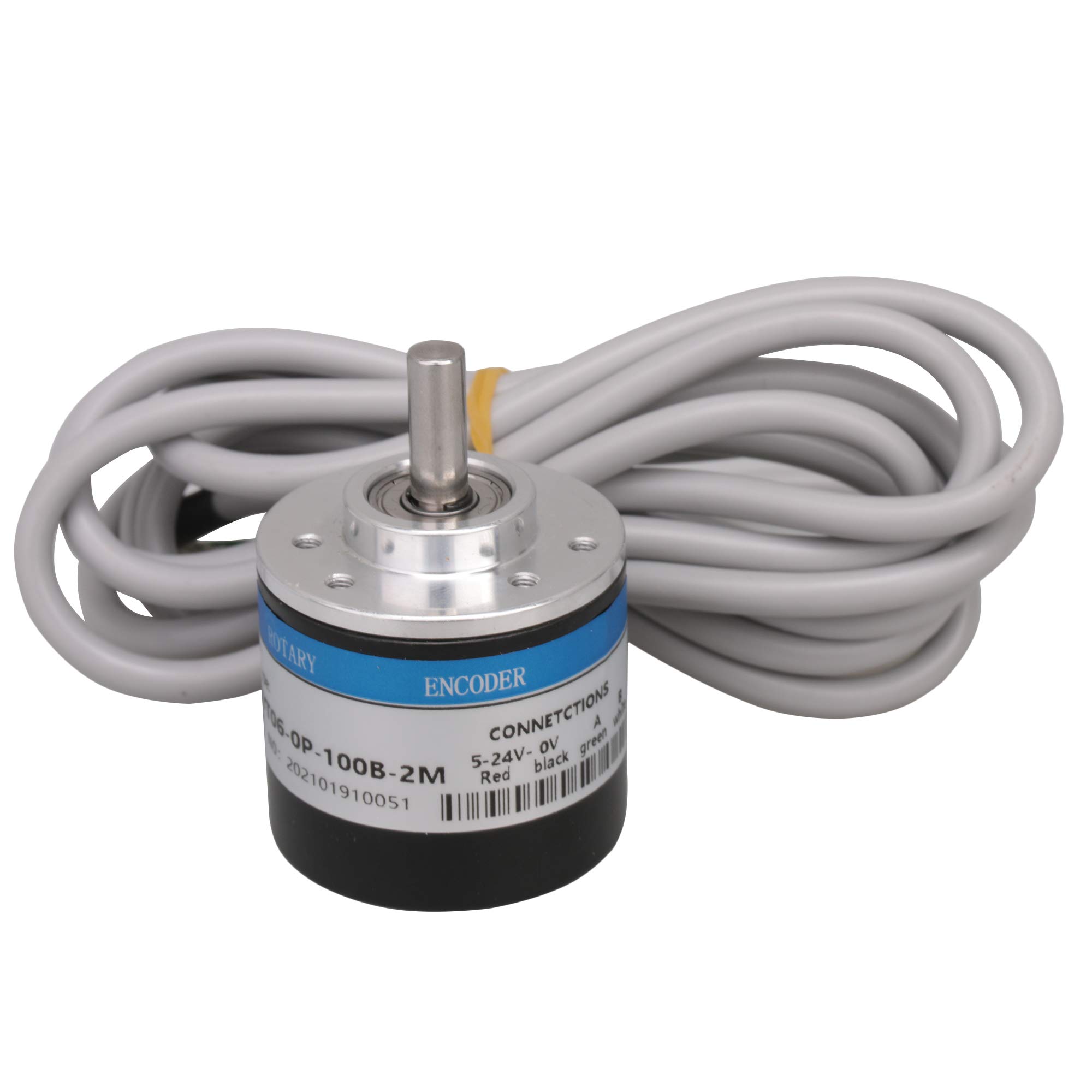

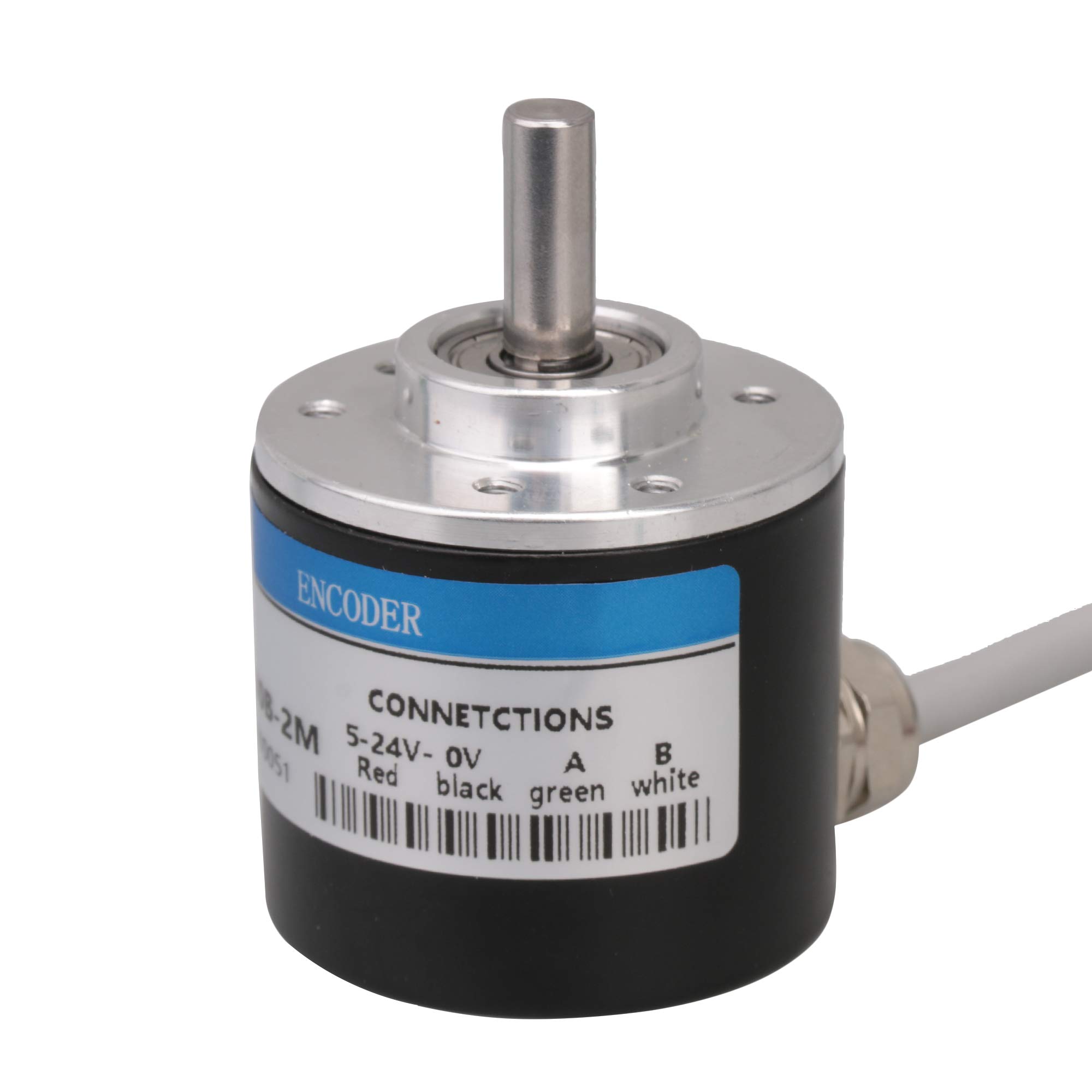

• connection way:red=VCC, black=GND, white=A phase, green=B phase

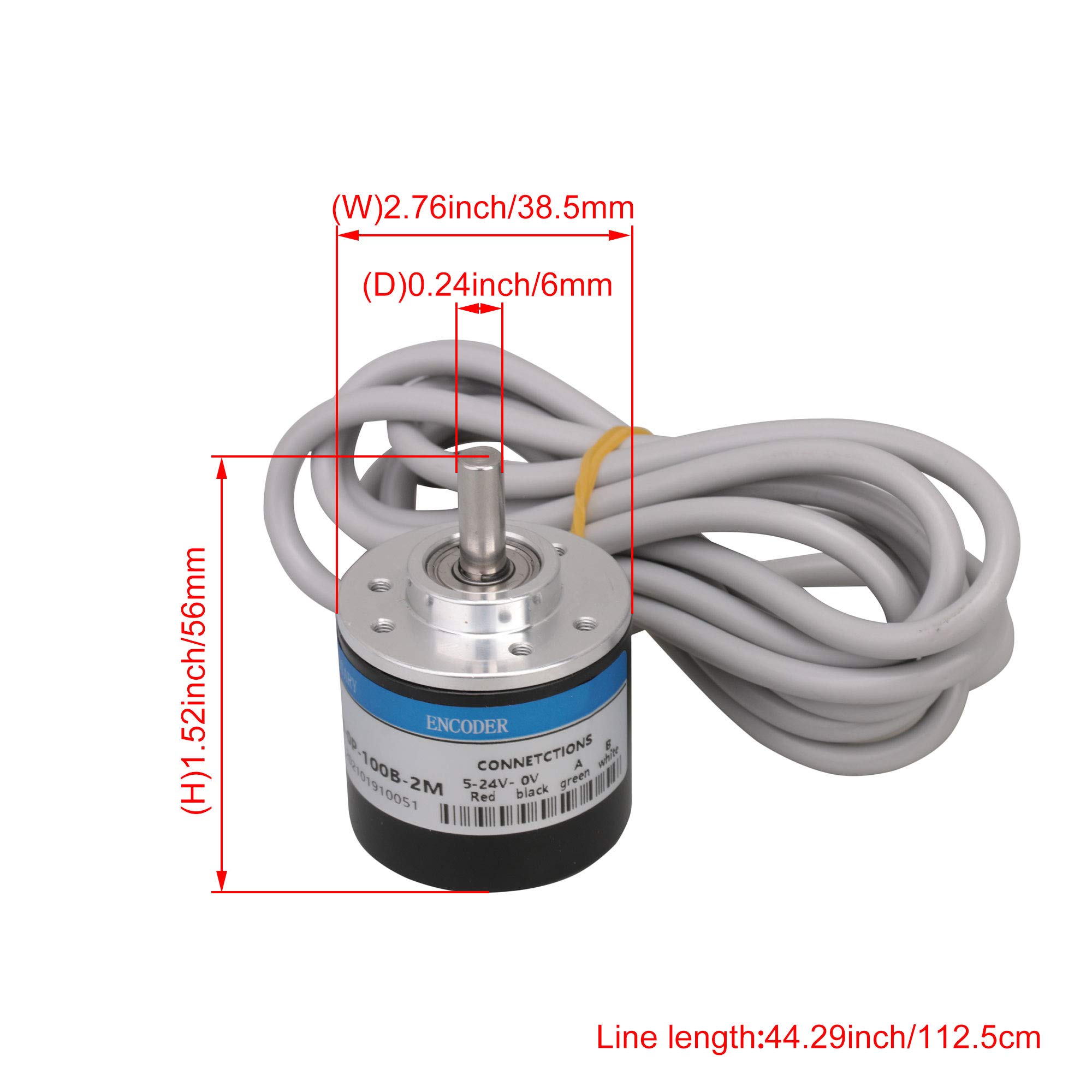

Note: The color of the item may vary slightly due to photography and your own computer 100 p/r (Single-phase 100 pulses /R,Two phase 4 frequency doubling to 400 pulses). With small size, light weight, easy to install, cost-effective features. For measuring goods angle, acceleration, length measurements and the rotational speed Apply to a variety of displacement measurement intelligent control,measuring height of civilian body scale and so on connection way: red=VCC, black=GND, white=A phase, green=B phase Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode. Specifications: DC5-24V wide voltage power supply Speed: more than 5000 r / min Material: Stainless steel Color: black, silver Size: 34.8x38mm/1.37x1.5inch (diameter x height) Shaft length: 16mm/0.63inch Full shaft diameter: 6mm/0.24inch Cable length: 1940mm/76.38inch Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type Package included: 1 x Encoder 100P/R Incremental Rotary Encoder
