BIGTREETECH TFT35 V3.0 Touch Screen Display RepRap Smart Controller Panel Compatible with SKR V1.3 SKR PRO Board for 3D Printer Part

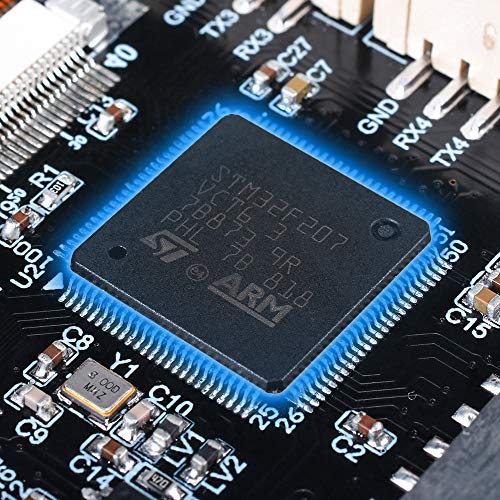

• 🌷【32 Bit High Performance Microprocessor】TFT35 V3.0 touch screen uses 32 bit ARM level Cortex-M3 series STM32F207VCT6,120MHz frequency Microprocessor, which can perfectly replace the LCD12864 screen for use.

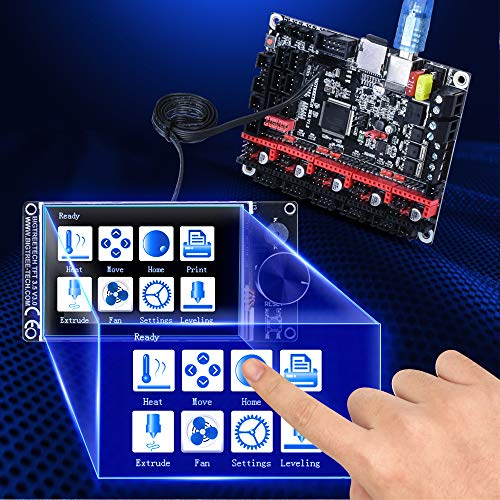

• 🌷【Two Working Modes】TFT35 V3.0 Touch screen support UART serial port screen mode(touch screen mode) and 12864 screen mode,serial screen mode supports both SD card and USB stick printing.

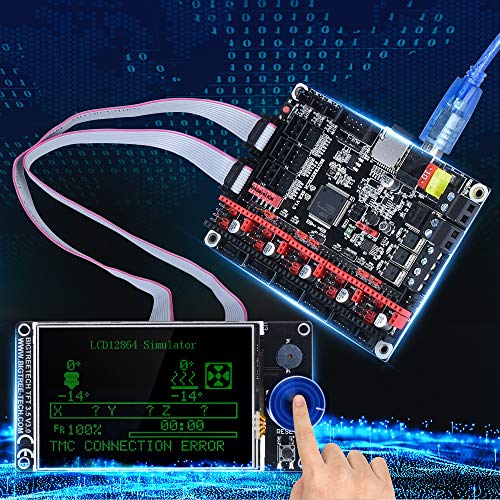

• 🌷【12864LCD Mode】The 12864LCD mode includes EXP1, EXP2, EXP3, where EXP1 and EXP2 are general motherboards LCD screen interface, while EXP3 is the LCD screen interface used by E3 series boards (like SKR MINI E3,SKR E3 DIP, etc.)
• 🌷【More Extension Ports is Reserved】 TFT35 V3.0 display reserve the extension port of filament break detection ,automatic shutdown after printing,also WIFI function can be realized by external WIFI module through WIFI port.
• 🌷【Firmware Update】 It is easy and convenient to update firmware by SD card,download from our github, copy and save it to SD card.firmware must bed reserved ,then re-plug the SD card and wait to 10s.The firmware has been successfully updated.

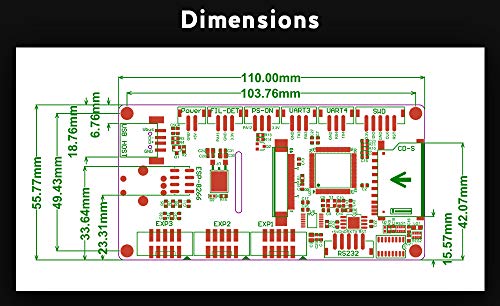

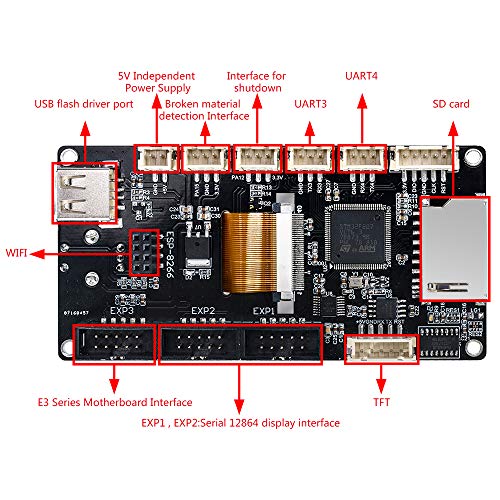

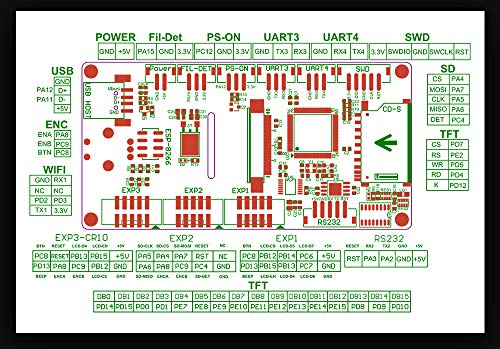

Product mark. 1,Reserve the extension port of filament fracture detection (FIL-DET) 2,Reserve the expansion port of the automatic shutdown after printing (PS-ON) 3.LCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are LCD screen connectors of the normal motherboard, EXP3 is the LCD screen connector used by SKR MINI E3 and SKR E3 DIP 4.TFT touch screen mode uses serial port display RS232 port 5.2 sets of UART serial port expansion ports are reserved for DIY use Product Parameters Appearance size: 110 x 58 mm. Microprocessor: STM32F207VCT6 Power consumption: DC5V SD card logic voltage: 3.3V or 5V, support MEGA2560 motherboard, with higher compatibility. FirmwareIntroduction All boards are fitted with test firmware before dispatch, it can be used directly. The user can also change the firmware according to their own needs. 1. Ways to get the motherboard firmware 1) Get it from the customer service or the technical personnel. 2) Log in to the open source website of our company for download: https://github.com/bigtreetech 2. Firmware Update Firmware File Name: BIGTREE_TFT35_V3.0. (version number).bin Copy the above firmware into the SD root folder first, then insert the card into the SD card slot of the board. Next, turn on the board again or press the reset button and wait about 10 seconds before the update is complete. 3.For DIY board firmware, see file TFT35-V3.0-PIN. Package includes: TFT35 V3.0*1 Connection wire*3
