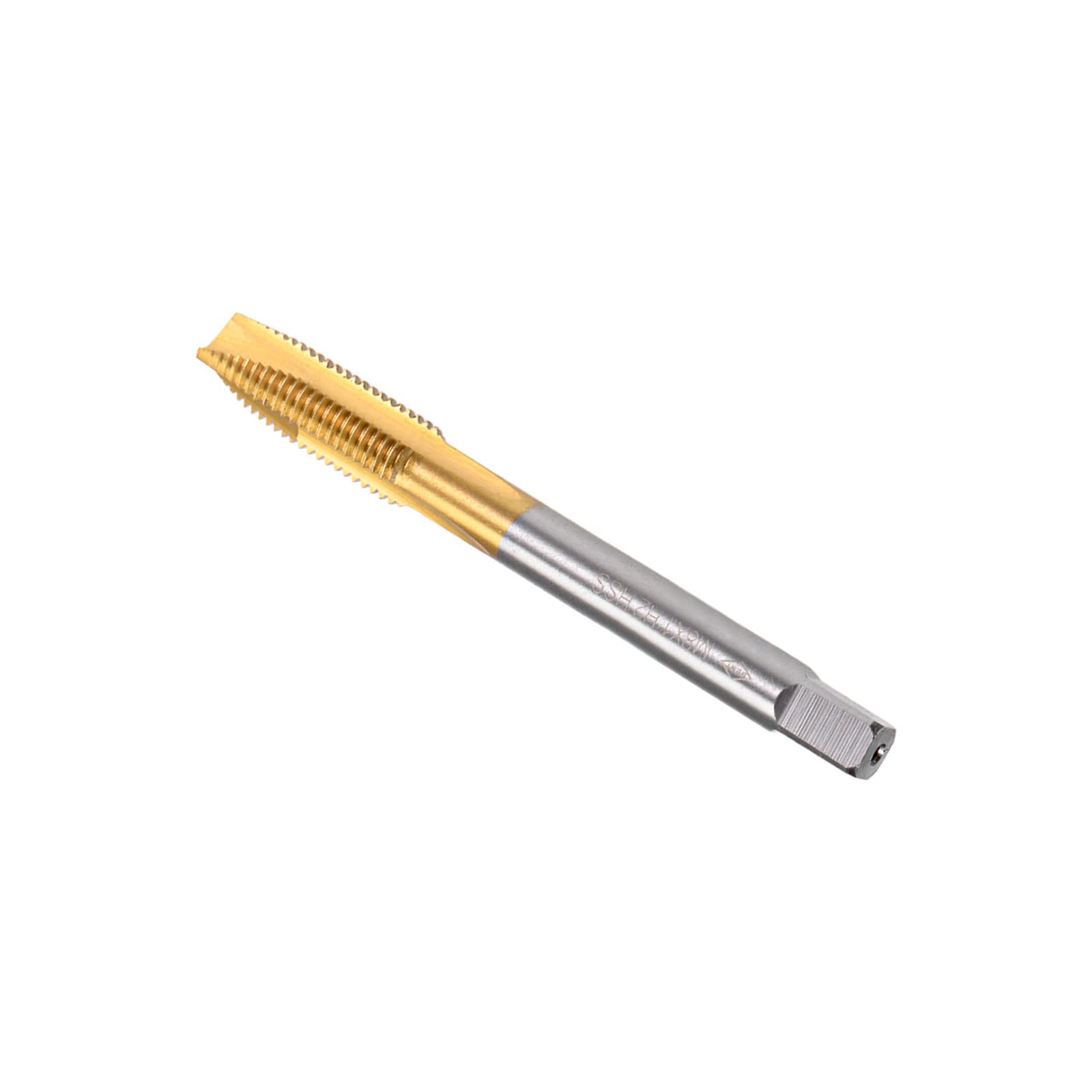

CoCud Spiral Point Taps, Metric M8 x 1 Thread, Titanium Coated High Speed Steel 6542 Screw Milling Threading Tap - (Applications: for Tapping Drilling Machine), 1-Piece

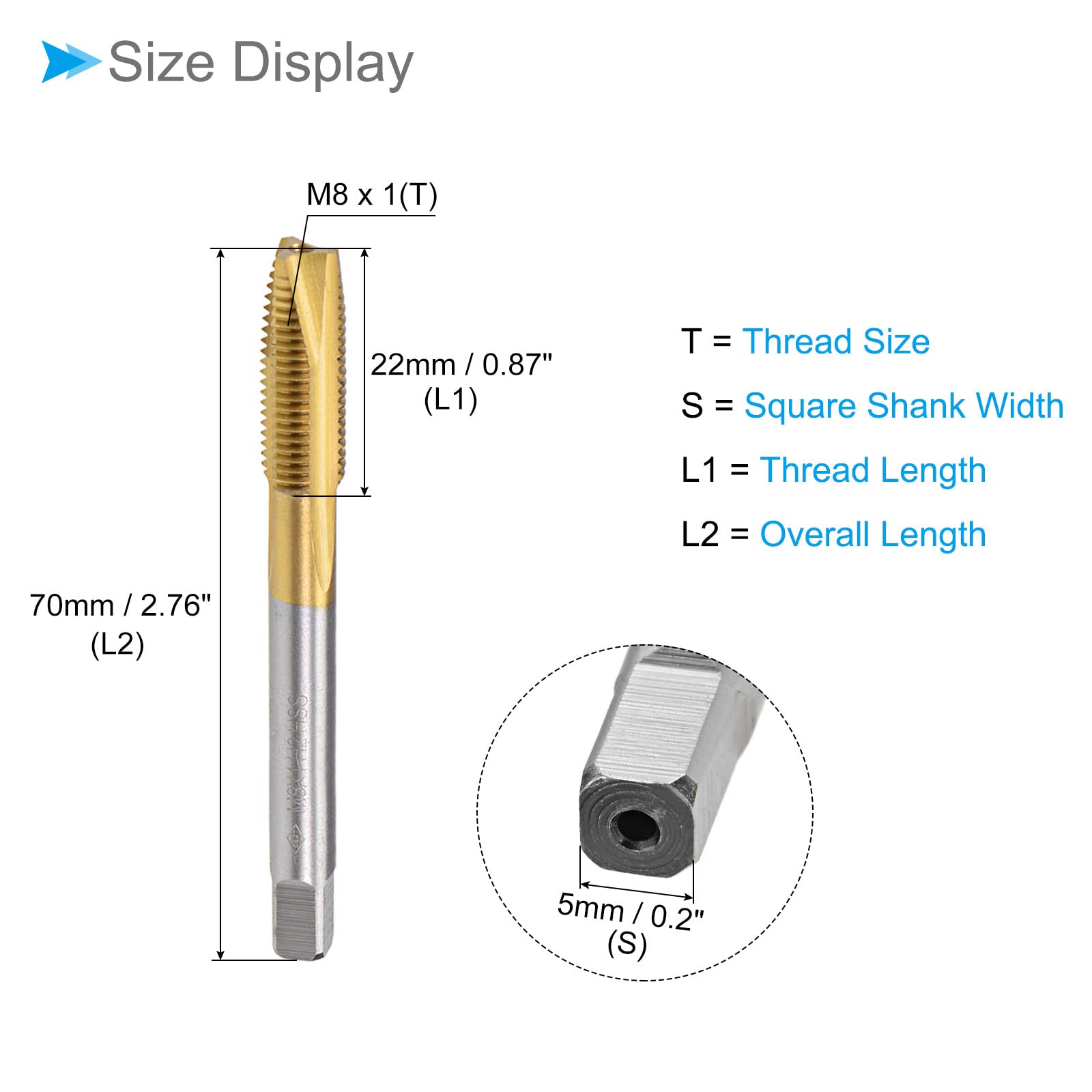

• ★ Spiral Point Tap Size --- Thread size: M8 x 1; thread length: 22mm / 0.87"; square shank width: 5mm / 0.2"; overall length: 70mm / 2.76"; accuracy: H2

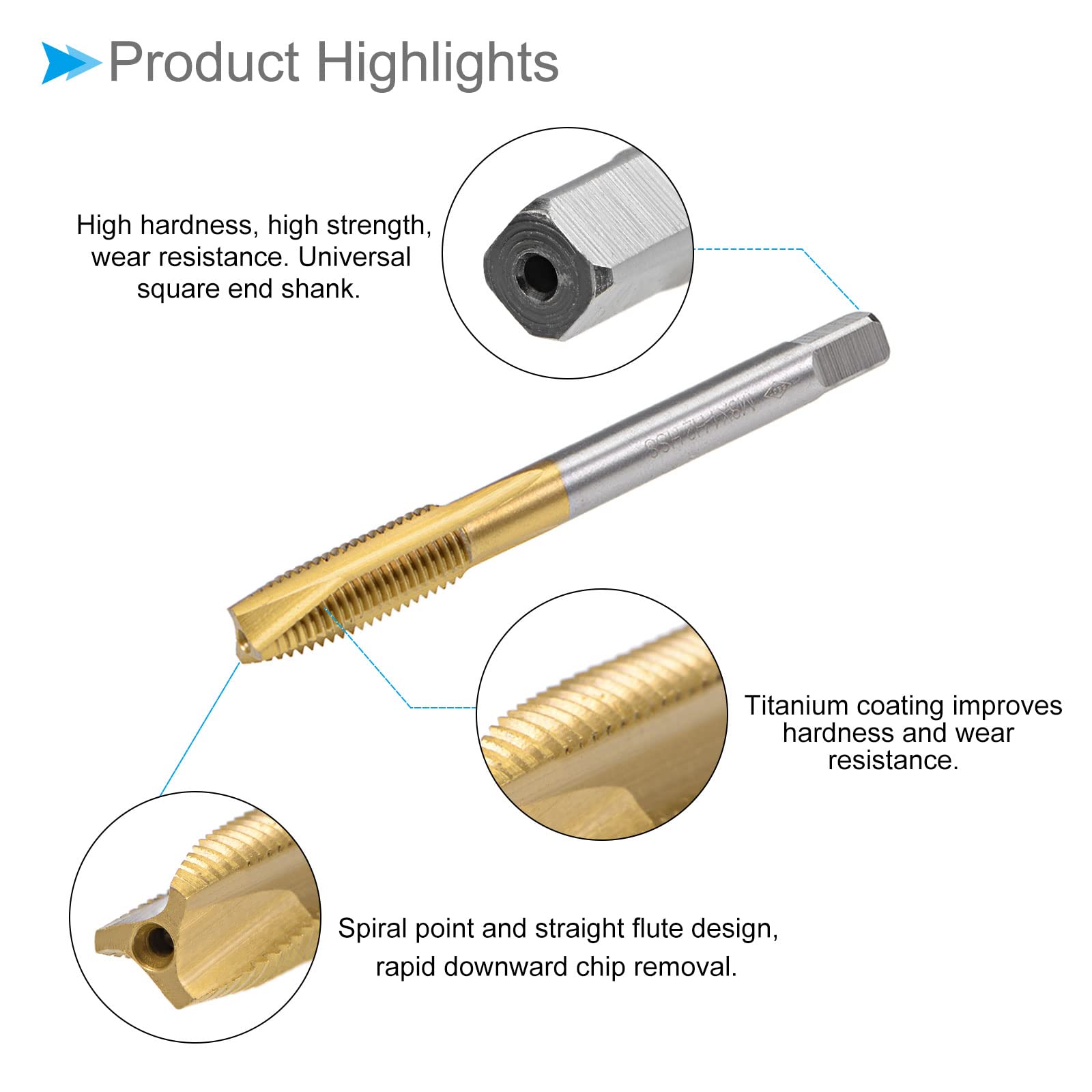

• ★ Wide Application --- Suitable for processing through-hole internal threads. Spiral point and straight flute design, rapid downward chip removal. Make new threads or re-thread damaged threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, plastic.
• ★ Machine Taps --- Machine taps are used in tapping machines, vertical drilling and milling machines. Micro taps process wood and soft metals with lower hardness, mainly used in clocks and watches. Drill holes with a twist drill before tapping.
• ★ High Speed Steel 6542 --- It has high hardness, high strength, good toughness, and wear resistance, good for general purpose applications. Titanium (TiN) coating greatly improves hardness and wear resistance, reduces friction coefficient.
• ★ Useful Tips --- Control speed based on material hardness. Add appropriate tapping oil for higher quality internal threads and more durable taps. The tapping depth should not exceed 1.5 times the diameter (eg: diameter=6mm (M6), maximum tapping depth=9mm).

Attributes: * Thread Size: M8 x 1 * Thread Length: 22mm / 0.87" * Square Shank Width: 5mm / 0.2" * Overall Length: 70mm / 2.76" * Accuracy: H2 * Material: High Speed Steel 6542 * Finish: Titanium Coated What Is Included: * 1 Piece x Spiral Point Threading Taps Applications & Features: --- Suitable for processing through-hole internal threads. Spiral point and straight flute design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, hard plastic. Machine taps are used in tapping machines, vertical drilling and milling machines. Micro taps (such as M1-M3.5) process wood and soft metals with lower hardness, mainly used in clocks and watches. --- The high speed steel tool has high hardness, high strength, good toughness, and wear resistance, good for general purpose applications. Titanium (TiN) coating greatly improves hardness and wear resistance, reduces friction coefficient. The tapping depth should not exceed 1.5 times the diameter of the tap (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping. The tapping angle should be 90 degrees vertical and stable. Useful Tips: --- Control speed based on material hardness. Feed rate (recommended): ordinary steel (copper aluminium alloy): 6-15m/min; hard steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The higher the hardness, the slower the speed. Fast speed and low torque; slow speed and high torque. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Use No. 30 motor oil for stainless steel.
