Saipor M16 X 1.5 Metric Tap and Die Set M16 X 1.5mm HSS Straight Fluted Machine Thread Right Hand Screw Tap and Round Threading Die

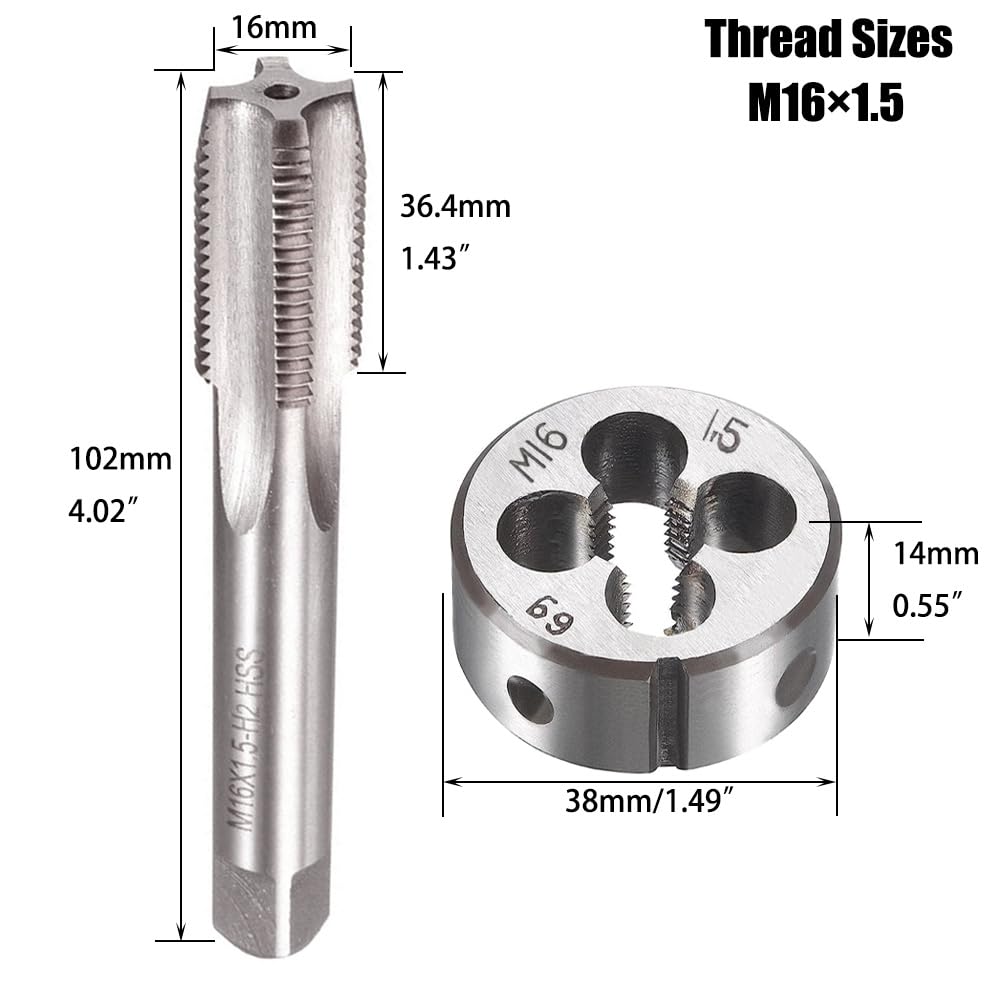

• Tap Material: High-Speed Steel 6542 (M2), Thread size: M16 X 1.5; Total Length: 102mm/4.02”, Thread Length: 36.4mm/1.43”, can make new threads or re-thread damaged or jammed threads.

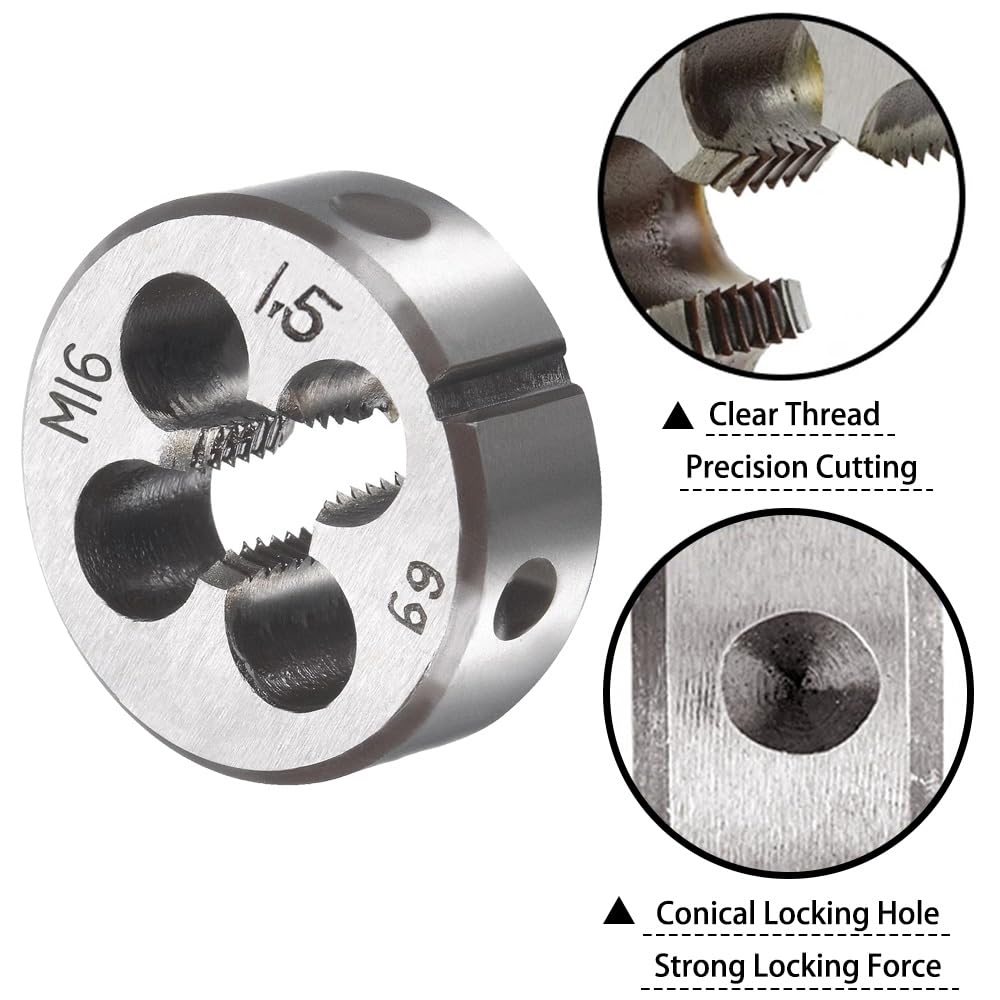

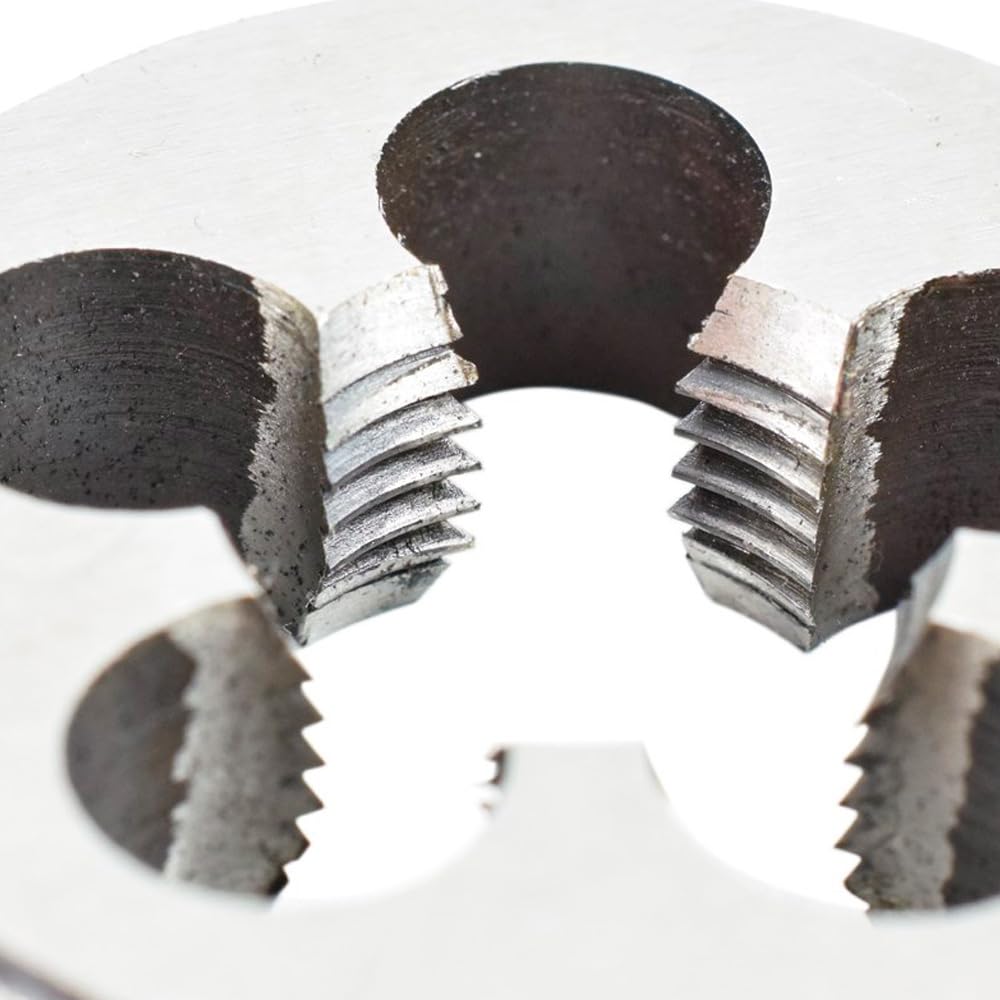

• Round Die Material: High Quality Alloy Steel, Thread size: M16 X 1.5; outside diameter (OD): 38mm / 1.49"; Thickness: 14mm / 0.55", can process, correct or clean the external threads.

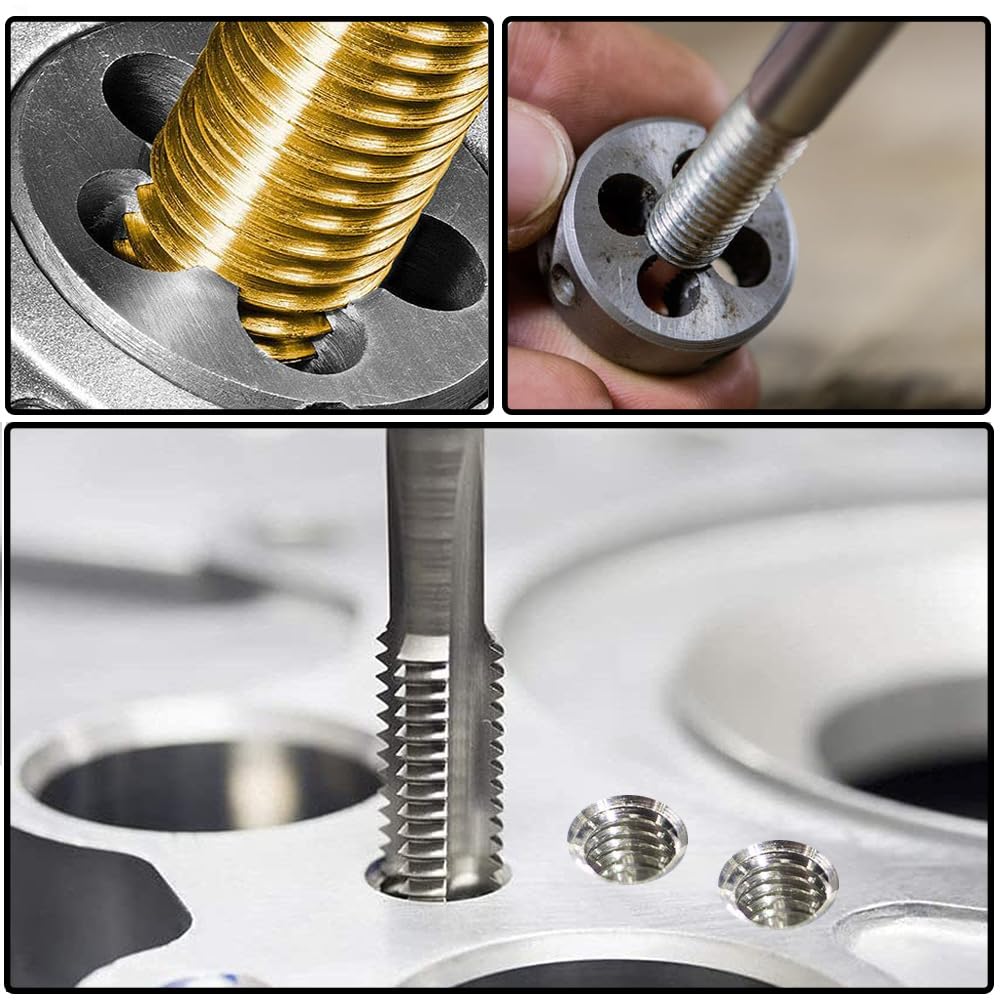

• Suitable for processing through holes or shallow holes on on steel, copper, aluminum, cast iron and other materials. Can be used with manual equipment or special processing consoles, such as drill presses, tapping machines, CNC and milling machines.

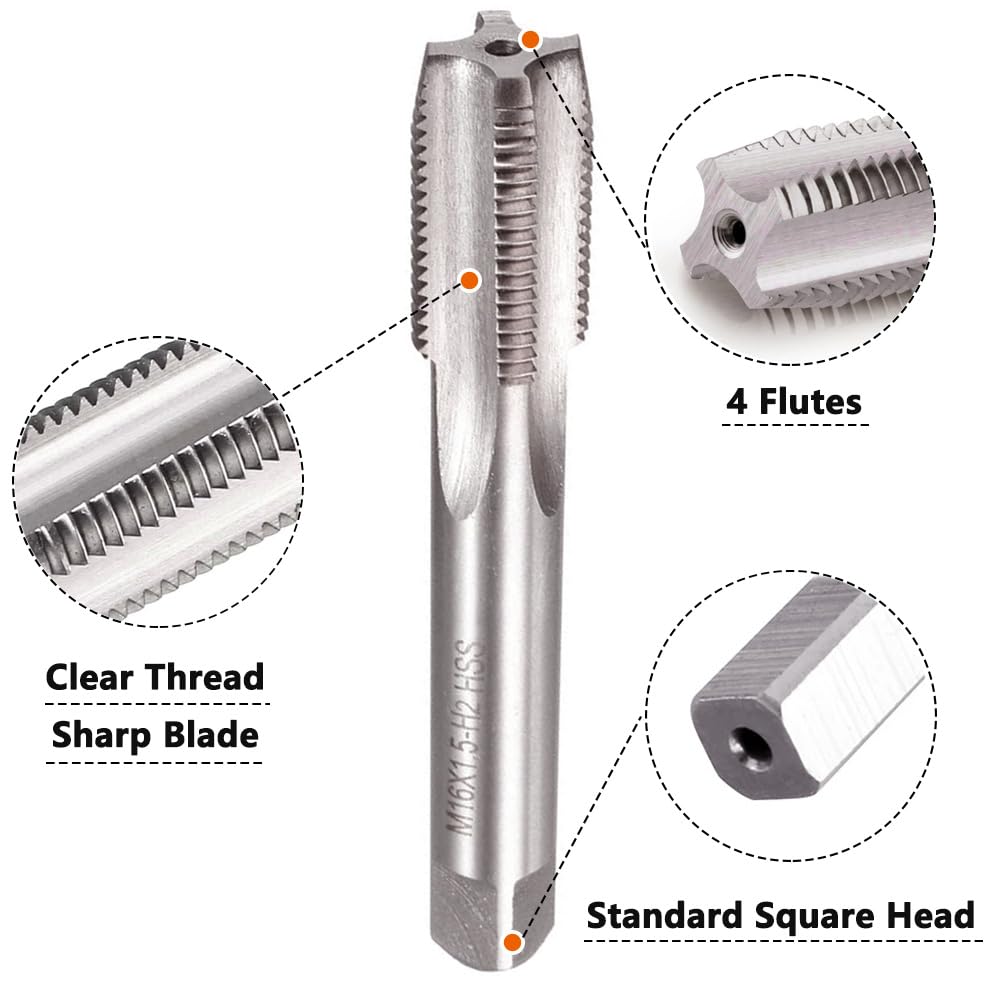

• Design: straight flute tap provides rapid downward chip removal for efficient threading, debris rapidly discharged in the tank. No blocking and high efficiency.

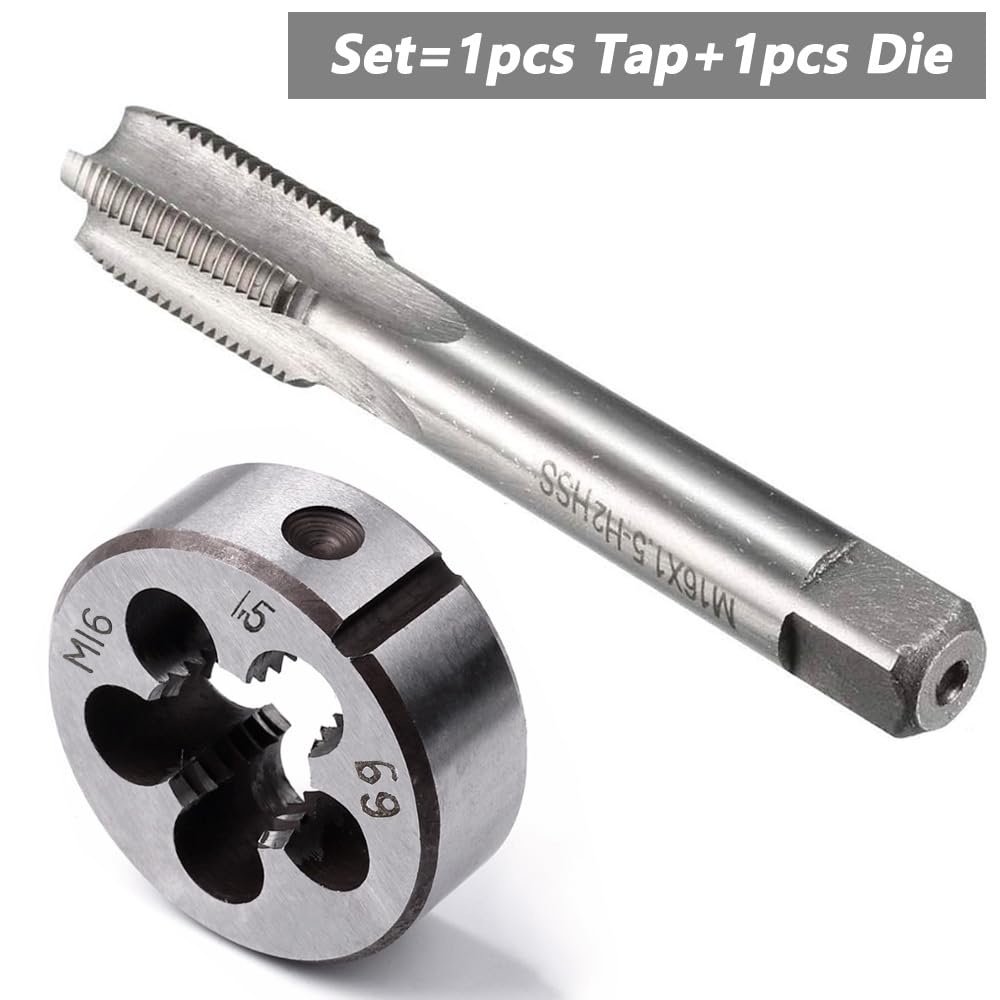

• Package Included: 1pc M16 x 1.5mm Thread Tap + 1pc M16 x 1.5mm Thread Die, 1.5mm pitch, right hand.

Thread Taps 1. Thread tap is made of HSS 6542, which is stronger and more durable than ordinary taps. 2. Can process copper, brass, A3 steel, aluminum, cast iron and other materials. 3. Straight flute design, downward chip removal, fast tapping with accuracy 4. Generally used in conjunction with tapping machines, integrated bench drills, CNC lathes, machining centers, etc. Manual processing is also possible Product Specifications: Material: High-Speed Steel 6542 (M2) Thread size: M16 Pitch: 1.5mm Total Length: 102mm/4.02” Thread Length: 36.4mm/1.43” Round Threading Dies 1. Made of alloy tool steel, our threading die boasts high hardness, strong wear resistance, and a long service life. 2. Features a large capacity chip removal hole, ensuring smooth chip removal and sharp, hard tapping threads 3. Perfect for processing or repairing external threads, our threading die can be used with a die wrench or lathe mold base. 4. To prolong the service life of the die, we recommend adding appropriate lubricating oil to the cutting edge during work. Product Specifications: Material: Alloy steel Thread size: M16 Pitch: 1.5mm Outside diameter: 38mm / 1.49" Thickness: 14mm / 0.55" Package Included: 1pc Thread Tap 1pc Threading Die
