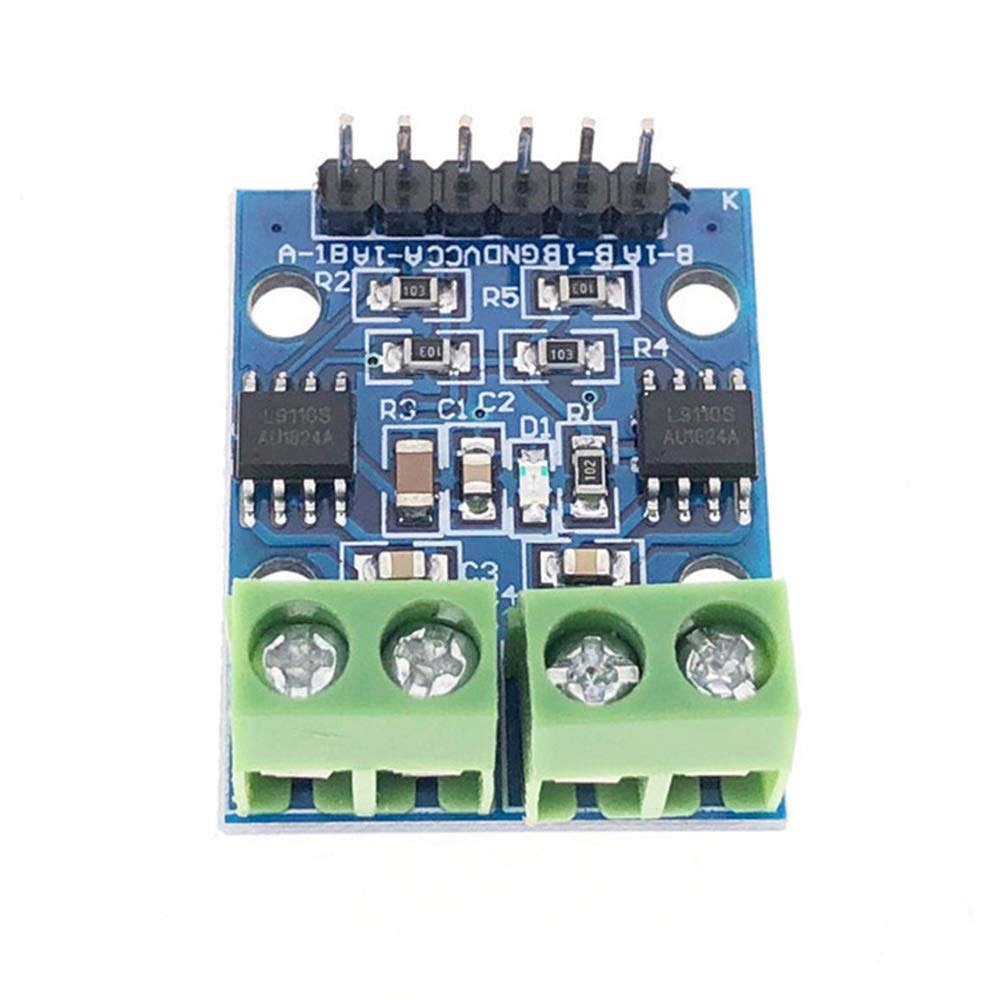

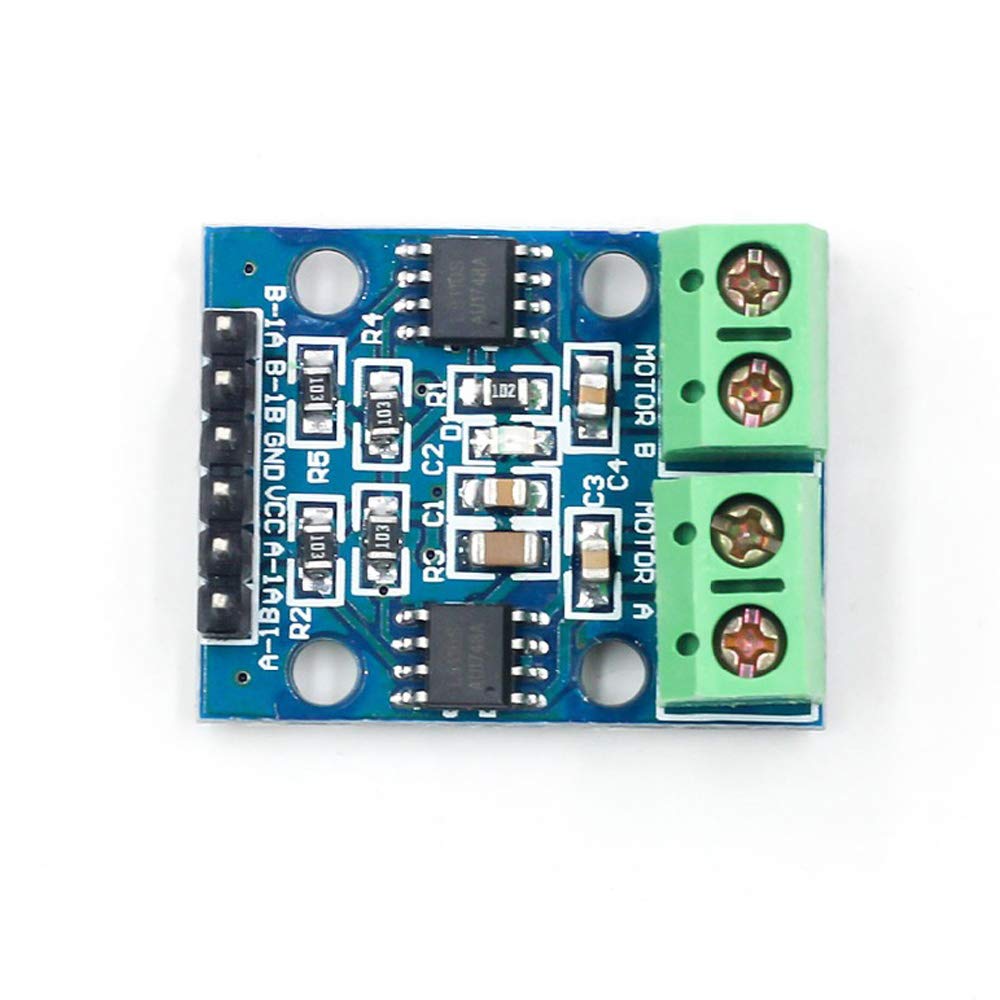

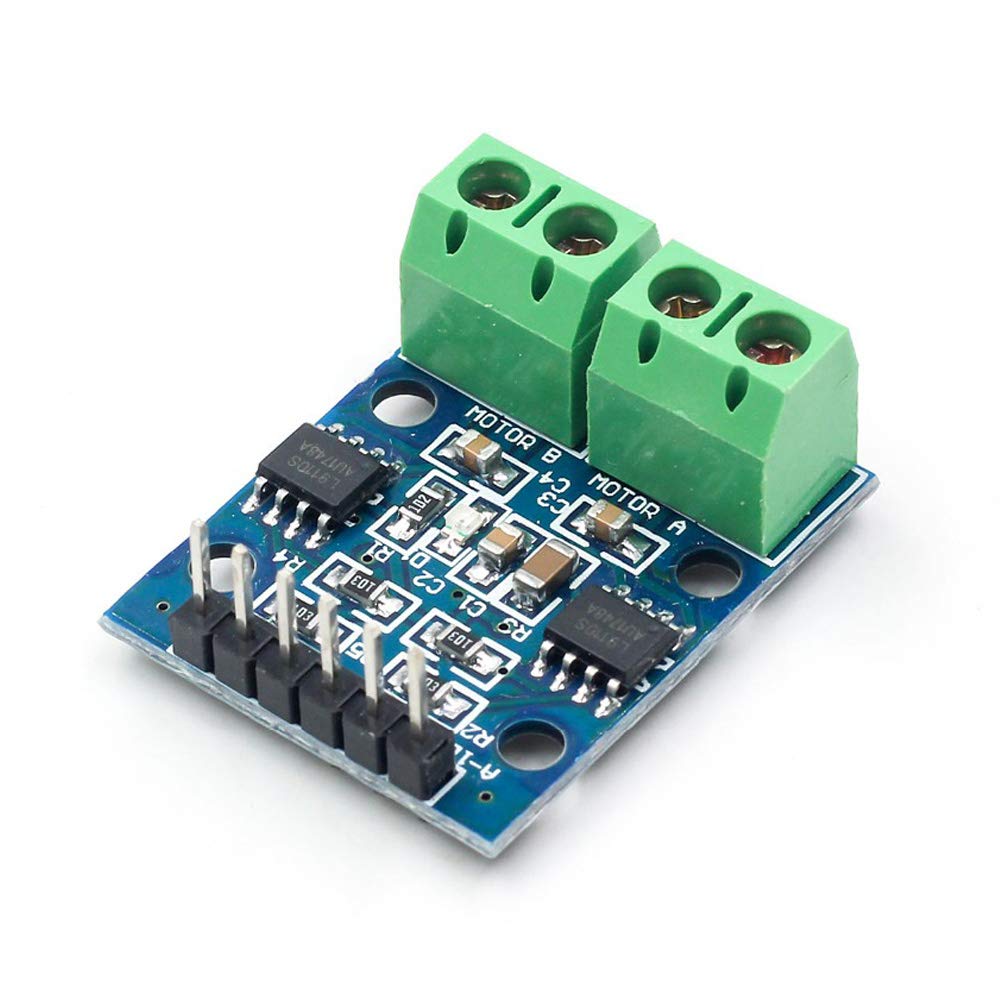

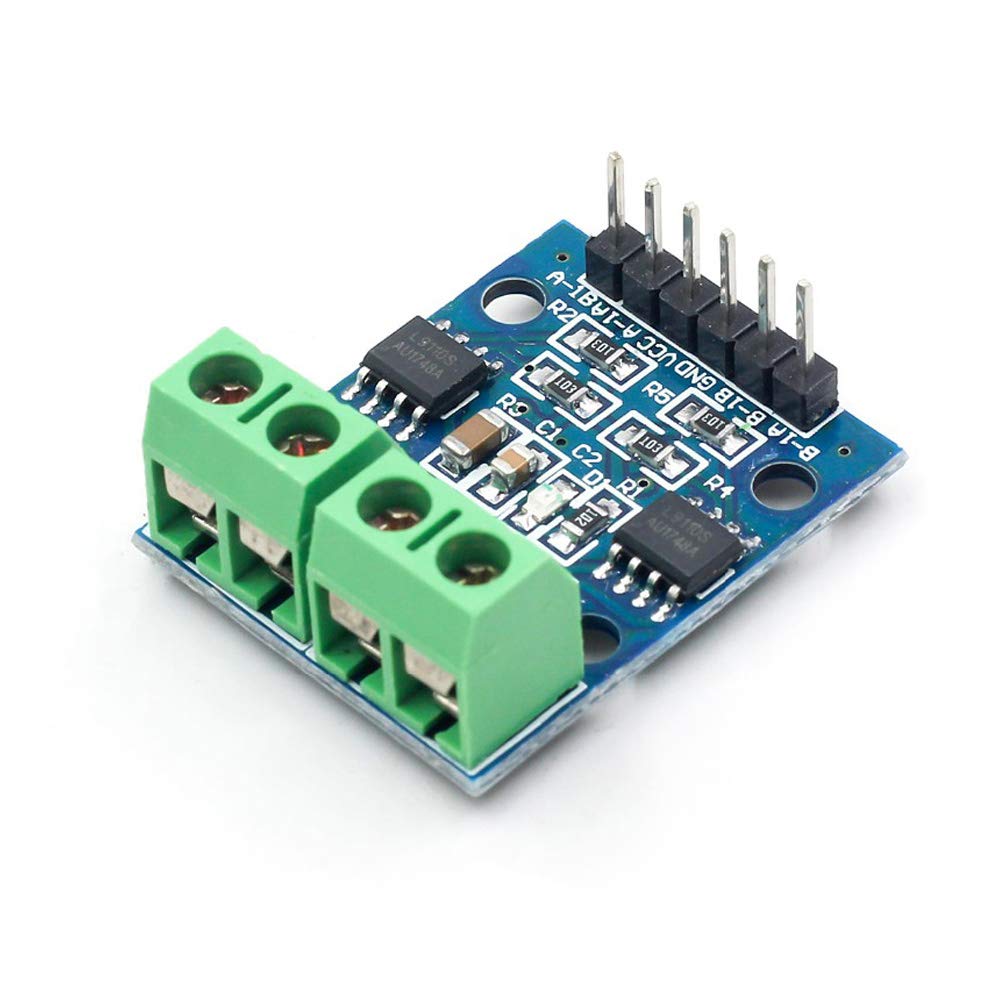

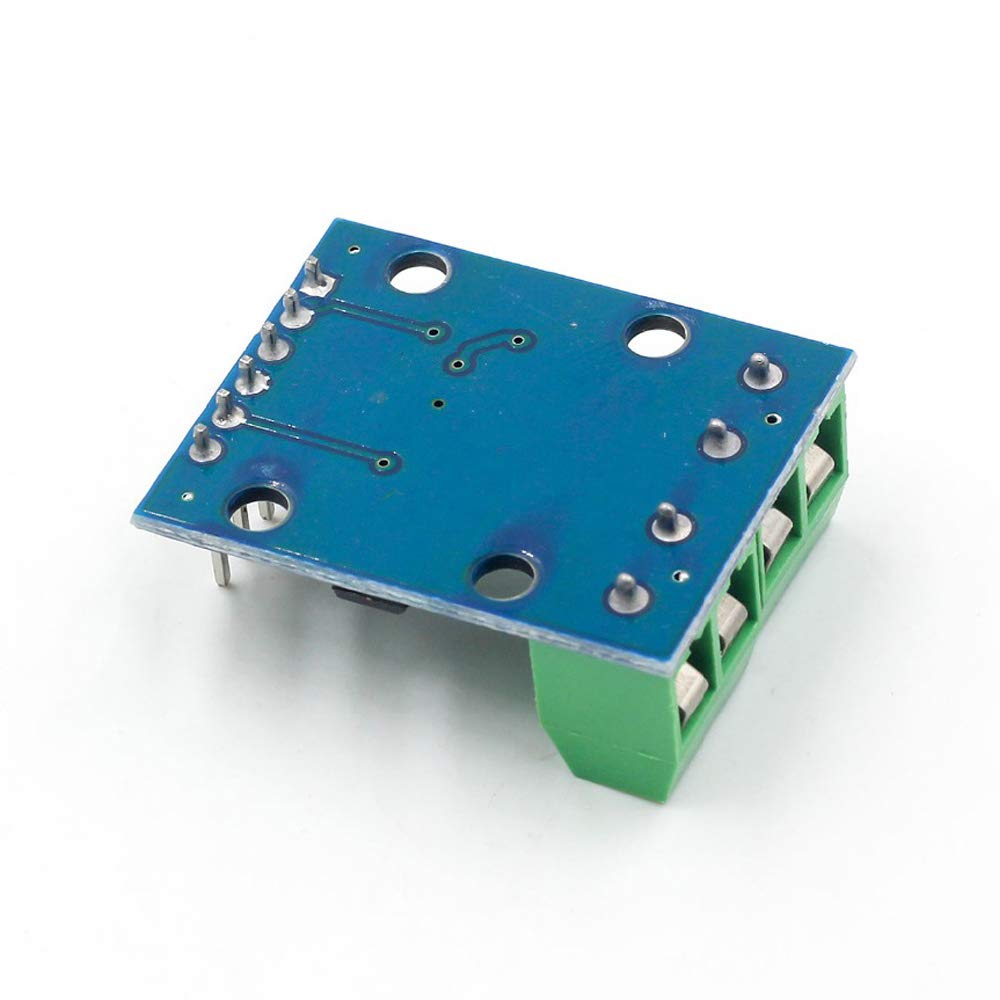

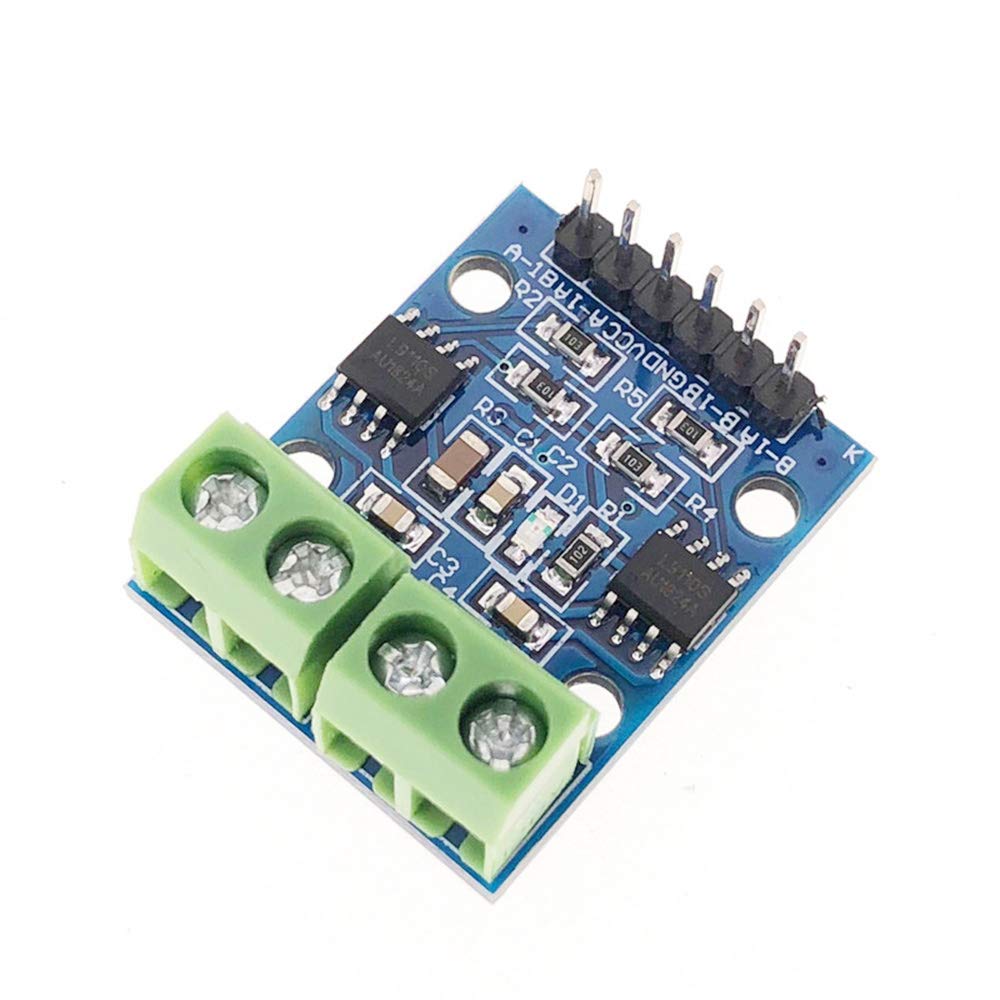

Youmile 5PCS L9110S DC Stepper Motor Driver Controller Board 2.5-12V H-Bridge For Arduino With Dupont Cable Male to Female 30 PIN,28AWG Wire

• Module supply voltage: 2.5-12V
• Maximum operating current:0.8A
• Dual motor driver chip L9110S
• With fixed mounting holes, diameter: 3mm

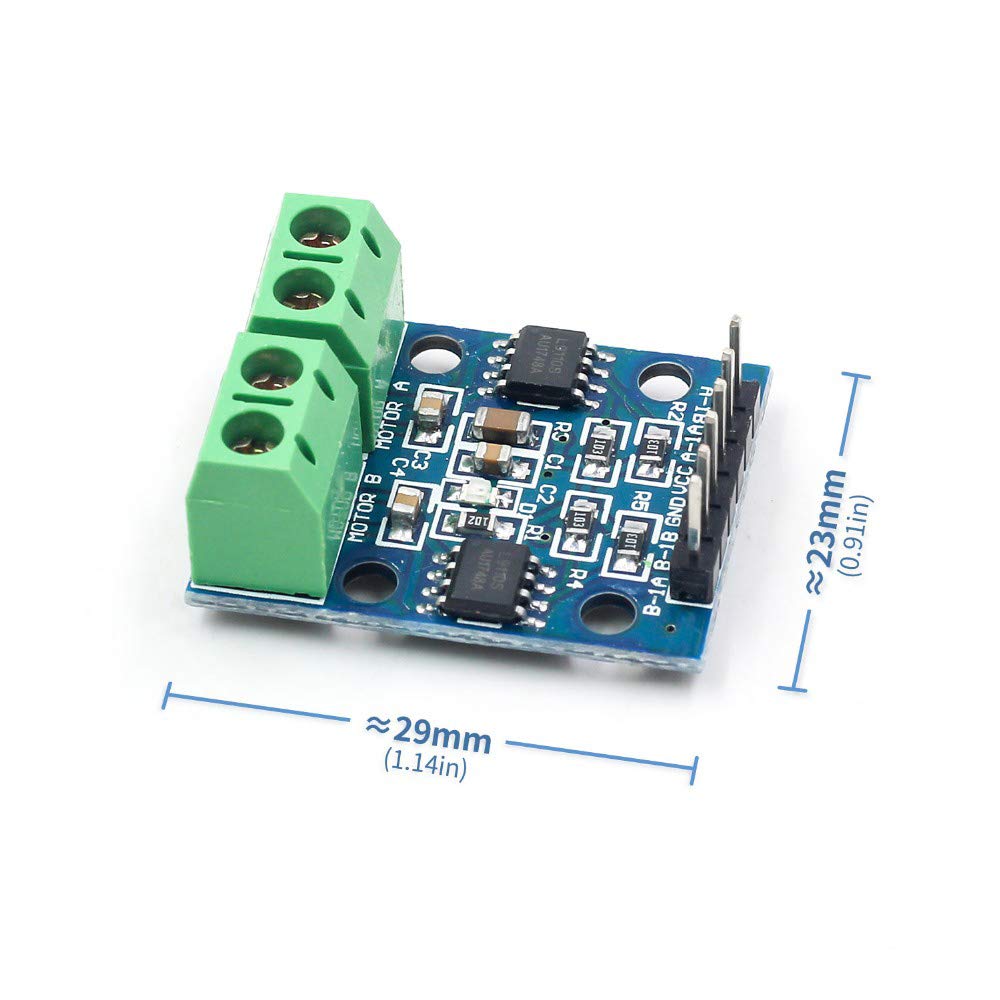

• Size:29.2 x 23mm / 1.14 x 0.91"

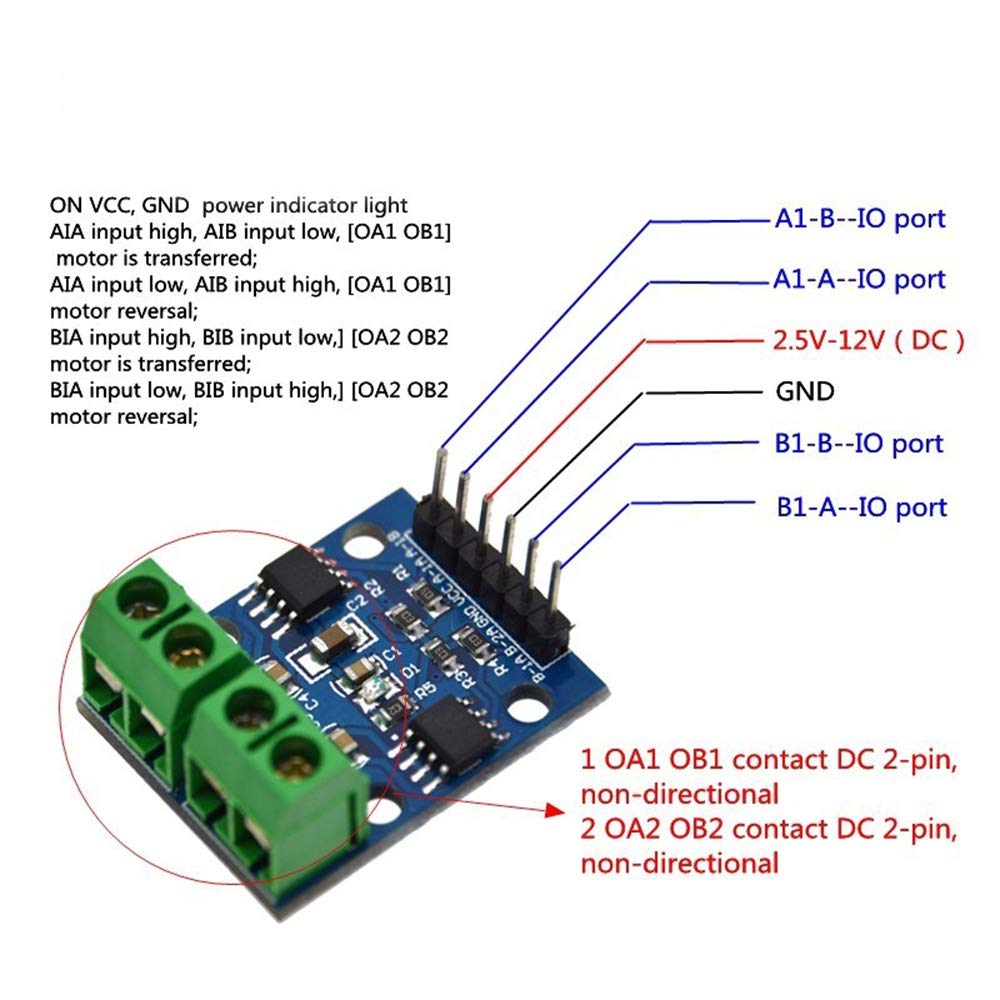

Description: On board two the L9110S motor control chip the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor the module input voltage :2.5-12V the 800mA continuous current output capability per channel 1. Low static work current 2. Power supply voltage: DC2.5-12V 3. Each channel has 800mA continuous current output 4. Low saturation pressure drop 5. TTL/CMOS output level compatible, can be connected directly to the CPU 6. Output built-in clamping diode, apply to the perceptual load 7. Control and drive integrate in IC 8. Have pin high pressure protection function 9. Working temperature: 0-80 ° 10.Size:29.2 x 23mm / 1.14 x 0.91" Interfaces Description: 6P black pin: 1 VCC external voltage 2.5V-12V 2 GND External GND 3 AIA external microcontroller IO port 4 AIB external microcontroller IO port 5 BIA external microcontroller IO port 6 BIB external microcontroller IO port 4P green terminal: 1 OA1 OB1 contact DC 2-pin, non-directional 2 OA2 OB2 contact DC 2-pin, non-directional Use: ON VCC, GND module power indicator light AIA input high, AIB input low, [OA1 OB1] motor is transferred; AIA input low, AIB input high, [OA1 OB1] motor reversal; BIA input high, BIB input low,] [OA2 OB2 motor is transferred; BIA input low, BIB input high,] [OA2 OB2 motor reversal; Package Includes: 5 x L9110S DC Stepper Motor Driver Controller Board 1 x 11.8" male-FeMale Dupont Cables 30 PIN 1 x 19.6" 28AWG Wire
