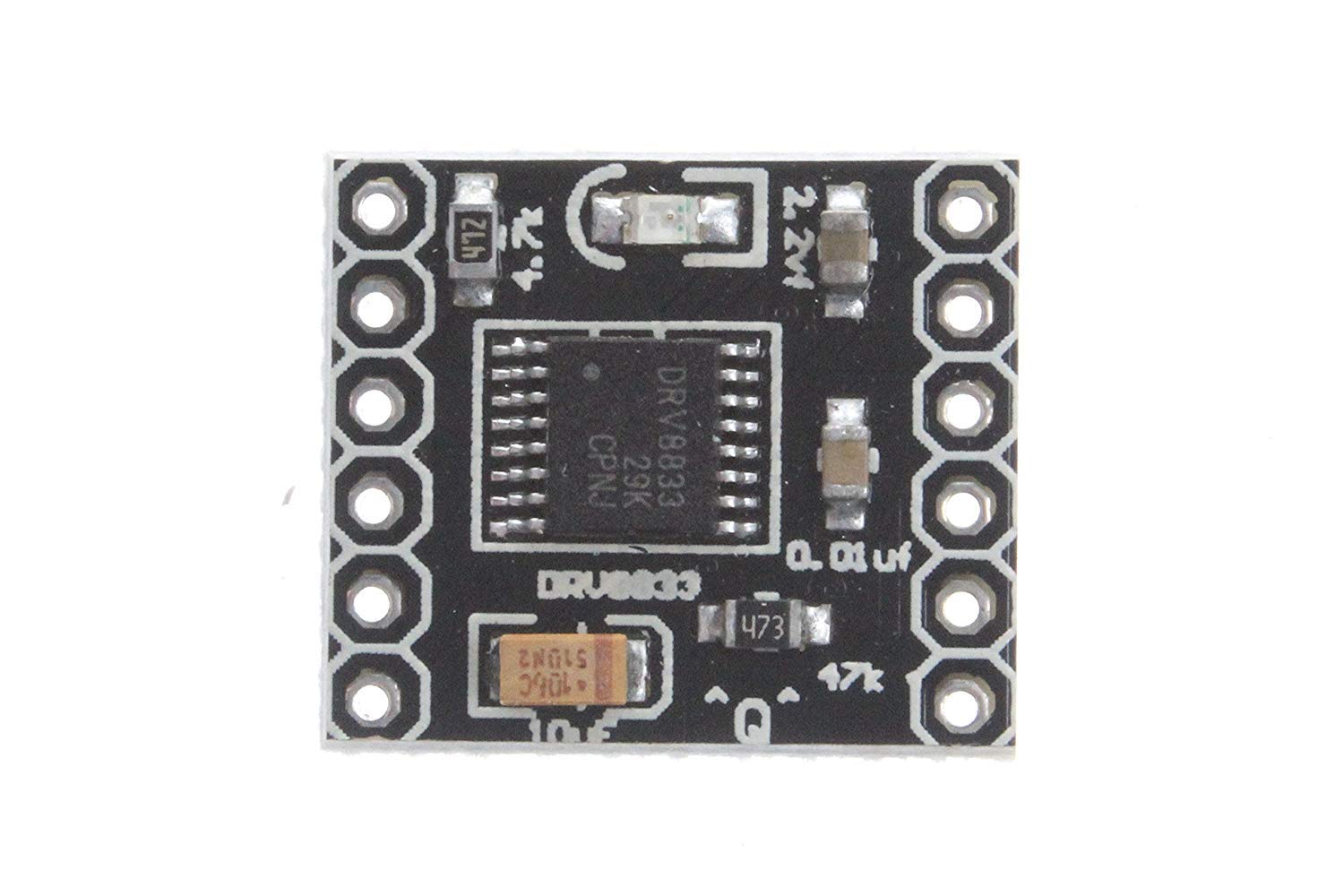

DollaTek 5Pcs DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra-small-volume Motor Drive Module Input Voltage 3-10V
About this item
- Single H bridge output current: 1.5A, can drive 2 DC geared motors.
- Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
- Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.
- Size: 18.5*16mm
- Input voltage: 3-10V
Product description

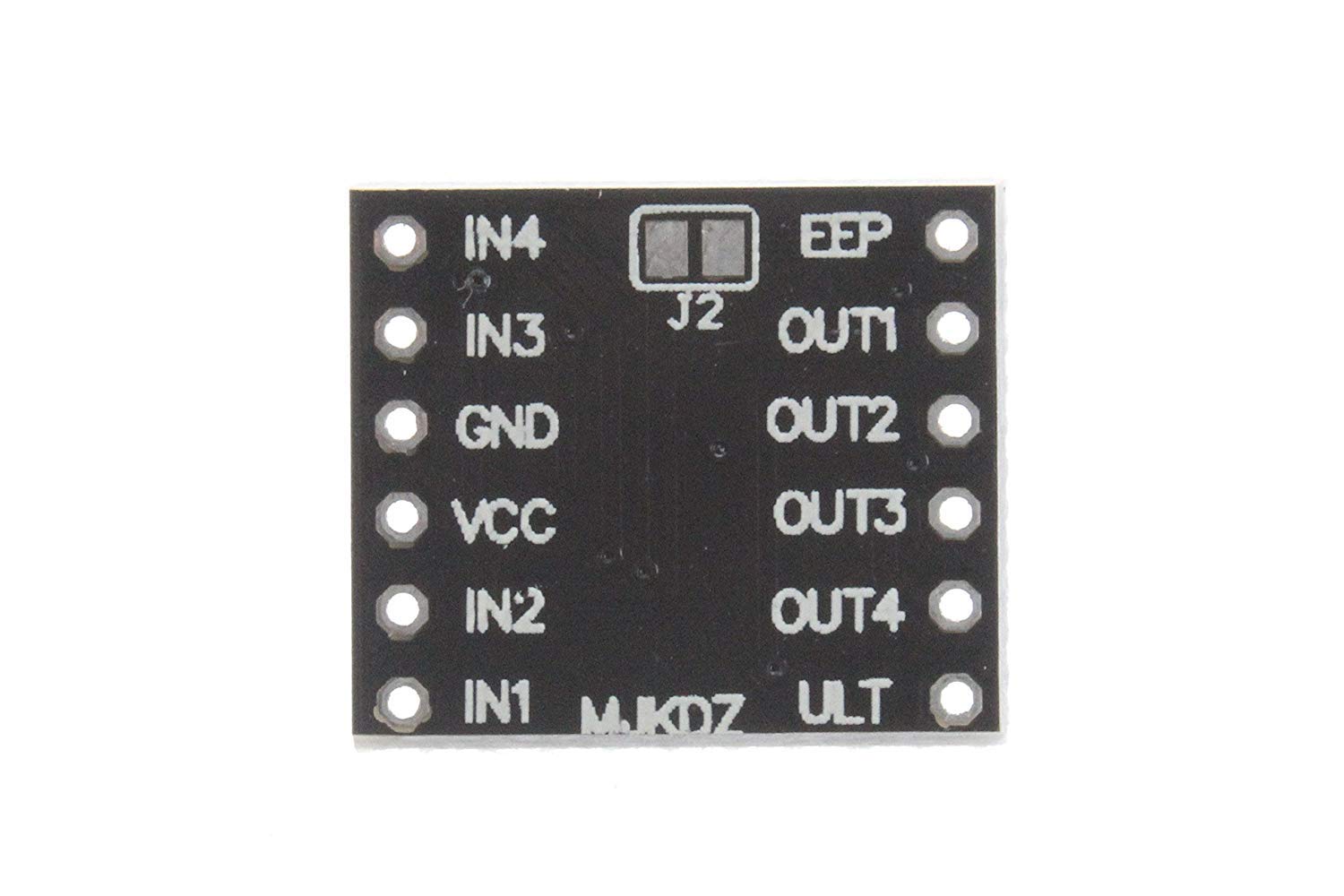

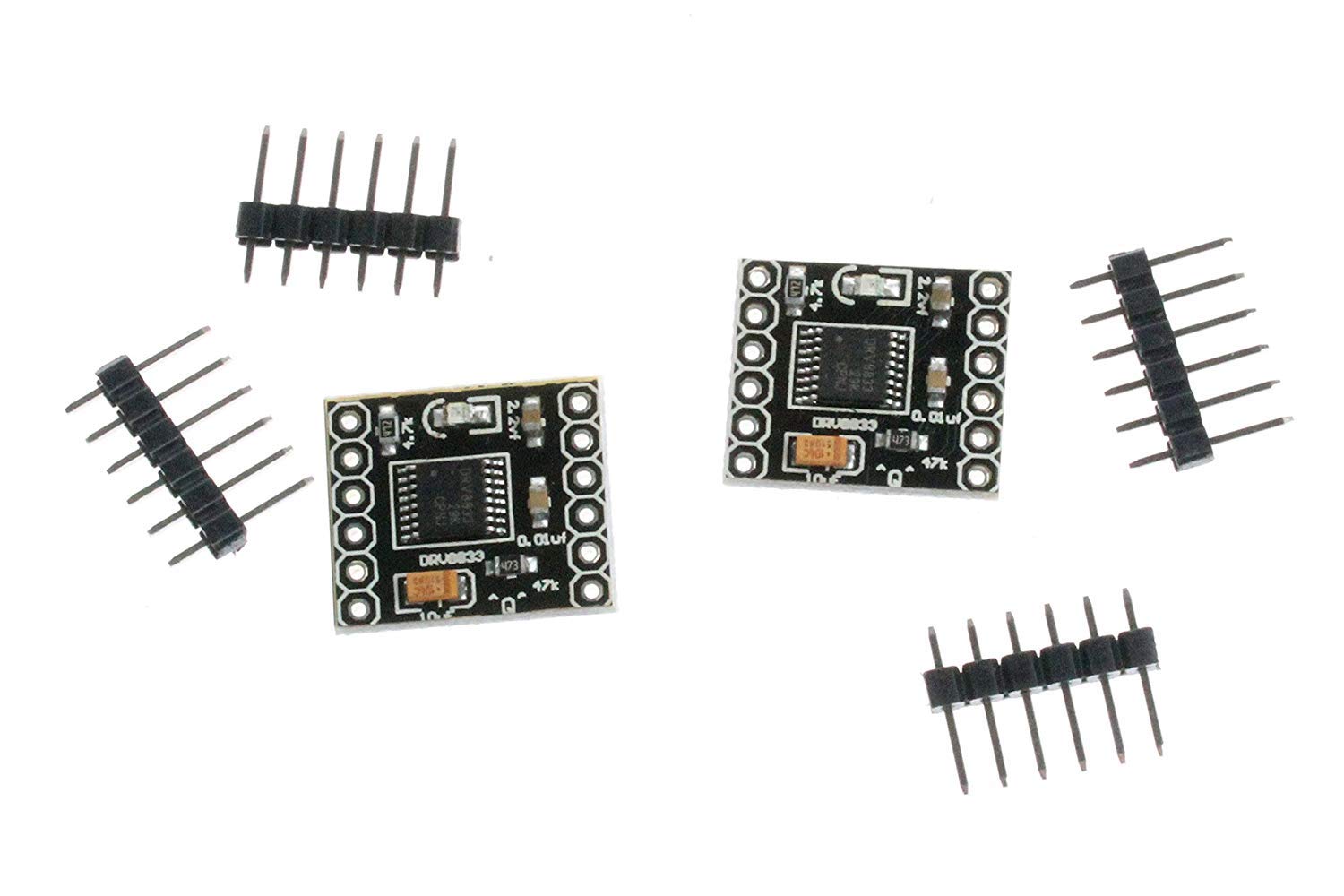

Features: Single H bridge output current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode. Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors. Size: 18.5*16mm Input voltage: 3-10V Instructions for use: ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4. EEP is the protection output and is not used by default. VCC is a voltage input of 3 to 10V. GND is grounded. Pacakge Included: 5 x DRV8833 1.5A 2-Channel DC Motor Drive Board
