COVVY TB6600 4A DC 9-42V Stepper Motor Driver CNC Controller 32 Segments 2/4 Phase Hybrid Stepper Motor Driver Board

• 9V-42V DC power supply, H-bridge bipolar constant phase flow driver.
• The maximum output current is 4.0A (peak, in 100ms), 8 output current optional.
• 6 subdivision modes of up to 32 segments can be selected,and can be used for high subdivision purposes.
• For 42, 57, 86 type, 2 / 4 phase, 4 / 6 / 8 wires stepper motor, The best application target torque is 1.8N.m and below below Nema17, Nema23 stepper motors
• Suitable for any small automatic equipment and hardware, such as engraving machines, marking machines, cutting machines, laser photocopying, plotters, CNC machine tools, etc

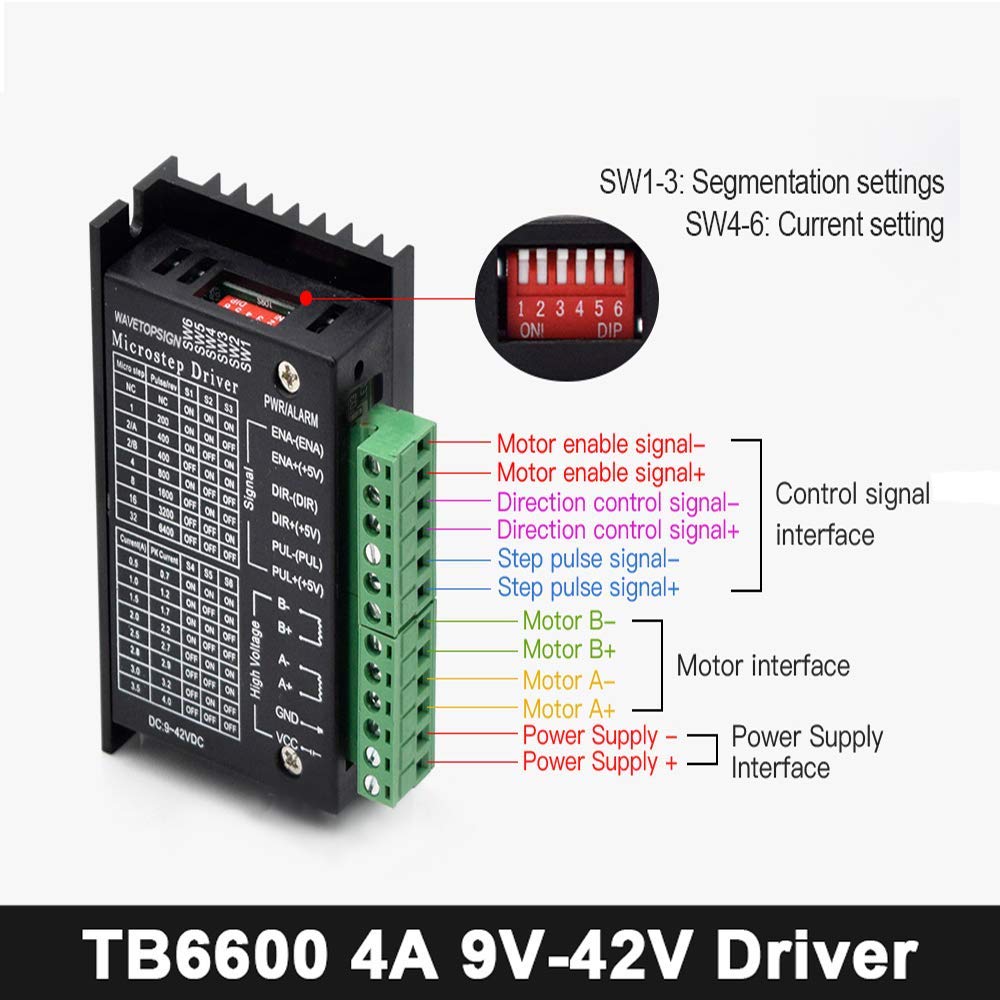

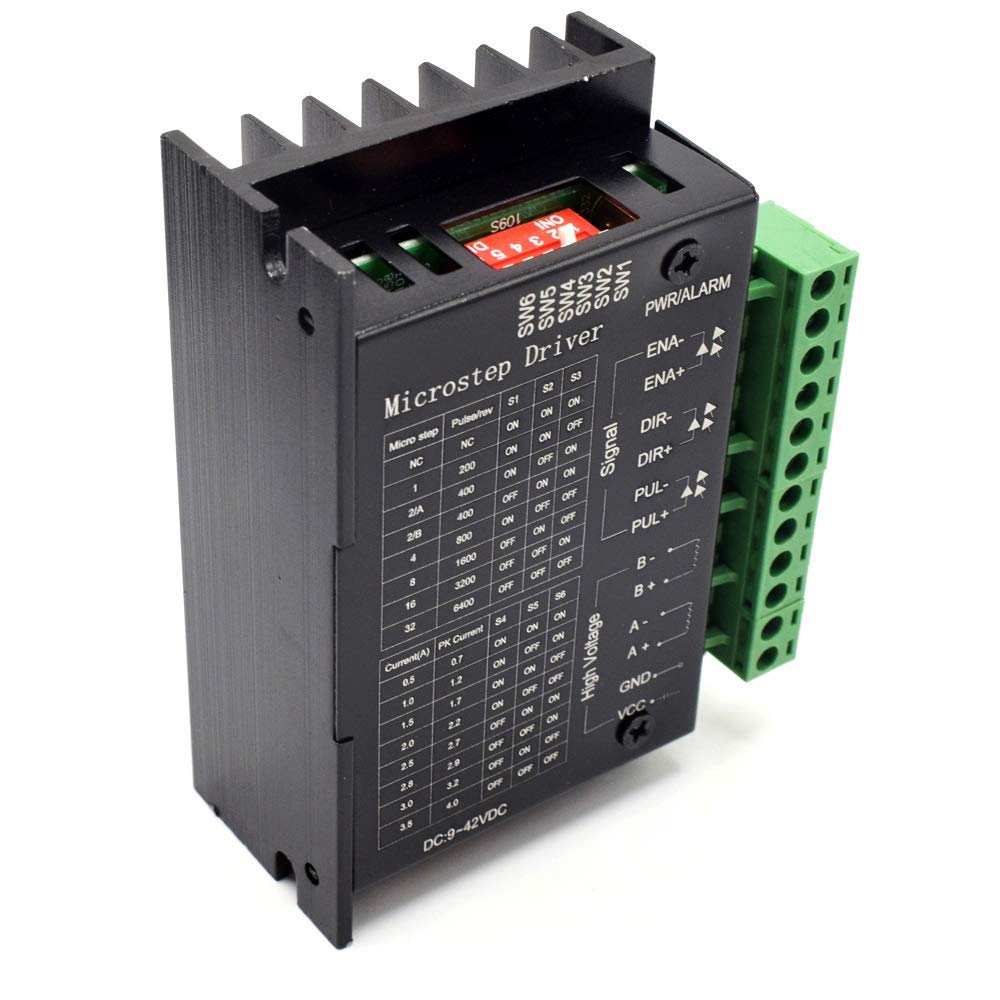

The TB6600 Driver is a professional 2/4 phase hybrid stepper motor driver which suitable for 42mm/57mm/86mm phase current below 4.0A. Through 6 digit DIP switch, set 7 subdivision (1.2/A, 2/B, 4, 8, 16, 32) and 8 levels output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A). IC Parameter: Signal Input: Single-ended, Pulse/Direction Input Voltage: 9-42VDC (recommend 12-24V) Output Current: 0.5-4.0A Peak Current: OUT = 4.0A Subdivision: 1.2/A, 2/B, 4, 8, 16, 32 segments Humidity: 40-90% RH Vibration: 10-55HZ/0.15mm External signal 3.3-24V universal Optocoupler isolated signal input, strong anti-interference ability Built in overheating protection (TSD) circuit Under-voltage protection, built-in (UVLO) circuit Built-in over-current detection (ISD) circuit Can control 4, 6, 8-wire 2-phase, 4-phase stepper motors forward and reverse rotation. With 1-2, W1-2, 2W1-2, 4W1-2 phase excitation mode Only the clock pulse signal can be driven 2-phase bipolar stepper motor to achieve low vibration, high efficiency work Application: Widely used in a variety of small automatic equipment and hardware, such as engraving machines, marking machines, cutting machines, laser photocopying, plotters, CNC machine tools, crystal grinding machine, automatic assembly equipment, etc. The best application target torque is 1.8N.m and below below Nema17, Nema23 stepper motors. Package Included: 1 x 32 SegmentsTB6600 Driver
