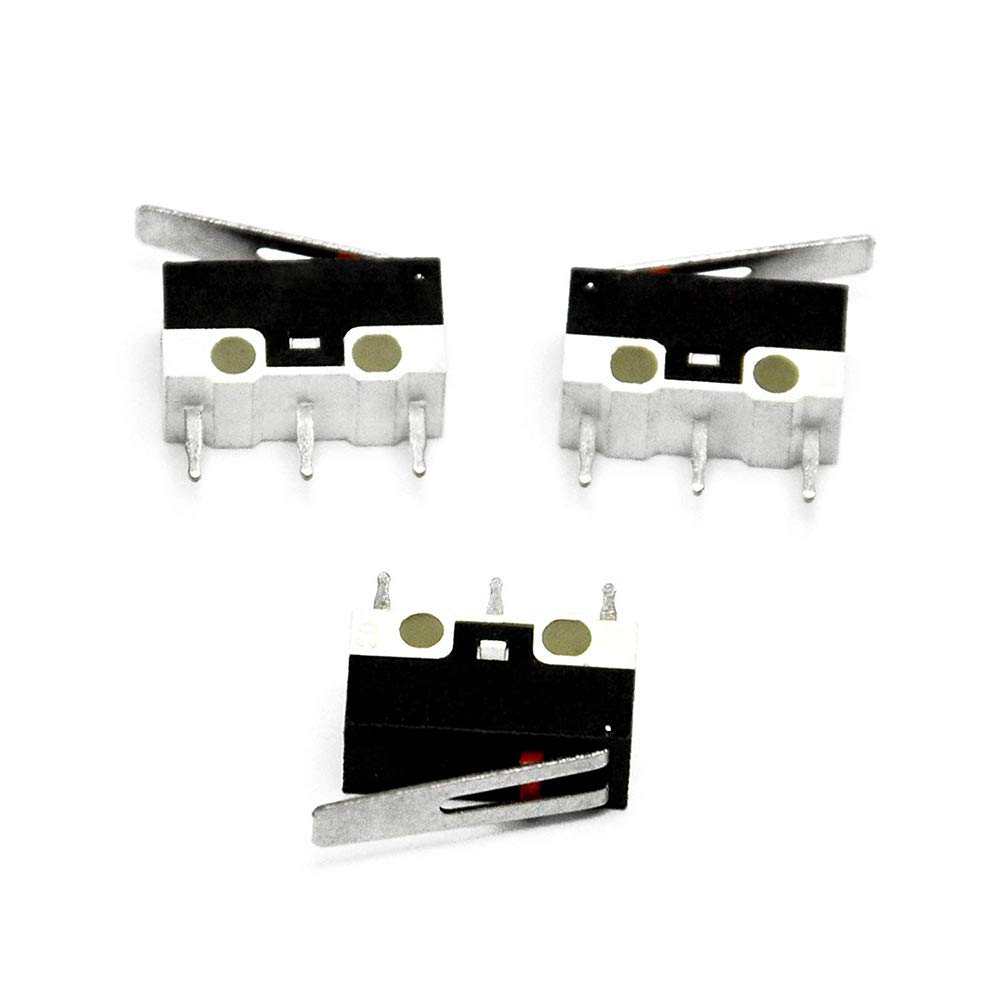

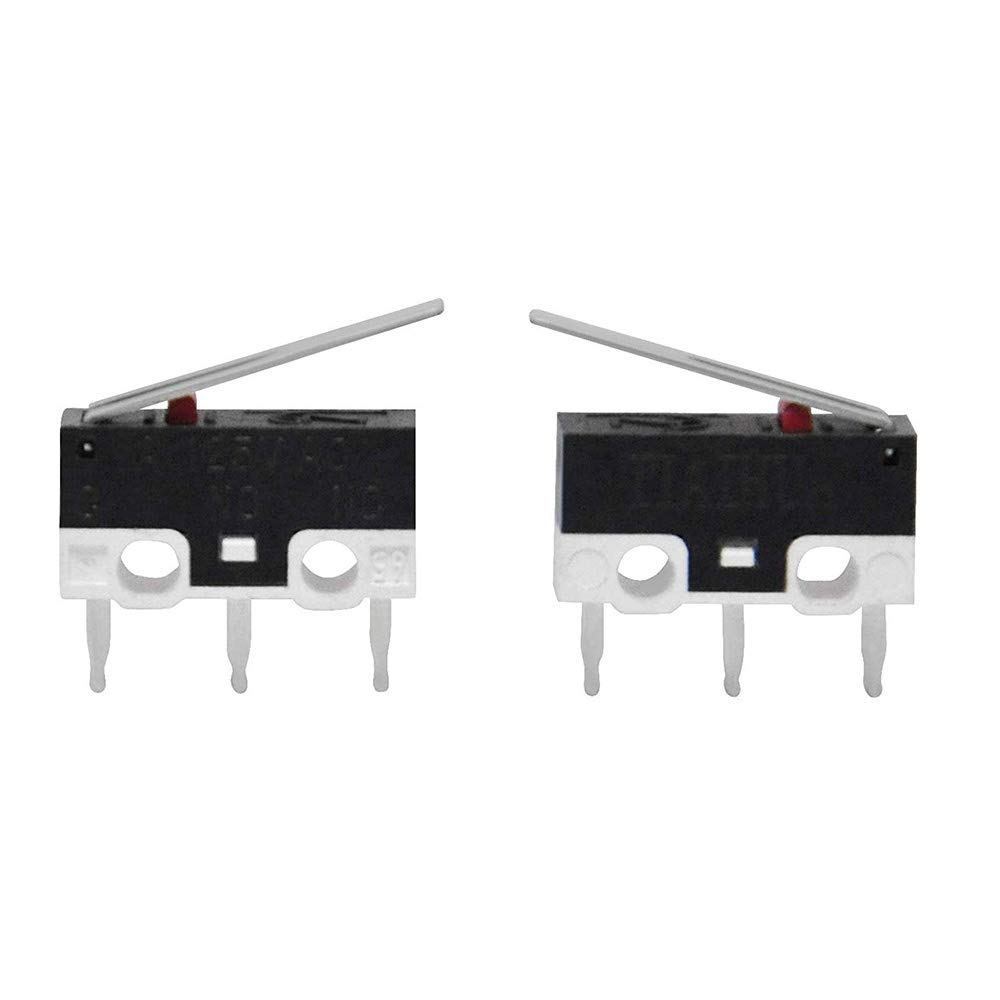

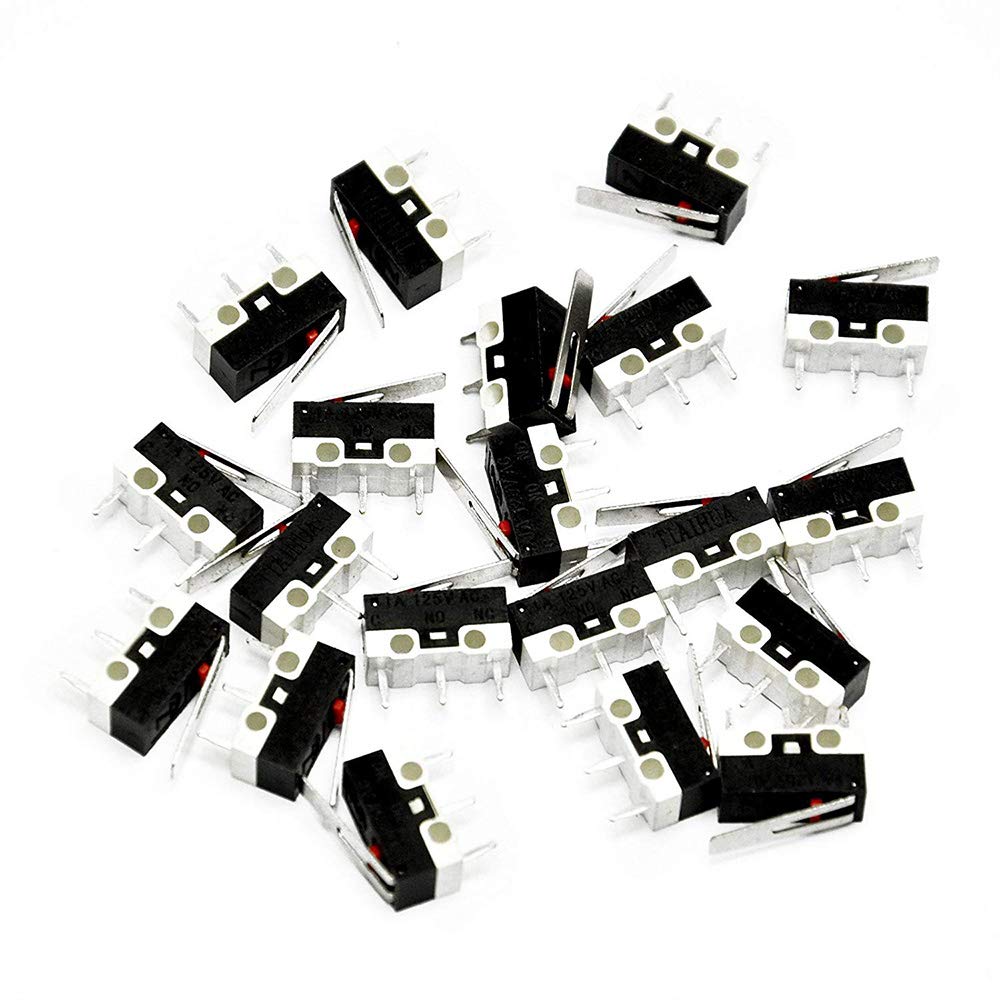

Youmile 20PACK Micro Switch AC 1A 125V 3Pin SPDT NO+NC Hinge Lever Momentary Push Button Micro Limit Switch for Arduino

• 【Product Name】Micro Switch; Model No.: JL012-13.5-2; Actuator Action: Momentary; Actuator Type: Hinge Lever; Contact Configuration: 1NO, 1NC (SPDT)
• 【Environmental Condition of utilization】Temperature -25~65℃；Relative humidity: below 85%; Rate Voltage: 125V AC; Rated Current: 1A.
• 【Application】Used in home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment.
• Excellent touch switches, long service life. Life expectancy: More than 500000（Life expectancy at switch testing machine for a continuous period of work, operating at frequencies below 60 times per minute, the working conditions: DC 40V,50mA.）
• Pin-type package with plastic to prevent infiltration of welding pine fragrance.

Description: Specifications: Product Name: Micro Limit Switch Model No.: JL012-13.5-2 Contact Type: 3 Pins 1 NC 1 NO Product Certification: ROHS Electrical Characteristics: Insulation Resistance:≥500MΩ（Test between adjacent legs, pins and insulation resistance between the shell.） Voltage Tester:There is no insulation damage, and abnormal are (Input voltage AC300V(50Hz-60Hz) 1 minute, leakage current of 2mA,the test between the neighboring side.) Mechanical properties: Operating Force:70±20gf（Operation at the beginning of the vertical keys, the gradual application of force, surveying trip switch to reach all of the work required when the maximum operating efforts.） Itinerary:0.3±0.1mm（Operation at the beginning of the vertical keys, the volume of the top switch turn-on when the mobile distance or maximum distance.） Terminal Strength: Terminal without falling, fracture, loosening, such as abnormal（Terminals is any direction at the beginning of the force imposed by 0.5kg,duration 1 minute.） Reliability Test: Solder ability: Wetting pin area more than 95% Life expectancy: More than 500000 Welding heat-resistant test: Terminal part of invasive tin welding furnace, tin furnace temperature of 260±5℃, soldering time 2±1 seconds. Ontology without deformation, to meet in the machinery, electrical performance Package included: 20 x Micro Limit Switch AC 125V 1A 3 Pin
