CESFONJER Limit Switch SS-5GL 5A Micro Subminiature Snap Action Switch, Arm Push Button Momentary Actuator, for 3D Printer, Electronic Equipment, Automatic Machine, car Electric (Pack of 8 pcs)

• ★High precision mechanism design offering acute operation and long life. Designed to control the movement of a mechanical part.
• ★3 Terminals, Long Straight Hinge Lever actuator with bracket, applicable to AC DC control circuits.

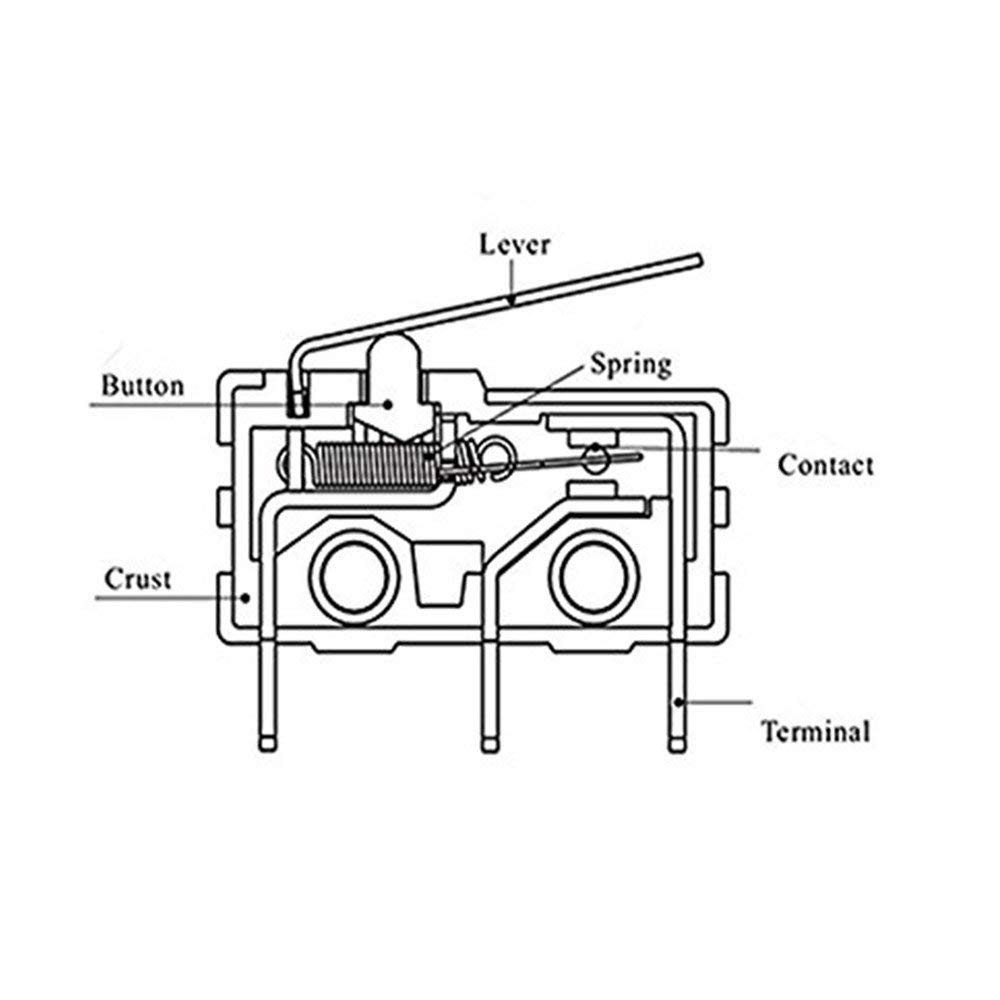

• ★In snap action contacts, the movement of the actuator applies force to an overcenter mechanism. This mechanism creates a quick change in contact state when the trip point is reached.
• ★Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.
• ★The Micro Switch is widely used in appliance, 3D Printer, electronic equipment, automatic machine, car electric, etc.

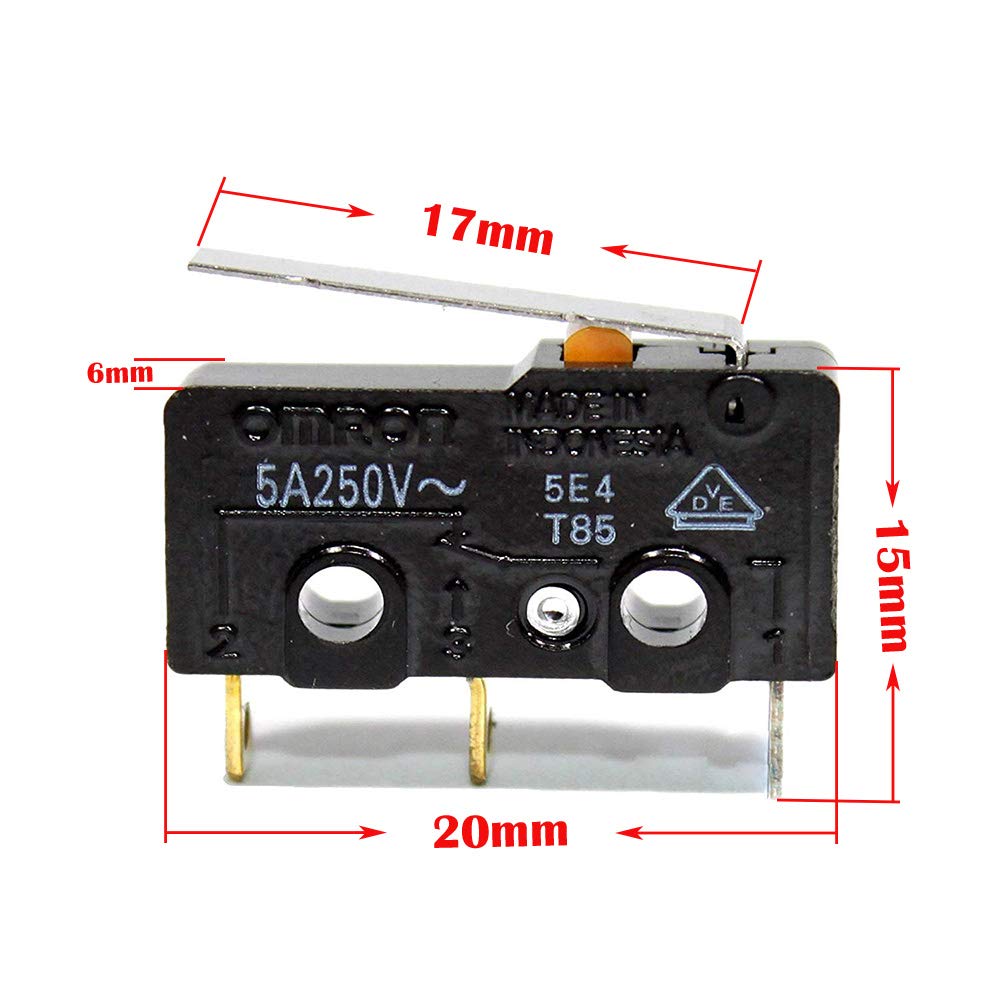

Detailed description Specifications: Product Name: Micro Switch Material: Plastic, Metal Color: Black Action Type: Momentary Terminals: 3 pins Actuator Type: Long Straight Hinge Lever Power: 5A / 250V Switch Body Size: 19.8 x 9.5 mm Lever Size: 16.8 mm High precision mechanism design offering acute operation and long life. 3 terminal, momentary action,silver tone lever hinger is easy to control. Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration. Snap action contacts ensure repeatable performance in applications that involve low speed actuators. The amount of travel of the contacts is also not dependent on the amount of travel by the actuator. Note: Please pay attention to the working voltage and check with the voltage of your place to make sure this micro switch successfully work. Because it is a manual measurement, the allowed measurement error is +/- 1-3 cm. Package includes: 8 * Micro Switch
