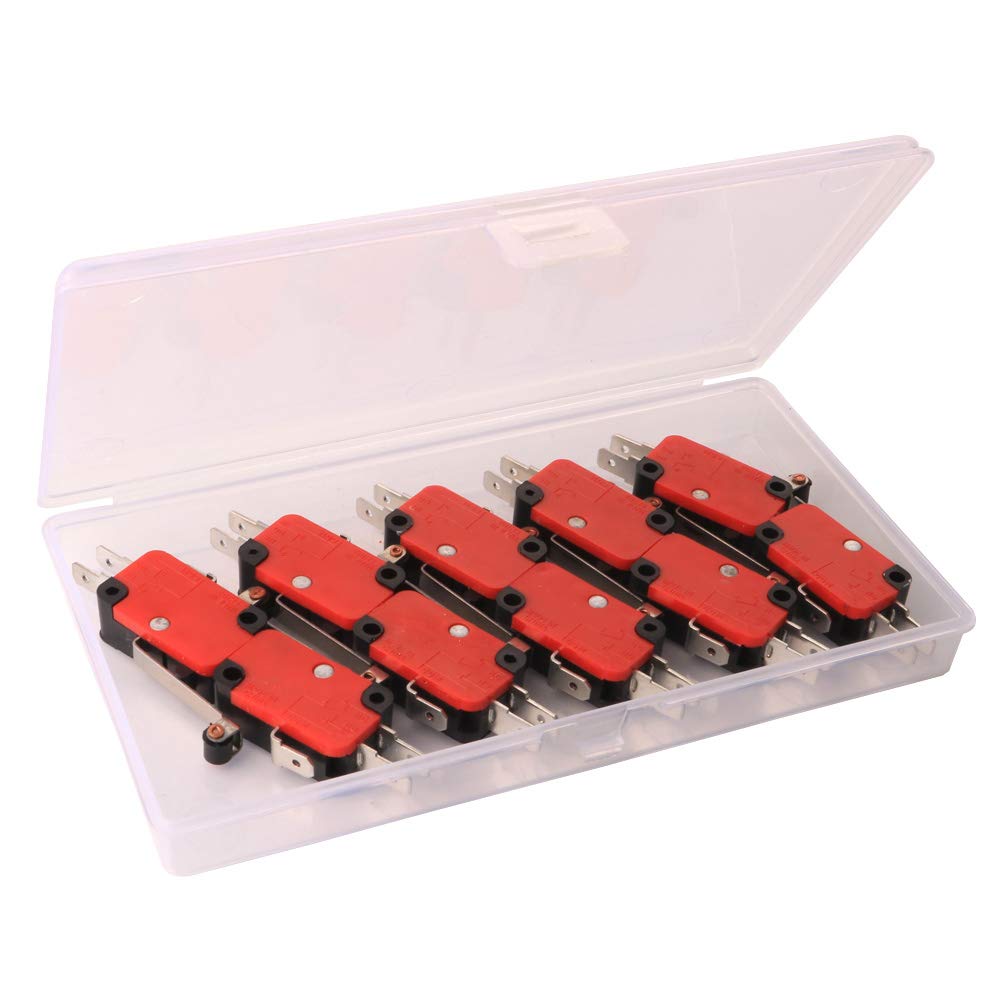

Gebildet 10pieces Micro Limit Switch V-156-1C25, Long Roll Hinge Lever Switch, Roller Lever Switch, Momentary SPDT Snap Action

• Miniature Micro Limit Switch, applicable to AC DC control circuits. Rating: 15A, 1/2HP, 125/250VAC; 0.6A,125VDC; 0.3A, 250VDC
• High precision mechanism design offering acute operation and long life.

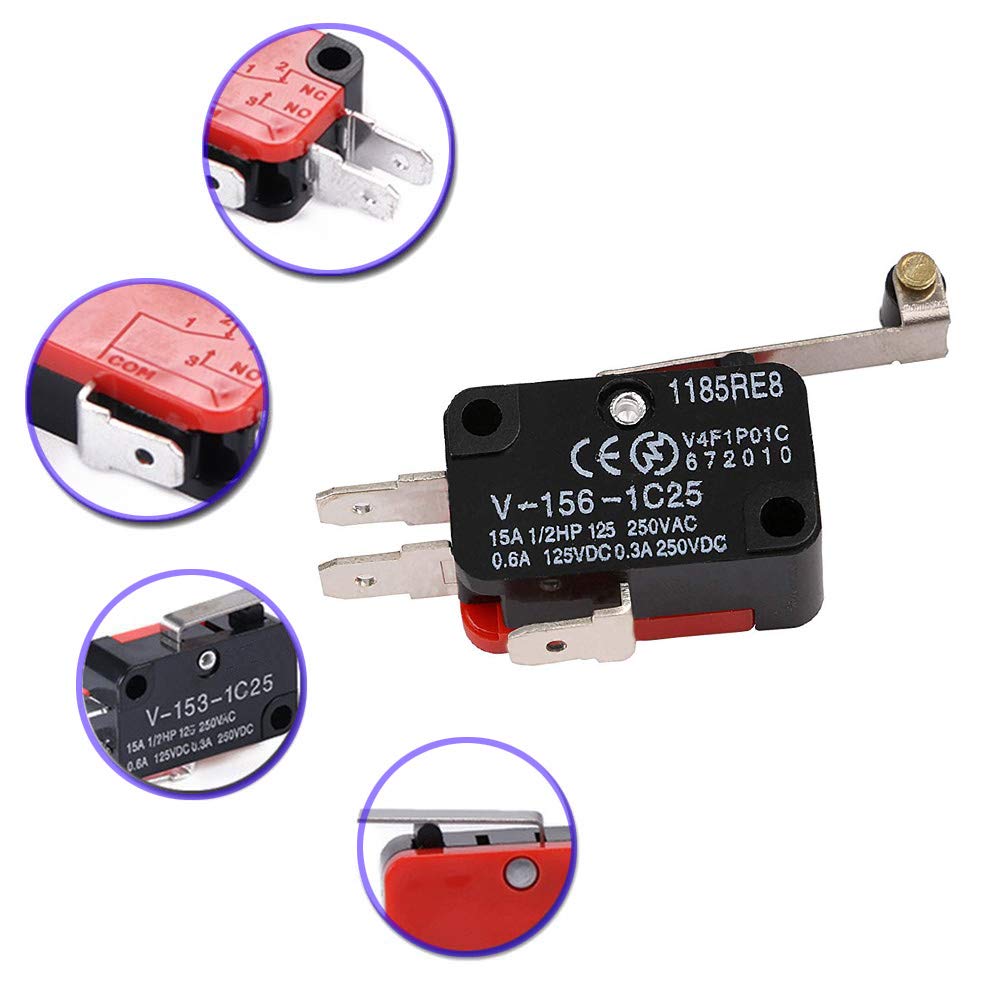

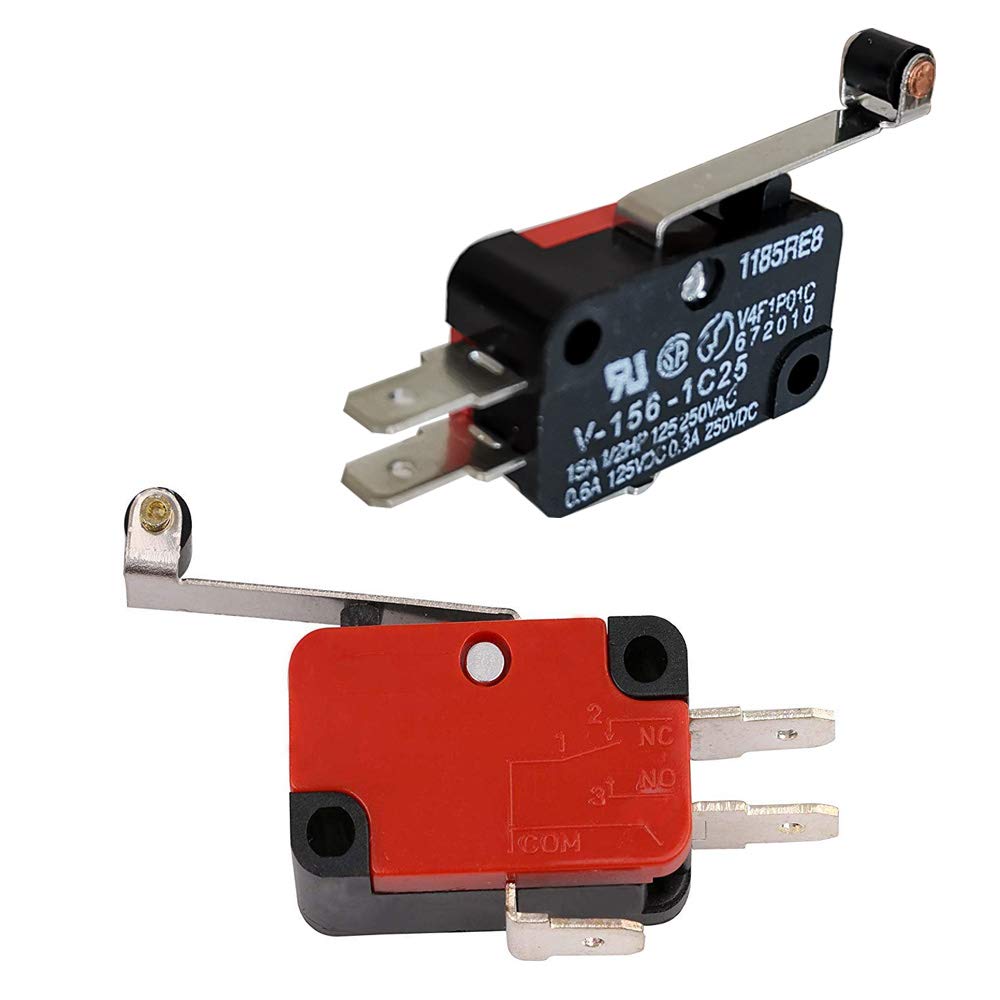

• Features with Hinge Lever Actuator, 1NO+1NC Contact configuration, 3 Terminals design.
• In snap action contacts, the movement of the actuator applies force to an overcenter mechanism. This mechanism creates a quick change in contact state when the trip point is reached. Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
• Actuator Action: Momentary.

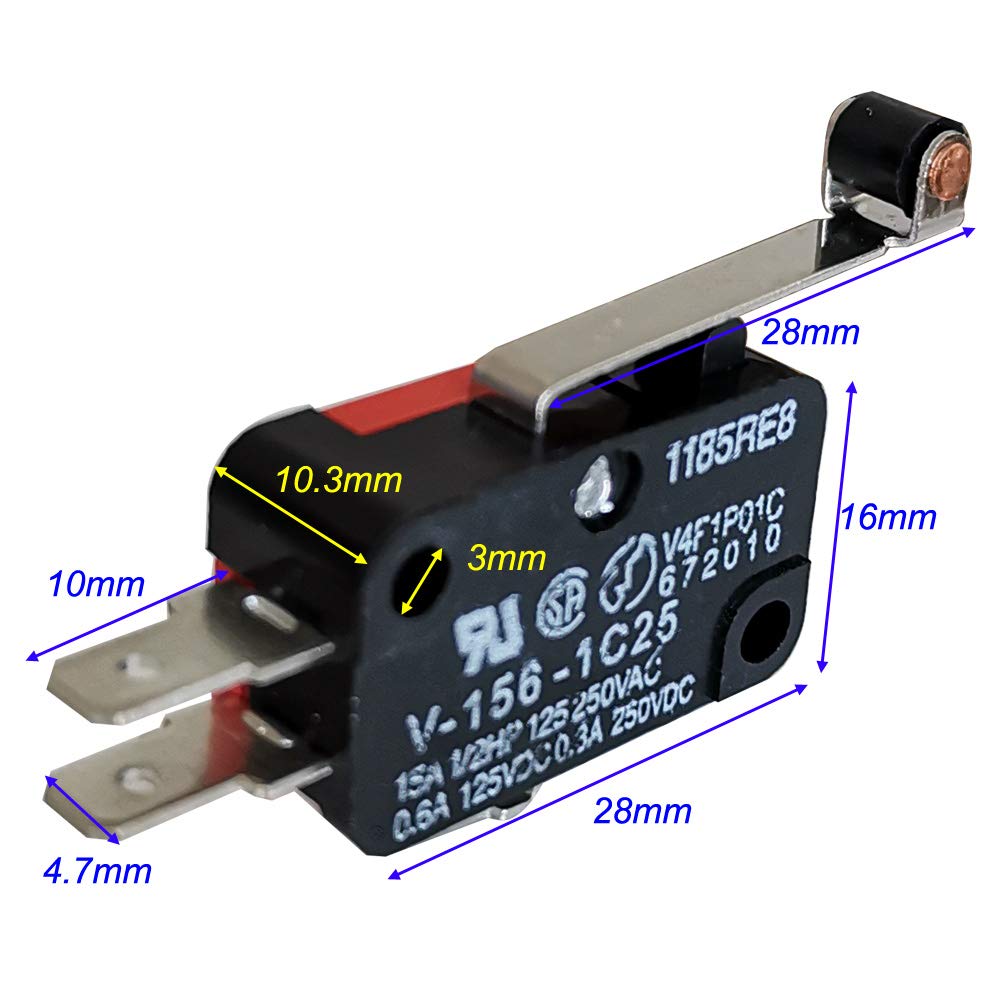

Feature: High precision mechanism design offering acute operation and long life. Its a really useful switch, for DIY projects. Specification: Model: V-156-1C25 Actuator Action: Momentary Actuator Type: Roller Hinge Lever Rating Voltage & Current: DC 0.6A 125V AC 0.3A 250V Contact Configuration:1NO,1NC(SPDT) Switch Body Size:2.8 x 1.5 x 1cm / 1.1" x 0.59" x 0.4"(LxWxH) Fixing Holes Dia.:0.31cm / 0.12" Rated voltage: 250V Rated current: 15A Level Length:27mm/1.1" Material: Plastic, Metal Main Color: Red, Black Net Weight:105g
