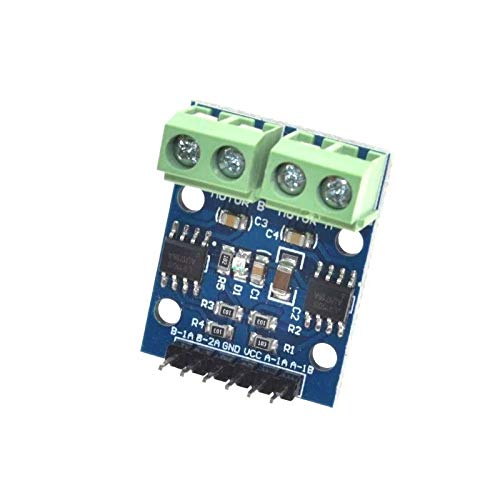

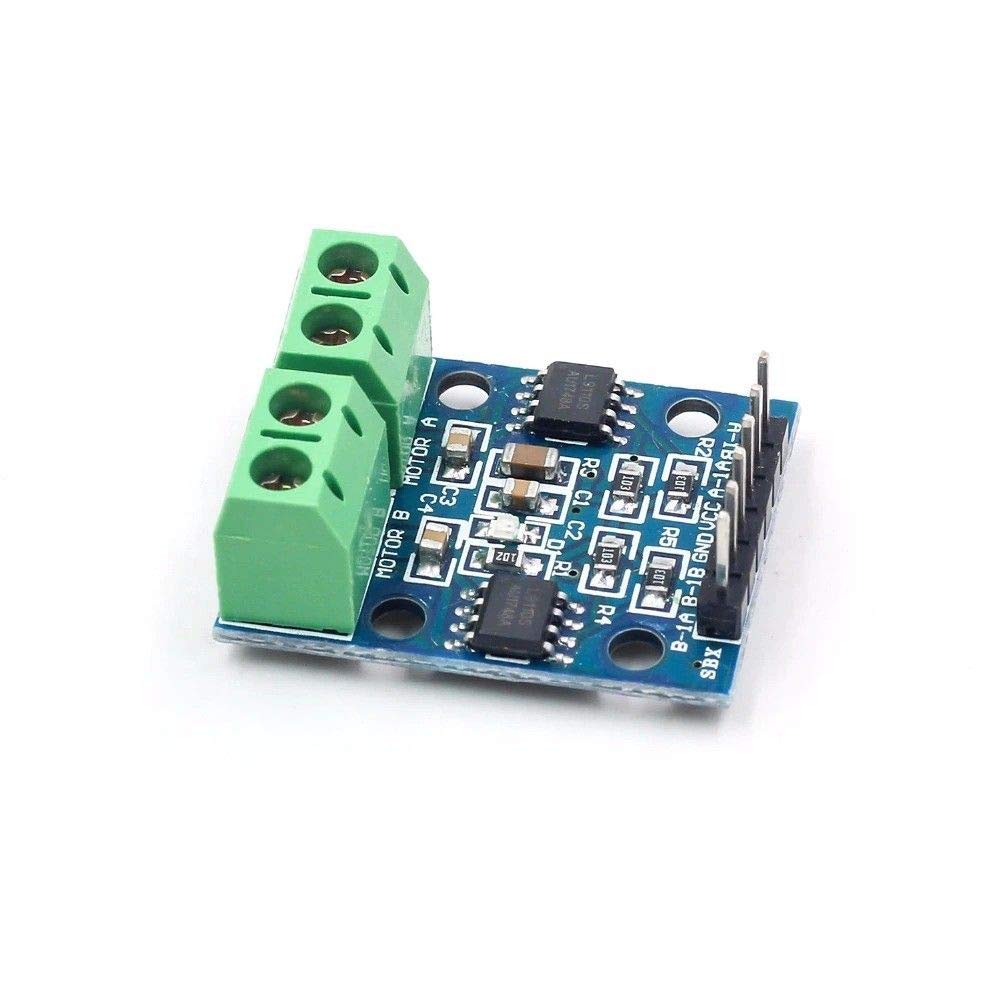

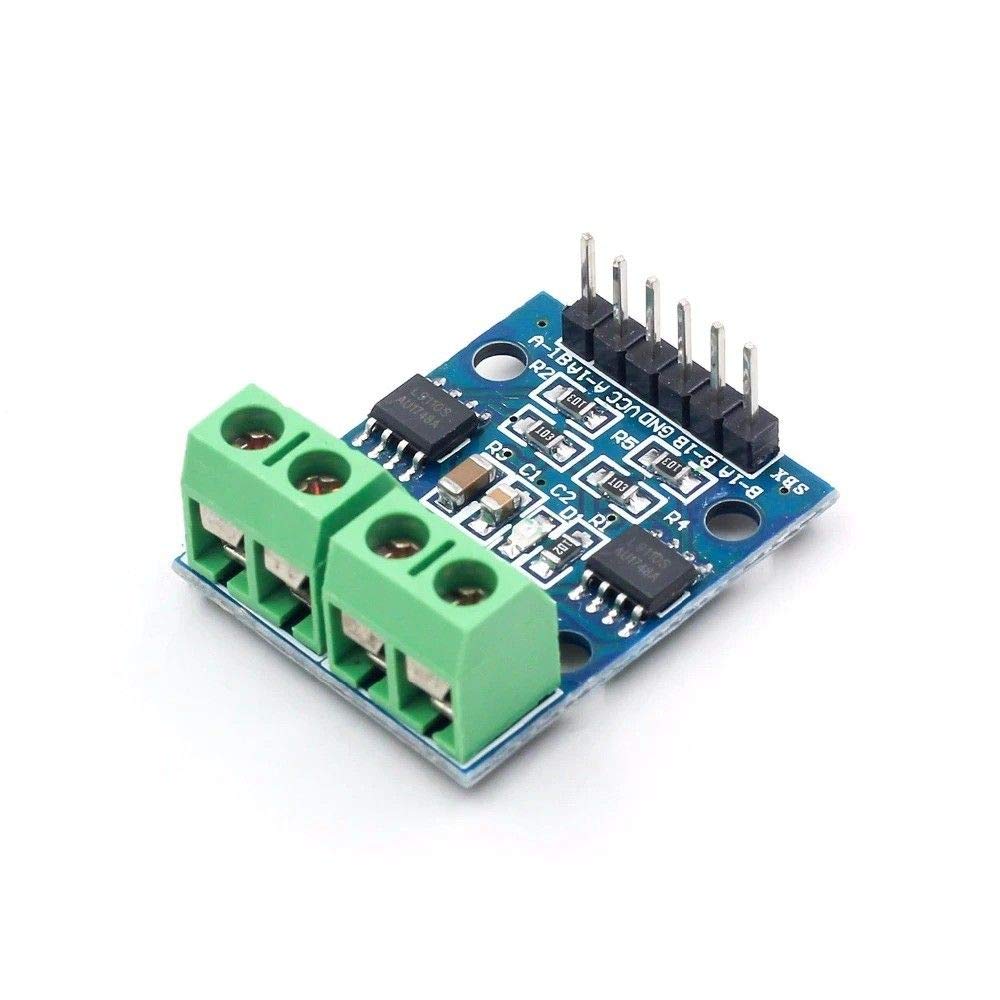

TECNOIOT 5pcs L9110S H-bridge Dual DC Stepper Motor Driver Controller Board L9110 Module

x5pcs L9110S H-bridge Dual DC Stepper Motor Driver Controller Board Module L9110DESCRIPTION:On board two the L9110S motor control chip, the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor. The module input voltage range is:2.5-12V, and the 800mA continuous current output capability per channel.Low static work currentPower supply voltage: DC2.5-12VEach channel has 800mA continuous current outputLow saturation pressure dropTTL/CMOS output level compatible, can be connected directly to the CPUOutput built-in clamping diode, apply to the perceptual loadControl and drive integrate in ICHave pin high pressure protection functionWorking temperature: 0-80 °Size:29.2(mm)x23(mm)PACKET CONTAINS:5pcs x L9110S DC Stepper Motor Driver Board
