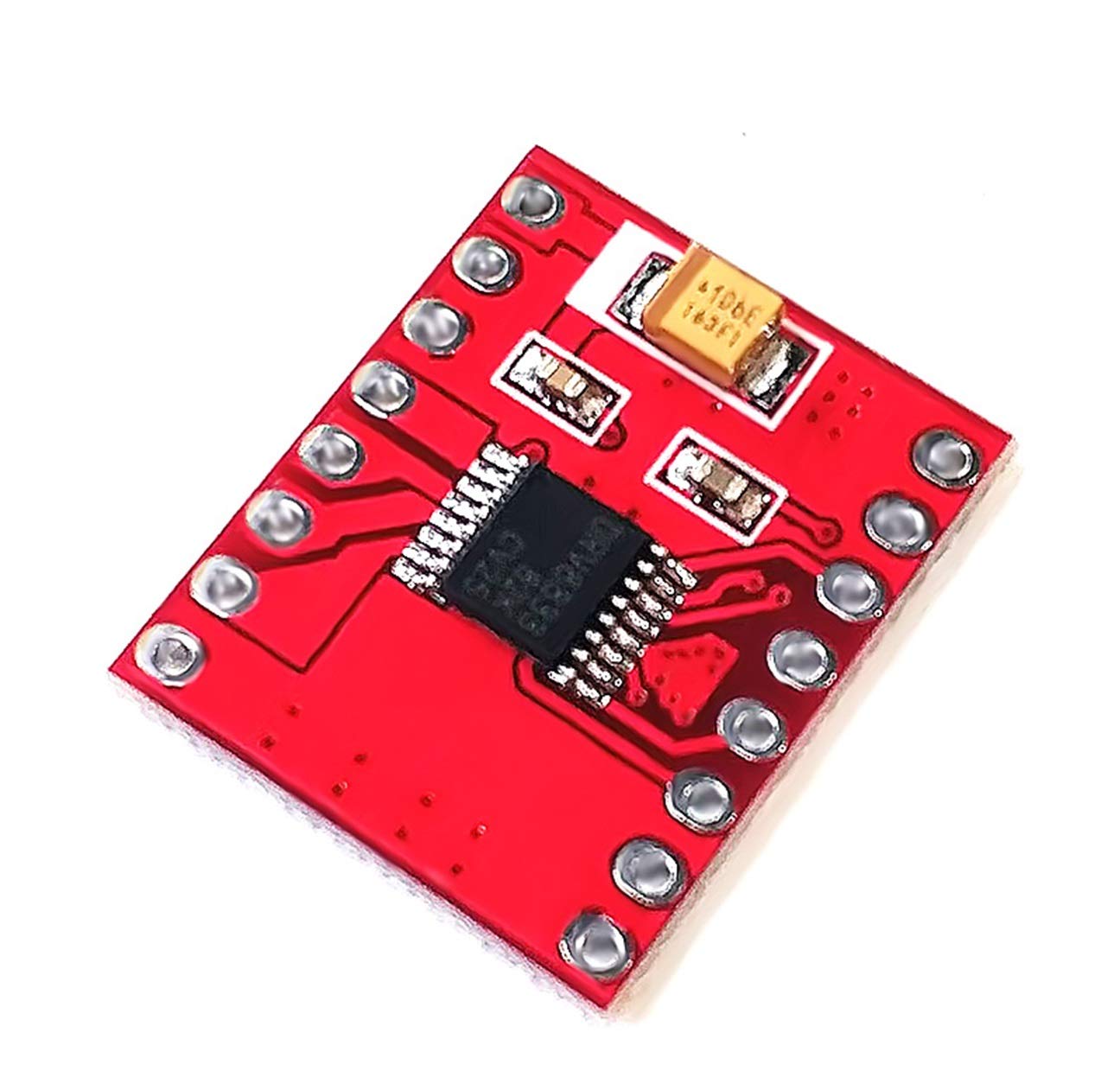

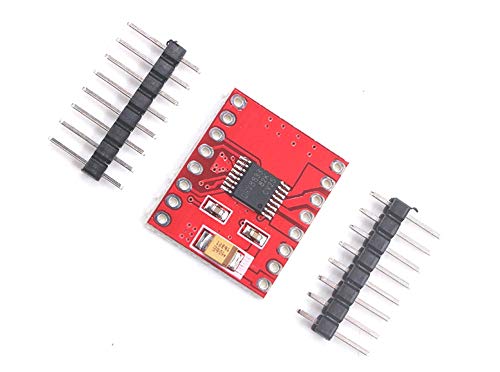

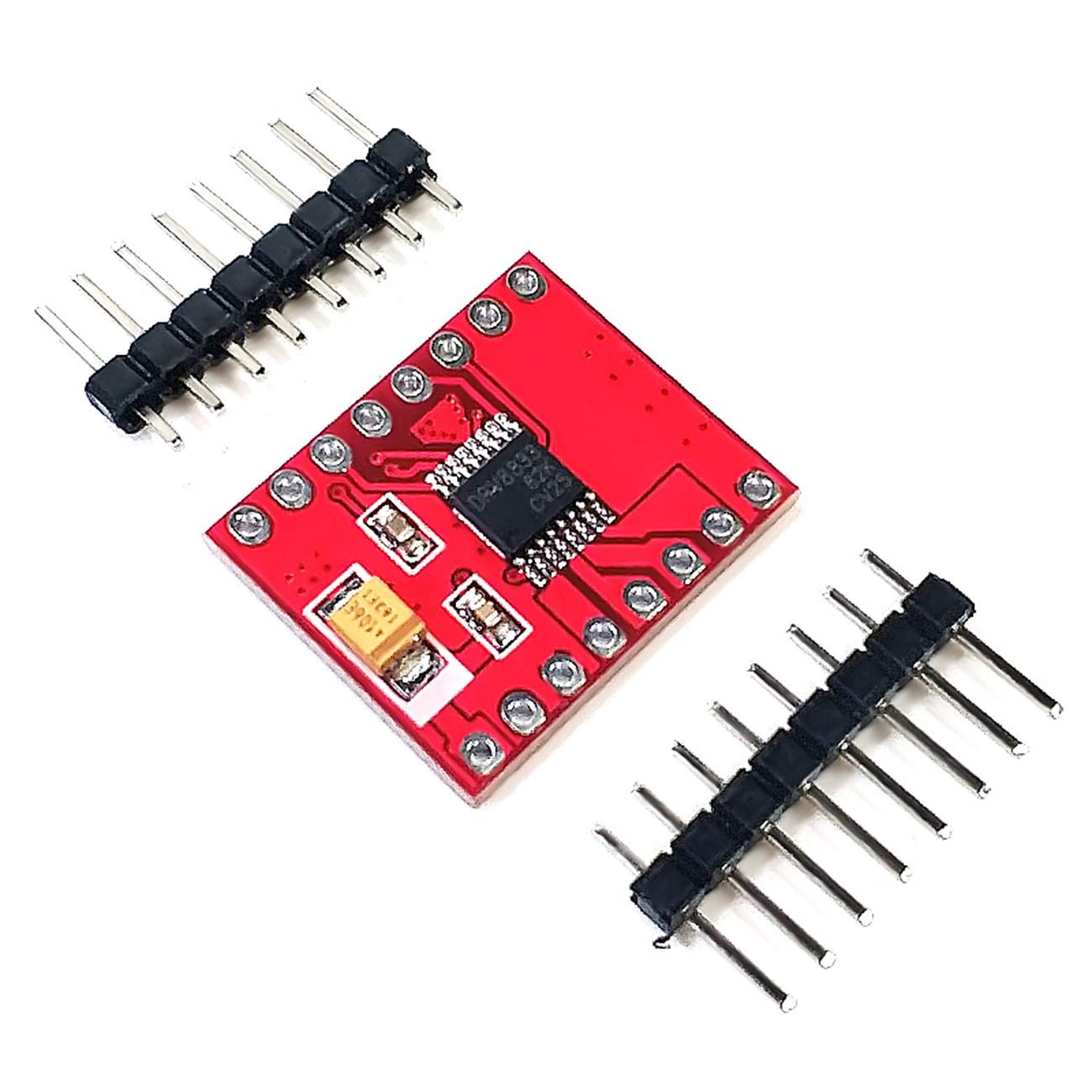

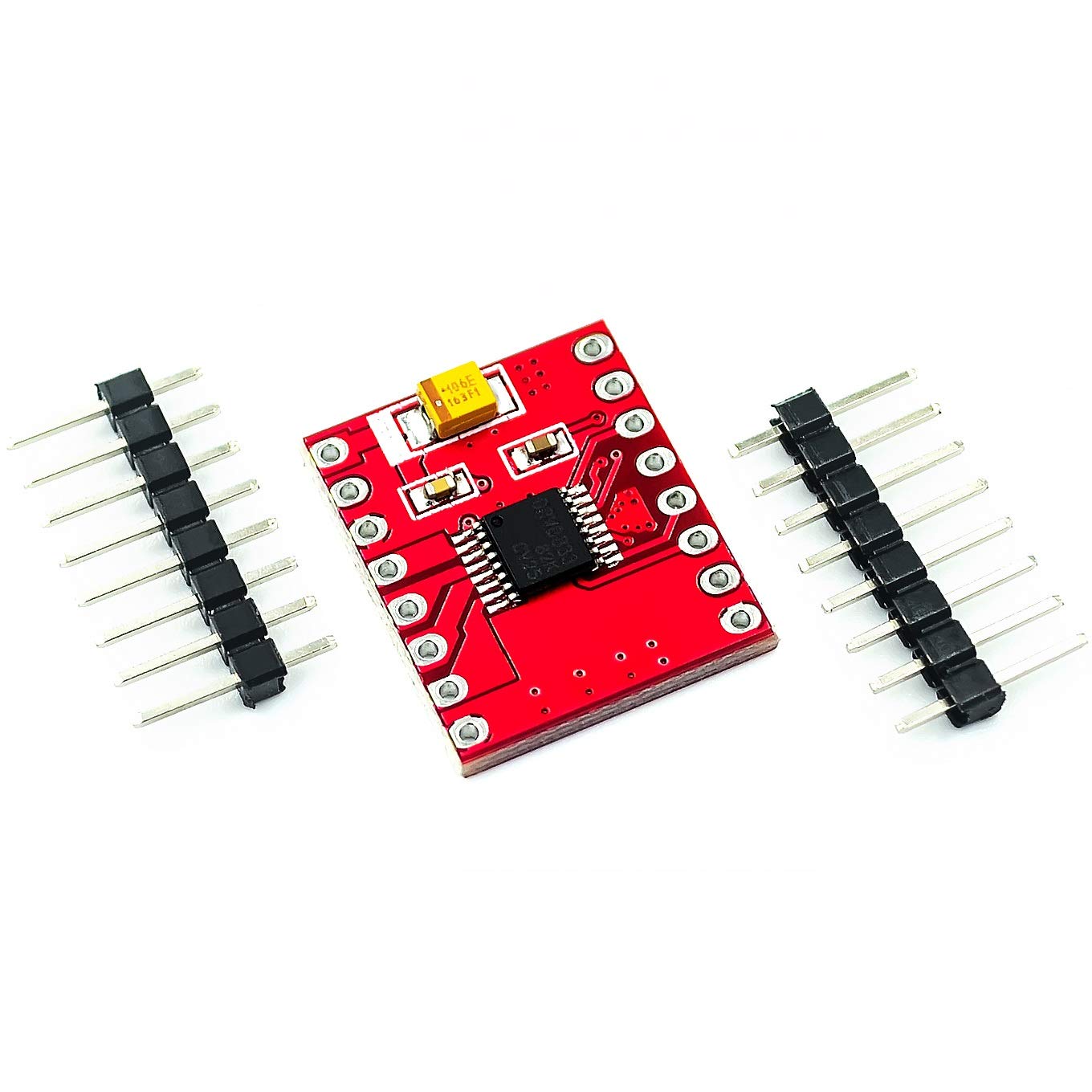

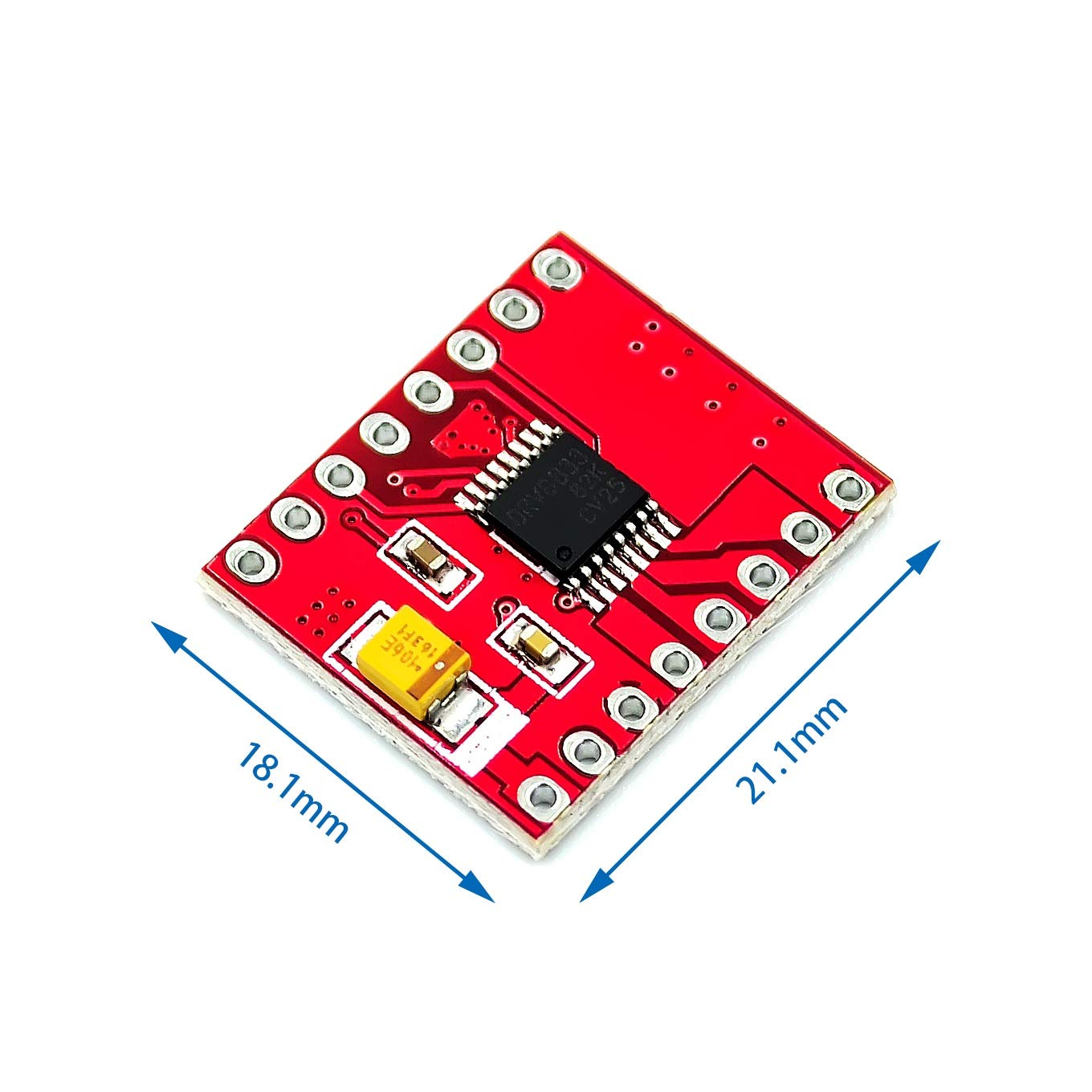

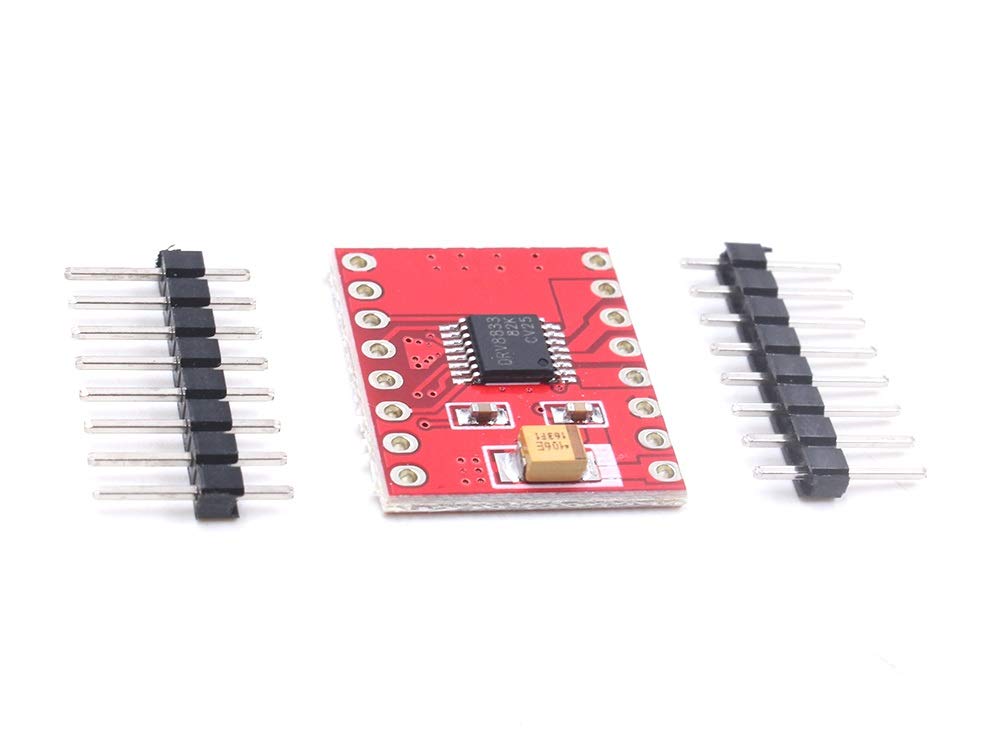

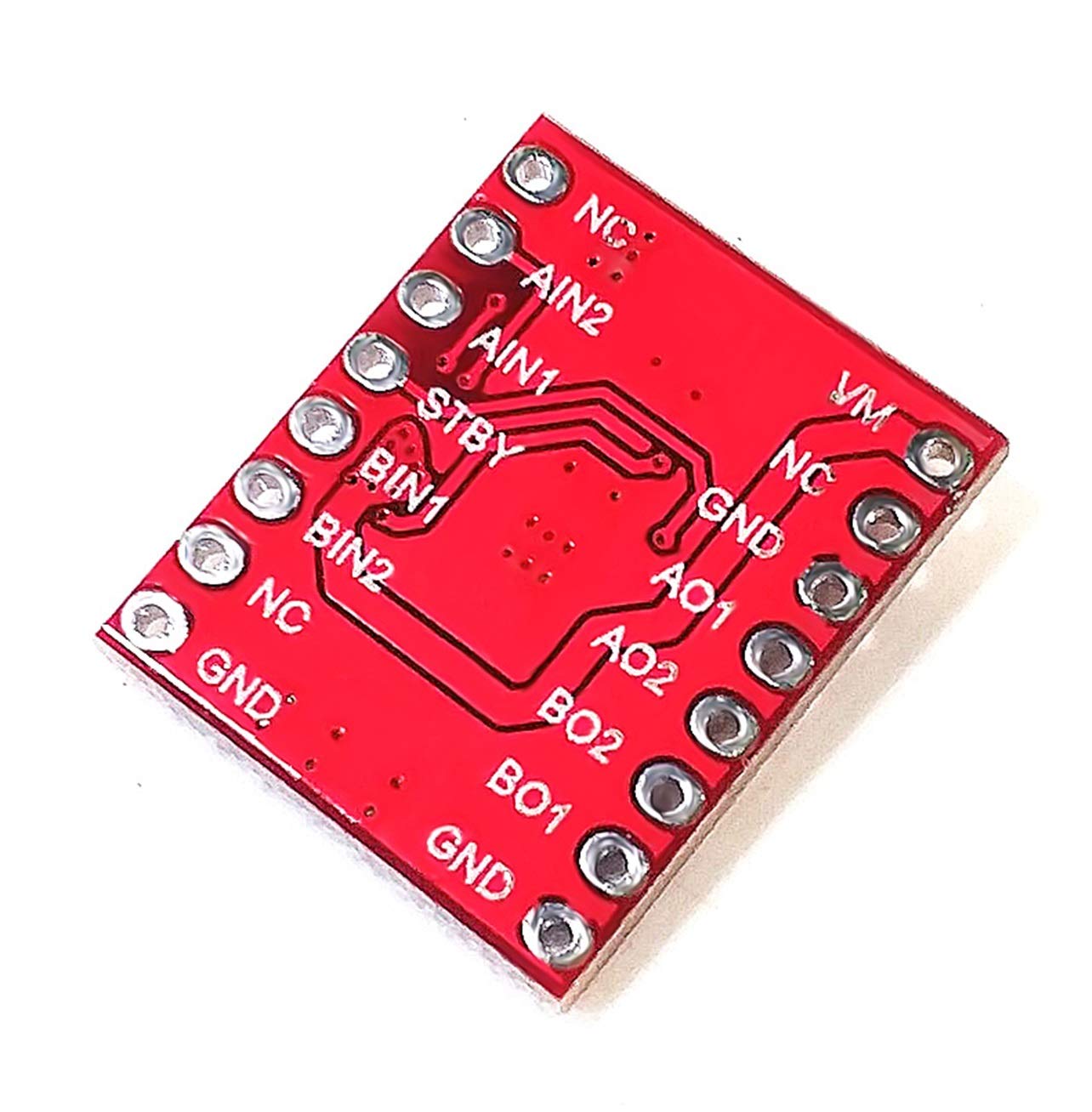

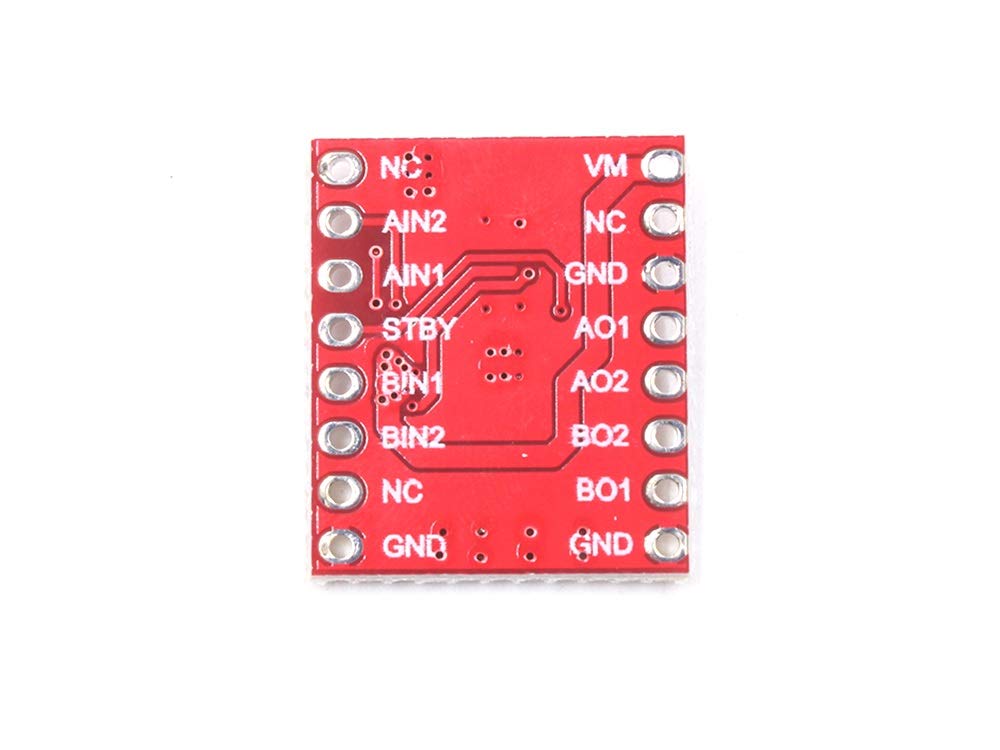

5PCS DRV8833 2 Channel Dual H-bridge DC Motor Driver Module

• DRV8833: This DRV8833 dual H-Bridge motor driver is the substitution of TB6612FNG dual channel motor driver. It can be used for bi-directional control of the two brushed DC motors at 2.7V to 10.8V.
• Compact design: it can supply up to 1.2 A per channel continuously and can tolerate peak currents up to 2 A pro channel for a few seconds, making it an ideal for small motors, that run on relatively low voltages.
• Description: This board is similar to our DRV8835 dual motor drivers in operation with voltage range and continuous current rate, but the DRV8835 has a low operating voltage and provides an additional control interface mode, and it is 0.1 Prime Smaller in each size.
• Easy to use: we also carry a DRV8835 dual motor driver shield, which is easy to use with an Arduino. The DRV8833 has a higher peak current rating (2A per channel vs 1.5A), optionally built-in current-limiting, and need for externally supplied logic voltage.
• Fast and high quality.

5pcs DRV8833 2 Channel Dual H-bridge DC Motor Driver Module This DRV8833 dual H-bridge motor driver is the substitution of TB6612FNG Dual Channel Motor Driver. It can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The board ships populated with SMD components, including the DRV8833, and adds a FET for reverse battery protection. This board is very similar to our DRV8835 dual motor driver carrier in operating voltage range and continuous current rating, but the DRV8835 has a lower minimum operating voltage, offers an extra control interface mode, and is 0.1 prime smaller in each dimension; we also carry a DRV8835 dual motor driver shield that is easy to use with an Arduino. The DRV8833 has a higher peak current rating (2 A per channel vs 1.5 A), optional built-in current-limiting, and no need for externally supplied logic voltage. Features: Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor; Operating voltage: 2.7 V to 10.8 V; Output current: 1.2 A continuous (2 A peak) per motor; Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor; Inputs are 3V- and 5V-compatible; Under-voltage lockout and protection against over-current and over-temperature; Reverse-voltage protection circuit; Current limiting can be enabled by adding sense resistors (not included). Package Contains: 5pcs x DRV8833 2 Channel DC Motor Driver Module
