TECNOIOT TB6560 3A Drives CNC Stepper Motor Single Axis 10 Files Controller TB6560AHQ

• 【TB6560】B6560 3A Drives CNC Stepper Motor Single Axis 10 Files Controller Board TB6560AHQ
• 【Descripcion】Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply. 6N137 high-speed optical coupling, guarantee high speed without losing step.
• 【Compatible】Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent; protection circuit to ensure optimal performance. Rated maximum output: ± 3A, peak 3.5A.
• 【Easy operation】For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor,and is not suitable for more than 3A stepper motor. Automatic half current function.Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.

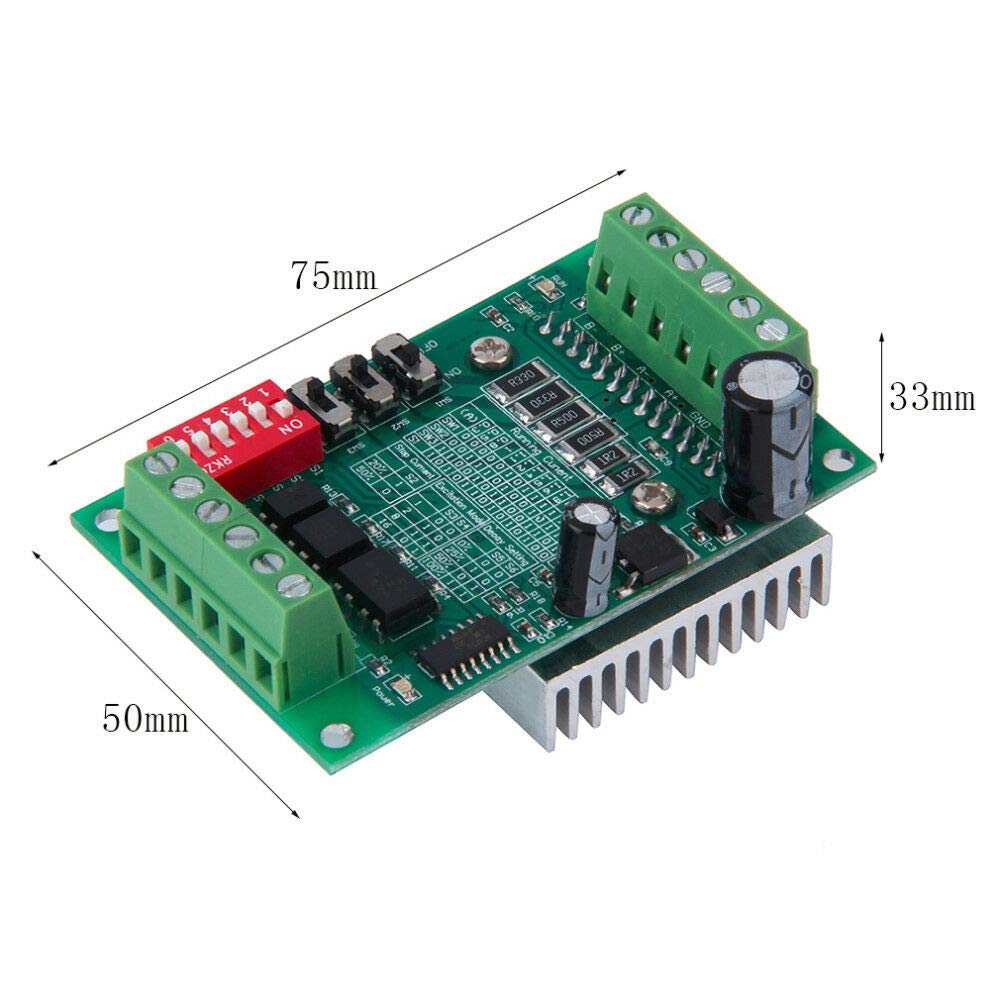

• 【High performance】Working voltage:DC 10-35V;Rated maximum output: ± 3A, peak 3.5A; Main color:Green; Size:75 x 50 x 33mm; Weight: 80g

B6560 3A Drives CNC Stepper Motor Single Axis 10 Files Controller Board TB6560AHQ Features: Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply. 6N137 high-speed optical coupling, guarantee high speed without losing step. Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent. Protection circuit to ensure optimal performance. Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42.57 stepping 3A / four-phase / of line oven / six-wire stepper motor. and is not suitable for more than 3A stepper motor. Automatic half current function. Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions. Specifications: Working voltage: DC 10-35 V. Rated maximum output: ± 3A, peak 3.5A. Main colour: green. Size: 75 x 50 x 33 mm. Weight: 80 g. Package Contains: 1 x TB6560 3A Driver Board.
