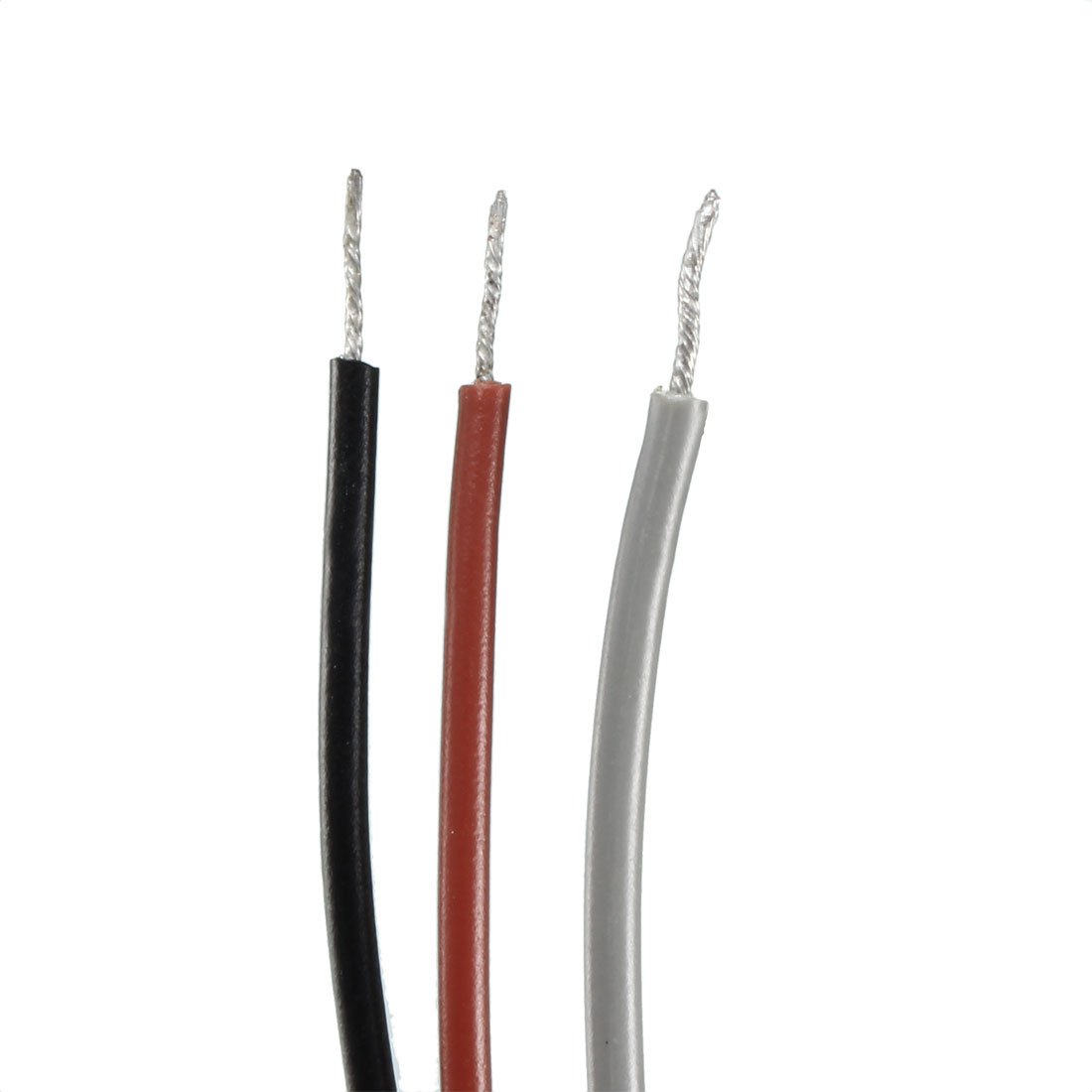

sourcing map Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; MAX Action Distance:25mm

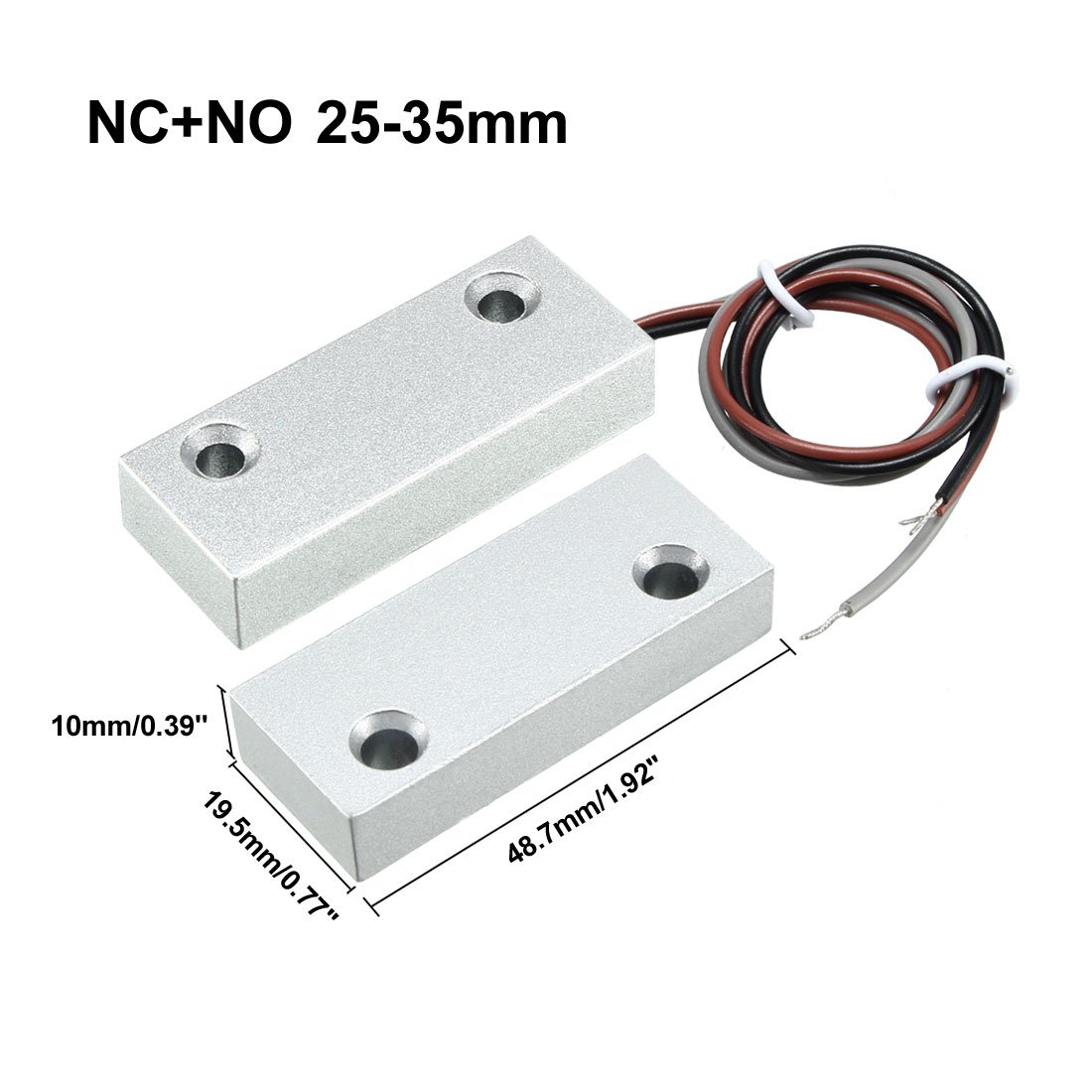

• [Dimension] - Cable Length: 23cm/9.1"; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
• [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully!
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

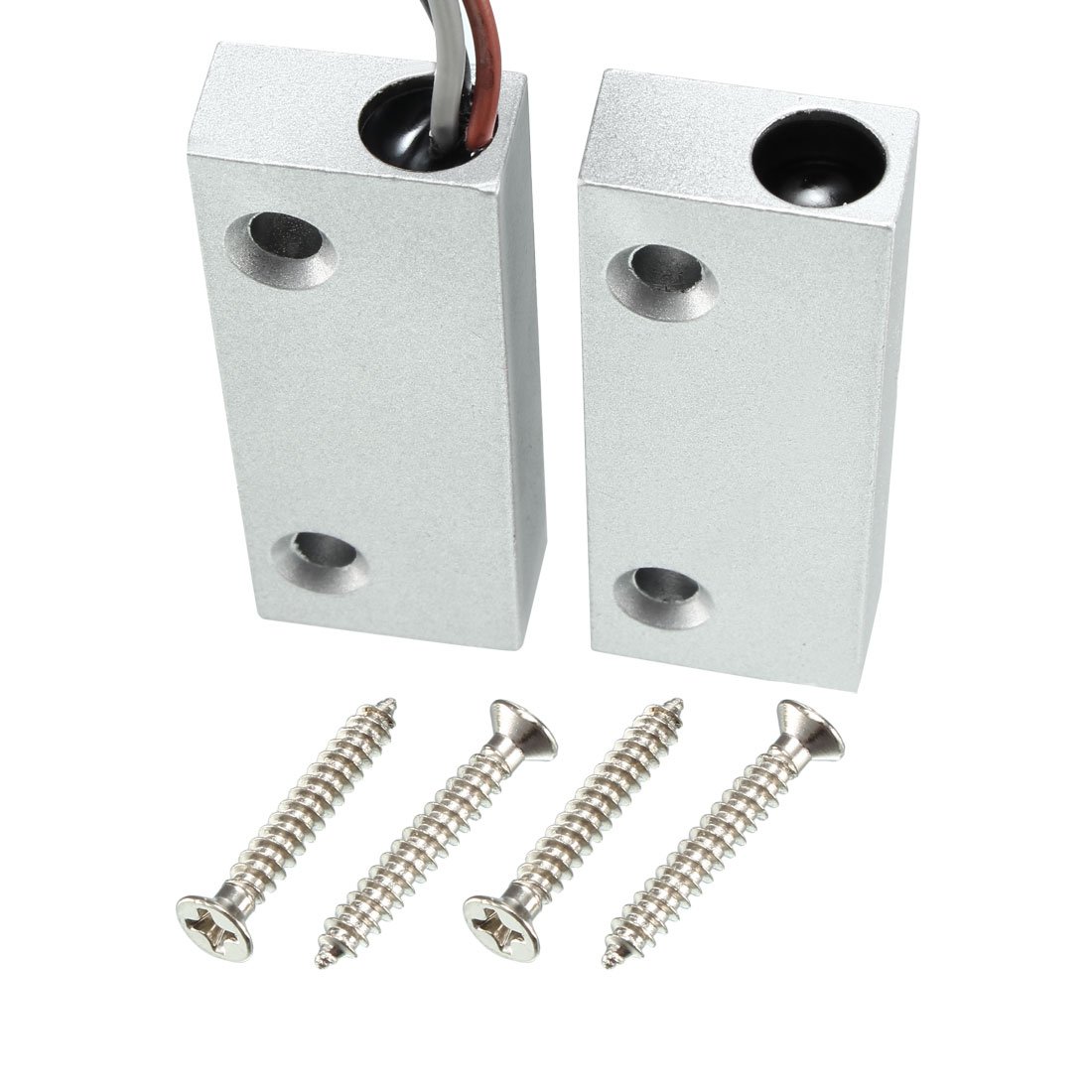

Applications The Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc. Installation Precautions 1. It must be installed according to the sensing distance; 2. Door magnetic induction can only provide a switch signal to the transmitter, which can not directly load the power, nor directly connect the lamp! N.O./N.C. Dual-Use NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully! Specification Current: 0.5A Voltage: 100V Power Rating: 10W MAX Action Distance:25mm Material: Zinc Alloy (Housing) Wire Gauge: 24AWG Cable Length: 23cm/9.1" Total Size: 48.7mm x 19.5mm x 10 mm/1.92" x 0.77" x 0.39" (L*W*H) Package Content: 1 x Magnetic Door Switch, 4 x Screws
