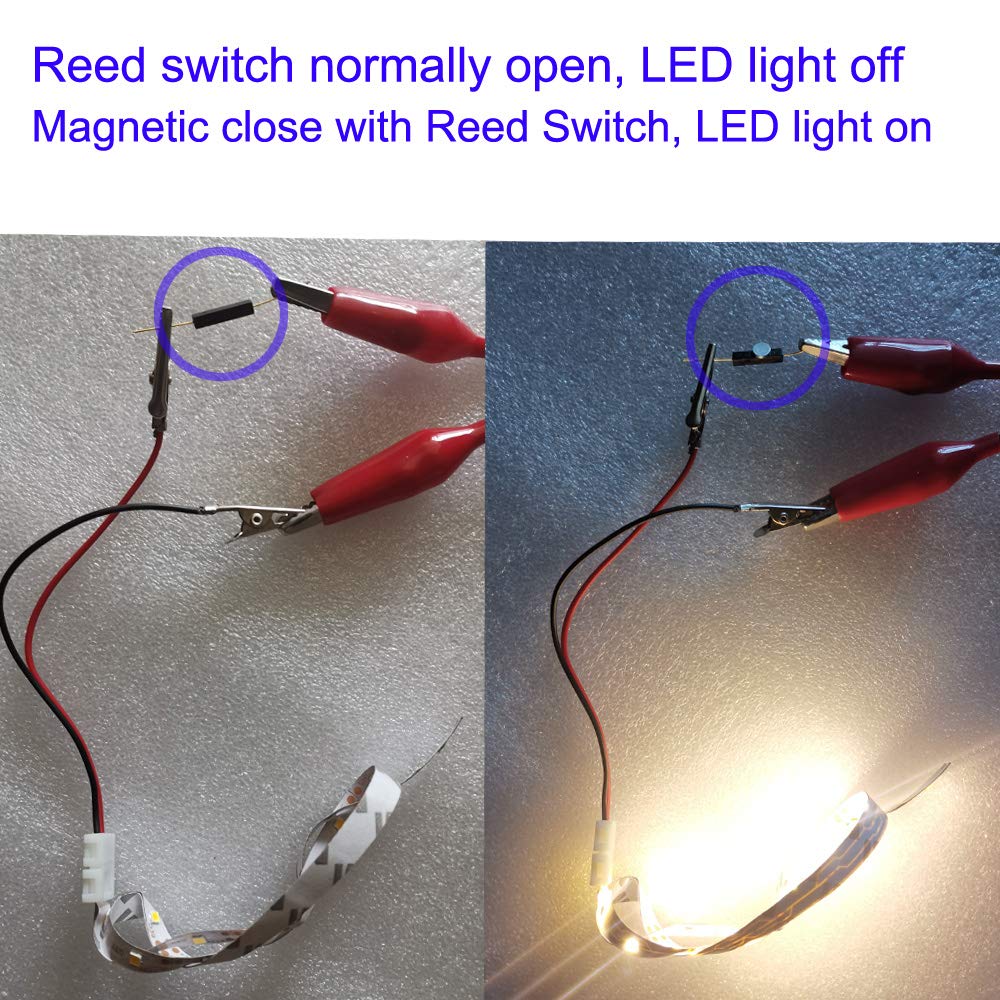

Gebildet 10pcs Plastic Reed Switch Reed Contact,Magnet Near - Connect Circuit, Magnet Away - Break Circuit, Magnetic Induction Switch (3mm*14mm) With 10pcs Small Multi-Use Round Mapgnets

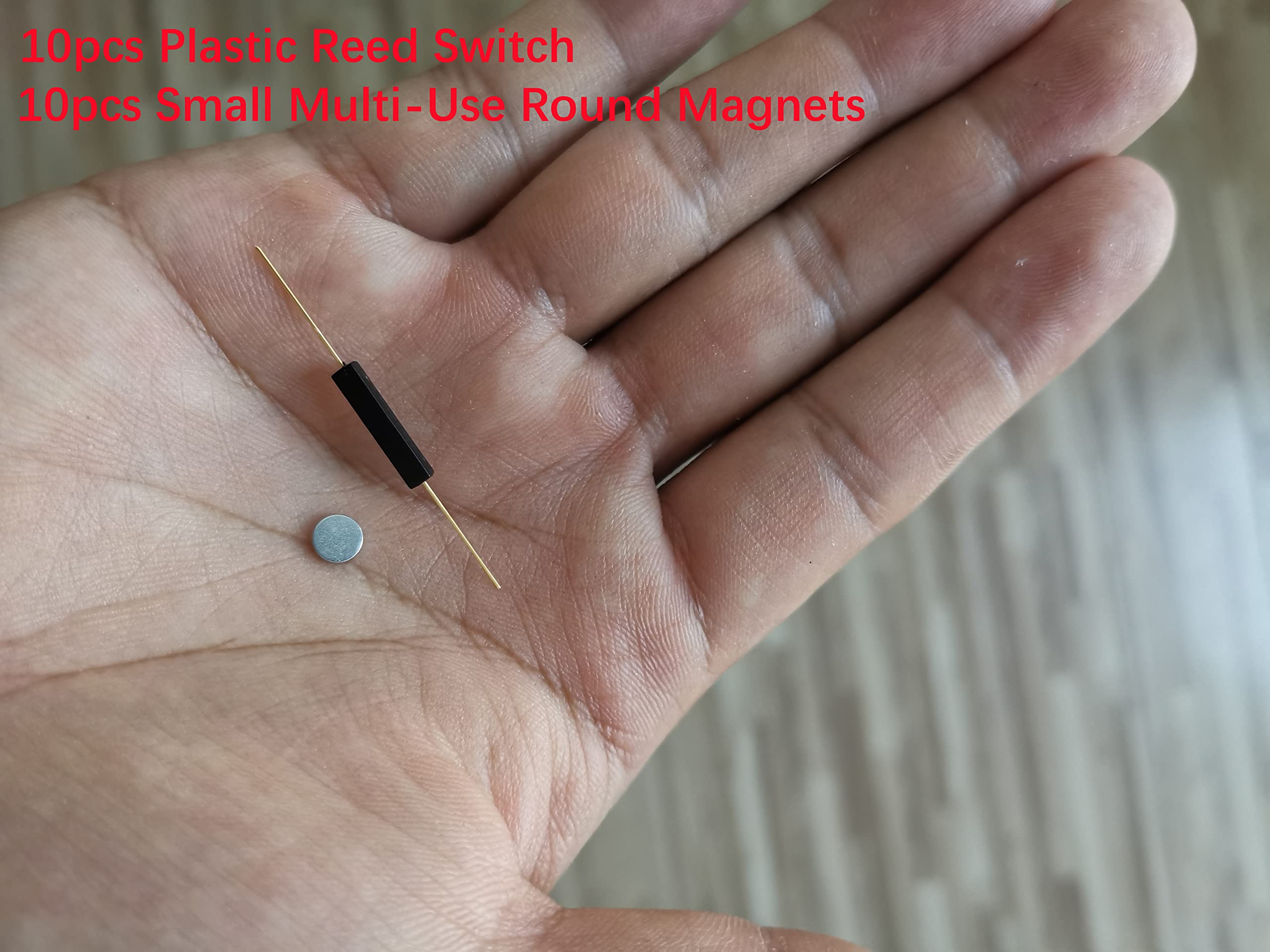

• Package included: 10 × Reed Switch, 10pcs Small Multi-Use Round Magnets

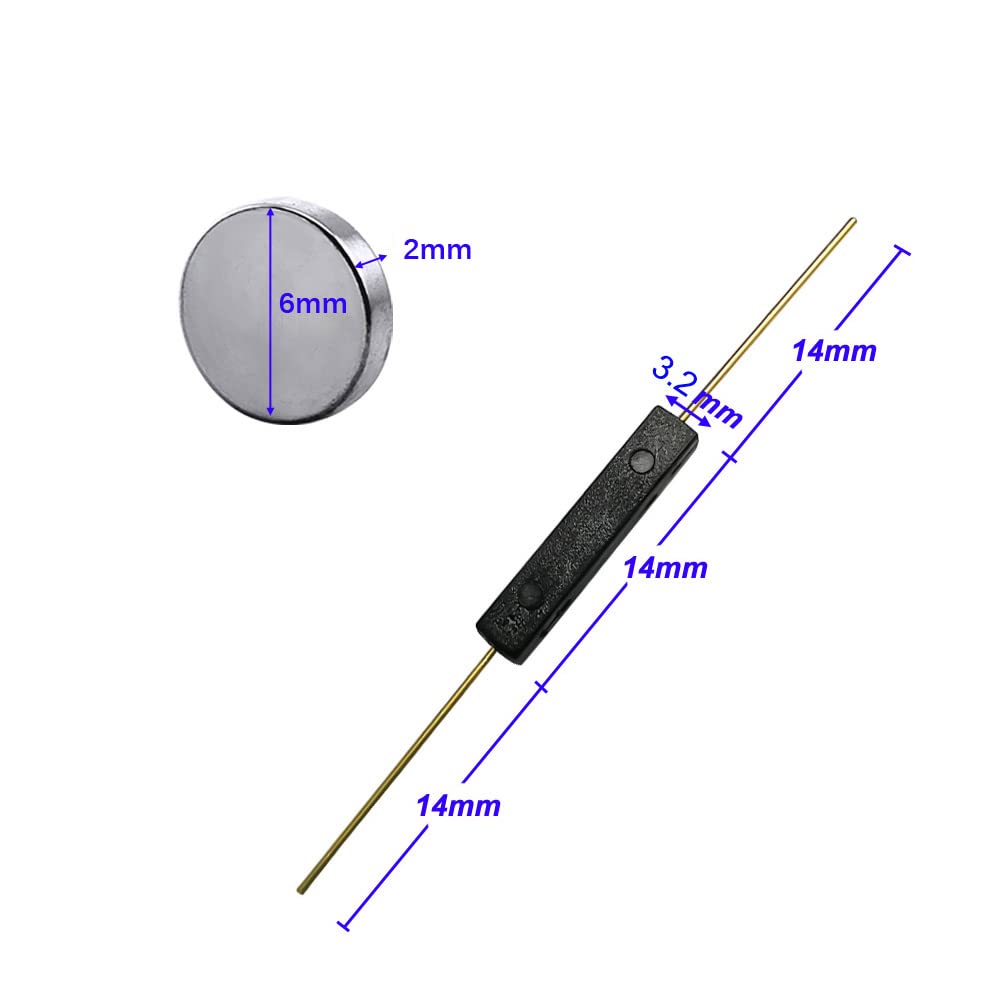

• Length of glass: 14 mm; Diameter of plastic part: 3 mm; Max. Switch Current: 0.5A
• Maximum switching voltage 100VDC,Working temperature: -20 degrees to 80 degrees
• Maxima charging current: 1.0A
• Maximum contact resistance: 100M; Minimum Insulation Resistance: 1010

Total Length 44mm Plastic Part Length 14mm Plastic Part Diameter 3mm Contact Form A Working temperature: -20 degrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number / Resistance 870/5000Ω Package included:10 × Reed Switch+10 × Small Multi-Use Round Magnets
