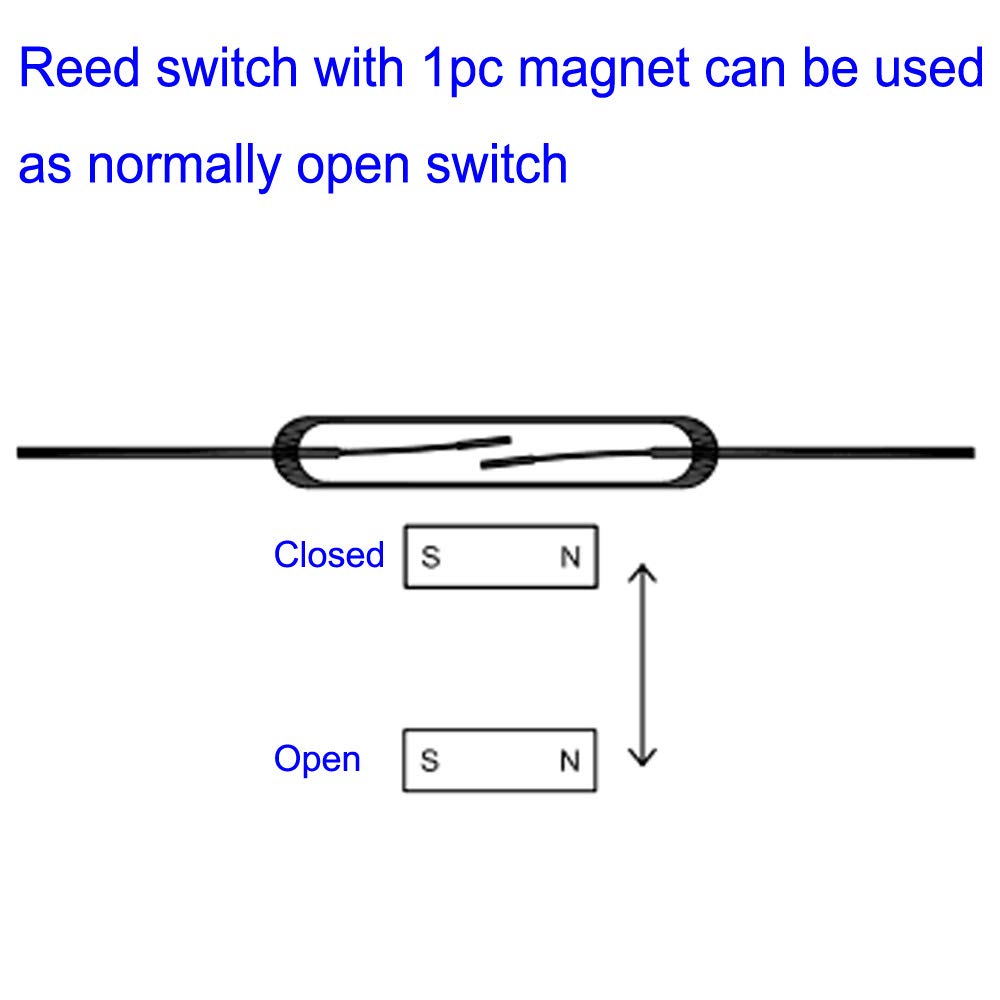

Gebildet 20pcs Reed Switch Reed Contact,Magnet Near - Connect Circuit, Magnet Away - Break Circuit,Magnetic Induction Switch (2mm*14mm)
About this item
- ✪Package included:20 X Reed Switch

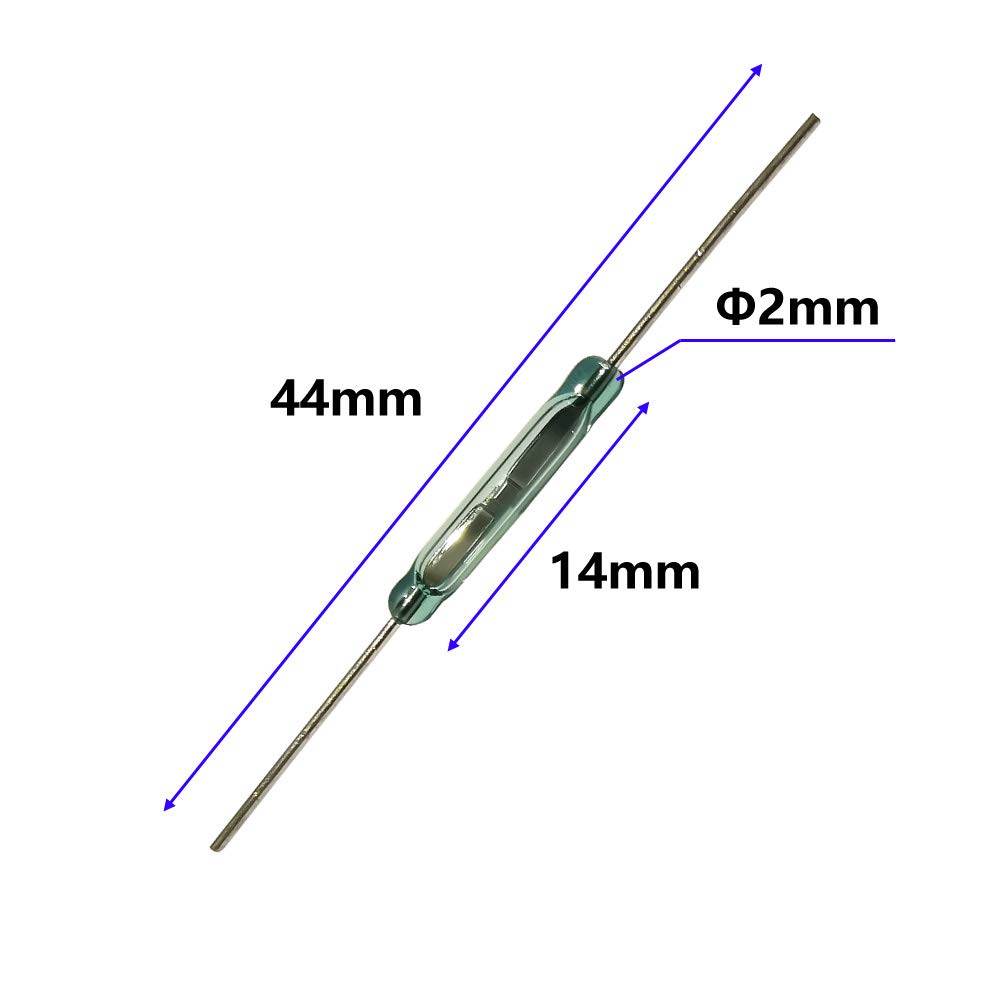

- ✪Length of glass: 14 mm;Diameter of glass: 2 mm
- ✪Maximum switching voltage 100VDC,Working temperature: -20 degrees to 80 degrees ; Max. Switch Current: 0.5A;Maxima charging current: 1.0A
- ✪Minimum Insulation Resistance: 1010
- ✪Maximum contact resistance: 100M
Product description
Total Length 44mm Glass Length 14mm Glass Diameter 2mm Contact Form A Maximum power 10W Working temperature: -20 degrees to 80 degrees Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number / Resistance 870/5000Ω Package included:20 X Reed Switch
