sourcing map ME-8111 Plunger Momentary Limit Switch 1NC+1NO 2Pcs for CNC Mill 3D printer Door Switch

• Model: ME-8111; Plunger Type
• built-in basic switch with good electrical conductivity
• Able to withstand some washdowns, shock and vibration
• Easy-to-wire, smooth operation and reliable
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

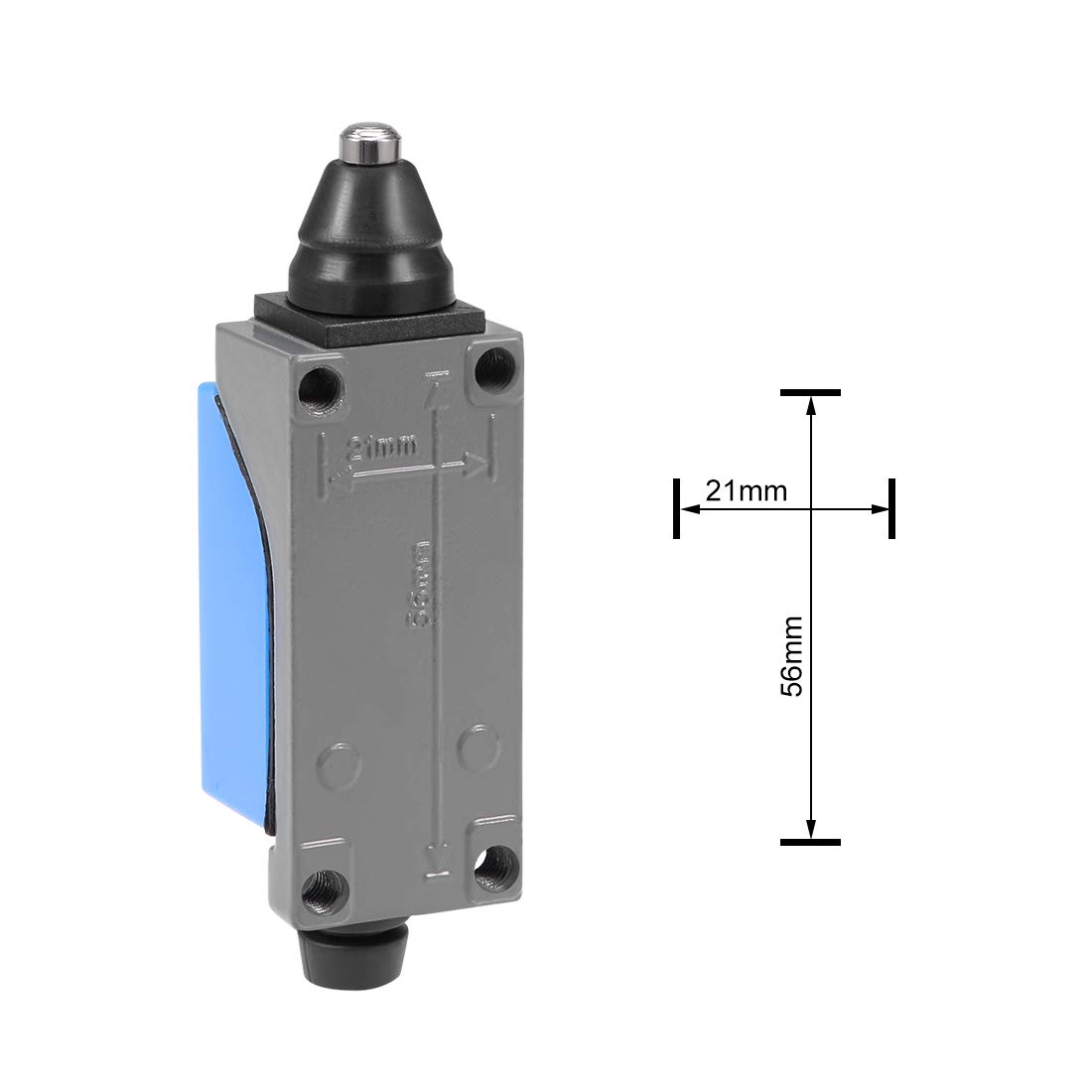

Specification: Product Name: Limit Switch Model: ME-8111 Actuator Type: Plunger Type Rated Voltage: 5A 250V AC / 0.4A 115V DC Contact Configuration: 1NC+1NO Body Size: 64 x 28 x 25mm (L*W*T) Mounting Hole Size: M5 Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately. The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger. Operating Characteristics: OF max.: 1100g (10.78N) RF min.: 250g (2.45N) PT max.: 2mm OT min.: 0.6mm MD max.: 1mm OP: 26+/-0.8mm Description: Double circuit limit switch with build-in double reed mechanism. Zine alloy and intensive plastic shell, strong and hightly rigid construction. Smooth operation with highter OT. Brass contacts with 30% silver contained. Easy-to-wire design. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
