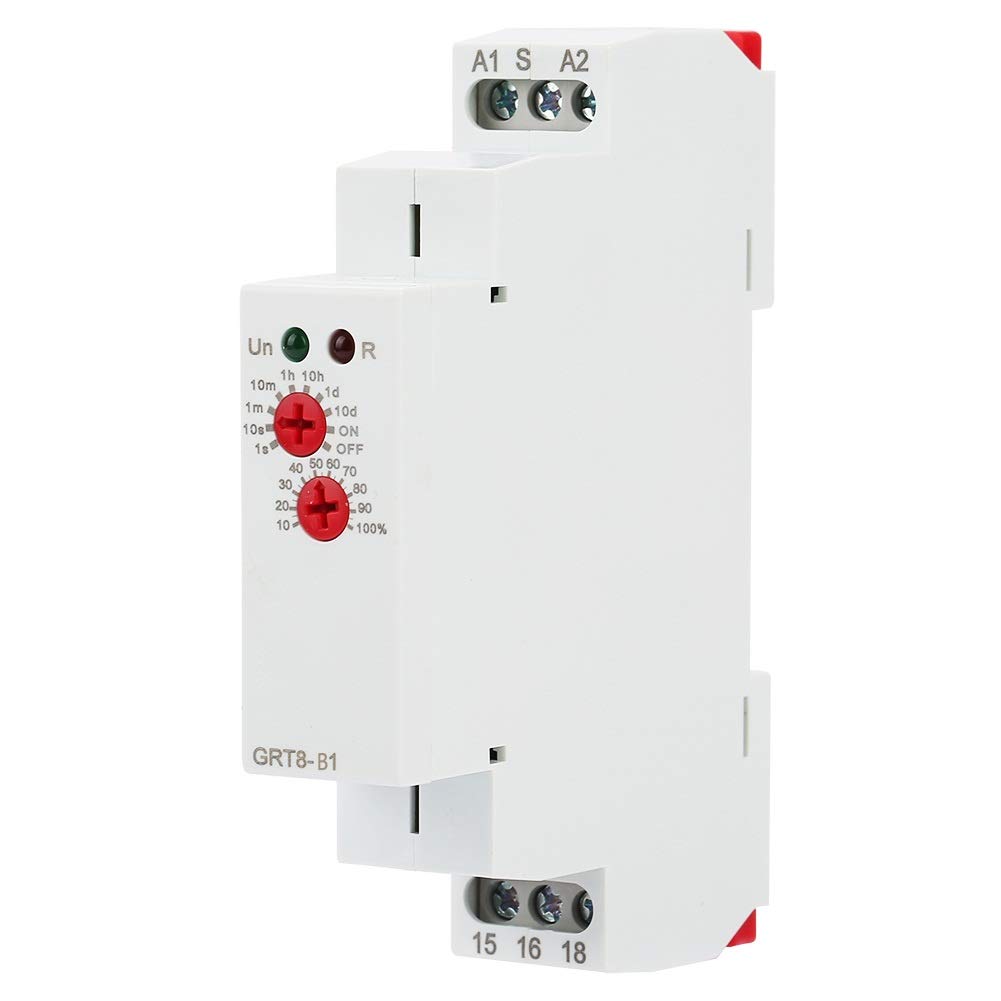

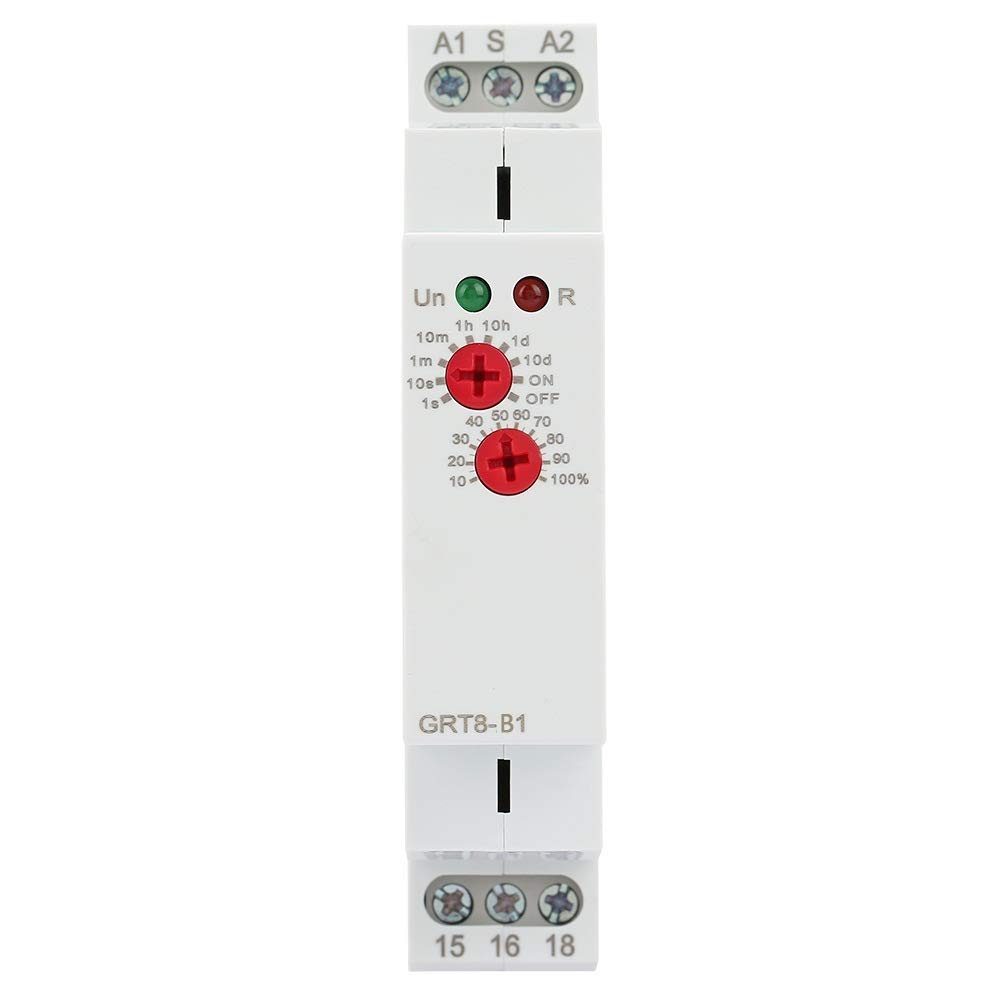

Off Delay Time Relay, GRT8-B1 Mini Power Off Delay Time Relay Timer Relay DIN Rail Type AC 220V

• ❤ ULTRA-WIDE DELAY RANGE: 24Vdc Off Delay Time Relais, 0,1 s-10 Tage.
• ❤ professionelle Herstellung: Ac Zeitverzogerungsrelais stabile Leistung und lange Lebensdauer.

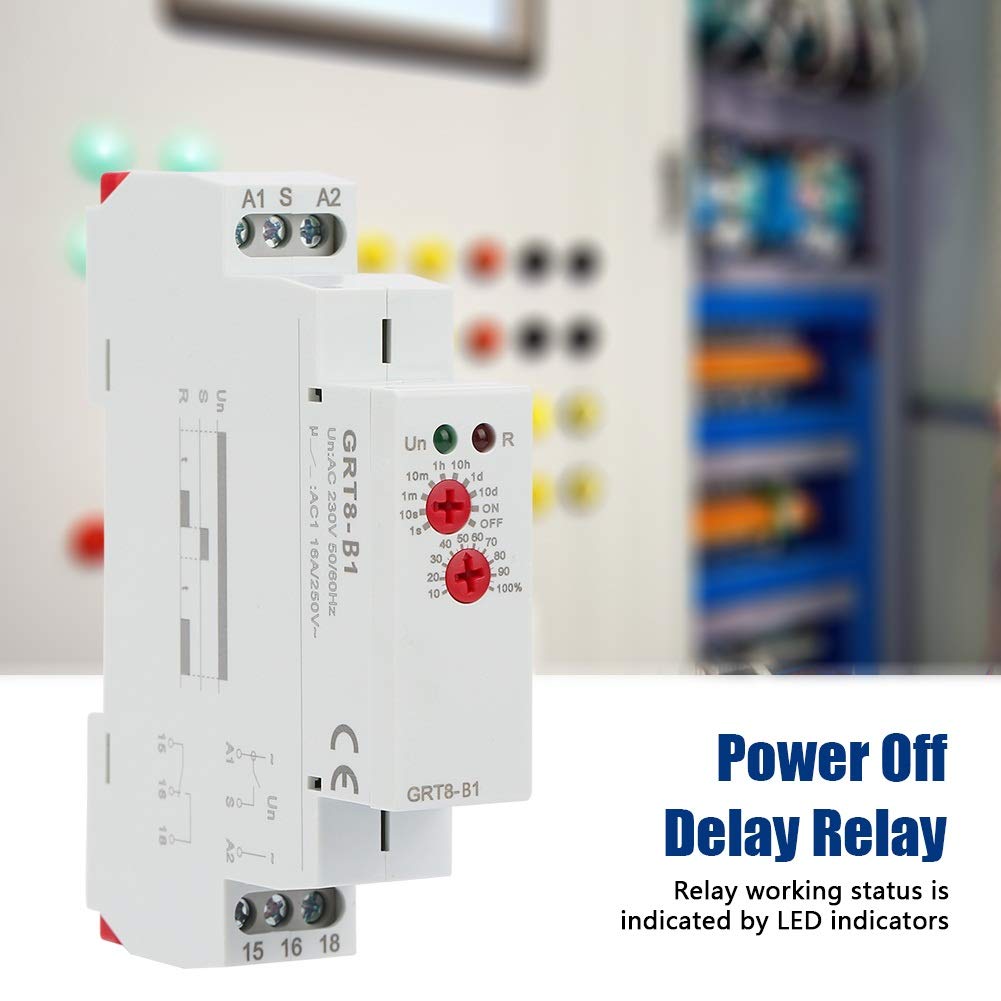

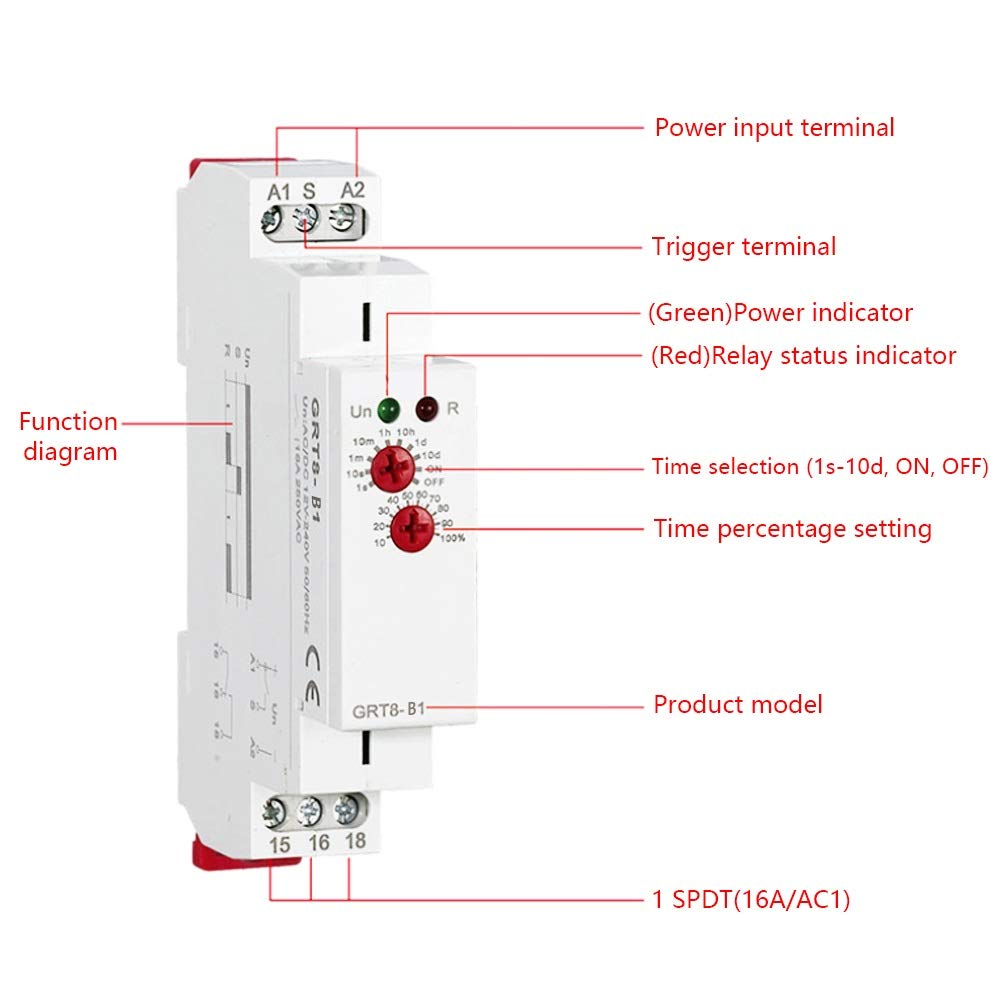

• ❤ Statusanzeige: Der Relais Arbeitszustand wird durch die LED-Anzeige angezeigt.

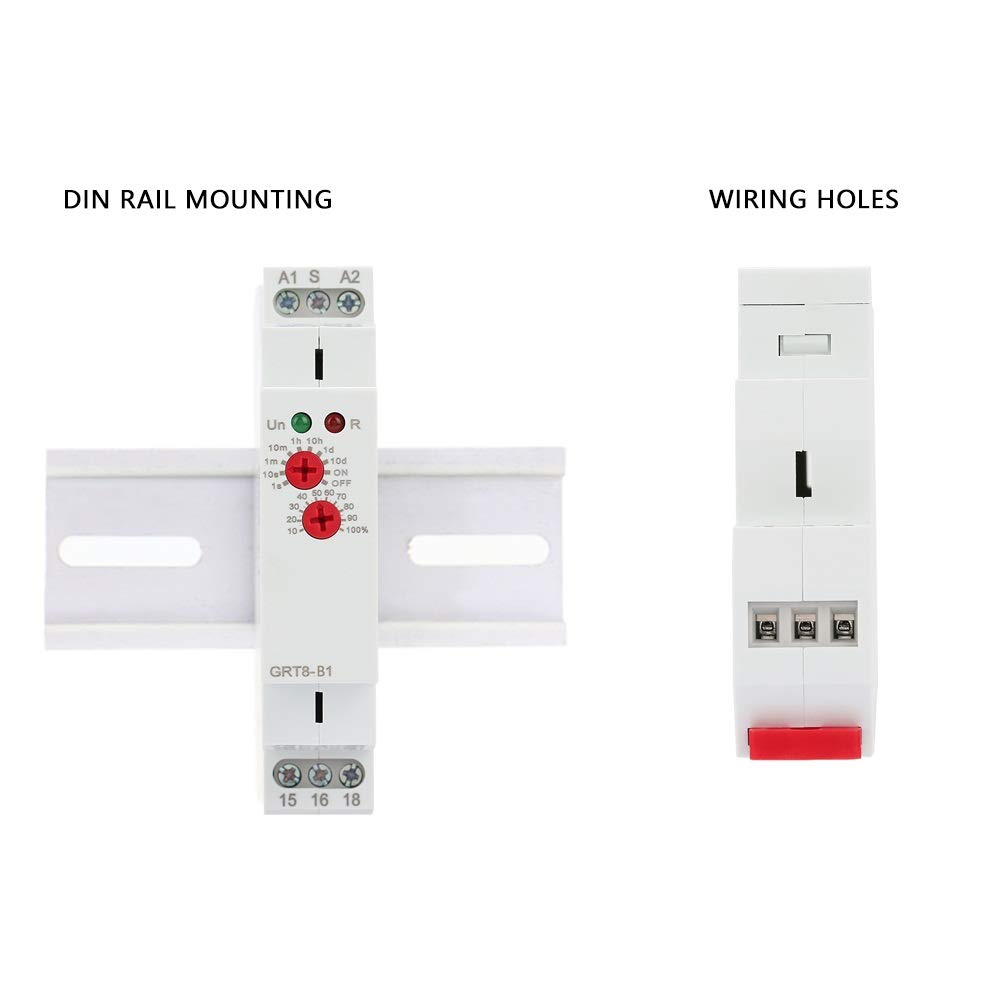

• ❤ CONVENIENCE: Kleine Größe, kann das Relais auf einer 35-mm-DIN-Schiene montiert werden.
• ❤ DELAY SETTING: Dies ist ein Einzelfunktions-Ausschalt-Verzögerungsrelais, die durch die Stärkeregler eingestellt werden kann.

Features: 1. DELAY SETTING: This is a single-function power-off delay relay that can be set by the panel knob. 2. ULTRA-WIDE DELAY RANGE: 0.1s-10 days. 3. PROFESSIONAL MANUFACTURING: stable performance and long service life. 4. STATUS INDICATION: The relay working status is indicated by the LED indicator. 5. CONVENIENCE: Small size, the relay can be mounted on a 35mm DIN rail. Specification: Function: Delay OFF Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: Red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 74g/2.6oz Package List: 1 * Off Delay Time Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
