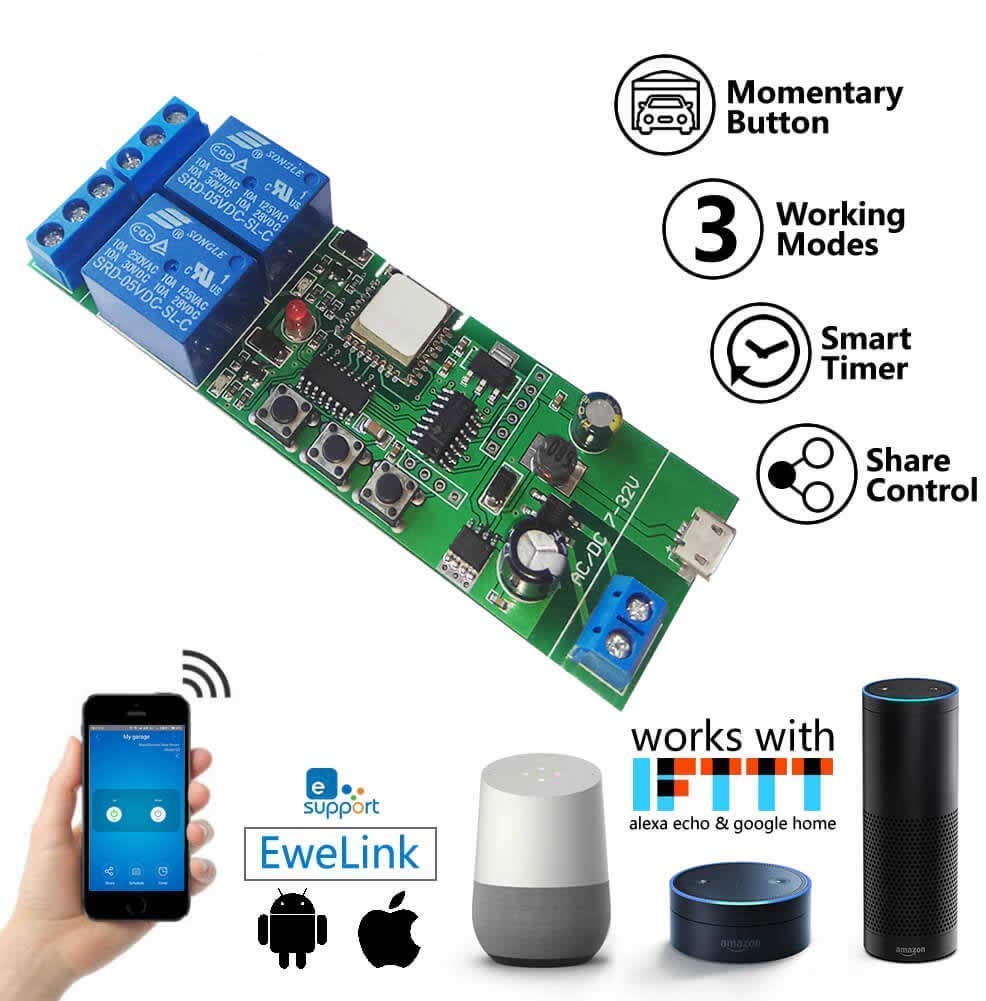

Newgoal WiFi Jog Relay Momentary/Self-Locking Switch DIY Module Smart Home Automation APP Control Compatible Alexa/Google Assiatant/IFTTT (DC2)

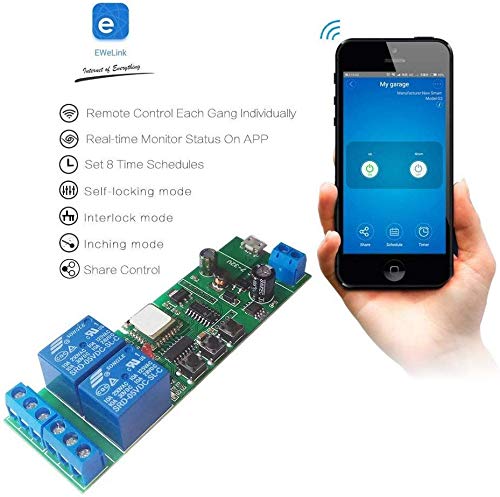

• ①【Remote control】: Turn the relay module into an integrated smart device through the existing 2.4G Wi-Fi network, you can use the eWelink application to remotely control the opening / closing of electrical equipment from anywhere
• ②【Voice control】: This wireless switch module can be used in conjunction with Alexa / Google Assistant / IFTTT, and household appliances can be turned on/off by voice control. Note: To support IFTTT, you need to open an Ewelink premium membership.
• ③【Working mode】:In the jog mode (instantaneous mode), if you press the button on the application (or the manual button on the development board), the switch will turn on, and then automatically turn off after 1 second. In the self-locking mode, when you press the button on the APP (or the manual button on the panel) once, the relay will open. When the button is pressed again, the relay will turn off.
• ④【DIY project】:Smart lights, fans, garage doors, humidifiers, thermostats, etc. eWelink also provides other functions such as timer setting, shared control and scheduling. You can also set routines in the Alexa or Google homepage to make things more convenient.
• ⑤【Set WiFi】: Only support 2.4G WiFi network connection, not support Mesh WiFi system and 5G WiFi network! Download the ewelink APP and register an account. Then follow the instructions to complete the WiFi configuration. (If you plan to install it in a place where the WiFi signal is weak, you may need a wifi extender)

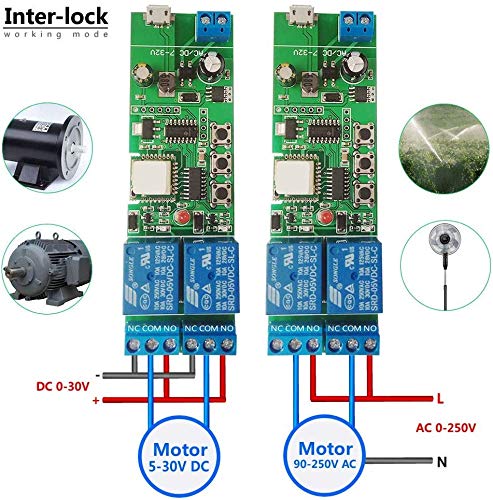

Size:ST-DC2 Using EweLink mobile app This product is a wireless switch supports momentary(inching) work modes. Users can add the device to the EweLink mobile app in order to remotely control connected home appliances or power circuits. Note:The relays are switches without output, the power supply input (AC/DC) just for the PCBA. Tap the work mode setting button manually, the product can change the working mode. When in inching mode, you can have two wiring ways to select: -Turn on 1s and then auto-off -Turn off 1s and then auto-on. When in self-locking mode, you can remotely turn on/off connected devices immediately. When in interlock mode(only 2-gang and 4-gang supports), you can remote control AC/DC motors. The product enables remote control of home appliances through the mobile application EweLink app, available on both Android and iOS. Supported functions include: *Remote turn on/off *Timing Schedules *Device Sharing *Group Management *Compatible with Amazon Echo, Echo Dot, Amazon Tap *Works with Google Home, Google Nest *Works with IFTTT This product is compatible with Amazon Alexa. You can ask Alexa to control the device with the following voice commands. Please note that only US/UK English and German voice commands are supported now. Try out these phrases ( {deviceName} should be the name of your device): "Alexa, turn on {deviceName}" "Alexa, turn off {deviceName}" "Alexa, schalte Ger?tename ein" "Alexa, schalte Ger?tename aus" Also you can ask Google Home to control the device with the following voice commands. "hey, google, turn on {deviceName}" "OK, google, turn off {deviceName}" How to works with IFTTT: Search "EweLink " in IFTTT APP.
