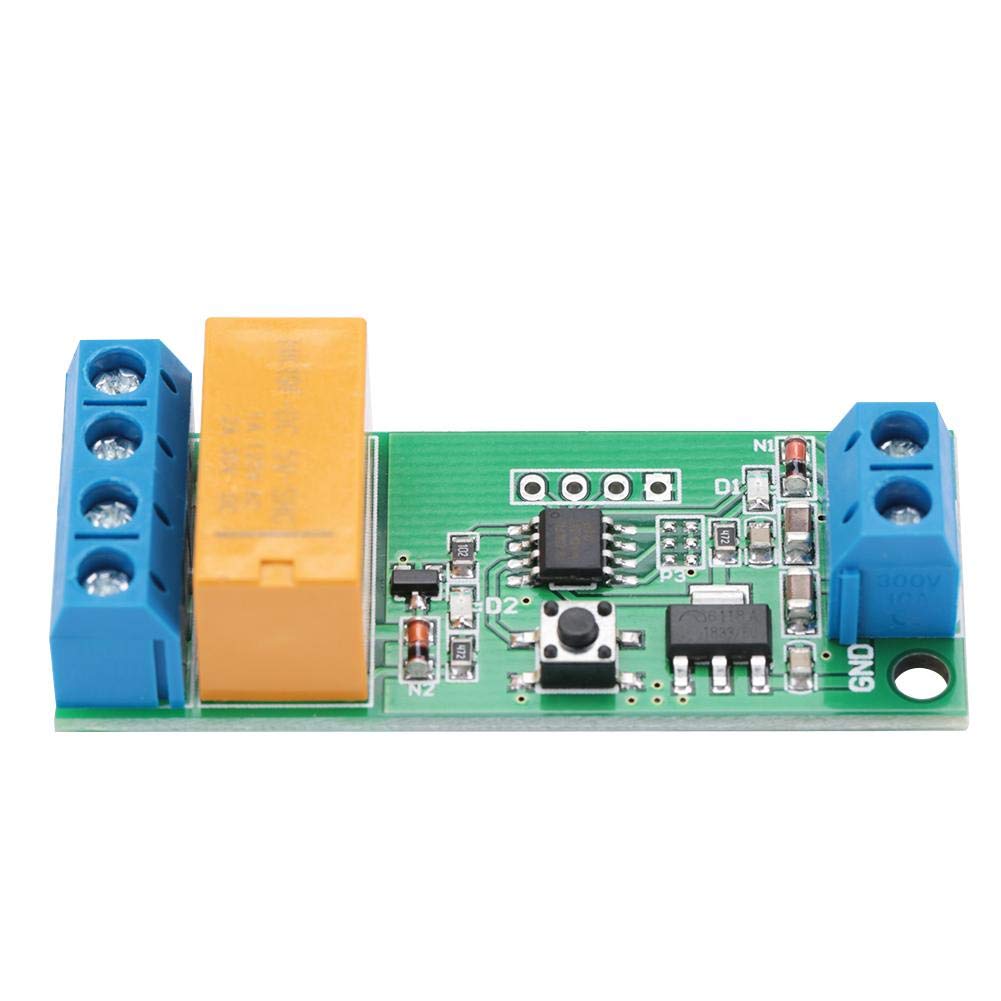

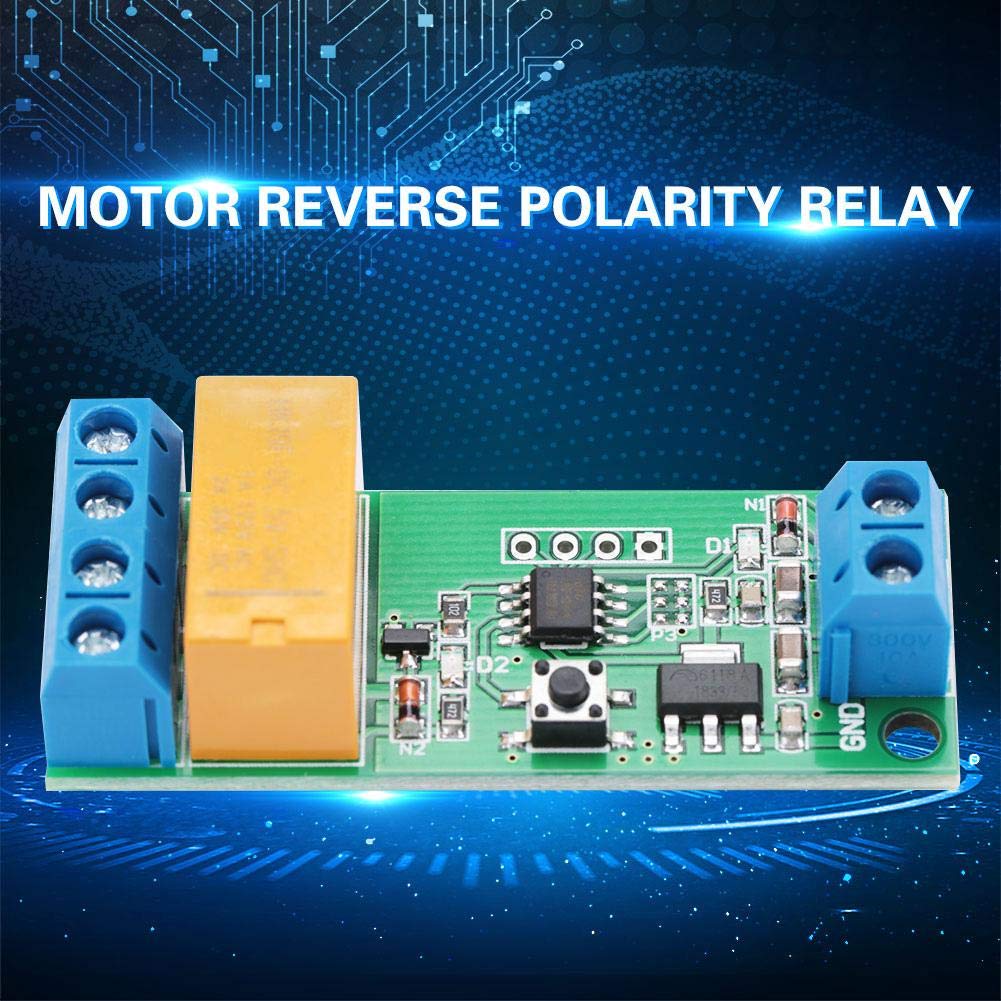

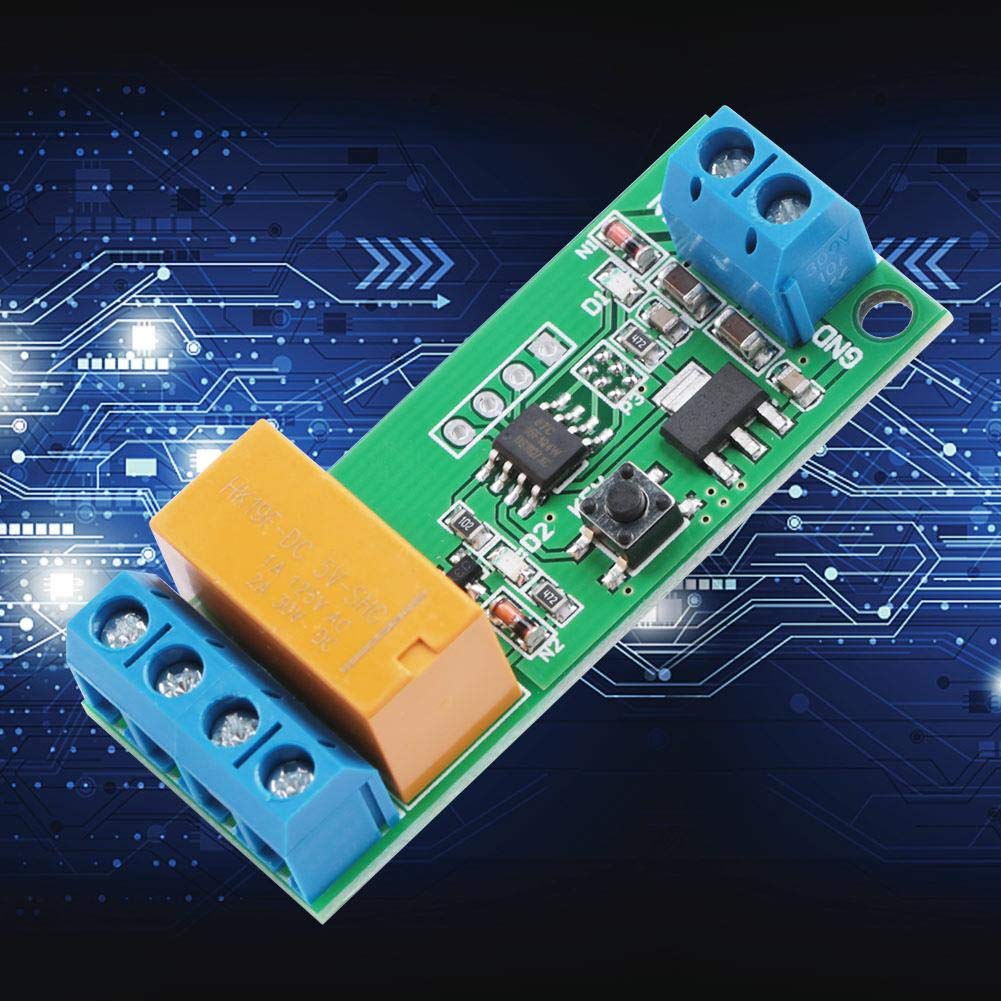

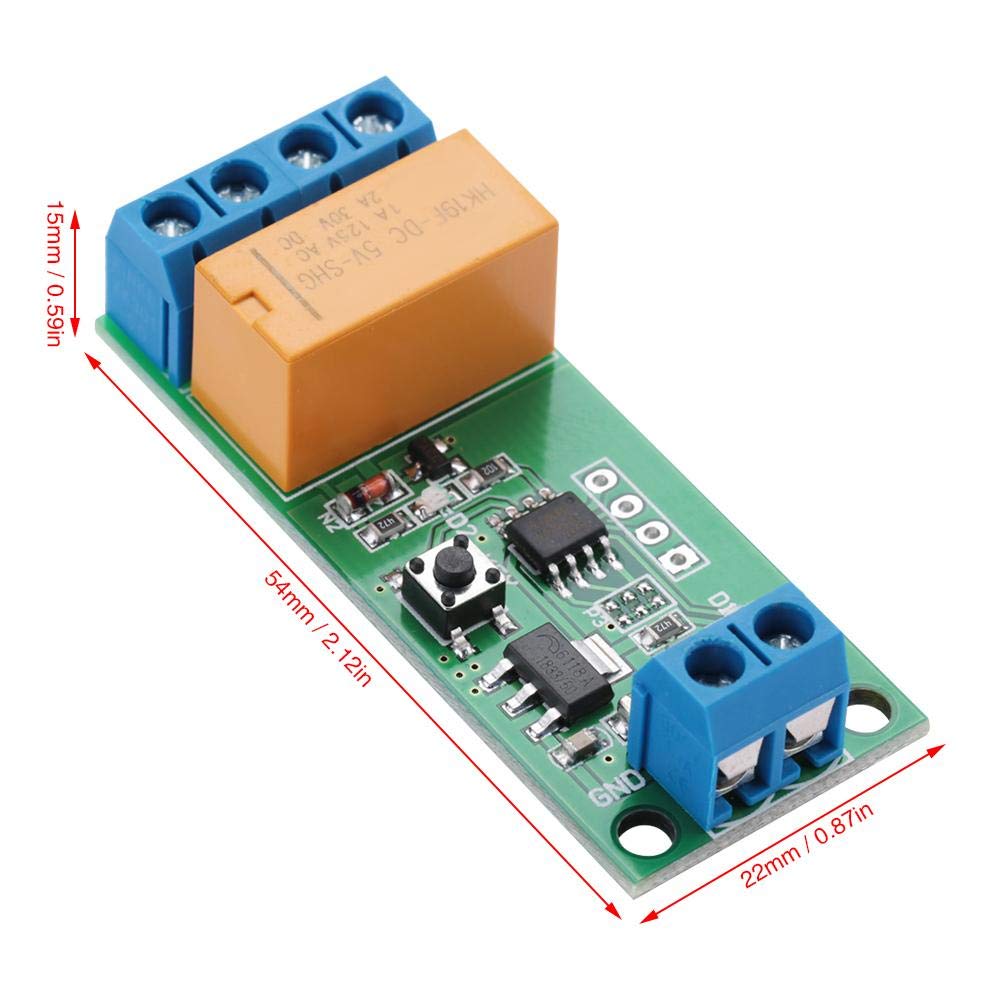

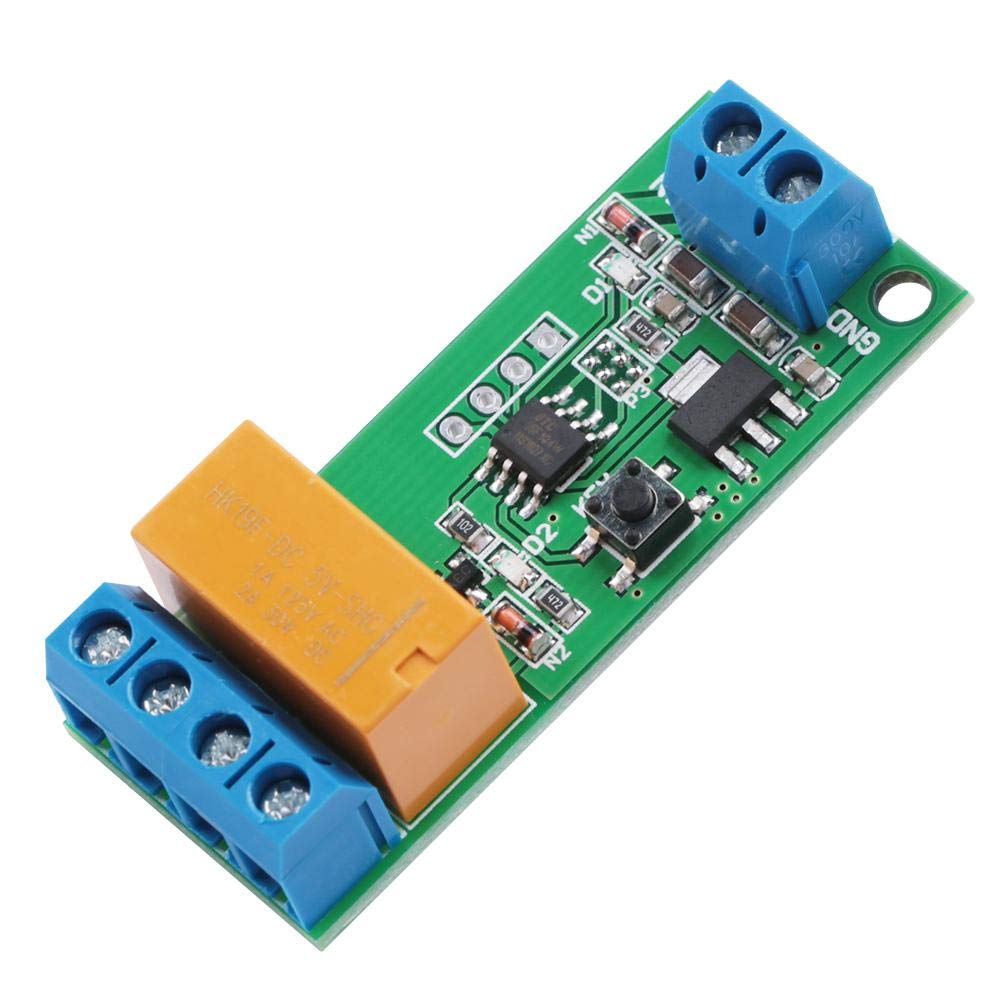

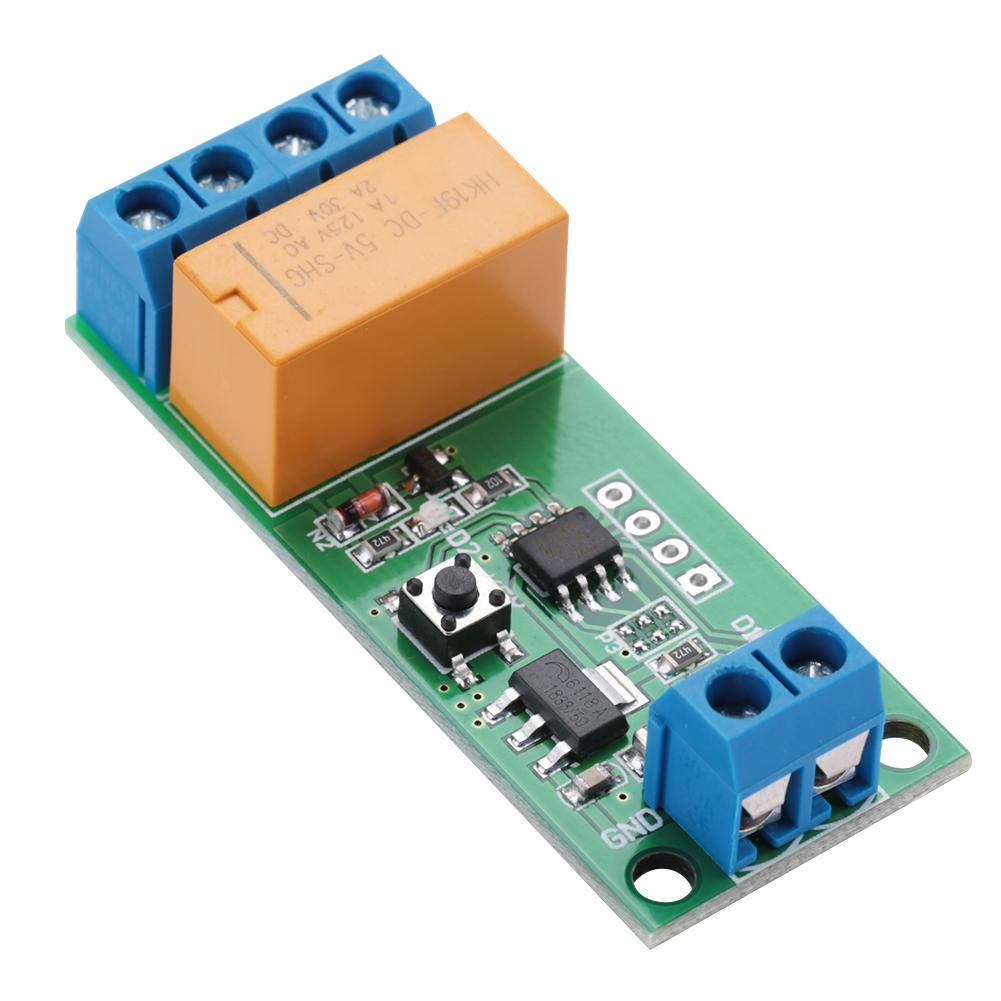

Vikye DC 5/6/9/12V Motor Reverse Polarity Timer, Adjustable Delay Relay, Max 2A Load Current

• 【Operating voltage】 - DC 5-12 V (5 V, 6 V, 9 V, 12 V); operating current: 5 V, forward 4 mA, reverse 36 mA, 12 V, forward 6 mA, reverse 44 mA
• 【Load voltage】 - DC 1-48 V or AC 85-265 V; load current: max. 2A Maximum forward time: 5000 seconds, step size 0.1 seconds; Reverse maximum time: 5000 seconds, 0.1 second step

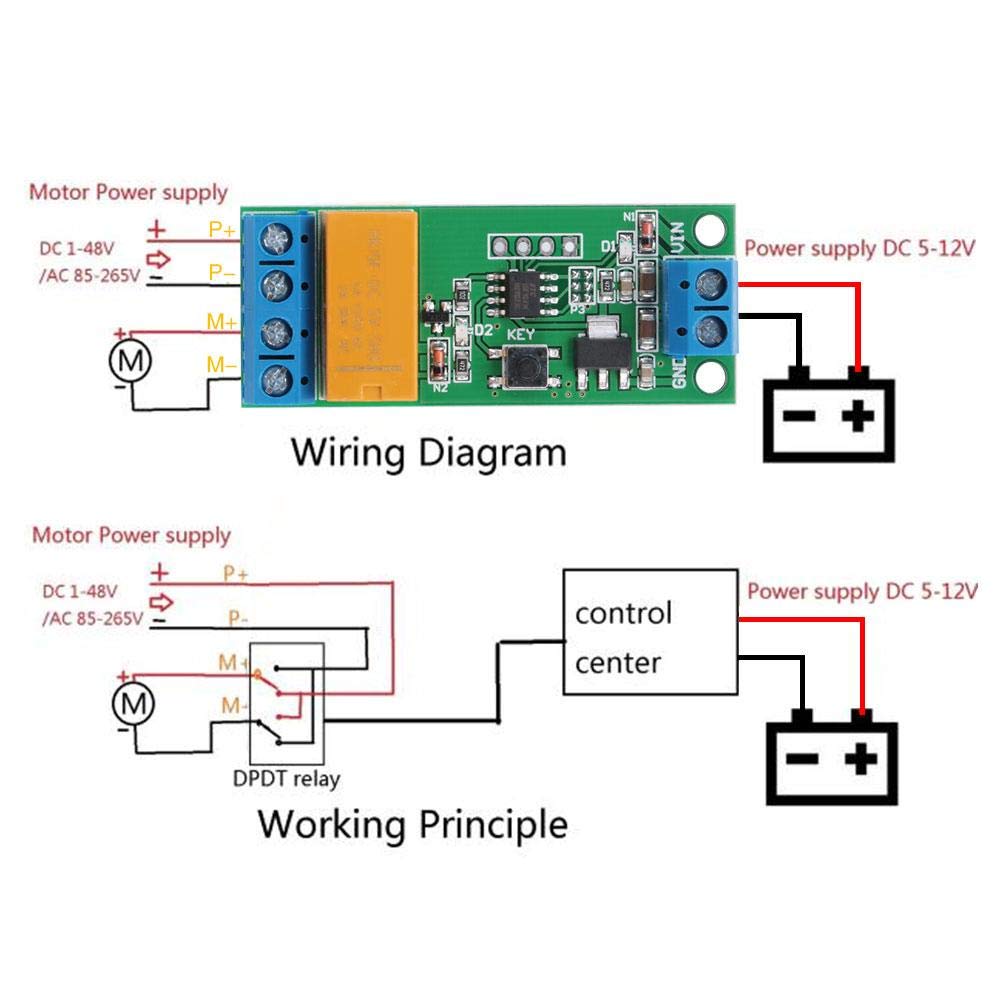

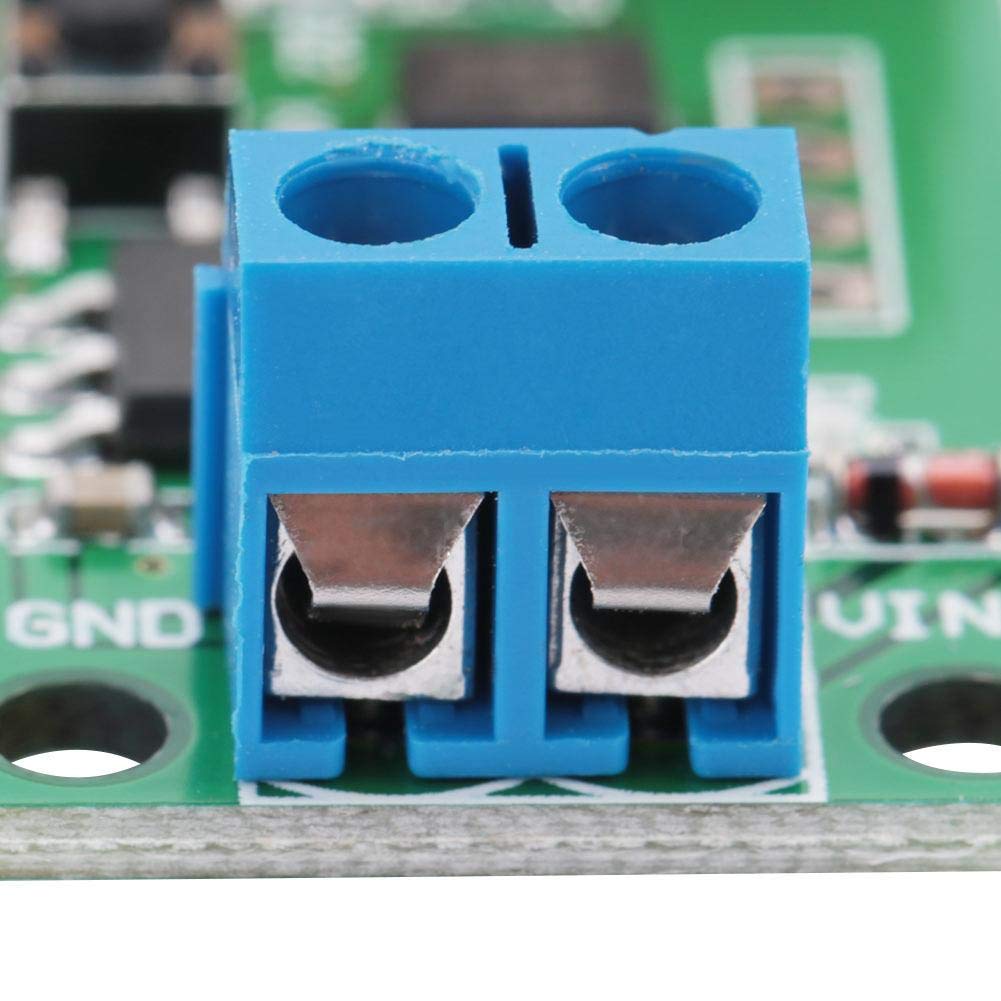

• 【Like Connect】 - VIN connected to the positive pole of the power supply, GND connected to the negative pole of the power supply; P + connected to the positive of the motor power supply, P- connected to the negative of the motor power supply; M + & M- on both ends of the motor connected.
• 【To set U p】 - 1. Press the button again to stop the clock (exit "Timing Mode"). D1 flashing time is lead time (T1). Press and hold the button for 2 seconds, then press D2 to enter reverse "setup mode".
• 2. In reverse "setup mode" press the button twice in a row, D1 off, switch to "standby timer mode". In the "Standby timer mode" trigger the KEY start timing (activate the "Timing mode"). D1 flashing means it is timing ("Timing Mode"). Press the button again to stop the clock (exit "Timing Mode"). D1 flashing time is reversal time (T2). The forward time (T1) and the backward time (T2) have been set so far. Re-power in "work mode"

How to Set Up: Trigger KEY again to stop the clock(exit "Timing Mode") D1 flashing time is forward time(T1) Press and hold the Key for 2 seconds, D2 on, enter the Reverse "setup mode" In Reverse "setup mode", continuously trigger key twice, D1 off, enter "Standby timer mode" In the "Standby timer mode", trigger KEY start timing(enter "Timing Mode") D1 flashing means it is timing("Timing Mode") Trigger KEY again to stop the clock(exit "Timing Mode") D1 flashing time is Reverse time(T2) So far, forward time(T1) and reverse time(T2) is set up Re-power in "work mode"
