Mini Time Relay Din Rail Type Double Delay Time Delay Relay Delay Timer Switch Mini Time Delay Relay GRT8-2T AC/DC 12V~240V(AC/DC12V~240V) relay

• 【Set Different Delay Time】The Mini Time Relay--Time setting for delay ON and OFF is separated so you can set different delay time. 2 power delay settings, you can set separately. With AC/DC 12V-240V working voltage.
• 【Advantages】This Mini Time Relay With small volume, this relay can be mounted on 35mm DIN rail, It is used for cyclic delay control occasions, providing periodic energizing, lighting control and heating control for electric circuit. Ultra-small size, easy to install.
• 【Super Wide Delay Time Range】Super wide delay time range, 0.1 second - 100 days settable (10 selections). It can be used in specific applications to replace 2 time relays which can save costs.

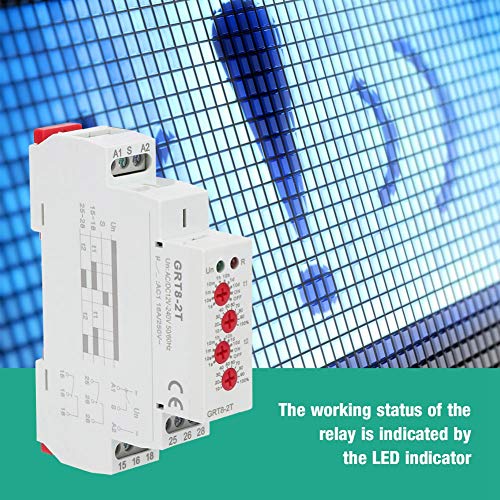

• 【LED indicator】The working status of the mini time relay is indicated by the LED indicator.
• 【after-sales service】--We stand behind all of our them with a product guarantee and promise to give you the best in customer care! If you have any issue about the Double Delay Time Delay Relay, please contact us by e-mail, we will try our best within 24 hours to reply.

Mini Time Relay Din Rail Type Double Delay Time Delay Relay Delay Timer Switch Mini Time Delay Relay GRT8-2T AC/DC 12V~240V Specification: Condition: 100% Brand New Model: GRT8-2T Power Terminal: A1-A2 Rated Control Power Supply Voltage: AC/DC 12-240V(50-60Hz) Power Consumption: AC 0.7-3VA/DC 0.5-1.7W Power Supply Allowable Range: -15%; +10% Power Indicator: Green LED Delay Range: 0.1 seconds-10 days, normally open, normally closed Setting Method: Knob Setting Accuracy: 5% Repeatability Accuracy: 0.2% Temperature Fluctuation Error: 0.05%℃, at = 20℃ Output: 2 Sets of Conversion Contacts 16A/AC250VAC Minimum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 10000000 Electrical Life (Resistive Load): 1000000 Working Environment Temperature: -20℃-55℃ Storage and Transportation Environment Temperature: -35℃-75℃ Installation Method: 35mm Rail Installation Protection Level: IP20 Installation Altitude: 2000 Meters Pollution Degree: 2 Wiring Capacity: 1x2.5mm² or 2x 1.5mm² Optional Style: A230, AC/DC 12V-240V Weight: Approx. 96g / 3.4oz Size: Approx. 90 * 18 * 64mm / 3.5 * 0.7 * 2.5in Package List: 1 * Time Relay
