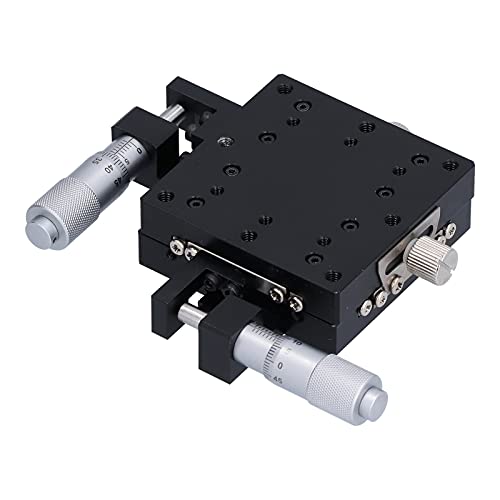

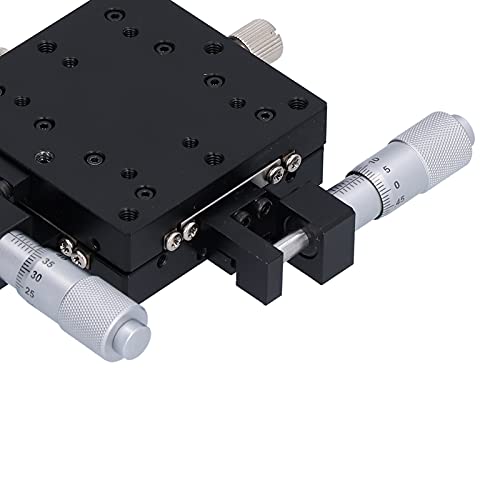

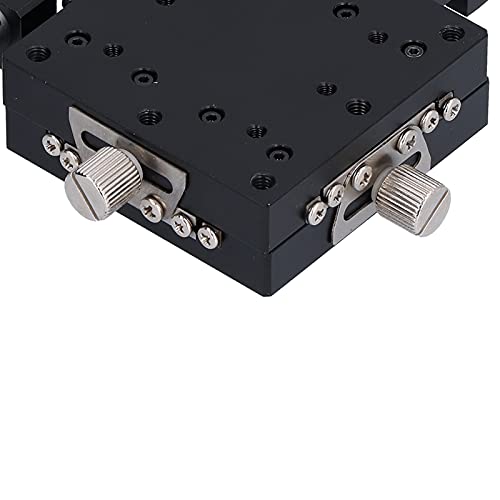

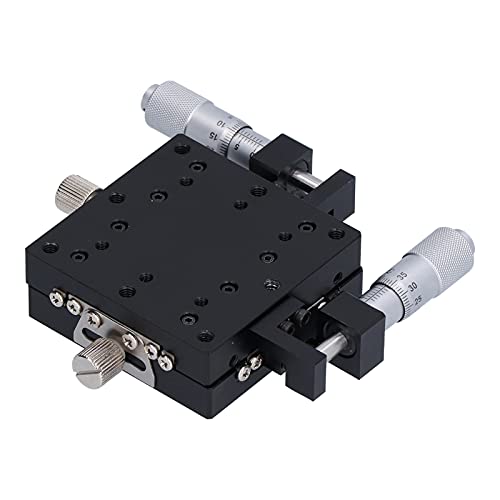

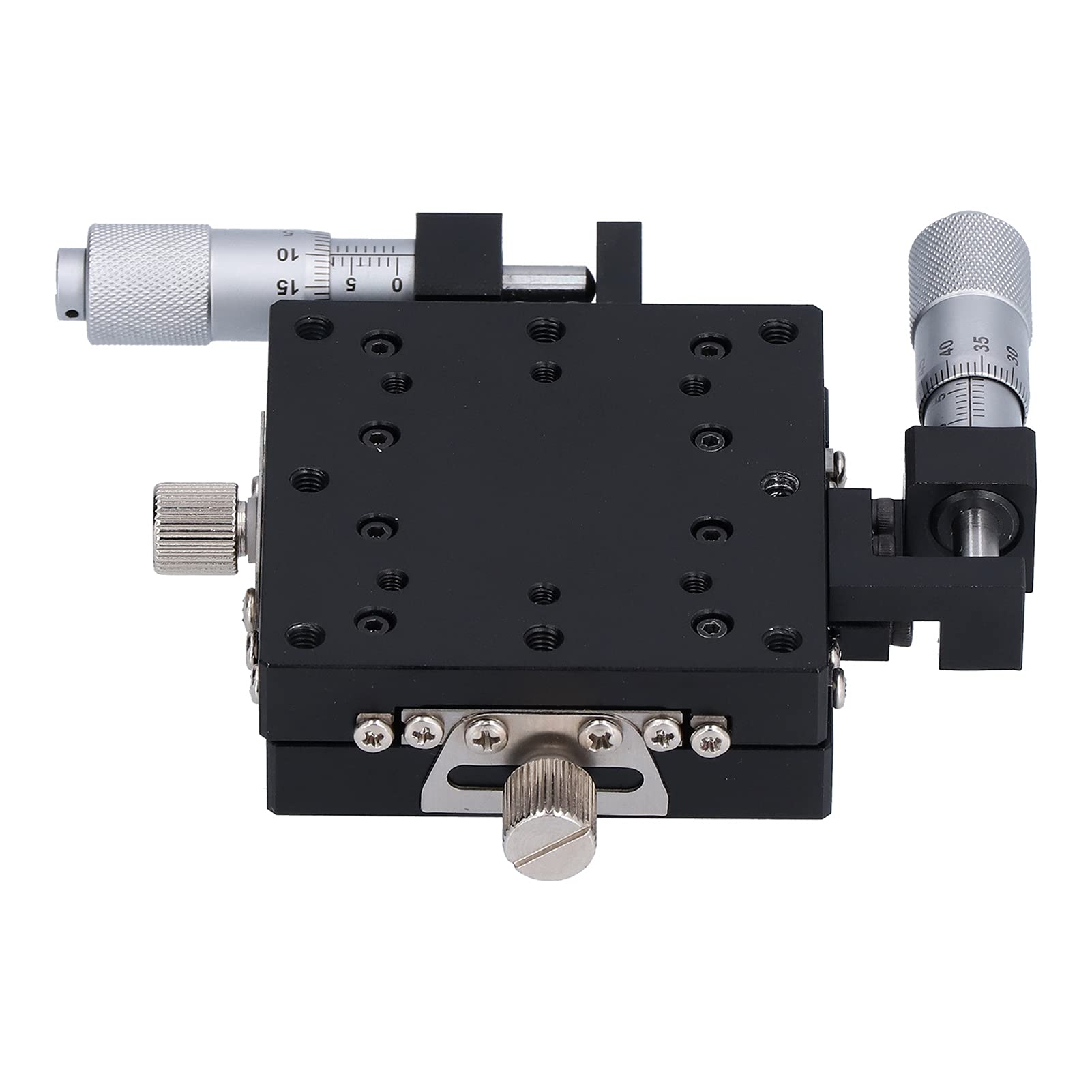

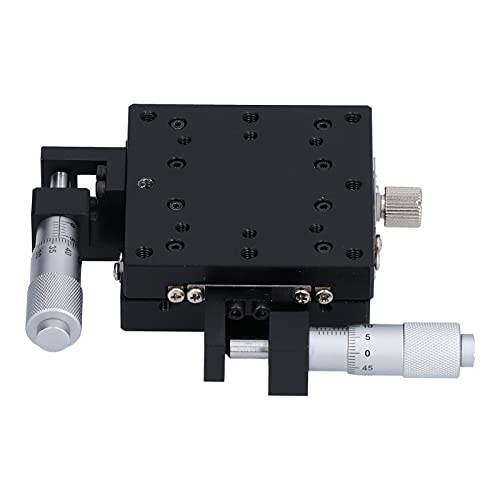

Micrometer XY Linear Stage 60x60mm Fine‑Tune Rotation Precision Linear Translation Stage, Xy Axis Rotation Positioning Stage

• MATERIAL - The XY Linear Stage is made of aluminum alloy material is light weight and strong, friction‑resistant, quiet, scratch‑resistant, drop‑proof and corrosion‑resistant.
• MATERIAL - The XY Linear Stage is made of aluminum alloy material is light weight and strong, friction‑resistant, quiet, scratch‑resistant, drop‑proof and corrosion‑resistant.
• FEATURES - Micrometer rotary knob advance with cross roller guide, possess high accuracy, smoothness, high load resistance, stable movement,Adopt black anodizing to improve the corrosion resistance of the surface.
• WIDELY USES - This Manual Fine‑Tune Platform can be used for optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, and photographic equipment.
• HOW TO USE - 1. Can be installed on it to form various combined machine tools to complete drilling, expanding, reaming, dizzying, scraping, chamfering, turning, milling, and tapping, etc., and the grading feed mechanism on the sliding table can complete deep hole processing. 2. Through manual adjustment, accurate distance movement/angle rotation can be achieved, so as to meet the requirements of accurate machining or high‑accuracy operations.
• SAFE DESIGN - It come with R angle protection, which can deburring all edges, protect people's safety during operation

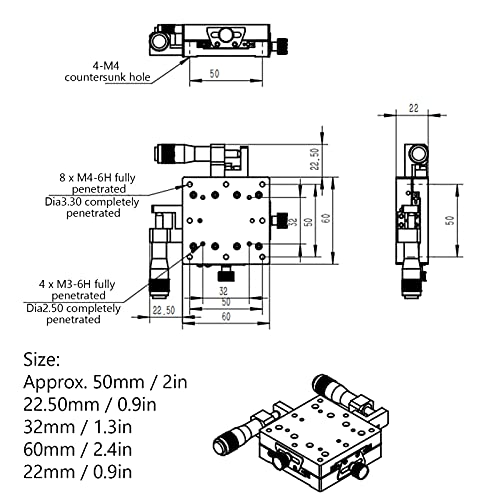

Specification: Item Type: XY Linear Stage Model: M2WG-A60 Table Size: Approx. 60 x 60mm / 2.4 x 2.4in Double Layer Thickness: Approx. 22mm / 0.9in Movement Direction: XY 2 directions Body Material: Aluminum alloy (black anodized) Drive Mode: Micrometer rotates the knob to advance the cross roller guide (micrometer + cross roller guide) Glide Trajectory: Cross roller Rail Type: Micrometer cross roller Number of Threaded Mounting Holes on the Countertop: 8+4 Threaded Mounting Hole Diameter: 8M4mm;4-M3mm Depth of Threaded Mounting Hole: Approx. 6mm / 0.2in Vertical Load Resistance: 29.4N (3Kgf) Moving Stroke: ± Approx. 6.5mm / 0.3in Minimum Scale: 0.01mm Straightness: 0.03mm Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, equipment, printing machines and others Package List: 1 x XY Linear Stage Note: Avoid working in high temperature, high humidity or humid rain water environment.
