Oumefar Dovetail Manual Trimming Platform SPXDTS90 X Axis Displacement Fine Tuning Manual Sliding Table

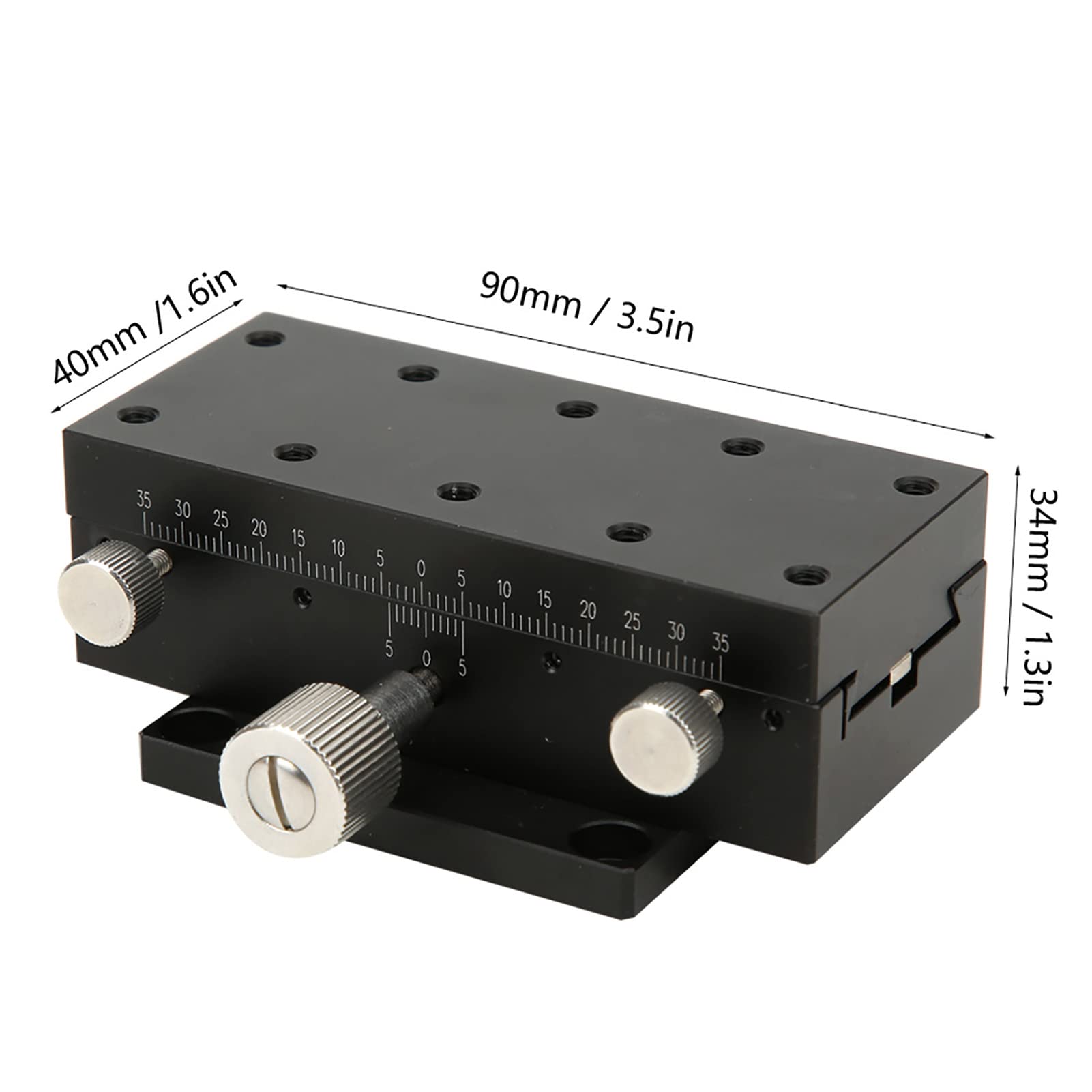

• 【PARAMETER】size:(Length/width/height) 90 x 40 x 34mm / 3.5 x 1.6x 1.3in,moving direction: 1 direction of X Axes,Threaded Hole Diameter: 4mm,Threaded Mounting Hole Depth: 7.5mm,Load Resistance: 39.2N,Stroke: ±35mm,Minimum Scale: 0.01mm,Straightness: 0.03mm

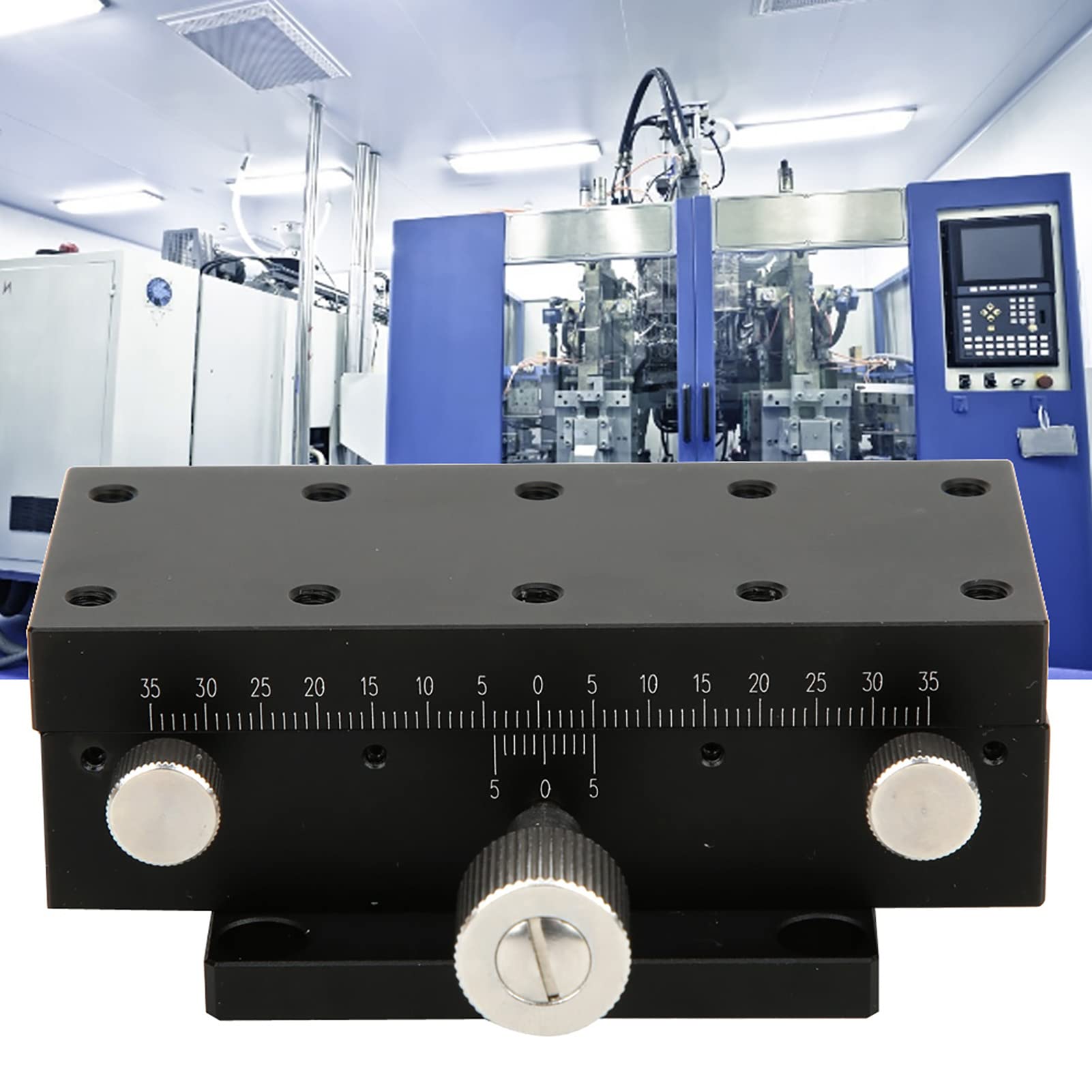

• 【APPLICATION】The X-axis linear slide is widely used in optical instruments, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, camera equipment, conveyors, processing machines, medical equipment, printing machines, etc

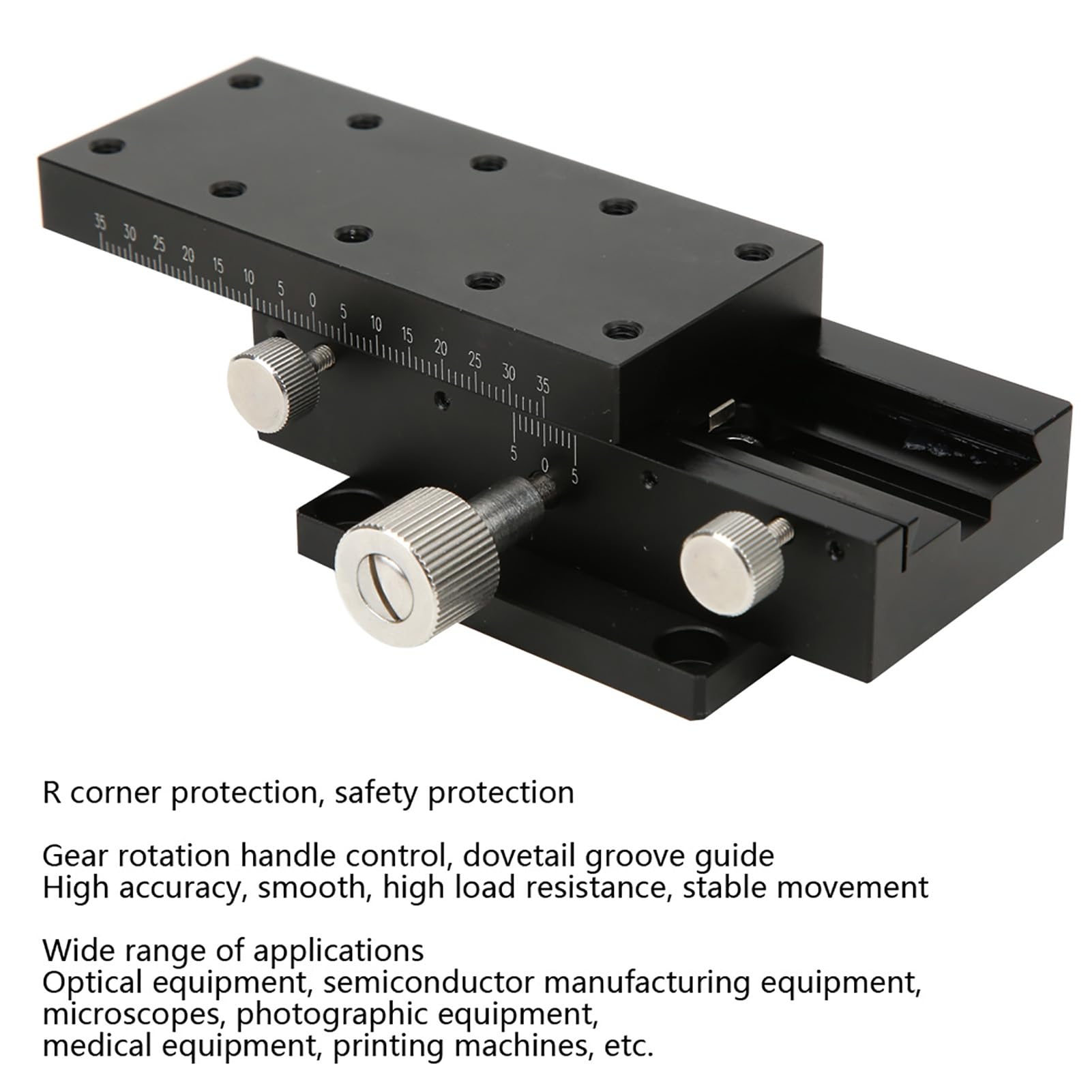

• 【OPERATING】Slide rail type: rack rail, guide rail type: dovetail groove line operation mode: hand knob control + gear transmission. The manual pruning platform uses dovetail groove guidance, which has the advantages of high precision, high load resistance, and stable operation
• 【MATERIAL】The X-axis trimming platform is made of aluminum alloy material, and the outside is plated with a black oxide film to prevent external corrosion, and has the ability to protect the platform to extend its service life
• 【PROTECTION】The manual displacement platform is equipped with R-shaped angle protection equipment for safety, at the same time, wear resistance, corrosion resistance, heat dissipation safety, high temperature resistance and other capabilities, safe use, and wide application range

Specification: Item Type: Manual Sliding Stage Model: SPXDTS90 Table Size: Approx. 90 x 40mm / 3.5 x 1.6in Overall Height Of The Product: Approx. 34mm / 1.3in Moving Direction: 1 direction of X Axes Body Material: Aluminum alloy (black anodized) Drive Method: Manually turn the knob to control the gear drive (gear + rack) Glide Track: Rack rail Guide Rail Type: Dovetail groove Number Of Table Thread Mounting Holes: 8 Threaded Hole Diameter: 4mm Threaded Mounting Hole Depth: 7.5mm Load Resistance: 39.2N Stroke: ±35mm Minimum Scale: 0.01mm Straightness: 0.03mm Scope Of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, medical equipment, printing machines, etc. Package List: 1 x X-Axes Sliding Stage
