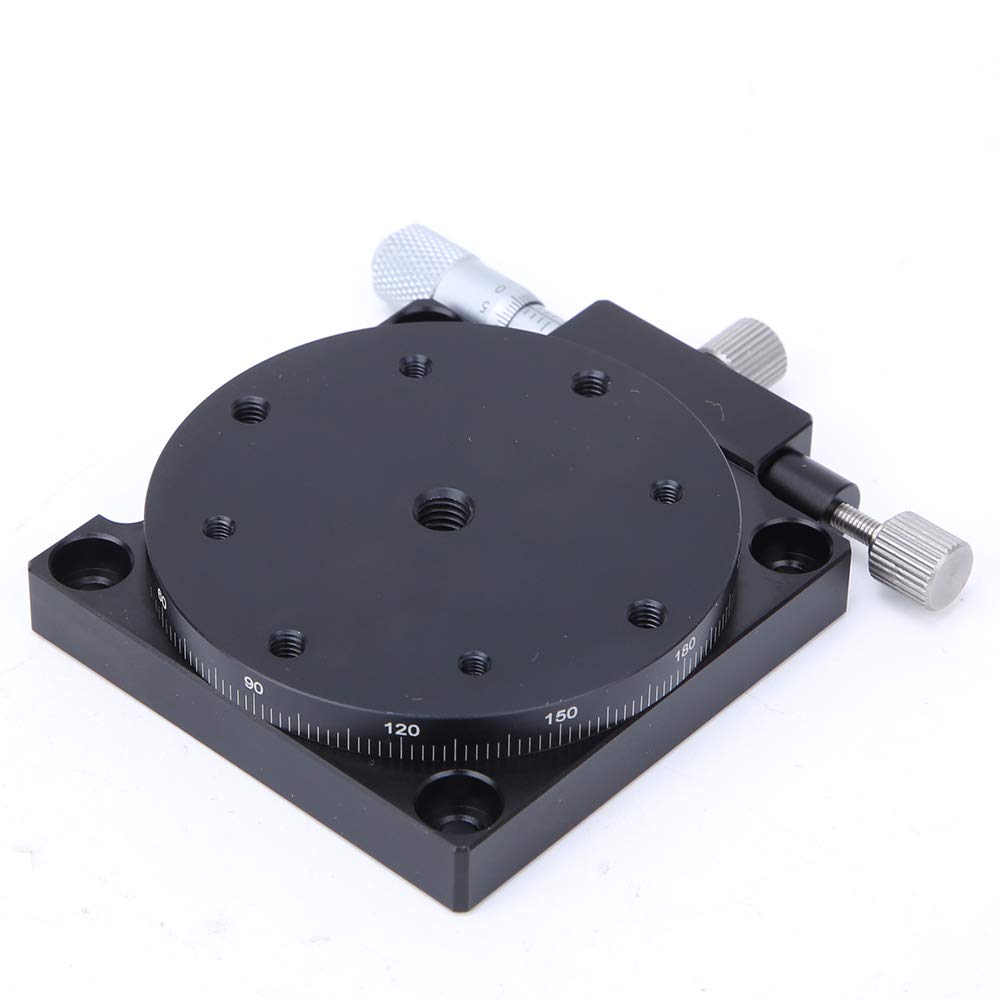

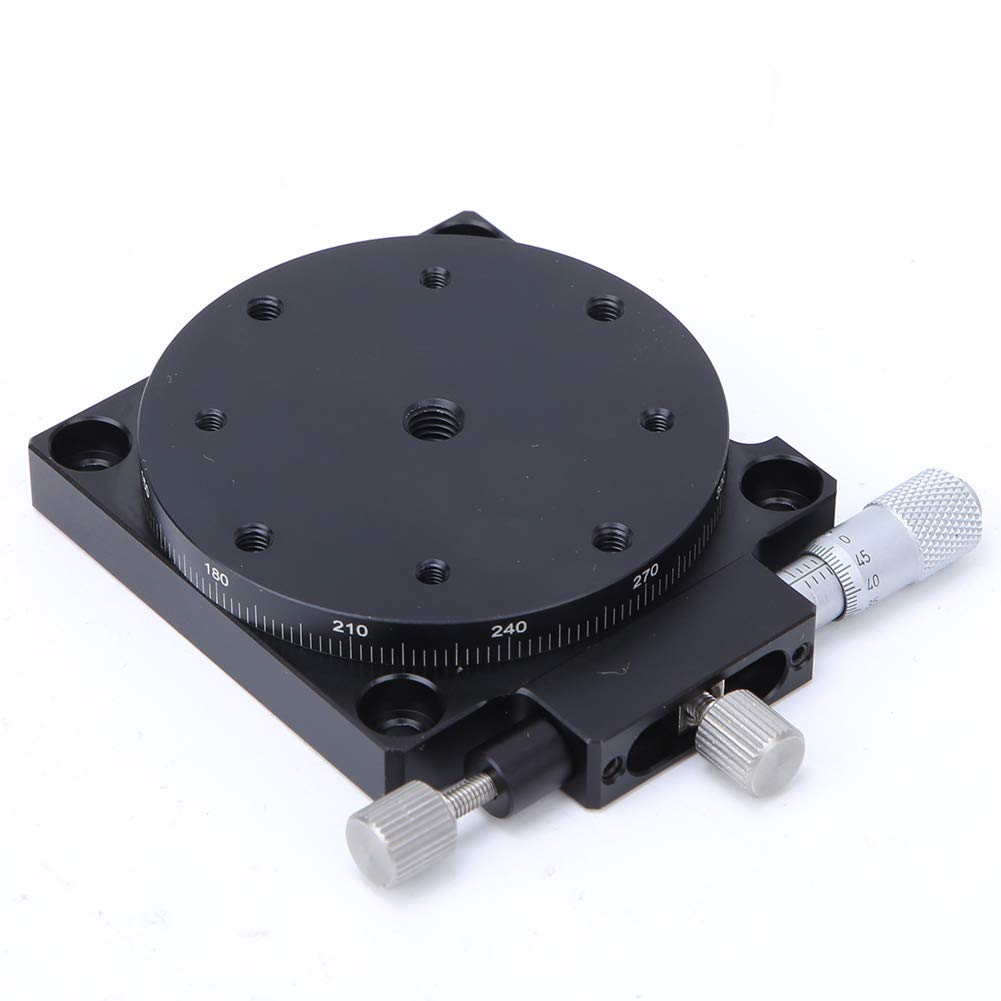

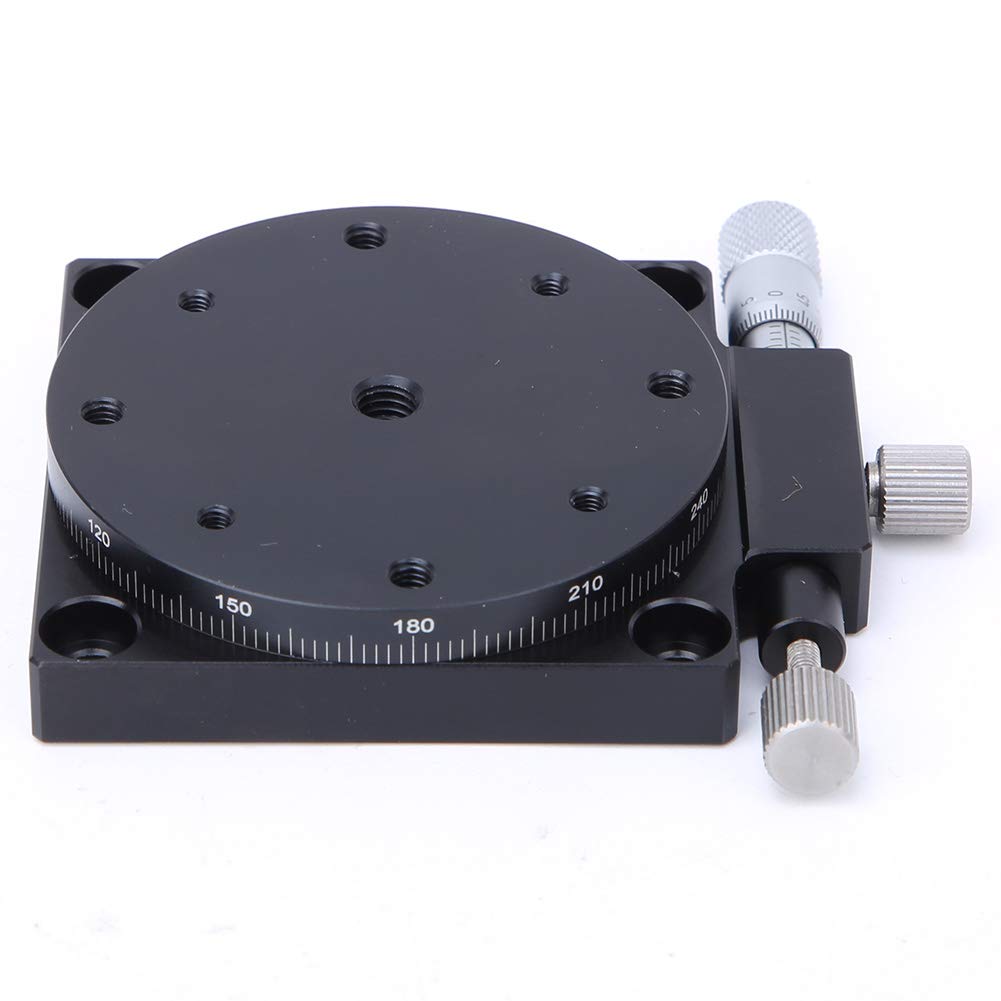

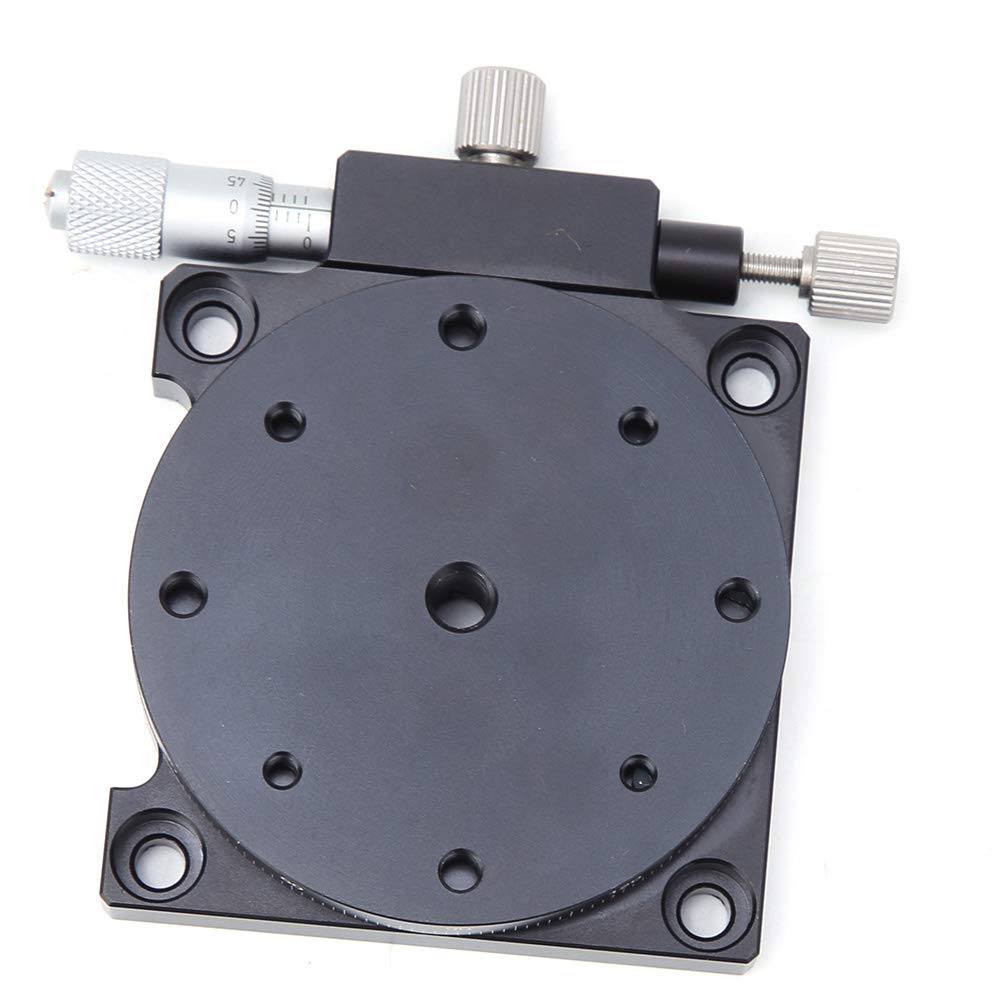

Jectse R Axes Manual Linear Stage，φ60mm Trimming Station Displacement Platform，RS60-L Manual Linear Stage Tuning Sliding Table Trimming Platform

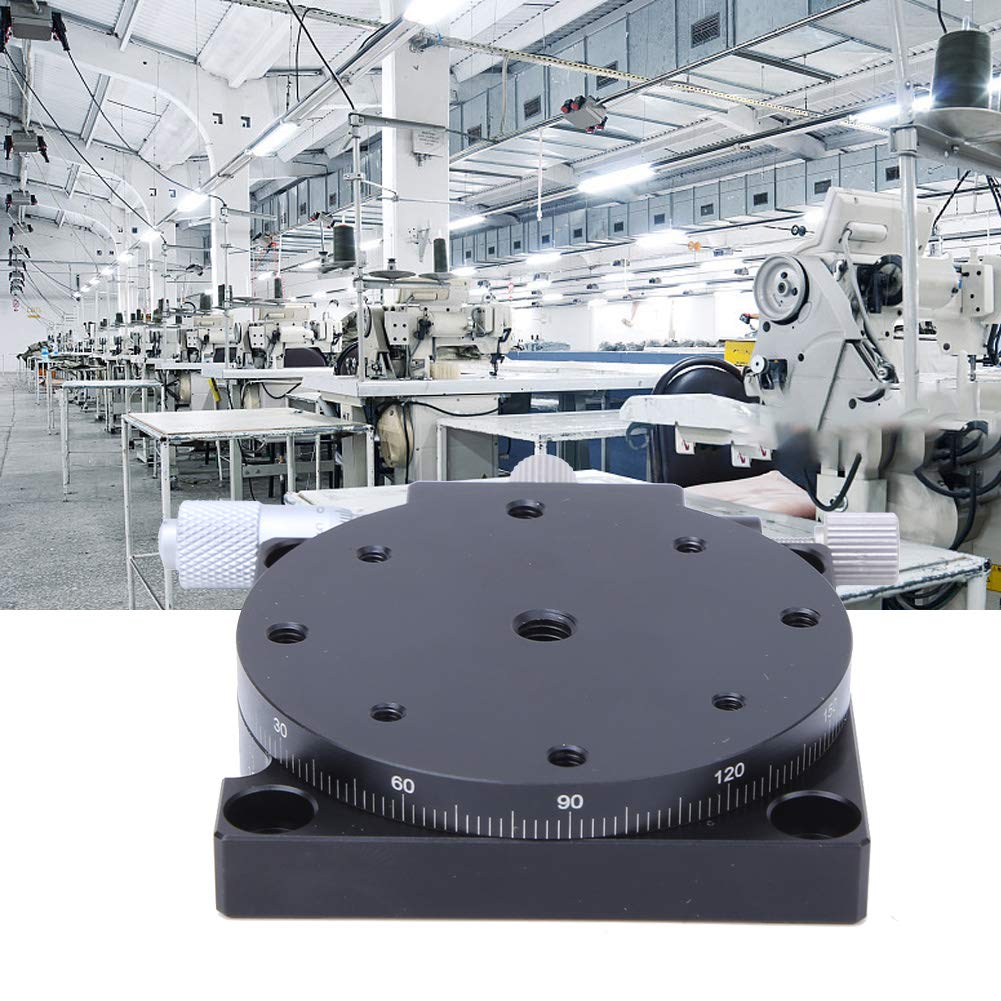

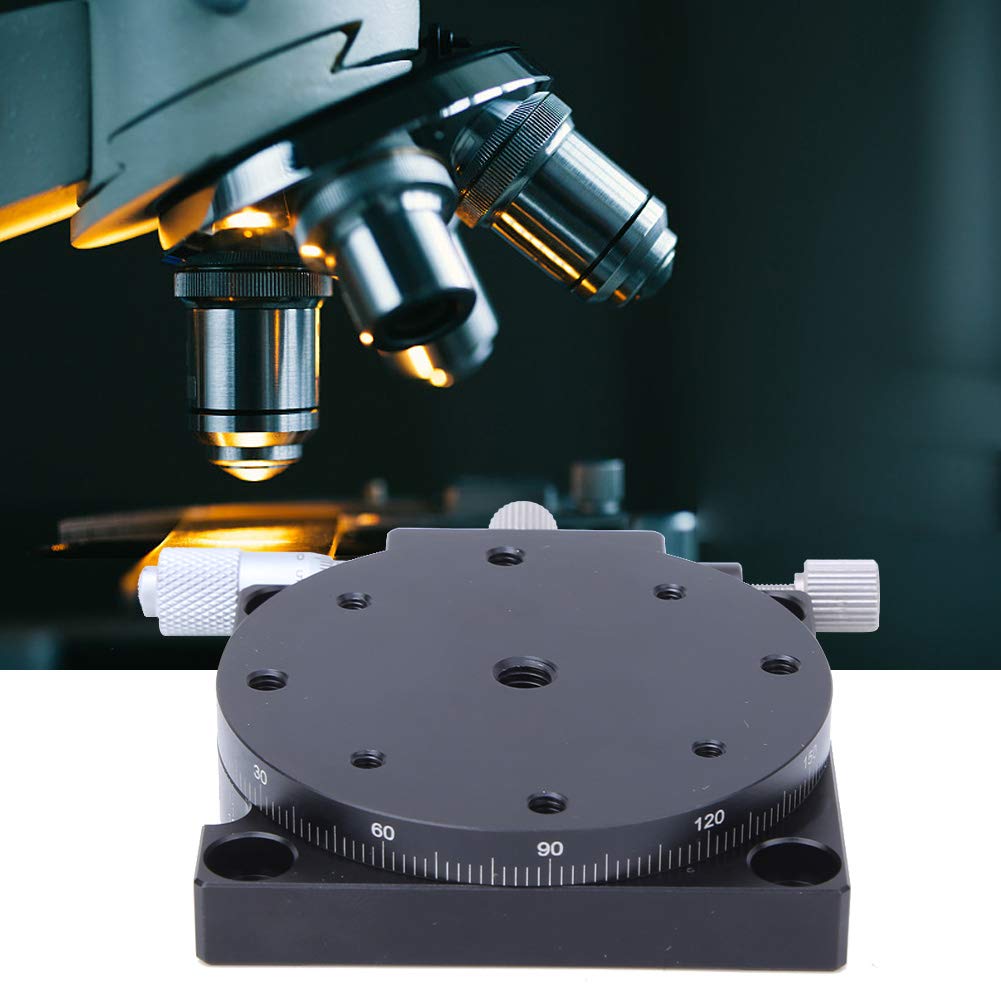

• Can be used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
• Main body aluminum alloy material, black anodized surface, scratch-resistant, anti-drop, anti-corrosion.
• Nickel plated locking screw, designed with counterbore, nickel plated fine adjustment knob, carbide side head,
• The driving method is a micrometer, which can be realized: manual coarse adjustment of 360 degrees, fine adjustment of rotation ± 5 degrees.
• High precision, smooth movement, suitable to be built in other devices.

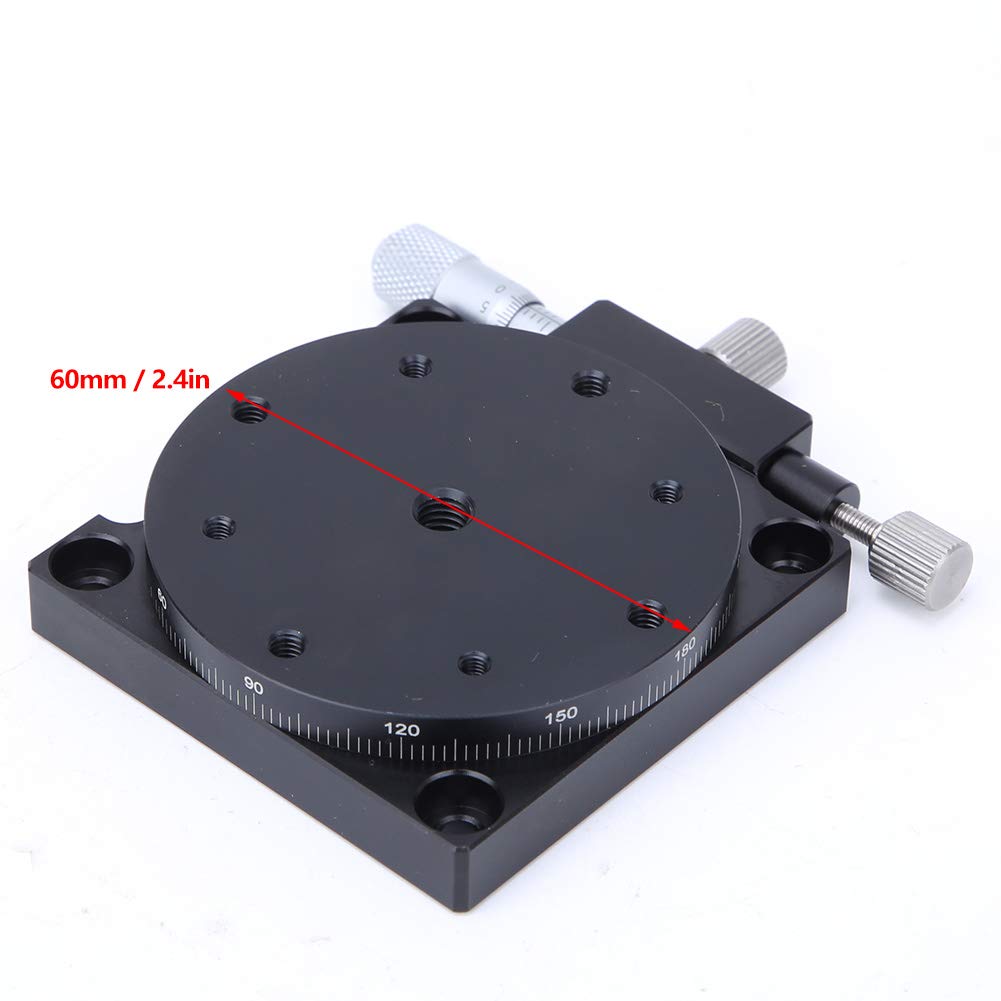

Feature: 1. Can be used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on. 2. Main body aluminum alloy material, black anodized surface, scratch-resistant, anti-drop, anti-corrosion. 3. Nickel plated locking screw, designed with counterbore, nickel plated fine adjustment knob, carbide side head, durable. 4. The driving method is a micrometer, which can be realized: manual coarse adjustment of 360 degrees, fine adjustment of rotation ± 5 degrees. 5. High precision, smooth movement, suitable to be built in other devices. Specification: Item Type: Linear Stage Trimming Platform Model: RS60-L Can be Realized: coarse adjustment 360 degrees, rotation precision adjustment ±5° Material: Aluminum alloy (black anodized surface) Table Diameter: Approx. 60mm / 2.4in Moving Rail: Running-in installation Drive Mode: Micrometer Cursor Minimum Reading: Vernier Scale 0.1° Micrometer Minimum Movement Reading: 0.015° Load: 29.4N (3kgf) Accuracy: 0.01m Runout: 0.02mm Parallelism: 0.03mm Scope of Application: Production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on. Package List: 1 x Linear Stage Trimming Platform
