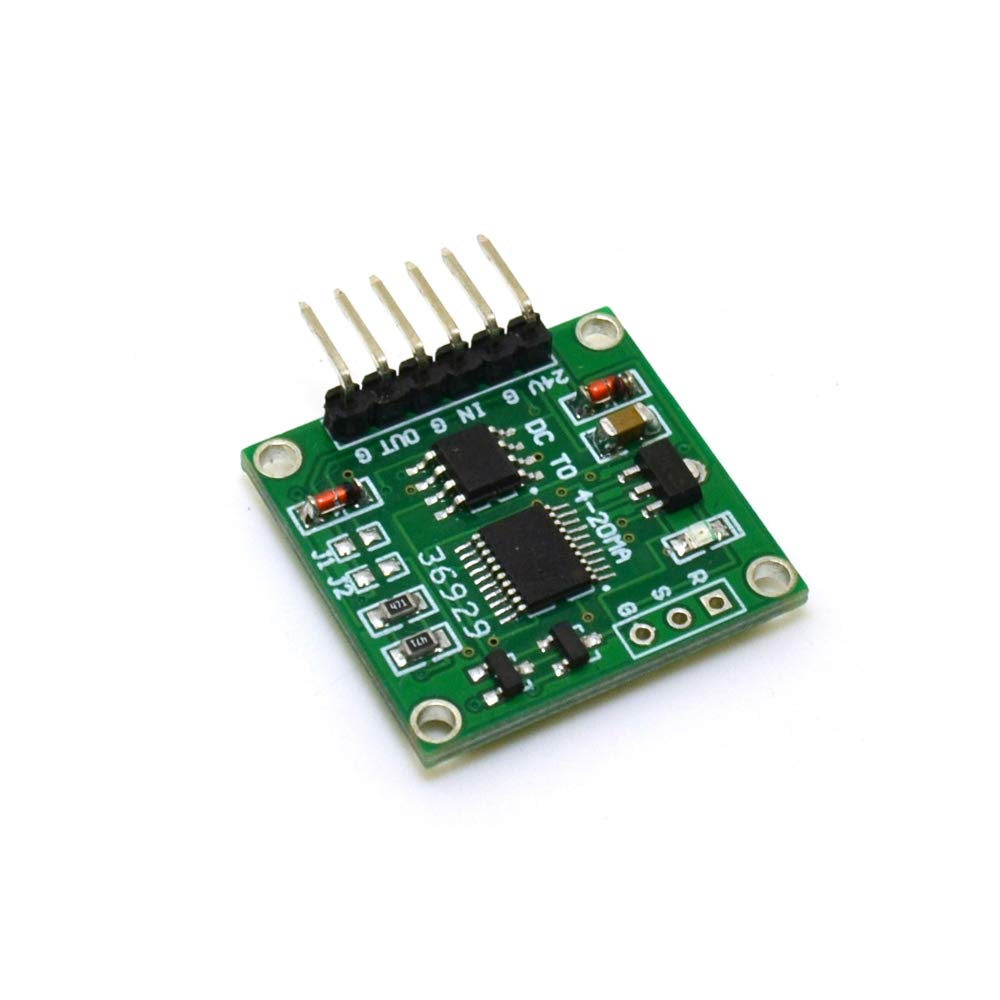

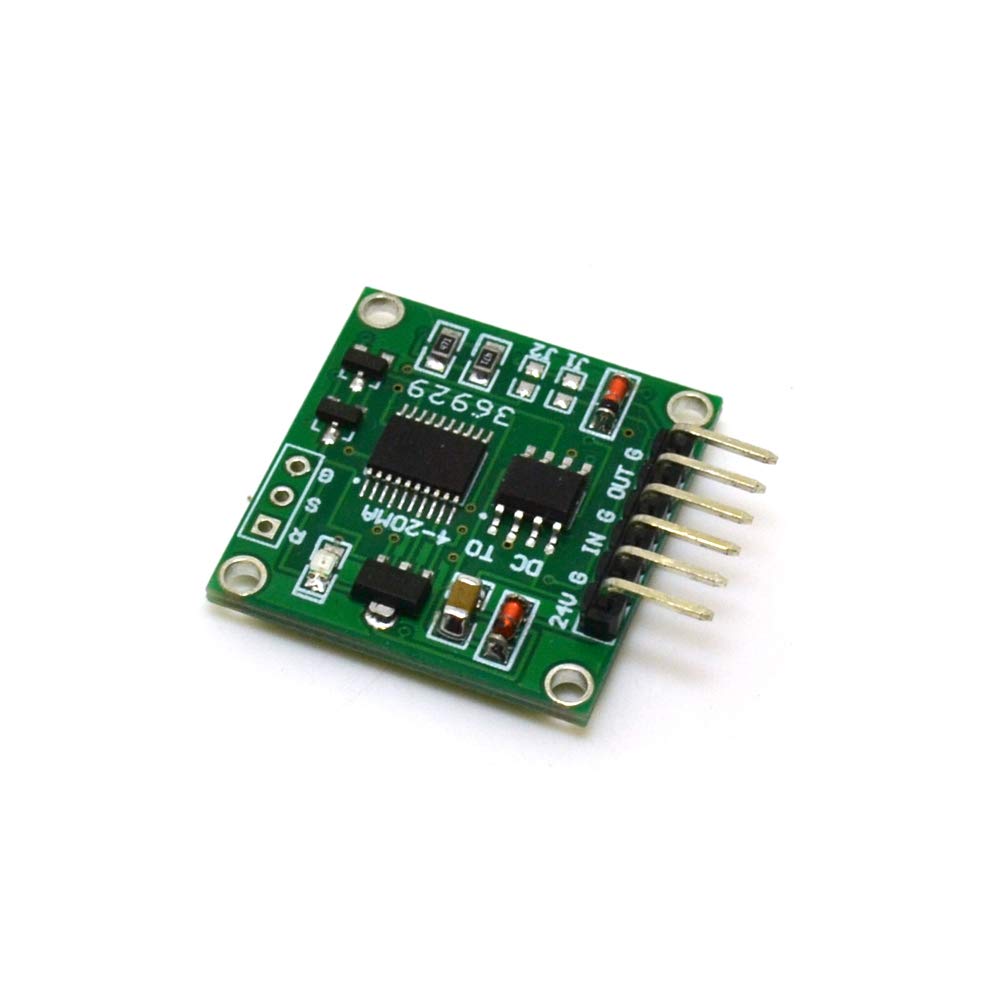

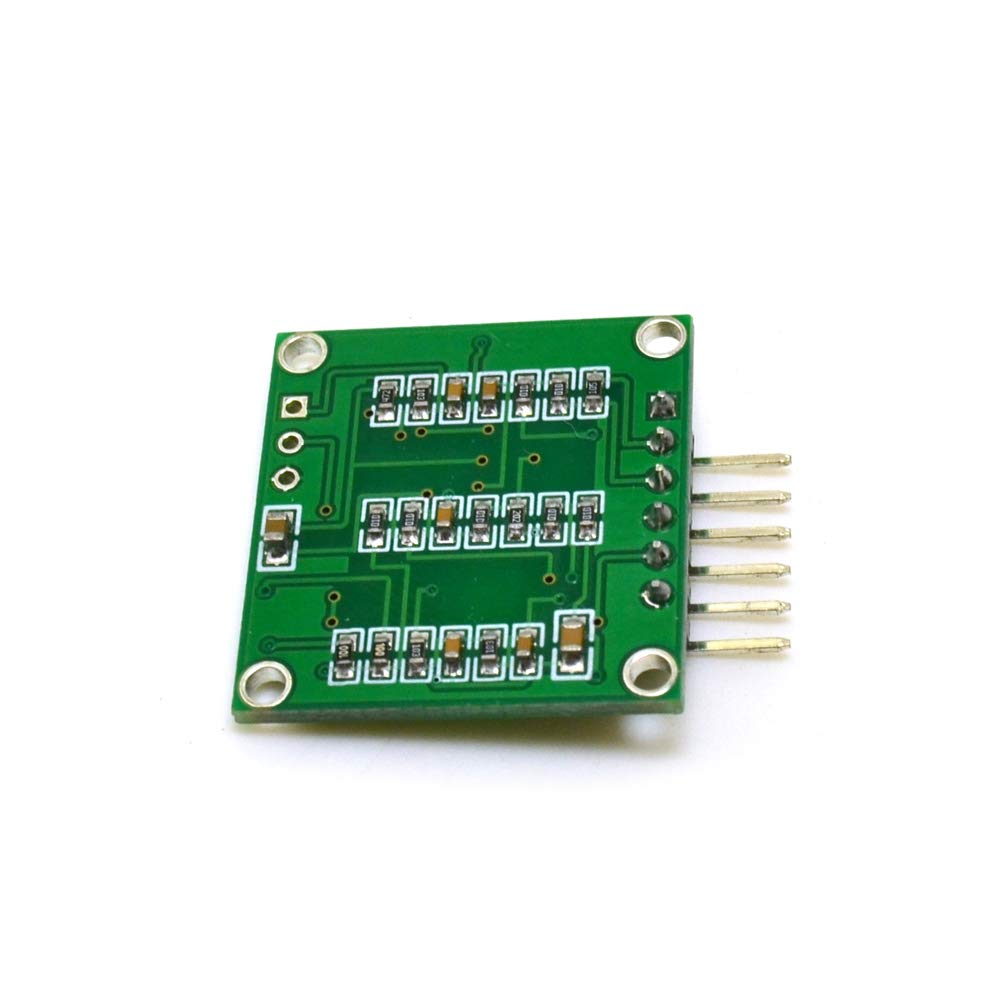

Lilly Electronics Q-BAIHE Voltage to Current Convert Module 0-5V Turn 4-20MA Linear Convertion Module

• Voltage Convert Current Module
• 0-5V Turn 4-20MA
• Linear Transformation Transmitter Module
• Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V

Features: 1, the working voltage: 9V ~ 24V 2. Input voltage: 0.00V ~ 5.00V / 0.00V ~ 10.00V 3, the output current: 4.00MA ~ 20.00MA / 0.00mA ~ 20.00mA 4, the input mode: J1 pads on the circuit board: open (0 ~ 5V); Short (0 ~ 10V) default is open. 5, the output mode: J2 pads on the circuit board: open (output 4.00mA ~ 20.00mA); Short (output 0.00mA ~ 20.00mA), the default is open. 6, the control mode: input voltage is converted to the corresponding current 7. Applications: voltage signal convert to current signal; remote data acquisition and control equipment; 8, size :( length) 26mm * (width) 25mm * (high) 7mm 9, the module interface: 24V: positive power supply connector (9V ~ 24V). G: Power ground to the interface. IN: signal input interface (0.00V ~ 5.00V / 0.00V ~ 10.00V) G: Power ground to the interface. OUT: signal output interface (4.00MA ~ 20.00MA / 0.00mA ~ 20.00mA) G: Power ground to the interface. Note: When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V. Package: 1 x Voltage Convert Current Module 0-5V Turn 4-20MA Linear Transformation Transmitter Module
