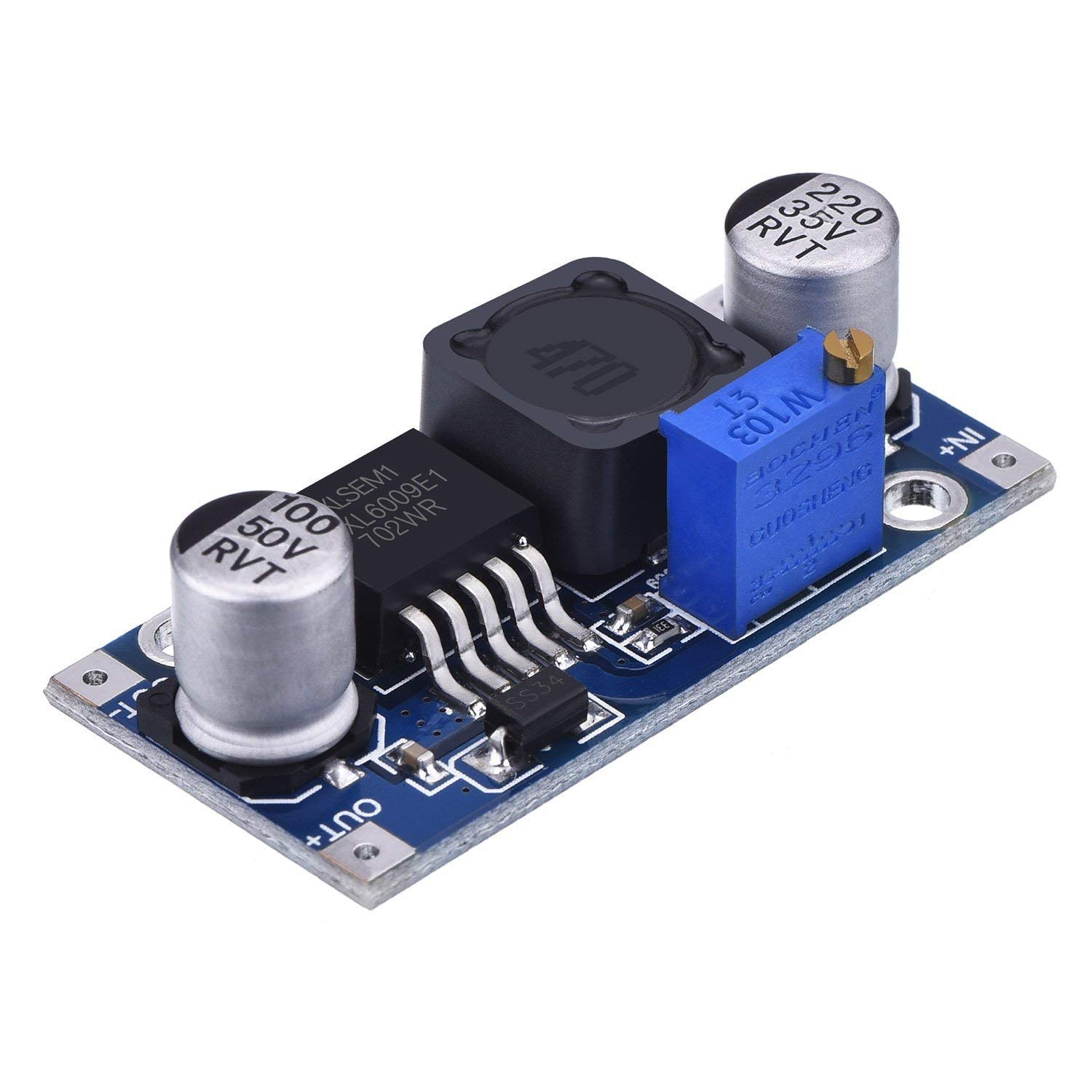

Fasizi XL6009 DC-DC Adjustable 4A Step-up Module, 3-30V Input to 5-35V Output Voltage Boost Converter Board, 400KHz Frequency, 5pcs

• XL6009 DC-DC Adjustable step-up power converter module, the step-up circuit board is a good efficiency non-isolated boost module
• Input: DC 3 V to 30 V, optimum operating voltage range: 5V to 30V; Output: DC 5 V to 35 V voltage is continuously adjustable, maximum output current is 4 A
• Step-up boost converter module: they can fix on the emergency lamp or other electronic devices between the corresponding voltage range, DIY an output adjustable mobile power, boost charger, etc.
• This is a good-performance 400KHz 4A switch currency step-up boost module;

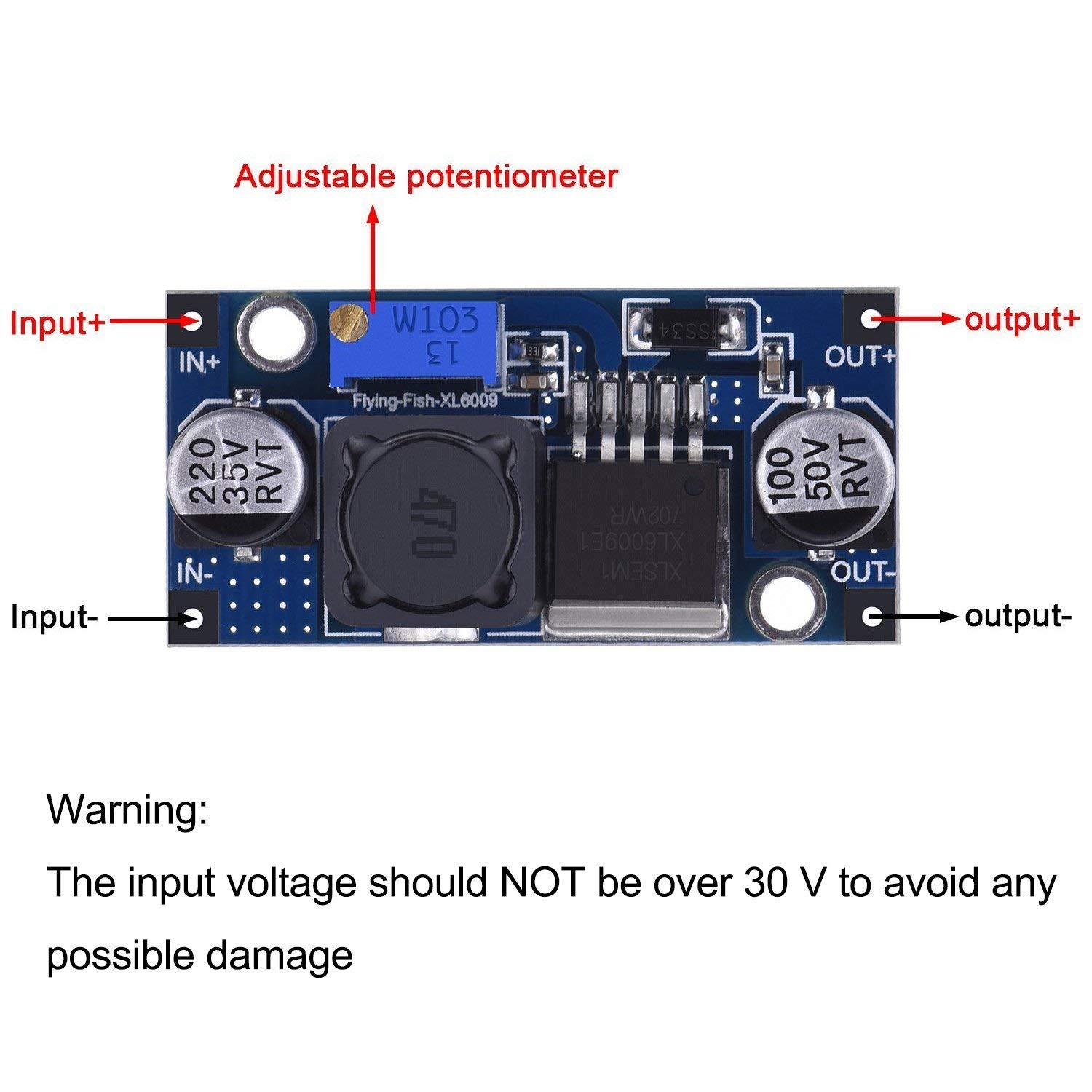

• Warning: this is only for the increasing output voltage; The input voltage should not be over 30 V to avoid any possible damage

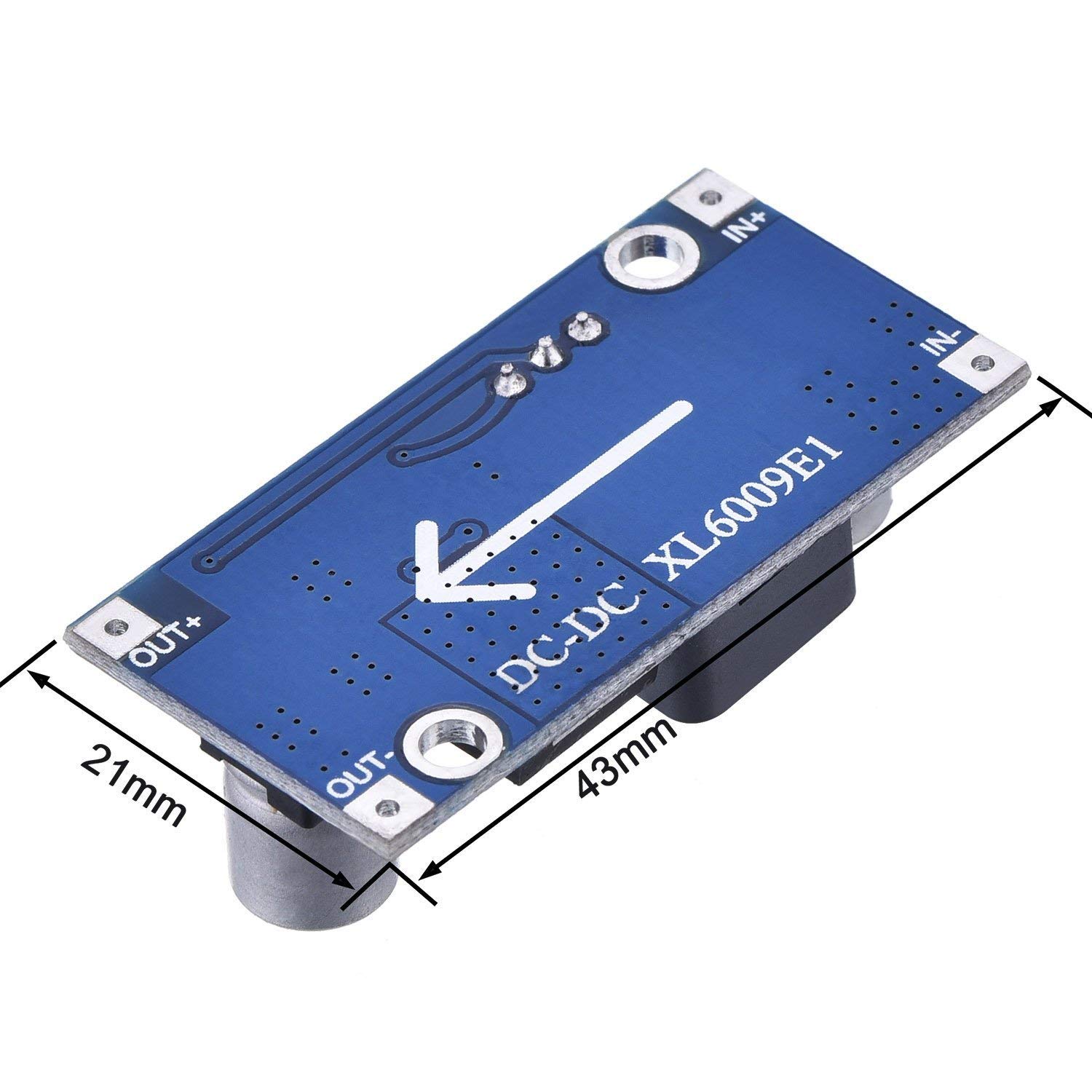

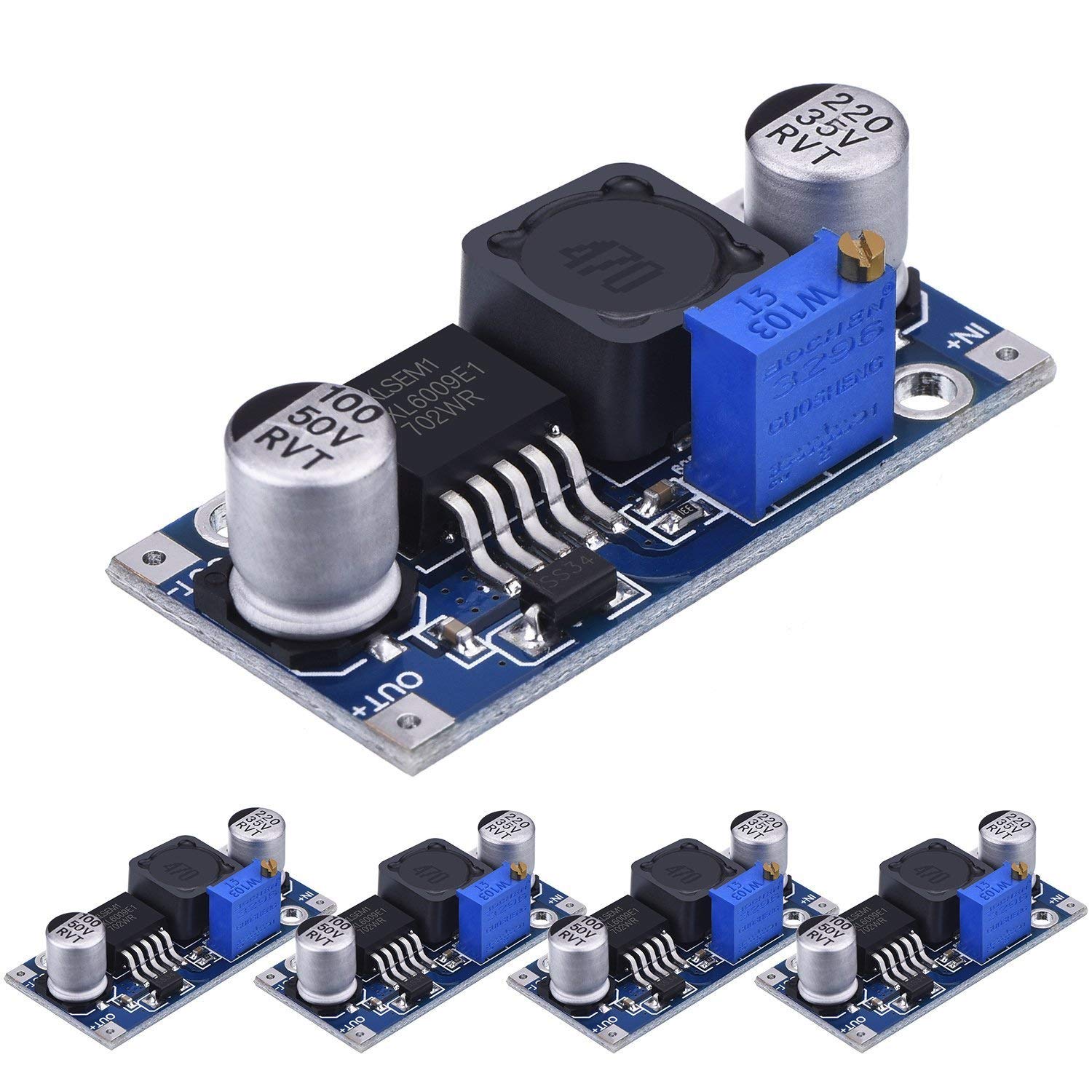

Specifications Nature of the module: unfenced step-up (Boost) Rectifying way: synchronous rectifier Input range: 3 V to 32 V Output range: 5 V to 35 V Input current 4 A (maximum), no-load 18 mA (5 V input, 8 V output, no-load less than 18 mA. The higher the voltage, the greater the no-load current) Conversion efficiency: <94 % (the greater the pressure difference, the lower the efficiency) Switching frequency: 400 KHZ Output ripple: 50 mV (the higher the voltage, current, the ripple is larger) Load regulation: plus or minus 0.5% Voltage regulation: plus or minus 0.5% Working temperature: - 40 ℃ to + 85 ℃ Overall dimensions: 43 mm x 21 mm to 14 mm (length x width x height) Attention: do not plug this booster to your project before adjusting the potentiometer. Package includes: 5 x DC-DC Step-up module
